Toyota Corolla sed/wg (ukp) ZZE120 ACCELERATOR LINK

ZZE120L-DWMDKW (2002)

Toyota Corolla Sed/Wg (Ukp)

Production Aug 2002 - Feb 2007

Engine 4ZZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

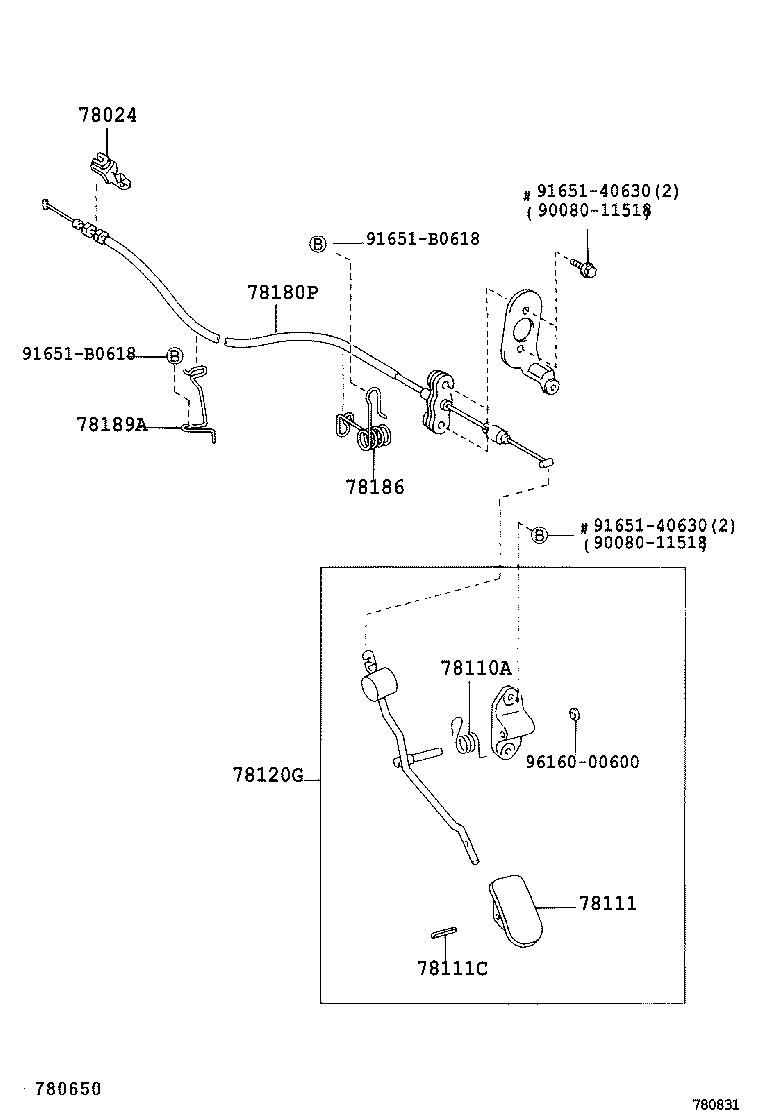

Click highlighted areas on diagram

Part #	Description	Period	Qty
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-12090	ZZE12#..UKP	01/2002 - 06/2004	1
78024-12090	ZZE120..UKP	06/2004 - 12/2999	1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26036	ZZE12#..UKP..LHD	01/2002 - 06/2004	1
90508-26036	ZZE120..UKP..LHD	06/2004 - 12/2999	1
78111 - PEDAL, ACCELERATOR
78111-02030	ZZE12#..UKP..LHD..5F	01/2002 - 06/2004	1
78111-02030	ZZE120..UKP..LHD	06/2004 - 12/2999	1
78111C - PIN (FOR ACCELERATOR PEDAL)
90254-04019	ZZE120..UKP;ZZE121..UKP..RHD;ZZE121..UKP..LHD..5F	01/2002 - 06/2004	1
90254-04019	ZZE120..UKP;CDE120,NDE120,ZZE121..UKP..LHD	06/2004 - 12/2999	1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-02090	ZZE120..UKP..LHD	06/2004 - 12/2999	1
78120-02090	ZZE12#..UKP..LHD..5F	01/2002 - 06/2004	1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-02250	ZZE12#..UKP..LHD FRAME NO.=EXXXXXX	07/2003 - 06/2004	1
78180-02320	ZZE120..UKP..LHD FRAME NO.=RXXXXXX	06/2004 - 12/2999	1
78180-02250	ZZE120..UKP..LHD FRAME NO.=EXXXXXX	06/2004 - 12/2999	1
78180-02250	ZZE12#..UKP..LHD	01/2002 - 07/2003	1
78180-02320	ZZE12#..UKP..LHD FRAME NO.=RXXXXXX	07/2003 - 06/2004	1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-02080	ZZE12#..UKP..LHD	01/2002 - 06/2004	1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-13040	ZZE12#..UKP..LHD	01/2002 - 06/2004	1
78186-13040	ZZE120..UKP..LHD	06/2004 - 12/2999	1
78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2
78189-12100	ZZE120..UKP	06/2004 - 12/2999	1
78189-12100	ZZE12#..UKP	01/2002 - 06/2004	1
Common parts
90080-11518
91651-40630
91651-B0618
96160-00600
