ZZE120L-DWMDKW (2002)
Toyota Corolla Sed/Wg (Ukp)
(0208- )UKP..WG

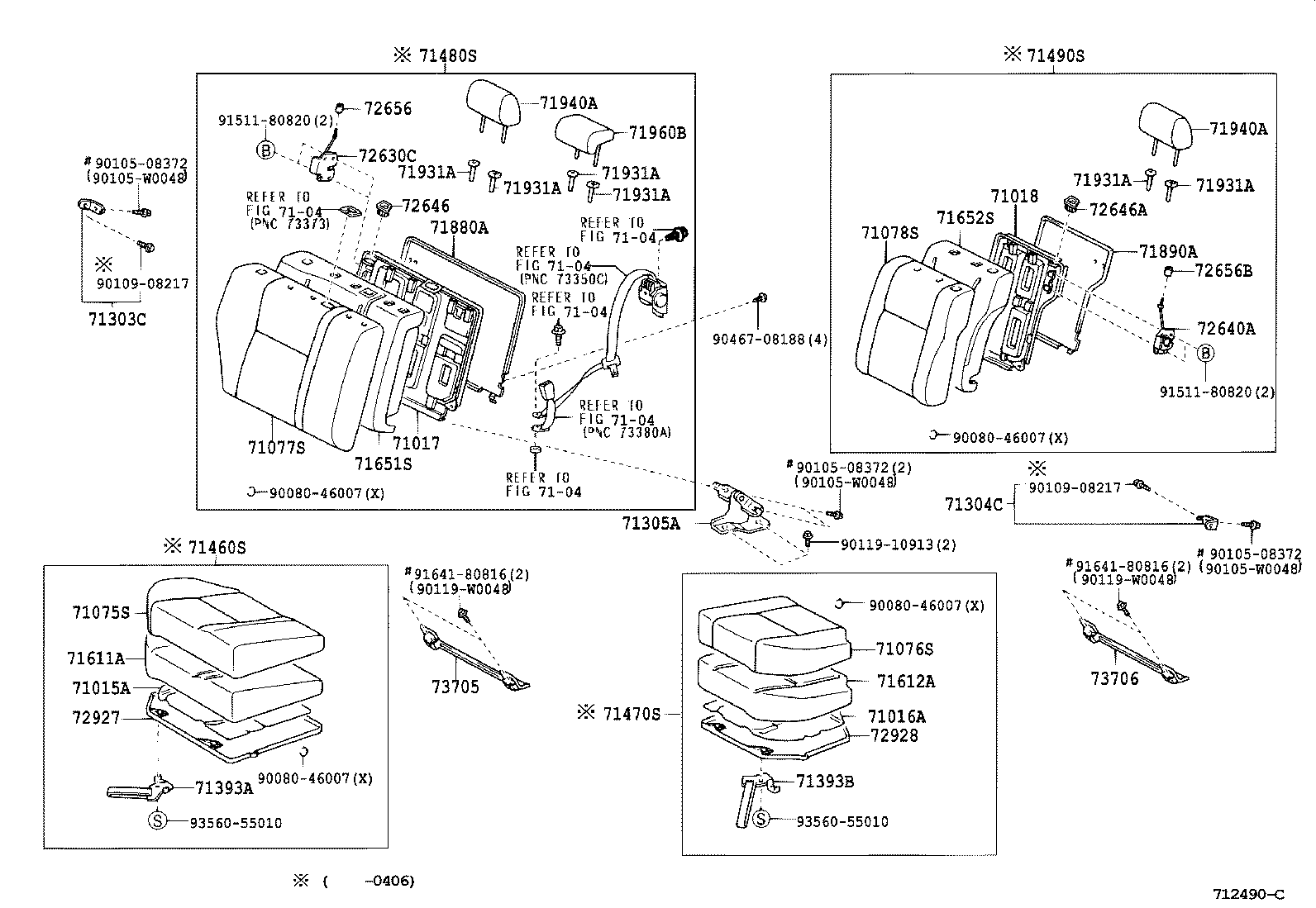

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-02030 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 71015-02030 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-02030 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 71016-02030 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-02100 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 71017-02100 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-02110 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 71018-02110 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-02670B0 |
CDE120,ZZE12#..UKP..WG..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71075-02D10B1 |
CDE120,NDE120,ZZE12#..UKP..WG..TERRA SEAT = TYPE C-*104,DARK GREY,TRIM1# |
1 | ||
| 71075-02870B0 |
CDE120,NDE120,ZZE12#..UKP..WG..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-02110B0 |
CDE120,ZZE12#..UKP..WG..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71076-02370B1 |
CDE120,NDE120,ZZE12#..UKP..WG..TERRA SEAT = TYPE C-*104,DARK GREY,TRIM1# |
1 | ||
| 71076-02190B0 |
CDE120,NDE120,ZZE12#..UKP..WG..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-02A90B0 |
CDE120,NDE120,ZZE12#..UKP..WG..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71077-02740B0 |
CDE120,ZZE12#..UKP..WG..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71077-02E80B1 |
CDE120,NDE120,ZZE12#..UKP..WG..TERRA SEAT = TYPE C-*104,DARK GREY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-02690B0 |
CDE120,NDE120,ZZE12#..UKP..WG..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71078-02520B0 |
CDE120,ZZE12#..UKP..WG..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71078-02B00B1 |
CDE120,NDE120,ZZE12#..UKP..WG..TERRA SEAT = TYPE C-*104,DARK GREY,TRIM1# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-02060 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 71303-02060 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71303-02060 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 71303-02060 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-02060 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 71305-02060 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 71393A - BAND, REAR SEAT CUSHION, RH | ||||
| 71393-02040C0 |
CDE120,ZZE12#..UKP..WG BLACK,TRIM1# |
1 | ||
| 71393-02040C0 |
CDE120,NDE120,ZZE12#..UKP..WG BLACK,TRIM1# |
1 | ||
| 71393B - BAND, REAR SEAT CUSHION, LH | ||||
| 71393-02050C0 |
CDE120,NDE120,ZZE12#..UKP..WG BLACK,TRIM1# |
1 | ||
| 71393-02050C0 |
CDE120,ZZE12#..UKP..WG BLACK,TRIM1# |
1 | ||
| 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71460-02670B0 |
CDE120,ZZE12#..UKP..WG..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71470-02110B0 |
CDE120,ZZE12#..UKP..WG..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-02710B1 |
CDE120,ZZE12#..UKP..WG..TERRA DK. GRAY,TRIM1# |
1 | ||
| 71480-02710B2 |
CDE120,ZZE12#..UKP..WG..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-02500B0 |
CDE120,ZZE12#..UKP..WG..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71490-02500B1 |
CDE120,ZZE12#..UKP..WG..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-02050 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 71611-02050 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-02030 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 71612-02030 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-02150 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 71651-02150 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-02150 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 71652-02150 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH | ||||
| 71885-02040C0 |
CDE120,NDE120,ZZE12#..UKP..WG BLACK,TRIM1# |
1 | ||
| 71885-02040B0 |
CDE120,ZZE12#..UKP..WG DK.GRAY,TRIM1# |
1 | ||
| 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH | ||||
| 71886-02040C0 |
CDE120,NDE120,ZZE12#..UKP..WG BLACK,TRIM1# |
1 | ||
| 71886-02040B0 |
CDE120,ZZE12#..UKP..WG DK.GRAY,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-02020B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71970-02020B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71956-02020B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71970-02020B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-02020B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71970-02020B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71956-02020B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71970-02020B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-02020B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71970-02020B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71956-02020B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71970-02020B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-02020B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71970-02020B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71956-02020B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71970-02020B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-02020B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71970-02020B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71956-02020B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71970-02020B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-02020B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71970-02020B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71956-02020B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71970-02020B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-02300B2 |
CDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1# |
2 | ||
| 71940-02500B0 |
CDE120,NDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-02300B2 |
CDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1# |
2 | ||
| 71940-02500B0 |
CDE120,NDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-02270B0 |
CDE120,NDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71960-02270B0 |
CDE120,NDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM15 |
1 | ||
| 71960-02080B0 |
CDE120,ZZE12#..UKP..TERRA DARK GRAY,TRIM1# |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-13140 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 72630-13140 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-13130 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 72640-13130 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-02040B2 |
CDE120,ZZE12#..UKP..WG DK.GRAY,TRIM1# |
1 | ||
| 72646-02040B2 |
CDE120,NDE120,ZZE12#..UKP..WG DK.GRAY,TRIM1# |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-02040B2 |
CDE120,NDE120,ZZE12#..UKP..WG DK.GRAY,TRIM1# |
1 | ||
| 72646-02040B2 |
CDE120,ZZE12#..UKP..WG DK.GRAY,TRIM1# |
1 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-32030B3 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72661-05010B3 |
CDE120,NDE120,ZZE12#..UKP..WG DK.GRAY,TRIM1# |
1 | ||
| 72661-05010B3 |
CDE120,ZZE12#..UKP..WG DK.GRAY,TRIM1# |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-32030B3 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72661-05010B3 |
CDE120,NDE120,ZZE12#..UKP..WG DK.GRAY,TRIM1# |
1 | ||
| 72661-05010B3 |
CDE120,ZZE12#..UKP..WG DK.GRAY,TRIM1# |
1 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-02040 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 72927-02040 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-02040 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 72928-02040 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-02050 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 73705-02050 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-02040 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 73706-02040 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| Common parts | ||||
| 90080-46007 | ||||
| 90105-08372 | ||||
| 90105-W0048 | ||||
| 90109-08217 | ||||
| 90119-10913 | ||||
| 90119-W0048 | ||||
| 90467-08188 | ||||
| 91511-80820 | ||||
| 91641-80816 | ||||
| 93560-55010 | ||||
| Linked diagrams | ||||
| 7104 | ||||
