ZZE120L-DWMDKW (2002)
Toyota Corolla Sed/Wg (Ukp)

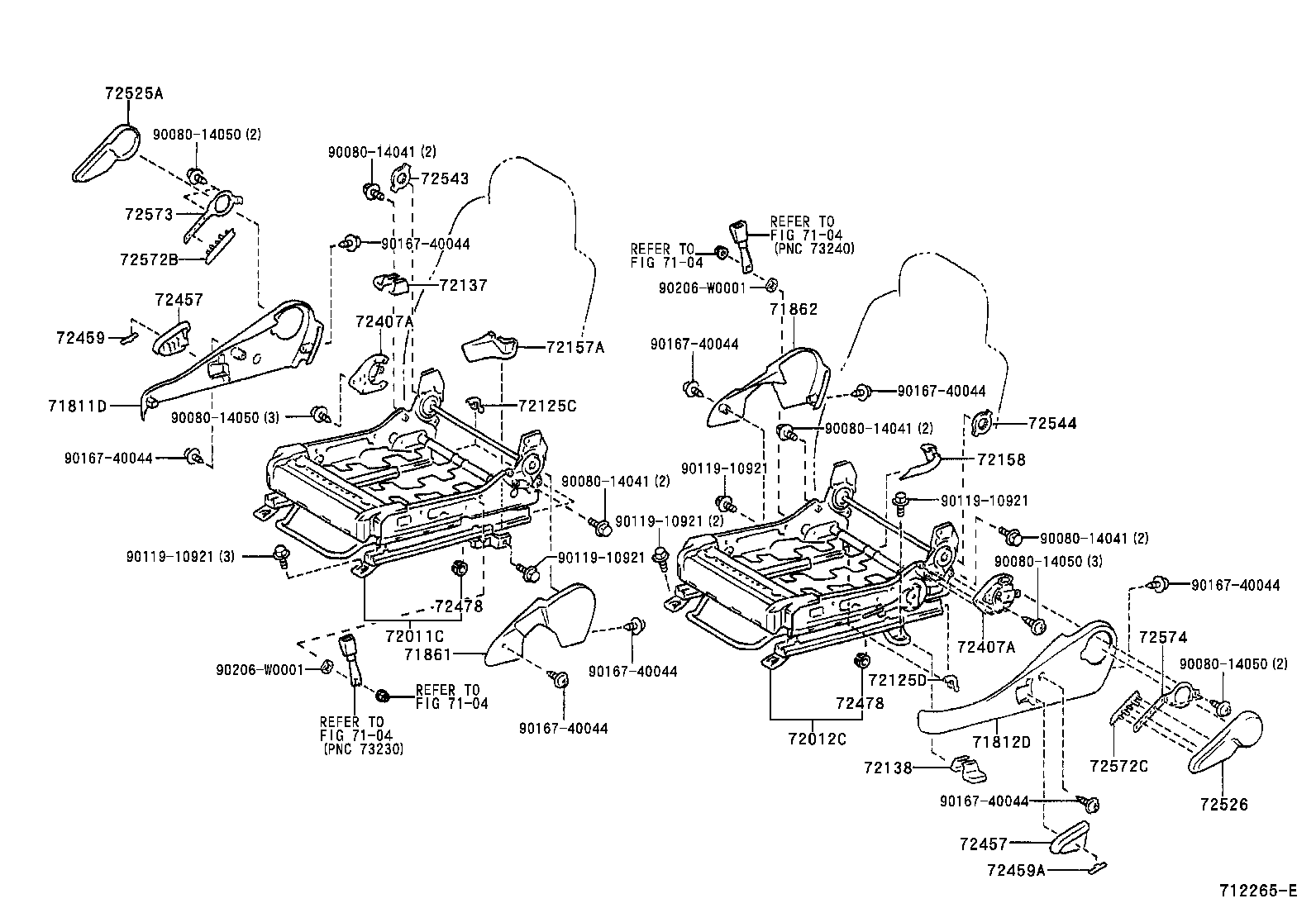

ILLUST NO. 1 OF 2(0201-0406)UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-02650B2 |
CDE120,ZZE12#..UKP..LHD..TERRA W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71071-02C90B0 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-02640B2 |
CDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71071-02G60B1 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE C-*104,DARK GREY,TRIM1# |
1 | ||
| 71071-02D00B0 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71071-02M20B1 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE C-*104 & W(SEAT HEATER),DARK GREY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-02640B2 |
CDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71071-02650B2 |
CDE120,ZZE12#..UKP..LHD..TERRA W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71072-02850B0 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71071-02E70B0 |
CDE120,ZZE12#..UKP..LHD..TERRA W(VERTICAL SEAT ADJUSTER),DK.GRAY,TRIM1# |
1 | ||
| 71072-02F70B1 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE C-*104 & W(SEAT HEATER),DARK GREY,TRIM1# |
1 | ||
| 71072-02880B0 |
CDE120,ZZE12#..UKP..LHD..TERRA W(SEAT HEATER & VERTICAL SEAT AJDUSTER),DK.GRAY,TRIM1# |
1 | ||
| 71071-02E60B0 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-02M30B1 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE C-*104,DARK GREY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71027-02190B2 |
CDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71027-02210B2 |
CDE120,ZZE12#..UKP..LHD..TERRA W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71027-02200B2 |
CDE120,ZZE12#..UKP..TERRA W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71073-02M30B1 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE C-*104 & W(SEAT HEATER),DARK GREY,TRIM1# |
1 | ||
| 71027-02220B2 |
CDE120,ZZE12#..UKP..LHD..TERRA W(SRS SIDE AIR BAG & SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71073-02M20B1 |
CDE120,NDE120,ZZE12#..UKP..TERRA SEAT = TYPE C-*104,DARK GREY,TRIM1# |
1 | ||
| 71073-02B90B0 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71073-02B80B0 |
CDE120,NDE120,ZZE12#..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-02820B2 |
CDE120,ZZE12#..UKP..TERRA W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71074-02C90B0 |
CDE120,NDE120,ZZE12#..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71074-02830B2 |
CDE120,ZZE12#..UKP..LHD..TERRA W(SRS SIDE AIR BAG & SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71027-02210B2 |
CDE120,ZZE12#..UKP..LHD..TERRA W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71027-02190B2 |
CDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71074-02N20B1 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE C-*104 & W(SEAT HEATER),DARK GREY,TRIM1# |
1 | ||
| 71074-02N10B1 |
CDE120,NDE120,ZZE12#..UKP..TERRA SEAT = TYPE C-*104,DARK GREY,TRIM1# |
1 | ||
| 71074-02D00B0 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-02130 |
CDE120,ZZE12#..UKP |
1 | ||
| 71502-02030 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-02130 |
CDE120,ZZE12#..UKP |
1 | ||
| 71511-02260 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-02190 |
CDE120,ZZE12#..UKP W/O(SRS SIDE AIR BAG) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-02190 |
CDE120,ZZE12#..UKP W/O(SRS SIDE AIR BAG) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-02080 |
CDE120,ZZE12#..UKP *153 |
1 | ||
| 71630-02240 |
CDE120,ZZE12#..UKP *154 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-02150 |
CDE120,ZZE12#..UKP *154 |
1 | ||
| 71640-02050 |
CDE120,ZZE12#..UKP *153 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02400B2 |
CDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71910-02590B0 |
CDE120,NDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02400B2 |
CDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71910-02590B0 |
CDE120,NDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02070B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71931-02050B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-02050B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02070B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71931-02050B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-02050B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02070B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71931-02050B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-02050B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02070B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71931-02050B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-02050B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-02020 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 87510-02020 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-02020 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 87510-02020 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87510-02010 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 87510-02010 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87510-02010 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 87510-02010 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| Common parts | ||||
| 90080-46007 | ||||
ILLUST NO. 1 OF 2(0201-0406)UKP
W(SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-02650B2 |
CDE120,ZZE12#..UKP..LHD..TERRA W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71071-02C90B0 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-02640B2 |
CDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71071-02G60B1 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE C-*104,DARK GREY,TRIM1# |
1 | ||
| 71071-02D00B0 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71071-02M20B1 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE C-*104 & W(SEAT HEATER),DARK GREY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-02640B2 |
CDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71071-02650B2 |
CDE120,ZZE12#..UKP..LHD..TERRA W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71072-02850B0 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71071-02E70B0 |
CDE120,ZZE12#..UKP..LHD..TERRA W(VERTICAL SEAT ADJUSTER),DK.GRAY,TRIM1# |
1 | ||
| 71072-02F70B1 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE C-*104 & W(SEAT HEATER),DARK GREY,TRIM1# |
1 | ||
| 71072-02880B0 |
CDE120,ZZE12#..UKP..LHD..TERRA W(SEAT HEATER & VERTICAL SEAT AJDUSTER),DK.GRAY,TRIM1# |
1 | ||
| 71071-02E60B0 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-02M30B1 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE C-*104,DARK GREY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71027-02190B2 |
CDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71027-02210B2 |
CDE120,ZZE12#..UKP..LHD..TERRA W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71027-02200B2 |
CDE120,ZZE12#..UKP..TERRA W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71073-02M30B1 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE C-*104 & W(SEAT HEATER),DARK GREY,TRIM1# |
1 | ||
| 71027-02220B2 |
CDE120,ZZE12#..UKP..LHD..TERRA W(SRS SIDE AIR BAG & SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71073-02M20B1 |
CDE120,NDE120,ZZE12#..UKP..TERRA SEAT = TYPE C-*104,DARK GREY,TRIM1# |
1 | ||
| 71073-02B90B0 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71073-02B80B0 |
CDE120,NDE120,ZZE12#..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-02820B2 |
CDE120,ZZE12#..UKP..TERRA W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71074-02C90B0 |
CDE120,NDE120,ZZE12#..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71074-02830B2 |
CDE120,ZZE12#..UKP..LHD..TERRA W(SRS SIDE AIR BAG & SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71027-02210B2 |
CDE120,ZZE12#..UKP..LHD..TERRA W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71027-02190B2 |
CDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71074-02N20B1 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE C-*104 & W(SEAT HEATER),DARK GREY,TRIM1# |
1 | ||
| 71074-02N10B1 |
CDE120,NDE120,ZZE12#..UKP..TERRA SEAT = TYPE C-*104,DARK GREY,TRIM1# |
1 | ||
| 71074-02D00B0 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-02800B2 |
CDE120,ZZE12#..UKP..LHD..TERRA W(SRS SIDE AIR BAG & SEAT HEATER),DK.GRAY,TRIM1#,*153 |
1 | ||
| 71430-02F20B0 |
CDE120,ZZE12#..UKP..LHD..TERRA W(SRS SIDE AIR BAG & SEAT HEATER),DK.GRAY,TRIM1#,*154 |
1 | ||
| 71430-02R60B1 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE C-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71430-02J90B0 |
CDE120,NDE120,ZZE12#..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71430-02K00B0 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71430-02780B2 |
CDE120,ZZE12#..UKP..TERRA W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#,*153 |
1 | ||
| 71430-02F00B0 |
CDE120,ZZE12#..UKP..TERRA W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#,*154 |
1 | ||
| 71430-02R70B1 |
CDE120,NDE120,ZZE12#..UKP..TERRA SEAT = TYPE C-*104,DK.GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-02740B2 |
CDE120,ZZE12#..UKP..TERRA W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#,*153 |
1 | ||
| 71440-02C30B0 |
CDE120,ZZE12#..UKP..TERRA W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#,*154 |
1 | ||
| 71440-02760B2 |
CDE120,ZZE12#..UKP..LHD..TERRA W(SRS SIDE AIR BAG & SEAT HEATER),DK.GRAY,TRIM1#,*153 |
1 | ||
| 71440-02F40B0 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71440-02Q20B1 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE C-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71440-02F30B0 |
CDE120,NDE120,ZZE12#..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71440-02C50B0 |
CDE120,ZZE12#..UKP..LHD..TERRA W(SRS SIDE AIR BAG & SEAT HEATER),DK.GRAY,TRIM1#,*154 |
1 | ||
| 71440-02Q30B1 |
CDE120,NDE120,ZZE12#..UKP..TERRA SEAT = TYPE C-*104,DK.GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-02130 |
CDE120,ZZE12#..UKP |
1 | ||
| 71502-02030 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-02130 |
CDE120,ZZE12#..UKP |
1 | ||
| 71511-02260 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-02080 |
CDE120,ZZE12#..UKP *153 |
1 | ||
| 71630-02240 |
CDE120,ZZE12#..UKP *154 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-02150 |
CDE120,ZZE12#..UKP *154 |
1 | ||
| 71640-02050 |
CDE120,ZZE12#..UKP *153 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02400B2 |
CDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71910-02590B0 |
CDE120,NDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02400B2 |
CDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71910-02590B0 |
CDE120,NDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02070B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71931-02050B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-02050B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02070B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71931-02050B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-02050B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02070B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71931-02050B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-02050B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02070B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71931-02050B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-02050B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-02020 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 87510-02020 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-02020 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 87510-02020 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87510-02010 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 87510-02010 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87510-02010 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 87510-02010 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| Common parts | ||||
| 90080-46007 | ||||
ILLUST NO. 2 OF 2(0201-0406)UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-02190B0 |
CDE120,ZZE12#..UKP..LHD W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#,*154 |
1 | ||
| 71811-02170B0 |
CDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1#,*154 |
1 | ||
| 71811-02130B0 |
CDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1#,*153 |
1 | ||
| 71811-02190B0 |
CDE120,NDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 71811-02150B0 |
CDE120,ZZE12#..UKP..LHD W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#,*153 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-02170B0 |
CDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1#,*153 |
1 | ||
| 71812-02190B0 |
CDE120,ZZE12#..UKP..LHD W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#,*153 |
1 | ||
| 71812-02210B0 |
CDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1#,*154 |
1 | ||
| 71812-02230B0 |
CDE120,ZZE12#..UKP..LHD W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#,*154 |
1 | ||
| 71812-02230B0 |
CDE120,NDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-02060B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 71861-02060B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-02060B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 71862-02060B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-02020 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 72010-02130 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-02060 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 72020-02190 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 72125C - COVER, SEAT TRACK LOCK PLATE, NO.1 | ||||
| 72125-02010 |
CDE120,ZZE12#..UKP |
2 | ||
| 72125-02010 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-02010 |
CDE120,ZZE12#..UKP |
2 | ||
| 72125-02010 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 72137-02070 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 72138-02060 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-02070 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72157-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-02070 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72158-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 72407A - HOUSING SUB-ASSY, FRONT SEAT RECLINING, LH | ||||
| 72407-02010 |
CDE120,ZZE12#..UKP RH |
1 | ||
| 72407-02020 |
CDE120,NDE120,ZZE12#..UKP LH |
1 | ||
| 72407-02010 |
CDE120,NDE120,ZZE12#..UKP RH |
1 | ||
| 72407-02020 |
CDE120,ZZE12#..UKP LH |
1 | ||
| 72407A - HOUSING SUB-ASSY, FRONT SEAT RECLINING, LH | ||||
| 72407-02010 |
CDE120,ZZE12#..UKP RH |
1 | ||
| 72407-02020 |
CDE120,NDE120,ZZE12#..UKP LH |
1 | ||
| 72407-02010 |
CDE120,NDE120,ZZE12#..UKP RH |
1 | ||
| 72407-02020 |
CDE120,ZZE12#..UKP LH |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-0F020B0 |
CDE120,NDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 72457-02040B0 |
CDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-0F020B0 |
CDE120,NDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 72457-02040B0 |
CDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 72459A - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-02010B1 |
CDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 72459-02010B1 |
CDE120,NDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 72478 - BUSH, VERTICAL ADJUSTER | ||||
| 72478-02010 |
CDE120,ZZE12#..UKP |
2 | ||
| 72478 - BUSH, VERTICAL ADJUSTER | ||||
| 72478-02010 |
CDE120,ZZE12#..UKP |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-02040B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72525-0F010B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72525-02041B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-02041B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72526-0F010B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72526-02040B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72543 - PLATE, RECLINING CONTROL, RH | ||||
| 72543-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 72543-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72544 - PLATE, RECLINING CONTROL, LH | ||||
| 72543-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 72543-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72572B - CAP, RECLINING ADJUSTER KNOB, RH | ||||
| 72572-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72572-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 72572C - CAP, RECLINING ADJUSTER KNOB, LH | ||||
| 72572-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 72572-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72573 - LEVER, RECLINING CONTROL, RH | ||||
| 72573-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 72573-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72574 - LEVER, RECLINING CONTROL, LH | ||||
| 72574-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72574-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 90080-14041 | ||||
| 90080-14050 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90206-W0001 | ||||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 1 OF 2(0406- )UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-02650B2 |
CDE120,ZZE12#..UKP..LHD..TERRA W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71071-02C90B0 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-02640B2 |
CDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71071-02G60B1 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE C-*104,DARK GREY,TRIM1# |
1 | ||
| 71071-02D00B0 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71071-02M20B1 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE C-*104 & W(SEAT HEATER),DARK GREY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-02640B2 |
CDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71071-02650B2 |
CDE120,ZZE12#..UKP..LHD..TERRA W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71072-02850B0 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71071-02E70B0 |
CDE120,ZZE12#..UKP..LHD..TERRA W(VERTICAL SEAT ADJUSTER),DK.GRAY,TRIM1# |
1 | ||
| 71072-02F70B1 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE C-*104 & W(SEAT HEATER),DARK GREY,TRIM1# |
1 | ||
| 71072-02880B0 |
CDE120,ZZE12#..UKP..LHD..TERRA W(SEAT HEATER & VERTICAL SEAT AJDUSTER),DK.GRAY,TRIM1# |
1 | ||
| 71071-02E60B0 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-02M30B1 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE C-*104,DARK GREY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71027-02190B2 |
CDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71027-02210B2 |
CDE120,ZZE12#..UKP..LHD..TERRA W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71027-02200B2 |
CDE120,ZZE12#..UKP..TERRA W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71073-02M30B1 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE C-*104 & W(SEAT HEATER),DARK GREY,TRIM1# |
1 | ||
| 71027-02220B2 |
CDE120,ZZE12#..UKP..LHD..TERRA W(SRS SIDE AIR BAG & SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71073-02M20B1 |
CDE120,NDE120,ZZE12#..UKP..TERRA SEAT = TYPE C-*104,DARK GREY,TRIM1# |
1 | ||
| 71073-02B90B0 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71073-02B80B0 |
CDE120,NDE120,ZZE12#..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-02820B2 |
CDE120,ZZE12#..UKP..TERRA W(SRS SIDE AIR BAG),DK.GRAY,TRIM1# |
1 | ||
| 71074-02C90B0 |
CDE120,NDE120,ZZE12#..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71074-02830B2 |
CDE120,ZZE12#..UKP..LHD..TERRA W(SRS SIDE AIR BAG & SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71027-02210B2 |
CDE120,ZZE12#..UKP..LHD..TERRA W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71027-02190B2 |
CDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71074-02N20B1 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE C-*104 & W(SEAT HEATER),DARK GREY,TRIM1# |
1 | ||
| 71074-02N10B1 |
CDE120,NDE120,ZZE12#..UKP..TERRA SEAT = TYPE C-*104,DARK GREY,TRIM1# |
1 | ||
| 71074-02D00B0 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-02800B2 |
CDE120,ZZE12#..UKP..LHD..TERRA W(SRS SIDE AIR BAG & SEAT HEATER),DK.GRAY,TRIM1#,*153 |
1 | ||
| 71430-02F20B0 |
CDE120,ZZE12#..UKP..LHD..TERRA W(SRS SIDE AIR BAG & SEAT HEATER),DK.GRAY,TRIM1#,*154 |
1 | ||
| 71430-02R60B1 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE C-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71430-02J90B0 |
CDE120,NDE120,ZZE12#..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71430-02K00B0 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71430-02780B2 |
CDE120,ZZE12#..UKP..TERRA W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#,*153 |
1 | ||
| 71430-02F00B0 |
CDE120,ZZE12#..UKP..TERRA W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#,*154 |
1 | ||
| 71430-02R70B1 |
CDE120,NDE120,ZZE12#..UKP..TERRA SEAT = TYPE C-*104,DK.GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-02740B2 |
CDE120,ZZE12#..UKP..TERRA W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#,*153 |
1 | ||
| 71440-02C30B0 |
CDE120,ZZE12#..UKP..TERRA W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#,*154 |
1 | ||
| 71440-02760B2 |
CDE120,ZZE12#..UKP..LHD..TERRA W(SRS SIDE AIR BAG & SEAT HEATER),DK.GRAY,TRIM1#,*153 |
1 | ||
| 71440-02F40B0 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71440-02Q20B1 |
CDE120,NDE120,ZZE12#..UKP..LHD..TERRA SEAT = TYPE C-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71440-02F30B0 |
CDE120,NDE120,ZZE12#..UKP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71440-02C50B0 |
CDE120,ZZE12#..UKP..LHD..TERRA W(SRS SIDE AIR BAG & SEAT HEATER),DK.GRAY,TRIM1#,*154 |
1 | ||
| 71440-02Q30B1 |
CDE120,NDE120,ZZE12#..UKP..TERRA SEAT = TYPE C-*104,DK.GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-02130 |
CDE120,ZZE12#..UKP |
1 | ||
| 71502-02030 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-02130 |
CDE120,ZZE12#..UKP |
1 | ||
| 71511-02260 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02400B2 |
CDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71910-02590B0 |
CDE120,NDE120,ZZE12#..UKP..TERRA DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02070B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71931-02050B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-02050B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02070B0 |
CDE120,NDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
CDE120,ZZE12#..UKP W(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71931-02050B0 |
CDE120,NDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-02050B0 |
CDE120,ZZE12#..UKP W/O(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 72407A - HOUSING SUB-ASSY, FRONT SEAT RECLINING, LH | ||||
| 72407-02010 |
CDE120,ZZE12#..UKP RH |
1 | ||
| 72407-02020 |
CDE120,NDE120,ZZE12#..UKP LH |
1 | ||
| 72407-02010 |
CDE120,NDE120,ZZE12#..UKP RH |
1 | ||
| 72407-02020 |
CDE120,ZZE12#..UKP LH |
1 | ||
| 72543 - PLATE, RECLINING CONTROL, RH | ||||
| 72543-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 72543-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72544 - PLATE, RECLINING CONTROL, LH | ||||
| 72543-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 72543-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72573 - LEVER, RECLINING CONTROL, RH | ||||
| 72573-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 72573-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72574 - LEVER, RECLINING CONTROL, LH | ||||
| 72574-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72574-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-02020 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 87510-02020 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-02020 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 87510-02020 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87510-02010 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 87510-02010 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87510-02010 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 87510-02010 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| Common parts | ||||
| 82666-21060 | ||||
| 90080-14041 | ||||
| 90080-14050 | ||||
| 90080-46007 | ||||
ILLUST NO. 2 OF 2(0406- )UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71051-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71051-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-02190B0 |
CDE120,ZZE12#..UKP..LHD W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#,*154 |
1 | ||
| 71811-02170B0 |
CDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1#,*154 |
1 | ||
| 71811-02130B0 |
CDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1#,*153 |
1 | ||
| 71811-02190B0 |
CDE120,NDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 71811-02150B0 |
CDE120,ZZE12#..UKP..LHD W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#,*153 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-02170B0 |
CDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1#,*153 |
1 | ||
| 71812-02190B0 |
CDE120,ZZE12#..UKP..LHD W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#,*153 |
1 | ||
| 71812-02210B0 |
CDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1#,*154 |
1 | ||
| 71812-02230B0 |
CDE120,ZZE12#..UKP..LHD W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#,*154 |
1 | ||
| 71812-02230B0 |
CDE120,NDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-02060B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 71861-02060B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-02060B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 71862-02060B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-02020 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 72010-02130 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-02060 |
CDE120,ZZE12#..UKP..LHD |
1 | ||
| 72020-02190 |
CDE120,NDE120,ZZE12#..UKP..LHD |
1 | ||
| 72125C - COVER, SEAT TRACK LOCK PLATE, NO.1 | ||||
| 72125-02010 |
CDE120,ZZE12#..UKP |
2 | ||
| 72125-02010 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-02010 |
CDE120,ZZE12#..UKP |
2 | ||
| 72125-02010 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 72137-02070 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 72138-02060 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-02070 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72157-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-02070 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72158-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-0F020B0 |
CDE120,NDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 72457-02040B0 |
CDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-0F020B0 |
CDE120,NDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 72457-02040B0 |
CDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 72459A - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-02010B1 |
CDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 72459-02010B1 |
CDE120,NDE120,ZZE12#..UKP..LHD DK.GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-02040B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72525-0F010B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72525-02041B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-02041B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72526-0F010B0 |
CDE120,NDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72526-02040B0 |
CDE120,ZZE12#..UKP DK.GRAY,TRIM1# |
1 | ||
| 72572B - CAP, RECLINING ADJUSTER KNOB, RH | ||||
| 72572-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 72572-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 72572C - CAP, RECLINING ADJUSTER KNOB, LH | ||||
| 72572-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 72572-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8421 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
