ZZE120L-DWMDKW (2002)
Toyota Corolla Sed/Wg (Ukp)

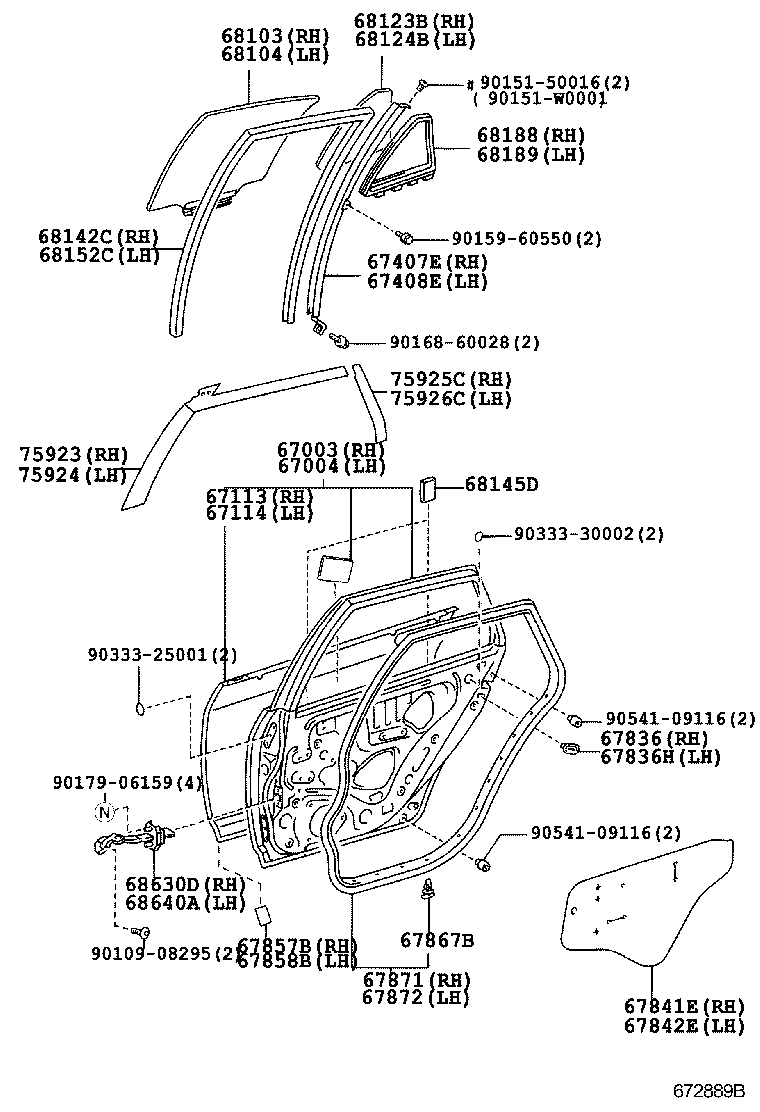

ILLUST NO. 2 OF 2(0208- )UKP..WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-02220 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 67003-02220 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-02230 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 67004-02230 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-02060 |
CDE120,ZZE12#..UKP |
1 | ||
| 67113-02060 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-02060 |
CDE120,ZZE12#..UKP |
1 | ||
| 67114-02060 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-13060 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 67407-13060 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-13060 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 67408-13060 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-12040 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 67836-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67836-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 67836-12040 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-02070 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 67841-02070 |
CDE120,ZZE12#..UKP |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 67842-02050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 67857-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 67858B - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 67858-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67867-12150 |
CDE120,NDE120,ZZE12#..UKP..WG |
32 | ||
| 67867-12150 |
CDE120,ZZE12#..UKP..WG |
32 | ||
| 67867-12150 |
CDE120,NDE120,ZZE12#..UKP..WG |
32 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-02110 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 67871-02110 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 67871-02111 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-02110 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 67872-02111 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 67872-02110 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-02130 |
CDE120,ZZE12#..UKP..WG *TT,T=3.1,GREEN |
1 | ||
| 68103-02130 |
CDE120,NDE120,ZZE12#..UKP..WG *TT,T=3.1,GREEN |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-02130 |
CDE120,ZZE12#..UKP..WG *TT,T=3.1,GREEN |
1 | ||
| 68104-02130 |
CDE120,NDE120,ZZE12#..UKP..WG *TT,T=3.1,GREEN |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-02120 |
CDE120,ZZE12#..UKP..WG *TT,T=3.1,GREEN |
1 | ||
| 68123-02120 |
CDE120,NDE120,ZZE12#..UKP..WG *TT,T=3.1,GREEN |
1 | ||
| 68123-13290 |
CDE120,ZZE12#..UKP..WG *TT,T=3.1,GREEN |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-13280 |
CDE120,ZZE12#..UKP..WG *TT,T=3.1,GREEN |
1 | ||
| 68124-02120 |
CDE120,ZZE12#..UKP..WG *TT,T=3.1,GREEN |
1 | ||
| 68124-02120 |
CDE120,NDE120,ZZE12#..UKP..WG *TT,T=3.1,GREEN |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-02100 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 68142-02100 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 68145D - CUSHION, REAR DOOR WINDOW | ||||
| 69759-12110 |
CDE120,NDE120,ZZE12#..UKP |
4 | ||
| 69759-12110 |
CDE120,ZZE12#..UKP |
4 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-02100 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 68152-02100 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-12310 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 68188-12310 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-12310 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 68189-12310 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-12090 |
CDE120,ZZE12#..UKP |
1 | ||
| 68630-12090 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-12050 |
CDE120,ZZE12#..UKP |
1 | ||
| 68640-12050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 75923 - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-02040 |
CDE120,ZZE12#..UKP..WG (L) |
1 | ||
| 75923-12040 |
CDE120,ZZE12#..UKP..WG (J) |
1 | ||
| 75923-02040 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 75924 - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-02040 |
CDE120,ZZE12#..UKP..WG (L) |
1 | ||
| 75924-02040 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 75924-12040 |
CDE120,ZZE12#..UKP..WG (J) |
1 | ||
| 75925C - TAPE, BLACK OUT, NO.3 RH | ||||
| 75925-02010 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 75925-12020 |
CDE120,ZZE12#..UKP..WG (J) |
1 | ||
| 75925-02010 |
CDE120,ZZE12#..UKP..WG (L) |
1 | ||
| 75926C - TAPE, BLACK OUT, NO.3 LH | ||||
| 75926-12020 |
CDE120,ZZE12#..UKP..WG (J) |
1 | ||
| 75926-02010 |
CDE120,ZZE12#..UKP..WG (L) |
1 | ||
| 75926-02010 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90151-50016 | ||||
| 90151-W0001 | ||||
| 90159-60550 | ||||
| 90168-60028 | ||||
| 90179-06159 | ||||
| 90333-25001 | ||||
| 90333-30002 | ||||
| 90541-09116 | ||||
