ZZE120L-DWMDKW (2002)
Toyota Corolla Sed/Wg (Ukp)

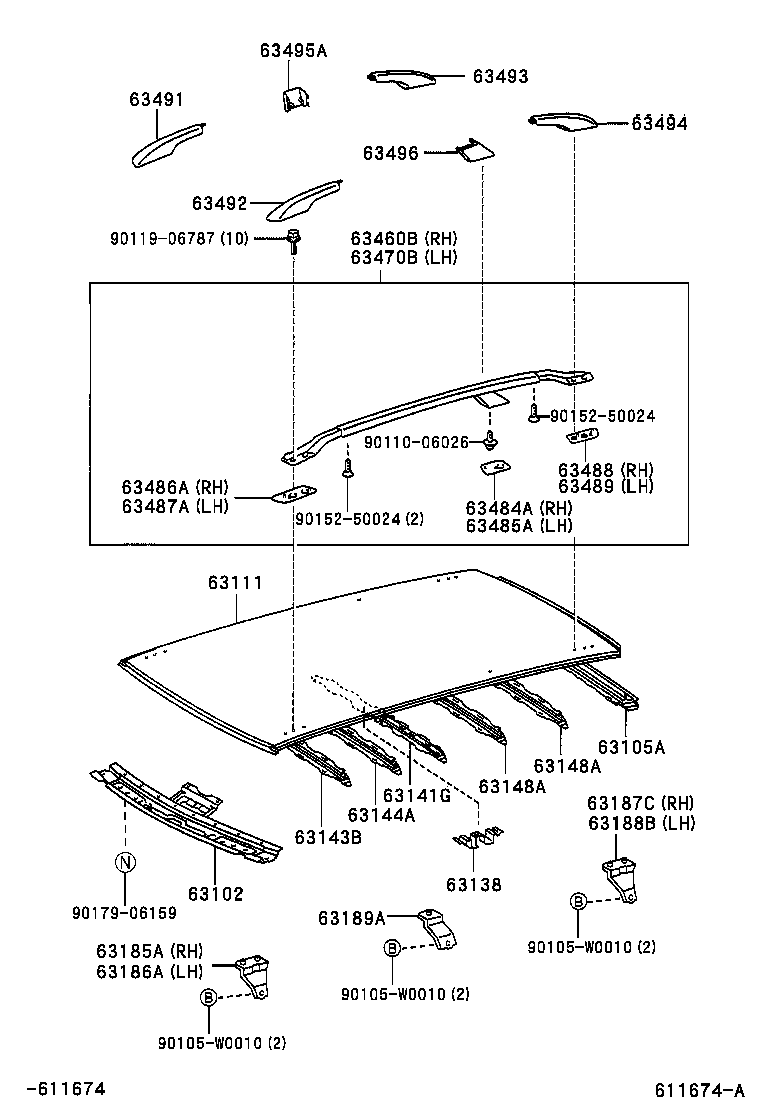

ILLUST NO. 2 OF 2(0208- )UKP..WG
W(ROOF RAIL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT | ||||
| 63102-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 63102-02050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-02040 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 63105-02040 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-02180 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 63111-02190 |
CDE120,ZZE12#..UKP..WG W(ROOF RAIL) |
1 | ||
| 63111-02190 |
CDE120,ZZE12#..UKP..WG W(ROOF RAIL) |
1 | ||
| 63111-02180 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 63138 - BRACKET, DOME LAMP, NO.2 | ||||
| 63138-12011 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 63138-12011 |
CDE120,ZZE12#..UKP |
2 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-02040 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 63141-02040 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-12100 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 63143-12100 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-02020 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 63144-02020 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-02010 |
CDE120,ZZE12#..UKP..WG |
2 | ||
| 63148-02010 |
CDE120,NDE120,ZZE12#..UKP..WG |
2 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-02010 |
CDE120,ZZE12#..UKP..WG |
2 | ||
| 63148-02010 |
CDE120,NDE120,ZZE12#..UKP..WG |
2 | ||
| 63185A - BRACKET, ROOF RACK, FRONT RH | ||||
| 63185-02010 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 63185-02010 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 63186A - BRACKET, ROOF RACK, FRONT LH | ||||
| 63186-02010 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 63186-02010 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 63187C - BRACKET, ROOF RACK, NO.1 REAR RH | ||||
| 63187-02010 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 63187-02010 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 63188B - BRACKET, ROOF RACK, NO.1 REAR LH | ||||
| 63188-02010 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 63188-02010 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 63189A - BRACKET, ROOF RACK, CENTER | ||||
| 63189-02010 |
CDE120,NDE120,ZZE12#..UKP..WG |
2 | ||
| 63189-02010 |
CDE120,ZZE12#..UKP..WG |
2 | ||
| 63460B - RACK ASSY, ROOF, RH | ||||
| 63460-13110 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 63460-13110 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 63470B - RACK ASSY, ROOF, LH | ||||
| 63470-13110 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 63470-13110 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 63484A - CUSHION, ROOF RACK LEG, CENTER RH | ||||
| 63484-13050 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 63484-13050 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 63485A - CUSHION, ROOF RACK LEG, CENTER LH | ||||
| 63485-13050 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 63485-13050 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 63486A - CUSHION, ROOF RACK LEG, FRONT RH | ||||
| 63486-13050 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 63486-13050 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 63487A - CUSHION, ROOF RACK LEG, FRONT LH | ||||
| 63487-13050 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 63487-13050 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 63488 - CUSHION, ROOF RACK LEG, REAR RH | ||||
| 63488-13060 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 63488-13060 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 63489 - CUSHION, ROOF RACK LEG, REAR LH | ||||
| 63489-13060 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 63489-13060 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 63491 - COVER, ROOF RACK LEG, FRONT RH | ||||
| 63491-13090 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 63491-13090 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 63492 - COVER, ROOF RACK LEG, FRONT LH | ||||
| 63492-13090 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 63492-13090 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 63493 - COVER, ROOF RACK LEG, REAR RH | ||||
| 63493-13100 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 63493-13100 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 63494 - COVER, ROOF RACK LEG, REAR LH | ||||
| 63494-13100 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 63494-13100 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 63495A - COVER, ROOF RACK LEG, CENTER | ||||
| 63495-13090 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 63495-13090 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 63496 - COVER, ROOF RACK LEG, CENTER LH | ||||
| 63496-13090 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 63496-13090 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| Common parts | ||||
| 90105-W0010 | ||||
| 90110-06026 | ||||
| 90119-06787 | ||||
| 90152-50024 | ||||
| 90179-06159 | ||||
