ZZE120L-DWMDKW (2002)
Toyota Corolla Sed/Wg (Ukp)

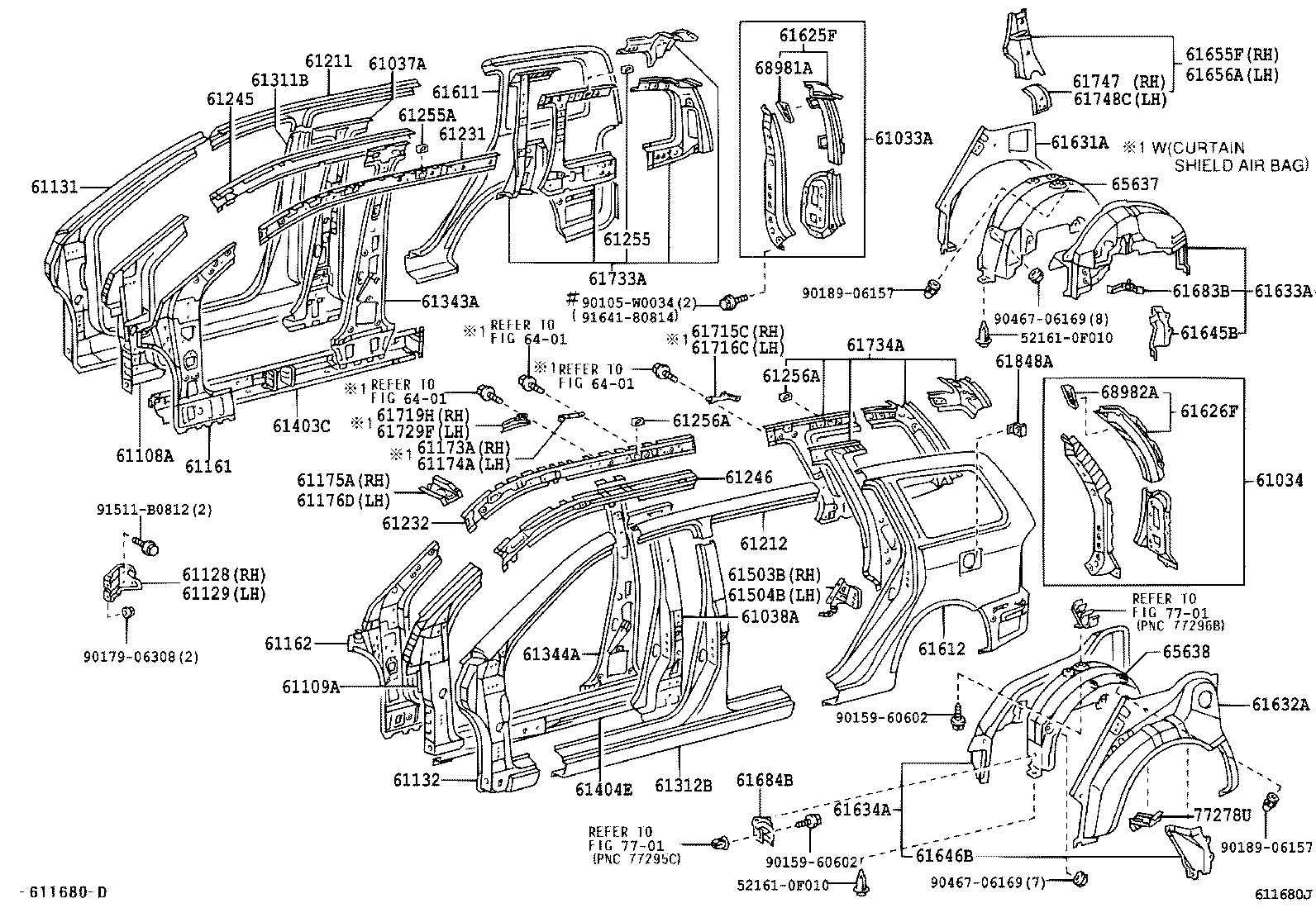

ILLUST NO. 1 OF 2(0208- )UKP..WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61033A - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE | ||||
| 61033-02020 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 61033-02020 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61034 - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61034-02020 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61034-02020 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-02905 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 61037-02902 |
CDE120,ZZE12#..UKP |
1 | ||
| 61037-02905 |
CDE120,ZZE12#..UKP |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-02905 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 61038-02902 |
CDE120,ZZE12#..UKP |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-02060 |
CDE120,NDE120,ZZE12#..UKP FRAME NO.=EXXXXXX |
1 | ||
| 61108-02080 |
CDE120,ZZE12#..UKP FRAME NO.=RXXXXXX |
1 | ||
| 61108-02080 |
CDE120,NDE120,ZZE12#..UKP FRAME NO.=RXXXXXX |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-02060 |
CDE120,NDE120,ZZE12#..UKP FRAME NO.=EXXXXXX |
1 | ||
| 61109-02080 |
CDE120,ZZE12#..UKP FRAME NO.=RXXXXXX |
1 | ||
| 61109-02080 |
CDE120,NDE120,ZZE12#..UKP FRAME NO.=RXXXXXX |
1 | ||
| 61128 - REINFORCEMENT, COWL SIDE PANEL, RH | ||||
| 61103-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 61103-02050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 61129 - REINFORCEMENT, COWL SIDE PANEL, LH | ||||
| 61104-02050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 61104-02010 |
CDE120,ZZE12#..UKP |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-02080 |
CDE120,ZZE12#..UKP |
1 | ||
| 61131-02080 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-02110 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 61132-02110 |
CDE120,ZZE12#..UKP |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61023-02081 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 61023-02081 |
CDE120,ZZE12#..UKP |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61024-02081 |
CDE120,ZZE12#..UKP |
1 | ||
| 61024-02081 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 61173A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER RH | ||||
| 61173-02030 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61173-02030 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 61174A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH | ||||
| 61174-02030 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61174-02030 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 61175A - REINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH | ||||
| 61175-02030 |
CDE120,ZZE12#..UKP |
1 | ||
| 61175-02030 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 61176D - REINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH | ||||
| 61176-02030 |
CDE120,ZZE12#..UKP |
1 | ||
| 61176-02030 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-02090 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61211-02090 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-02090 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61212-02090 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-02071 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 61231-02071 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61231-02070 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-02071 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 61232-02071 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61232-02070 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH | ||||
| 61245-12040 |
CDE120,ZZE12#..UKP |
1 | ||
| 61245-02080 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 61245-02080 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61246-12040 |
CDE120,ZZE12#..UKP |
1 | ||
| 61246-02060 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61246-02060 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 61255 - PLATE, ROOF SIDE RAIL, OUTER RH | ||||
| 61255-13020 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 61255-13020 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61255A - PLATE, ROOF SIDE RAIL, OUTER RH | ||||
| 61255-13020 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61255-13020 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 61256A - PLATE, ROOF SIDE RAIL, OUTER LH | ||||
| 61255-13020 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 61255-13020 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61256A - PLATE, ROOF SIDE RAIL, OUTER LH | ||||
| 61255-13020 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 61255-13020 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 61311-02050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-02050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 61312-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-02030 |
CDE120,ZZE12#..UKP |
1 | ||
| 61343-02031 |
CDE120,ZZE12#..UKP |
1 | ||
| 61343-02031 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-02031 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 61344-02030 |
CDE120,ZZE12#..UKP |
1 | ||
| 61344-02031 |
CDE120,ZZE12#..UKP |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-02030 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 61403-02030 |
CDE120,ZZE12#..UKP |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-02030 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 61404-02030 |
CDE120,ZZE12#..UKP |
1 | ||
| 61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH | ||||
| 61503-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 61503-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 61503-02040 |
CDE120,ZZE12#..UKP |
1 | ||
| 61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH | ||||
| 61504-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 61504-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 61504-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-02180 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61601-02180 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-02150 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 61602-02150 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61625F - EXTENSION, QUARTER PANEL, UPPER RH | ||||
| 61625-02900 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61625-02900 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 61626F - EXTENSION, QUARTER PANEL, UPPER LH | ||||
| 61626-02900 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 61626-02900 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-02050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 61631-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-02050 |
CDE120,ZZE12#..UKP |
1 | ||
| 61632-02050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-02921 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61607-02924 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61607-02924 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-02911 |
CDE120,ZZE12#..UKP W(6:4 SPRIT REAR SEAT) |
1 | ||
| 61608-02922 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61608-02919 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61608-02922 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-02030 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 61645-02030 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-02030 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 61646-02030 |
CDE120,ZZE12#..UKP..WG;CDE120,ZZE12#..UKP..SED..SOL |
1 | ||
| 61655F - BRACKET, BACK DOOR STAY, UPPER RH | ||||
| 61655-02900 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 61655-02900 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61656A - GUSSET, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61656-02900 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61656-02900 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 61683B - BRACKET, REAR WHEEL OPENING, NO.1 RH | ||||
| 61683-13010 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 61683-13010 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61684B - BRACKET, REAR WHEEL OPENING, NO.1 LH | ||||
| 61684-12040 |
CDE120,ZZE12#..UKP |
1 | ||
| 61684-12040 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 61715C - BRACKET, ROOF SIDE, RH | ||||
| 61715-02030 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61715-02030 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 61716C - BRACKET, ROOF SIDE, LH | ||||
| 61716-02030 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 61716-02030 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61719H - BRACKET SUB-ASSY, ROOF SIDE RAIL, RH | ||||
| 61707-12040 |
CDE120,ZZE12#..UKP (J) |
1 | ||
| 61707-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 61707-02020 |
CDE120,ZZE12#..UKP (L) |
1 | ||
| 61729F - BRACKET SUB-ASSY, ROOF SIDE RAIL, LH | ||||
| 61708-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 61708-02020 |
CDE120,ZZE12#..UKP (L) |
1 | ||
| 61708-12030 |
CDE120,ZZE12#..UKP (J) |
1 | ||
| 61733A - PANEL, ROOF SIDE, INNER FRONT RH | ||||
| 61733-02900 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61733-02900 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 61734A - PANEL, ROOF SIDE, INNER FRONT LH | ||||
| 61734-02900 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 61734-02900 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH | ||||
| 61747-13050 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 61747-13050 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61748C - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH | ||||
| 61748-13080 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61748-13080 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 61848A - RETAINER, QUARTER PANEL, LH | ||||
| 61848-52010 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 61848-52010 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 65637 - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 65637-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 65638 - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-02020 |
CDE120,ZZE12#..UKP |
1 | ||
| 65638-02020 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 68981A - RETAINER, BACK DOOR STAY, RH | ||||
| 68981-13030 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 68981-13030 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 68982A - RETAINER, BACK DOOR STAY, LH | ||||
| 68982-13030 |
CDE120,ZZE12#..UKP..WG |
1 | ||
| 68982-13030 |
CDE120,NDE120,ZZE12#..UKP..WG |
1 | ||
| 77278U - BRACKET, FUEL TANK FILLER PIPE PROTECTOR | ||||
| 77278-32050 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 77278-32050 |
CDE120,ZZE12#..UKP..WG;CDE120,ZZE12#..UKP..SED..SOL |
1 | ||
| Common parts | ||||
| 52161-0F010 | ||||
| 90105-W0034 | ||||
| 90159-60602 | ||||
| 90179-06308 | ||||
| 90189-06157 | ||||
| 90467-06169 | ||||
| 91511-B0812 | ||||
| 91641-80814 | ||||
| Linked diagrams | ||||
| 6401 | ||||
| 7701 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
