ZZE120L-DWMDKW (2002)

Toyota Corolla Sed/Wg (Ukp)

Production Aug 2002 - Feb 2007
Engine 4ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )UKP..WG

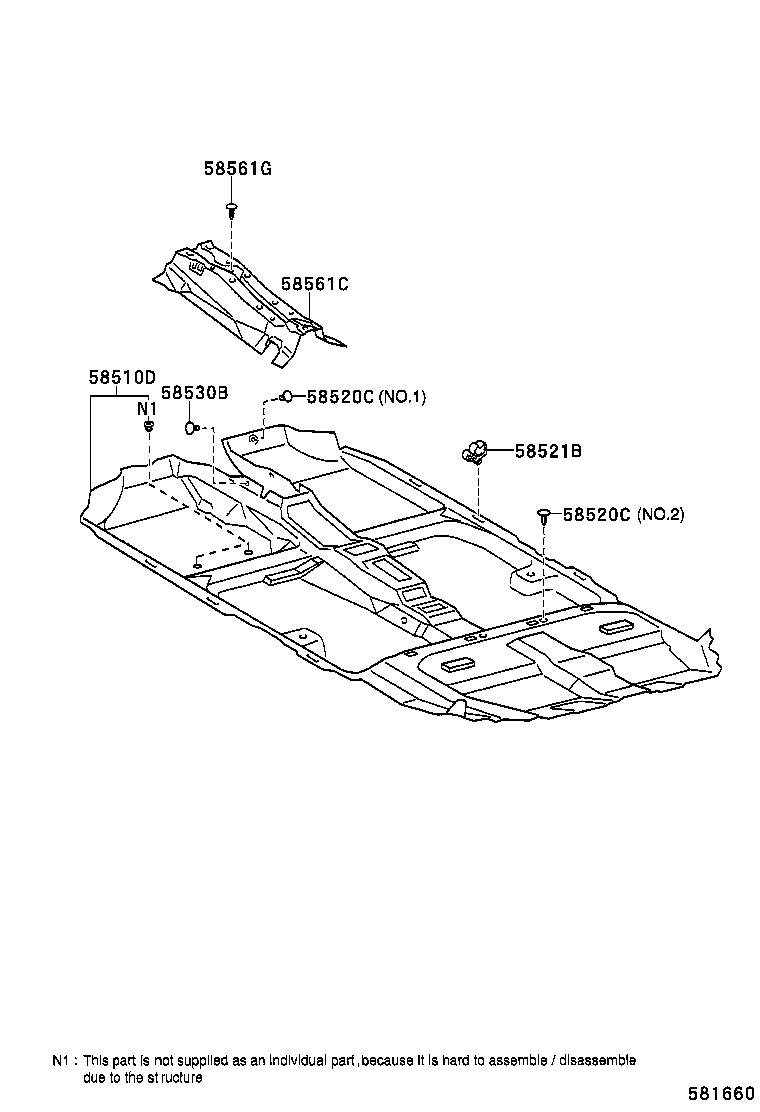

Click highlighted areas on diagram

diagram 58510D 58520C 58520C 58521B 58530B 58561C 58561G
Part # Description Qty Price
58510D - CARPET ASSY, FLOOR, FRONT
58510-02610B0

CDE120,ZZE12#..UKP..LHD..WG

W(REAR HEATER DUCT),DK.GRAY,TRIM1#

 1
58510-02611B0

CDE120,ZZE12#..UKP..LHD..WG

W(REAR HEATER DUCT),DK.GRAY,TRIM1#

 1
58510-02601B0

CDE120,ZZE12#..UKP..LHD..WG

DK.GRAY,TRIM1#

 1
58510-02601B0

CDE120,NDE120,ZZE12#..UKP..LHD..WG

DK.GRAY,TRIM1#

 1
58510-02600B0

CDE120,ZZE12#..UKP..LHD..WG

DK.GRAY,TRIM1#

 1
58510-02611B0

CDE120,NDE120,ZZE12#..UKP..LHD..WG

W(REAR HEATER DUCT),DK.GRAY,TRIM1#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-07049C0

CDE120,NDE120,ZZE12#..UKP

BLACK,NO.2

 2
90467-06001B3

CDE120,ZZE12#..UKP

DK.GRAY,TRIM1#,NO.1

 1
90467-07049B7

CDE120,ZZE12#..UKP

DK.GRAY,TRIM1#,NO.2

 2
90467-06001B3

CDE120,NDE120,ZZE12#..UKP

DK.GRAY,TRIM1#,NO.1

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-07049C0

CDE120,NDE120,ZZE12#..UKP

BLACK,NO.2

 2
90467-06001B3

CDE120,ZZE12#..UKP

DK.GRAY,TRIM1#,NO.1

 1
90467-07049B7

CDE120,ZZE12#..UKP

DK.GRAY,TRIM1#,NO.2

 2
90467-06001B3

CDE120,NDE120,ZZE12#..UKP

DK.GRAY,TRIM1#,NO.1

 1
58521B - HOOK, FLOOR CARPET
58521-13020

CDE120,NDE120,ZZE12#..UKP

 6
58521-13020

CDE120,ZZE12#..UKP

 6
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-09118

CDE120,ZZE12#..UKP

 2
90467-09050

CDE120,ZZE12#..UKP

 2
90467-07207B0

CDE120,NDE120,ZZE12#..UKP

DK.GRAY,TRIM1#

 2
90467-07207B0

CDE120,ZZE12#..UKP

DK.GRAY,TRIM1#

 2
58561C - SILENCER, FRONT FLOOR, NO.1
58561-02080

CDE120,ZZE12#..UKP

 1
58561-02081

CDE120,NDE120,ZZE12#..UKP

 1
58561-02030

CDE120,ZZE12#..UKP

 1
58561-02081

CDE120,ZZE12#..UKP

 1
58561G - CLIP(FOR FRONT FLOOR SILENCER)
90467-06020B6

CDE120,ZZE12#..UKP

DK.GRAY,TRIM1#

 1
90467-06020B6

CDE120,NDE120,ZZE12#..UKP

DK.GRAY,TRIM1#

 1
