ZZE120L-DWMDKW (2002)
Toyota Corolla Sed/Wg (Ukp)
(0201-0406)UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

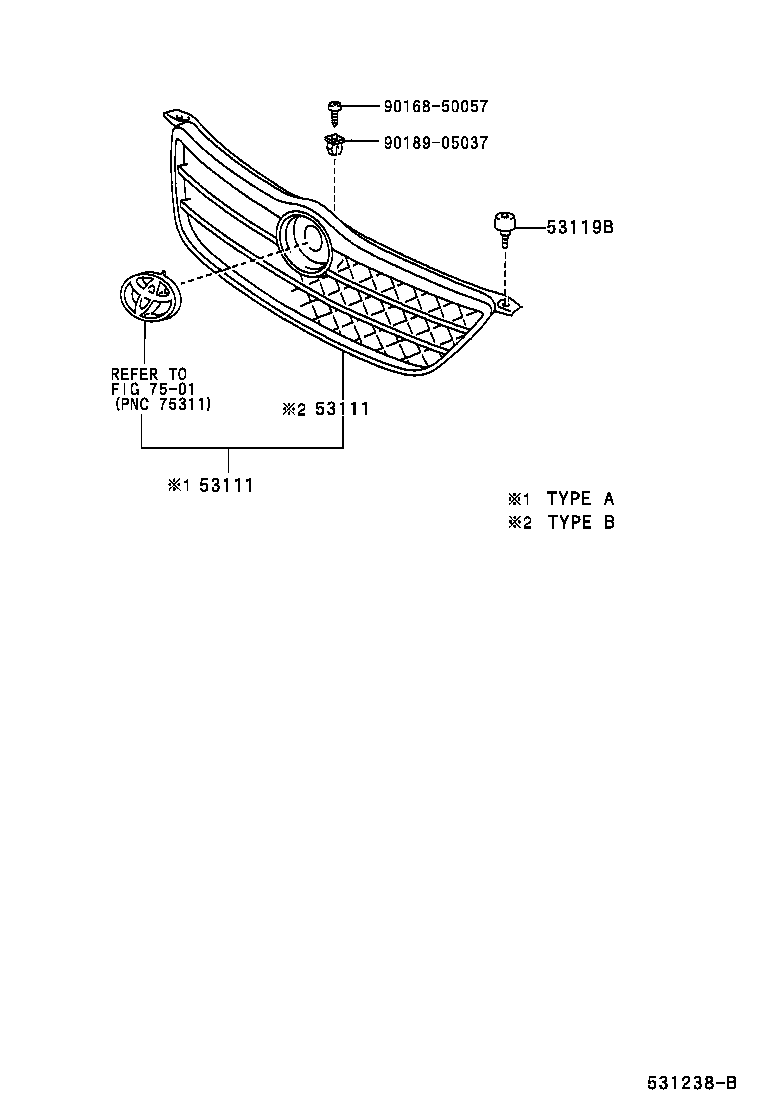

| 53111 - GRILLE, RADIATOR | ||||
| 53111-02180 |
ZZE12#..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA NO PAINT REQ.,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 53111-1A903 |
ZZE12#..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA NO PAINT REQ.,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 53111-02180 |
CDE120,ZZE12#..UKP..TERRA NO PAINT REQ.,TYPE B:REFER TO ILLUSTRATION,(L) |
1 | ||
| 53111-12A70 |
CDE120,NDE120,ZZE12#..UKP PLATED |
1 | ||
| 53111-1A490 |
CDE120,ZZE12#..UKP..TERRA NO PAINT REQ.,TYPE A:REFER TO ILLUSTRATION,(J) |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53111-02180 |
ZZE12#..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA NO PAINT REQ.,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 53111-1A903 |
ZZE12#..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA NO PAINT REQ.,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 53111-02180 |
CDE120,ZZE12#..UKP..TERRA NO PAINT REQ.,TYPE B:REFER TO ILLUSTRATION,(L) |
1 | ||
| 53111-12A70 |
CDE120,NDE120,ZZE12#..UKP PLATED |
1 | ||
| 53111-1A490 |
CDE120,ZZE12#..UKP..TERRA NO PAINT REQ.,TYPE A:REFER TO ILLUSTRATION,(J) |
1 | ||
| 53119B - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-12150 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
2 | ||
| 53119-12150 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| Common parts | ||||
| 90168-50057 | ||||
| 90189-05037 | ||||
| Linked diagrams | ||||
| 7501 | ||||
(0406- )UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53111-02180 |
ZZE12#..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA NO PAINT REQ.,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 53111-1A903 |
ZZE12#..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA NO PAINT REQ.,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 53111-02180 |
CDE120,ZZE12#..UKP..TERRA NO PAINT REQ.,TYPE B:REFER TO ILLUSTRATION,(L) |
1 | ||
| 53111-12A70 |
CDE120,NDE120,ZZE12#..UKP PLATED |
1 | ||
| 53111-1A490 |
CDE120,ZZE12#..UKP..TERRA NO PAINT REQ.,TYPE A:REFER TO ILLUSTRATION,(J) |
1 | ||

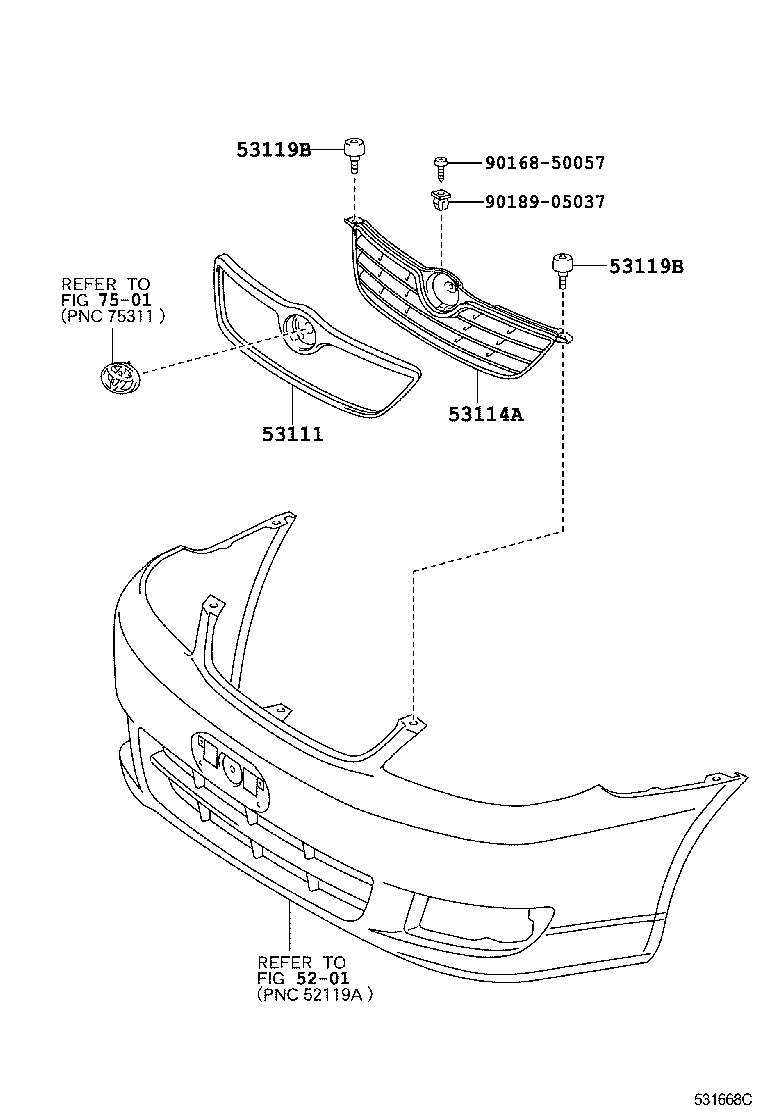

| 53114A - GRILLE, RADIATOR, INNER | ||||
| 53114-02901 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 53119B - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-12150 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
2 | ||
| 53119-12150 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 53119B - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-12150 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
2 | ||
| 53119-12150 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| Common parts | ||||
| 90168-50057 | ||||
| 90189-05037 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 7501 | ||||
