ZZE120L-DWMDKW (2002)

Toyota Corolla Sed/Wg (Ukp)

Production Aug 2002 - Feb 2007
Engine 4ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )UKP..WG

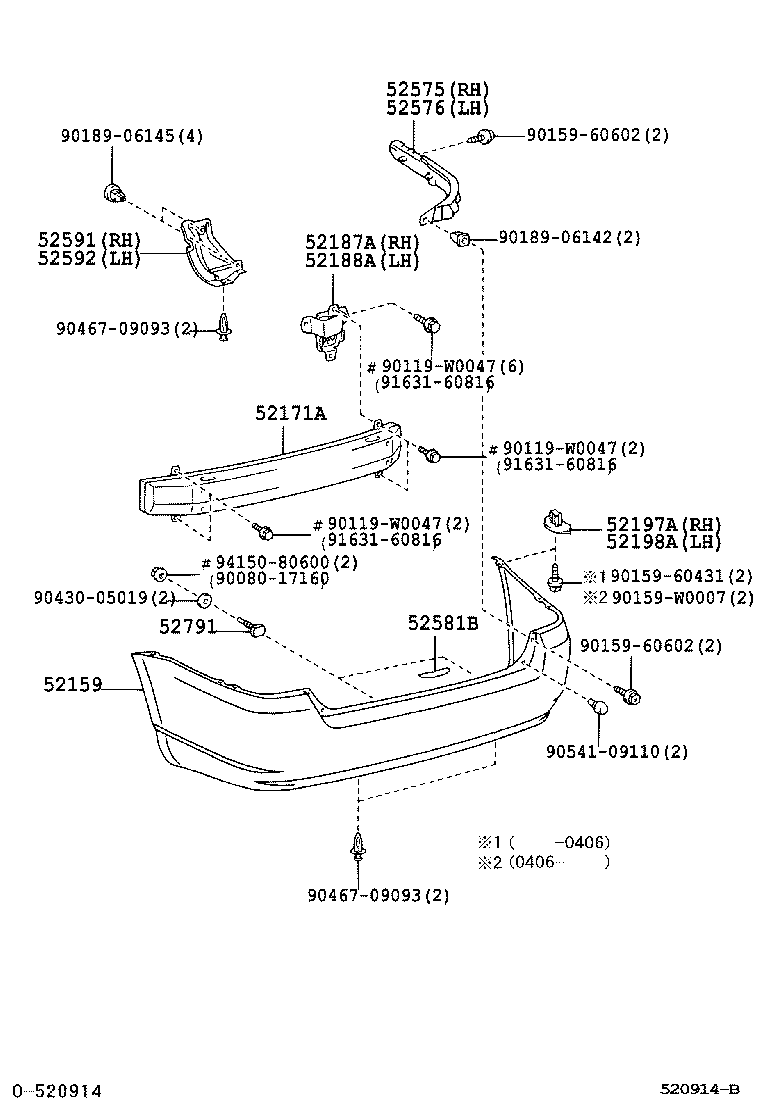

Click highlighted areas on diagram

diagram 52159 52171A 52187A 52188A 52197A 52198A 52575 52576 52581B 52591 52592 52791 9008017160 90119W0047 90119W0047 90119W0047 9015960431 9015960602 9015960602 90159W0007 9018906142 9018906145 9043005019 9046709093 9046709093 9054109110 9163160816 9163160816 9163160816 9415080600
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-02917

CDE120,ZZE12#..UKP..WG

PAINT REQ.

 1
52159-02917

CDE120,NDE120,ZZE12#..UKP..WG

PAINT REQ.

 1
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52023-02100

CDE120,NDE120,ZZE12#..UKP..WG

 1
52023-02100

CDE120,ZZE12#..UKP..WG

 1
52187A - REINFORCEMENT, REAR BUMPER ARM, RH
52187-12170

CDE120,ZZE12#..UKP..WG

 1
52187-12170

CDE120,NDE120,ZZE12#..UKP..WG

 1
52188A - REINFORCEMENT, REAR BUMPER ARM, LH
52188-12160

CDE120,ZZE12#..UKP..WG

 1
52188-12160

CDE120,NDE120,ZZE12#..UKP..WG

 1
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-12080

CDE120,NDE120,ZZE12#..UKP

 1
52197-12080

ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA

 1
52198A - BRACKET, REAR BUMPER SEAL, LH
52198-12080

CDE120,NDE120,ZZE12#..UKP

 1
52198-12080

ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-13020

ZZE120..UKP..WG;ZZE121..UKP..WG..SOL;ZZE121..UKP..WG..5F..TERRA

 1
52575-13020

CDE120,NDE120,ZZE12#..UKP..WG

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-13020

ZZE120..UKP..WG;ZZE121..UKP..WG..SOL;ZZE121..UKP..WG..5F..TERRA

 1
52576-13020

CDE120,NDE120,ZZE12#..UKP..WG

 1
52581B - PROTECTOR, REAR BUMPER
52581-12120

CDE120,NDE120,ZZE12#..UKP..WG

 2
52581-12120

ZZE120..UKP..WG;ZZE121..UKP..WG..SOL;ZZE121..UKP..WG..5F..TERRA

 2
52591 - SEAL, REAR BUMPER SIDE, RH
52591-02030

CDE120,NDE120,ZZE12#..UKP

 1
52591-02030

ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-02020

CDE120,NDE120,ZZE12#..UKP

 1
52592-02020

ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA

 1
52791 - BOLT, BUMPER MOULDING SET, NO.1
52791-12040

ZZE120..UKP..WG;ZZE121..UKP..WG..SOL;ZZE121..UKP..WG..5F..TERRA

 2
52791-12040

CDE120,NDE120,ZZE12#..UKP..WG

 2
Common parts
90080-17160
90119-W0047
90159-60431
90159-60602
90159-W0007
90189-06142
90189-06145
90430-05019
90467-09093
90541-09110
91631-60816
94150-80600
