Toyota Corolla sed/wg (ukp) ZZE120 FRONT BUMPER & BUMPER STAY

ZZE120L-DWMDKW (2002)

Toyota Corolla Sed/Wg (Ukp)

Production Aug 2002 - Feb 2007

Engine 4ZZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

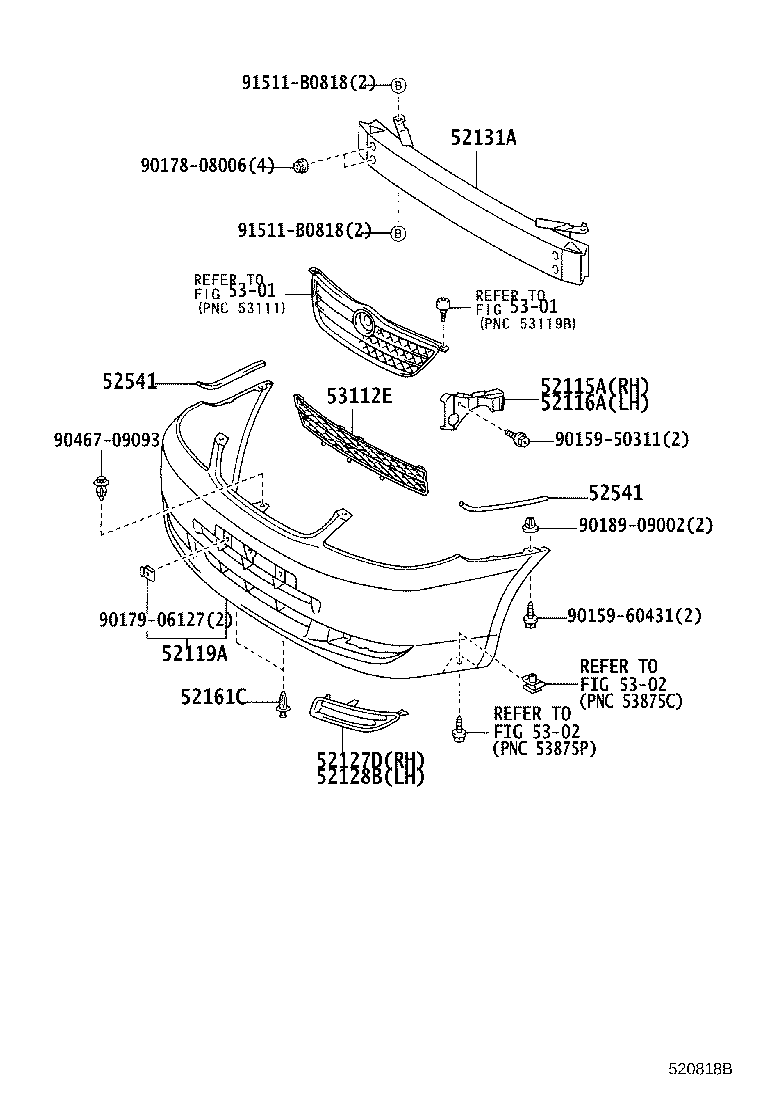

(0201-0301)UKP

Click highlighted areas on diagram

Part #	Description	Period	Qty
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-02050	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
52115-02050	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-02050	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
52116-02050	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
52119A - COVER, FRONT BUMPER
52119-02942	CDE120,NDE120,ZZE12#..UKP PAINT REQ.	06/2004 - 12/2999	1
52119-02912	CDE120,ZZE12#..UKP PAINT REQ.	01/2002 - 06/2004	1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-02150	CDE120,NDE120,ZZE12#..UKP W(FOG LAMP)	06/2004 - 12/2999	1
52127-02160	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
52127-02030	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-02020	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
52128-02180	ZZE12#..UKP	06/2004 - 12/2999	1
52128-02160	ZZE12#..UKP W(FOG LAMP)	06/2004 - 12/2999	1
52131A - REINFORCEMENT, FRONT BUMPER
52021-02080	CDE120,ZZE12#..UKP	01/2003 - 06/2004	1
52021-02050	CDE120,ZZE12#..UKP	01/2002 - 01/2003	1
52021-02080	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
52161C - PIECE, FRONT BUMPER
52161-16010	CDE120,ZZE12#..UKP	01/2002 - 06/2004	2
52161-16010	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	2
52541 - PROTECTOR, FRONT BUMPER
52541-12020	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	2
52541-12020	CDE120,ZZE12#..UKP	01/2002 - 06/2004	2
52541 - PROTECTOR, FRONT BUMPER
52541-12020	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	2
52541-12020	CDE120,ZZE12#..UKP	01/2002 - 06/2004	2
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-02020	CDE120,ZZE12#..UKP NO PAINT REQ.	01/2002 - 06/2004	1
53112-02050	CDE120,NDE120,ZZE12#..UKP NO PAINT REQ.	06/2004 - 12/2999	1
Common parts
90159-50311
90159-60431
90178-08006
90179-06127
90189-09002
90467-09093
91511-B0818
Linked diagrams
5301
5302

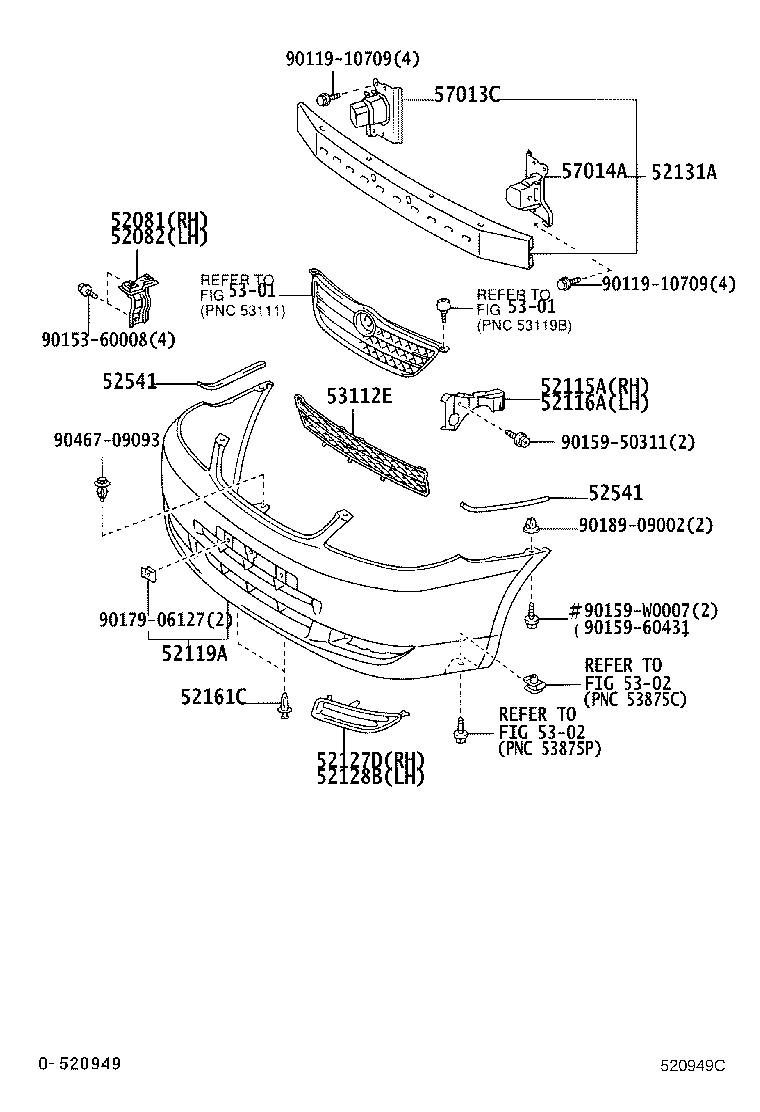

(0301-0406)UKP

Click highlighted areas on diagram

Part #	Description	Period	Qty
52081 - STAY SUB-ASSY, FRONT BUMPER
52081-02030	CDE120,ZZE12#..UKP	01/2003 - 09/2003	1
52081-02050	CDE120,NDE120,ZZE12#..UKP (L)	06/2004 - 12/2999	1
52081-02050	CDE120,ZZE12#..UKP (L)	09/2003 - 06/2004	1
52081-02030	CDE120,NDE120,ZZE12#..UKP (J)	06/2004 - 12/2999	1
52081-02030	CDE120,ZZE12#..UKP (J)	09/2003 - 06/2004	1
52082 - STAY SUB-ASSY, FRONT BUMPER, LH
52082-02040	CDE120,ZZE12#..UKP	09/2003 - 06/2004	1
52082-02020	CDE120,NDE120,ZZE12#..UKP (J)	06/2004 - 12/2999	1
52082-02040	CDE120,NDE120,ZZE12#..UKP (L)	06/2004 - 05/2006	1
52082-02020	CDE120,NDE120,ZZE12#..UKP (L)	05/2006 - 12/2999	1
52082-02020	CDE120,ZZE12#..UKP	01/2003 - 09/2003	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-02050	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
52115-02050	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-02050	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
52116-02050	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
52119A - COVER, FRONT BUMPER
52119-02942	CDE120,NDE120,ZZE12#..UKP PAINT REQ.	06/2004 - 12/2999	1
52119-02912	CDE120,ZZE12#..UKP PAINT REQ.	01/2002 - 06/2004	1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-02150	CDE120,NDE120,ZZE12#..UKP W(FOG LAMP)	06/2004 - 12/2999	1
52127-02160	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
52127-02030	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-02020	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
52128-02180	ZZE12#..UKP	06/2004 - 12/2999	1
52128-02160	ZZE12#..UKP W(FOG LAMP)	06/2004 - 12/2999	1
52131A - REINFORCEMENT, FRONT BUMPER
52021-02080	CDE120,ZZE12#..UKP	01/2003 - 06/2004	1
52021-02050	CDE120,ZZE12#..UKP	01/2002 - 01/2003	1
52021-02080	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
52161C - PIECE, FRONT BUMPER
52161-16010	CDE120,ZZE12#..UKP	01/2002 - 06/2004	2
52161-16010	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	2
52541 - PROTECTOR, FRONT BUMPER
52541-12020	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	2
52541-12020	CDE120,ZZE12#..UKP	01/2002 - 06/2004	2
52541 - PROTECTOR, FRONT BUMPER
52541-12020	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	2
52541-12020	CDE120,ZZE12#..UKP	01/2002 - 06/2004	2
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-02020	CDE120,ZZE12#..UKP NO PAINT REQ.	01/2002 - 06/2004	1
53112-02050	CDE120,NDE120,ZZE12#..UKP NO PAINT REQ.	06/2004 - 12/2999	1
57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57013-02010	CDE120,ZZE12#..UKP	01/2003 - 06/2004	1
57013-02010	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57014-02010	CDE120,ZZE12#..UKP	01/2003 - 06/2004	1
57014-02010	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
Common parts
90119-10709
90153-60008
90159-50311
90159-60431
90159-W0007
90179-06127
90189-09002
90467-09093
Linked diagrams
5301
5302

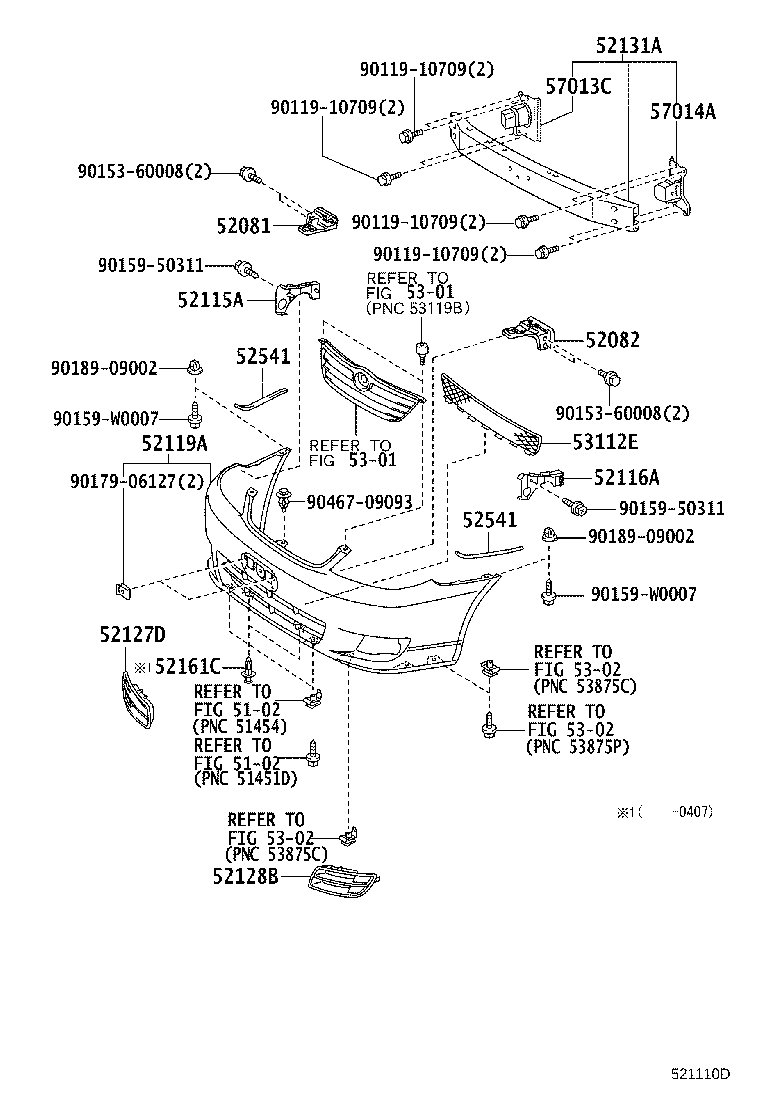

(0406- )UKP

Click highlighted areas on diagram

Part #	Description	Period	Qty
52081 - STAY SUB-ASSY, FRONT BUMPER
52081-02030	CDE120,ZZE12#..UKP	01/2003 - 09/2003	1
52081-02050	CDE120,NDE120,ZZE12#..UKP (L)	06/2004 - 12/2999	1
52081-02050	CDE120,ZZE12#..UKP (L)	09/2003 - 06/2004	1
52081-02030	CDE120,NDE120,ZZE12#..UKP (J)	06/2004 - 12/2999	1
52081-02030	CDE120,ZZE12#..UKP (J)	09/2003 - 06/2004	1
52082 - STAY SUB-ASSY, FRONT BUMPER, LH
52082-02040	CDE120,ZZE12#..UKP	09/2003 - 06/2004	1
52082-02020	CDE120,NDE120,ZZE12#..UKP (J)	06/2004 - 12/2999	1
52082-02040	CDE120,NDE120,ZZE12#..UKP (L)	06/2004 - 05/2006	1
52082-02020	CDE120,NDE120,ZZE12#..UKP (L)	05/2006 - 12/2999	1
52082-02020	CDE120,ZZE12#..UKP	01/2003 - 09/2003	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-02050	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
52115-02050	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-02050	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
52116-02050	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
52119A - COVER, FRONT BUMPER
52119-02942	CDE120,NDE120,ZZE12#..UKP PAINT REQ.	06/2004 - 12/2999	1
52119-02912	CDE120,ZZE12#..UKP PAINT REQ.	01/2002 - 06/2004	1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-02150	CDE120,NDE120,ZZE12#..UKP W(FOG LAMP)	06/2004 - 12/2999	1
52127-02160	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
52127-02030	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-02020	CDE120,ZZE12#..UKP	01/2002 - 06/2004	1
52128-02180	ZZE12#..UKP	06/2004 - 12/2999	1
52128-02160	ZZE12#..UKP W(FOG LAMP)	06/2004 - 12/2999	1
52131A - REINFORCEMENT, FRONT BUMPER
52021-02080	CDE120,ZZE12#..UKP	01/2003 - 06/2004	1
52021-02050	CDE120,ZZE12#..UKP	01/2002 - 01/2003	1
52021-02080	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
52161C - PIECE, FRONT BUMPER
52161-16010	CDE120,ZZE12#..UKP	01/2002 - 06/2004	2
52161-16010	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	2
52541 - PROTECTOR, FRONT BUMPER
52541-12020	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	2
52541-12020	CDE120,ZZE12#..UKP	01/2002 - 06/2004	2
52541 - PROTECTOR, FRONT BUMPER
52541-12020	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	2
52541-12020	CDE120,ZZE12#..UKP	01/2002 - 06/2004	2
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-02020	CDE120,ZZE12#..UKP NO PAINT REQ.	01/2002 - 06/2004	1
53112-02050	CDE120,NDE120,ZZE12#..UKP NO PAINT REQ.	06/2004 - 12/2999	1
57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57013-02010	CDE120,ZZE12#..UKP	01/2003 - 06/2004	1
57013-02010	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57014-02010	CDE120,ZZE12#..UKP	01/2003 - 06/2004	1
57014-02010	CDE120,NDE120,ZZE12#..UKP	06/2004 - 12/2999	1
Common parts
90119-10709
90153-60008
90159-50311
90159-W0007
90179-06127
90189-09002
90467-09093
Linked diagrams
5102
5301
5302
