ZZE120L-DWMDKW (2002)
Toyota Corolla Sed/Wg (Ukp)
(0201-0406)3ZZFE,4ZZFE..UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-0D041 |
3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 17701-0D100 |
3ZZFE,4ZZFE..ZZE12#..UKP..WG FRAME NO.=EXXXXXX |
1 | ||
| 17701-0D040 |
3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 17701-0D041 |
4ZZFE..ZZE120..UKP;3ZZFE..ZZE121..UKP..LHD..SOL;3ZZFE..ZZE121..UKP..5F..TERRA;3ZZFE..ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 17701-0D041 |
3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0D041 |
3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 17705-0D041 |
3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 17705-0D040 |
3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 17705-0D041 |
3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-0D030 |
4ZZFE..ZZE120..UKP;3ZZFE..ZZE121..UKP..LHD..SOL;3ZZFE..ZZE121..UKP..5F..TERRA;3ZZFE..ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 17751-0D140 |
3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 17786 - CLAMP, AIR CLEANER | ||||
| 17786-0D011 |
3ZZFE,4ZZFE..ZZE12#..UKP |
2 | ||
| 17786-0D011 |
4ZZFE..ZZE120..UKP;3ZZFE..ZZE121..UKP..LHD..SOL;3ZZFE..ZZE121..UKP..5F..TERRA;3ZZFE..ZZE121..UKP..SED..4FC..TERRA |
2 | ||
| 17786-0D011 |
3ZZFE,4ZZFE..ZZE12#..UKP |
2 | ||
| 17786-0D011 |
3ZZFE,4ZZFE..ZZE12#..UKP..WG FRAME NO.=EXXXXXX |
2 | ||
| 17786-0D010 |
3ZZFE,4ZZFE..ZZE12#..UKP |
2 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0D010 |
3ZZFE,4ZZFE..ZZE12#..UKP (L) |
1 | ||
| 17801-22020 |
3ZZFE,4ZZFE..ZZE12#..UKP (J) |
1 | ||
| 17801-0D010 |
3ZZFE,4ZZFE..ZZE12#..UKP (L) |
1 | ||
| 17801-0D011 |
3ZZFE,4ZZFE..ZZE12#..UKP (L) |
1 | ||
| 17801-22020 |
3ZZFE,4ZZFE..ZZE12#..UKP (J) |
1 | ||
| 17801-22020 |
3ZZFE,4ZZFE..ZZE12#..UKP (J) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0D080 |
3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 17881-0D081 |
3ZZFE,4ZZFE..ZZE12#..UKP FRAME NO.=EXXXXXX |
1 | ||
| 17881-0D160 |
3ZZFE,4ZZFE..ZZE12#..UKP FRAME NO.=RXXXXXX |
1 | ||
| 17881-0D081 |
4ZZFE..ZZE120..UKP |
1 | ||
| 17881-0D081 |
3ZZFE,4ZZFE..ZZE12#..UKP FRAME NO.=EXXXXXX |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90080-46311 |
4ZZFE..ZZE120..UKP;3ZZFE..ZZE121..UKP..LHD..SOL;3ZZFE..ZZE121..UKP..5F..TERRA;3ZZFE..ZZE121..UKP..SED..4FC..TERRA |
2 | ||
| 96111-10730 |
4ZZFE..ZZE120..UKP NO.2 |
1 | ||
| 96111-10800 |
3ZZFE,4ZZFE..ZZE12#..UKP NO.1 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90080-46311 |
4ZZFE..ZZE120..UKP;3ZZFE..ZZE121..UKP..LHD..SOL;3ZZFE..ZZE121..UKP..5F..TERRA;3ZZFE..ZZE121..UKP..SED..4FC..TERRA |
2 | ||
| 96111-10730 |
4ZZFE..ZZE120..UKP NO.2 |
1 | ||
| 96111-10800 |
3ZZFE,4ZZFE..ZZE12#..UKP NO.1 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-0J010 |
3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 22204-0J010 |
3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 90068-00016 | ||||
| 90119-06859 | ||||
| 90467-07201 | ||||
| 91661-60616 | ||||
(0406- )3ZZFE,4ZZFE..UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-0D041 |
3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 17701-0D100 |
3ZZFE,4ZZFE..ZZE12#..UKP..WG FRAME NO.=EXXXXXX |
1 | ||
| 17701-0D040 |
3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 17701-0D041 |
4ZZFE..ZZE120..UKP;3ZZFE..ZZE121..UKP..LHD..SOL;3ZZFE..ZZE121..UKP..5F..TERRA;3ZZFE..ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 17701-0D041 |
3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0D041 |
3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 17705-0D041 |
3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 17705-0D040 |
3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 17705-0D041 |
3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-0D030 |
4ZZFE..ZZE120..UKP;3ZZFE..ZZE121..UKP..LHD..SOL;3ZZFE..ZZE121..UKP..5F..TERRA;3ZZFE..ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 17751-0D140 |
3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 17786 - CLAMP, AIR CLEANER | ||||
| 17786-0D011 |
3ZZFE,4ZZFE..ZZE12#..UKP |
2 | ||
| 17786-0D011 |
4ZZFE..ZZE120..UKP;3ZZFE..ZZE121..UKP..LHD..SOL;3ZZFE..ZZE121..UKP..5F..TERRA;3ZZFE..ZZE121..UKP..SED..4FC..TERRA |
2 | ||
| 17786-0D011 |
3ZZFE,4ZZFE..ZZE12#..UKP |
2 | ||
| 17786-0D011 |
3ZZFE,4ZZFE..ZZE12#..UKP..WG FRAME NO.=EXXXXXX |
2 | ||
| 17786-0D010 |
3ZZFE,4ZZFE..ZZE12#..UKP |
2 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0D010 |
3ZZFE,4ZZFE..ZZE12#..UKP (L) |
1 | ||
| 17801-22020 |
3ZZFE,4ZZFE..ZZE12#..UKP (J) |
1 | ||
| 17801-0D010 |
3ZZFE,4ZZFE..ZZE12#..UKP (L) |
1 | ||
| 17801-0D011 |
3ZZFE,4ZZFE..ZZE12#..UKP (L) |
1 | ||
| 17801-22020 |
3ZZFE,4ZZFE..ZZE12#..UKP (J) |
1 | ||
| 17801-22020 |
3ZZFE,4ZZFE..ZZE12#..UKP (J) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0D080 |
3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 17881-0D081 |
3ZZFE,4ZZFE..ZZE12#..UKP FRAME NO.=EXXXXXX |
1 | ||
| 17881-0D160 |
3ZZFE,4ZZFE..ZZE12#..UKP FRAME NO.=RXXXXXX |
1 | ||
| 17881-0D081 |
4ZZFE..ZZE120..UKP |
1 | ||
| 17881-0D081 |
3ZZFE,4ZZFE..ZZE12#..UKP FRAME NO.=EXXXXXX |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90080-46311 |
4ZZFE..ZZE120..UKP;3ZZFE..ZZE121..UKP..LHD..SOL;3ZZFE..ZZE121..UKP..5F..TERRA;3ZZFE..ZZE121..UKP..SED..4FC..TERRA |
2 | ||
| 96111-10730 |
4ZZFE..ZZE120..UKP NO.2 |
1 | ||
| 96111-10800 |
3ZZFE,4ZZFE..ZZE12#..UKP NO.1 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90080-46311 |
4ZZFE..ZZE120..UKP;3ZZFE..ZZE121..UKP..LHD..SOL;3ZZFE..ZZE121..UKP..5F..TERRA;3ZZFE..ZZE121..UKP..SED..4FC..TERRA |
2 | ||
| 96111-10730 |
4ZZFE..ZZE120..UKP NO.2 |
1 | ||
| 96111-10800 |
3ZZFE,4ZZFE..ZZE12#..UKP NO.1 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-0J010 |
3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| 22204-0J010 |
3ZZFE,4ZZFE..ZZE12#..UKP |
1 | ||
| Common parts | ||||
| 90068-00016 | ||||
| 90119-06859 | ||||
| 90467-07201 | ||||
| 91671-80614 | ||||

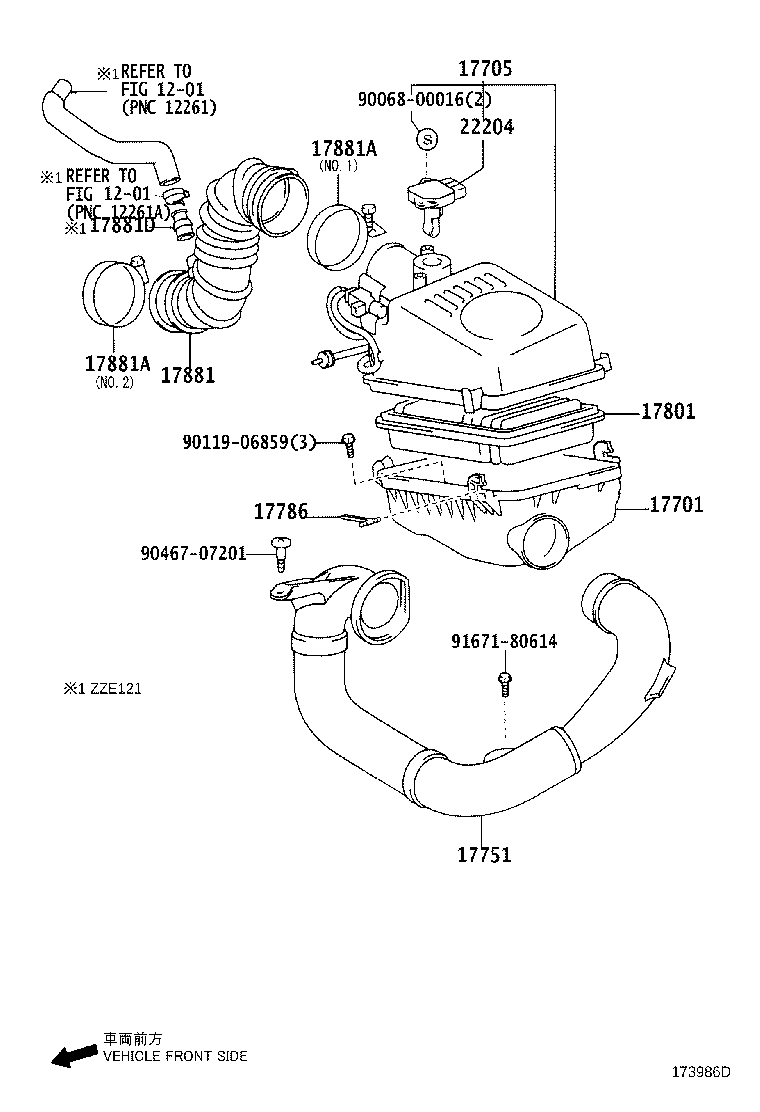

| Linked diagrams | ||||
| 1201 | ||||
