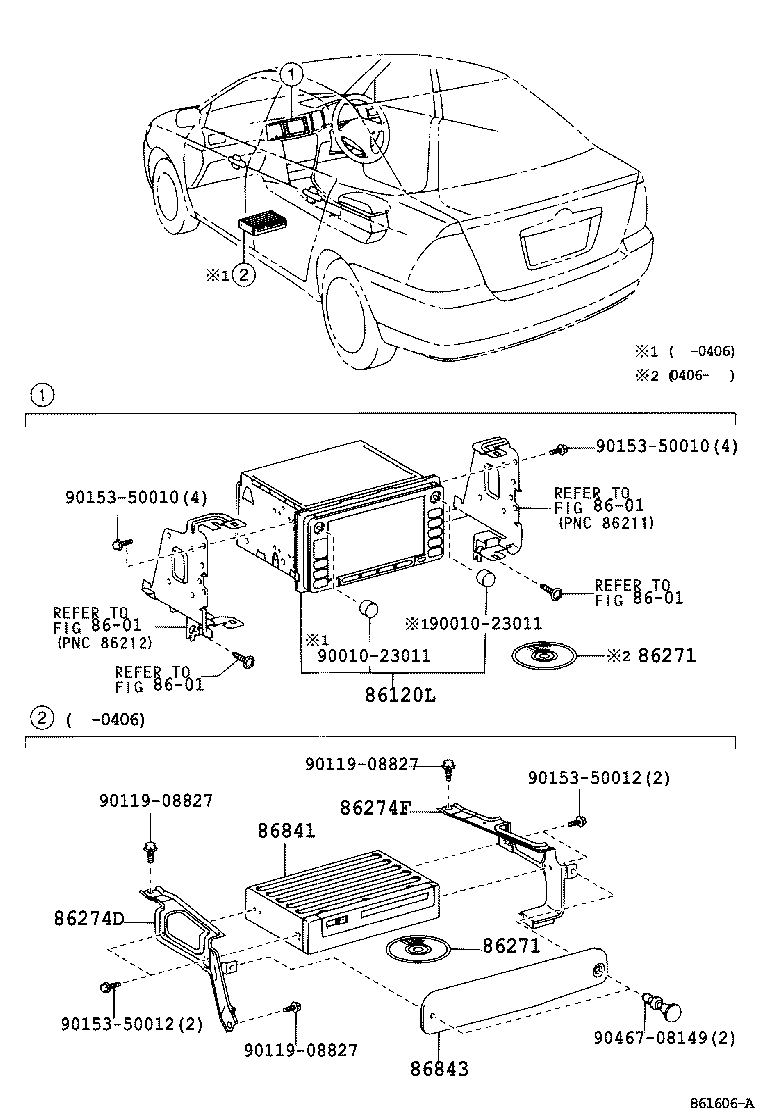

Toyota Corolla sed/wg (ukp) ZZE120 NAVIGATION & FRONT MONITOR DISPLAY

Part #	Description	Period	Qty
86120L - RECEIVER ASSY, NAVIGATION
86120-33420	CDE120,ZZE12#..UKP..(DCR,HTWC) FUJITSU TEN,ID=19001	01/2002 - 01/2003	1
86120-33421	ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA FUJITSU TEN,ID=19003	01/2003 - 06/2004	1
86120-1A200	CDE120,NDE120,ZZE12#..UKP..SOL AISHIN AW	06/2004 - 12/2999	1
86271 - DISC, DISC PLAYER
86271-24120	CDE120,ZZE12#..UKP..(DCR,HTWC)	01/2002 - 12/2002	1
86271-24123	ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA	01/2004 - 06/2004	1
86271-64011	CDE120,ZZE12#..UKP..SOL	06/2004 - 07/2004	1
86271-53030	CDE120,NDE120,ZZE12#..UKP..SOL	07/2005 - 08/2006	1
86271-24122	CDE120,ZZE12#..UKP..(DCR,HTWC)	09/2003 - 01/2004	1
86271-24121	CDE120,ZZE12#..UKP..(DCR,HTWC)	12/2002 - 09/2003	1
86271-64012	CDE120,NDE120,ZZE12#..UKP..SOL	07/2004 - 07/2005	1
86271-53031	CDE120,NDE120,ZZE12#..UKP..SOL	08/2006 - 12/2999	1
86271 - DISC, DISC PLAYER
86271-24120	CDE120,ZZE12#..UKP..(DCR,HTWC)	01/2002 - 12/2002	1
86271-24123	ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA	01/2004 - 06/2004	1
86271-64011	CDE120,ZZE12#..UKP..SOL	06/2004 - 07/2004	1
86271-53030	CDE120,NDE120,ZZE12#..UKP..SOL	07/2005 - 08/2006	1
86271-24122	CDE120,ZZE12#..UKP..(DCR,HTWC)	09/2003 - 01/2004	1
86271-24121	CDE120,ZZE12#..UKP..(DCR,HTWC)	12/2002 - 09/2003	1
86271-64012	CDE120,NDE120,ZZE12#..UKP..SOL	07/2004 - 07/2005	1
86271-53031	CDE120,NDE120,ZZE12#..UKP..SOL	08/2006 - 12/2999	1
86274D - BRACKET, DISC PLAYER
86274-13030	ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA	01/2002 - 06/2004	1
86274F - BRACKET, DISC PLAYER, NO.2
86274-13040	ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA	01/2002 - 06/2004	1
86841 - COMPUTER, NAVIGATION
86841-13020	ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA	01/2002 - 06/2004	1
86843 - COVER, NAVIGATION COMPUTER
86843-32010	ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA	01/2002 - 06/2004	1
Common parts
90010-23011
90119-08827
90153-50010
90153-50012
90467-08149
Linked diagrams
8601

ZZE120L-DEMNKW (2002)

(0201- )UKP
