ZZE120L-DEMNKW (2002)
Toyota Corolla Sed/Wg (Ukp)
(0201- )NDE120,ZZE12#..UKP..MTM
C50,C53,C53A,C150
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

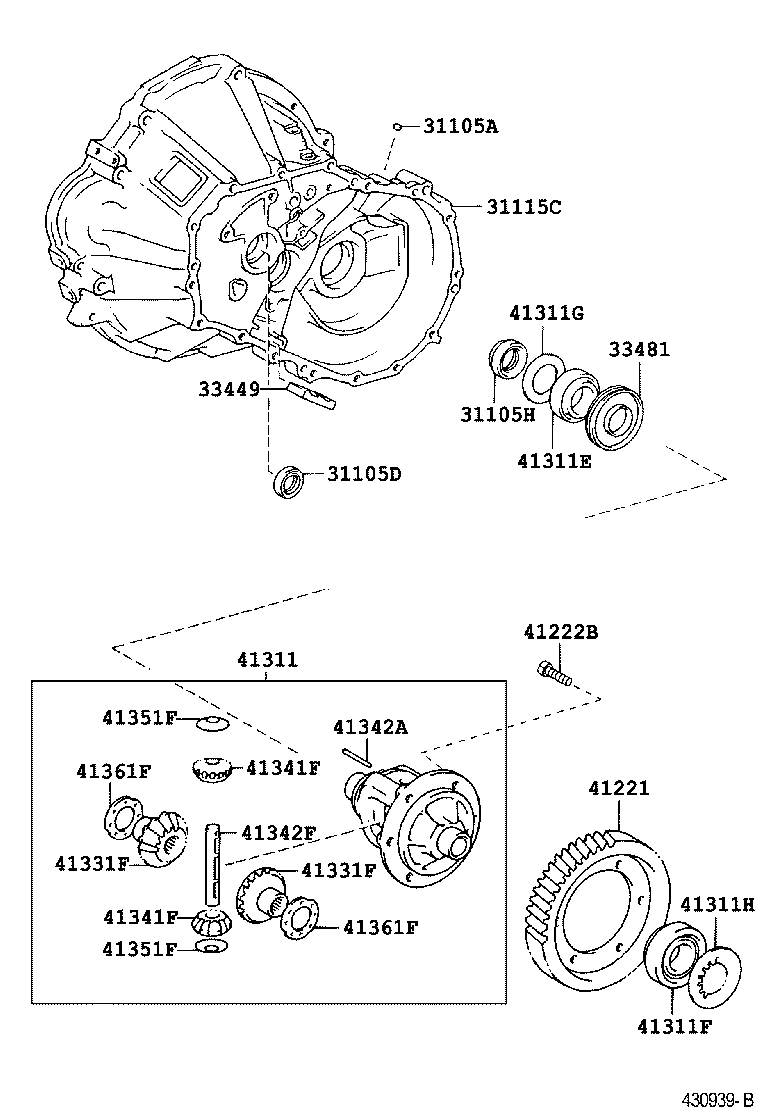

| 31105A - PLUG, TIGHT(FOR FRONT TRANSAXLE CASE) | ||||
| 90331-08002 |
ZZE12#..UKP..5F |
1 | ||
| 90331-08002 |
NDE120,ZZE12#..UKP..MTM |
1 | ||
| 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) | ||||
| 90311-25016 |
ZZE12#..UKP..5F TMMP:REFER TO ILLUSTRATION FIG.33-01 |
1 | ||
| 90311-25011 |
ZZE12#..UKP..5F |
1 | ||
| 90311-25028 |
ZZE12#..UKP..5F |
1 | ||
| 90311-25028 |
ZZE12#..UKP..5F TMMP:REFER TO ILLUSTRATION FIG.33-01 |
1 | ||
| 90311-25011 |
ZZE12#..UKP..5F TOYOTA:REFER TO ILLUSTRATION FIG.33-01 |
1 | ||
| 31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE) | ||||
| 90311-34023 |
ZZE12#..UKP..5F |
1 | ||
| 90311-34023 |
ZZE12#..UKP..5F TOYOTA:REFER TO ILLUSTRATION FIG.33-01 |
1 | ||
| 90311-W0003 |
ZZE12#..UKP..5F TMMP:REFER TO ILLUSTRATION FIG.33-01 |
1 | ||
| 31115C - CASE, FRONT TRANSAXLE(MTM) | ||||
| 31115-12110 |
ZZE12#..UKP..5F |
1 | ||
| 31115-12111 |
ZZE12#..UKP..5F TOYOTA:REFER TO ILLUSTRATION FIG.33-01 |
1 | ||
| 31115-02030 |
ZZE12#..UKP..5F TMMP:REFER TO ILLUSTRATION FIG.33-01 |
1 | ||
| 31115-05010 |
ZZE12#..UKP..5F TMMP:REFER TO ILLUSTRATION FIG.33-01 |
1 | ||
| 33449 - MAGNET, TRANSMISSION | ||||
| 33449-12020 |
NDE120,ZZE12#..UKP..MTM |
1 | ||
| 33449-12020 |
ZZE12#..UKP..5F |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-12040 |
ZZE12#..UKP..5F N=35,MARK 35X29-31 |
1 | ||
| 33481-10080 |
ZZE120..UKP N=34,MARK 34X30-32 |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-10231 |
ZZE120..UKP |
1 | ||
| 41221-02040 |
ZZE120..UKP (L) |
1 | ||
| 41221-10231 |
ZZE120..UKP (J) |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90105-12100 |
ZZE120..UKP |
6 | ||
| 90105-12100 |
ZZE120..UKP |
6 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-10061 |
ZZE120..UKP (J) |
1 | ||
| 41301-10061 |
ZZE120..UKP |
1 | ||
| 41301-0D020 |
ZZE120..UKP (L) |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90080-36101 |
ZZE120..UKP TIMKEN |
1 | ||
| 90080-36163 |
ZZE12#..UKP..5F TMMP:REFER TO ILLUSTRATION FIG.33-01 |
1 | ||
| 90366-38004 |
ZZE120..UKP NACHI |
1 | ||
| 90366-38004 |
ZZE12#..UKP..5F TOYOTA:REFER TO ILLUSTRATION FIG.33-01 |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90368-38010 |
ZZE12#..UKP..5F TOYOTA:REFER TO ILLUSTRATION FIG.33-01 |
1 | ||
| 90368-38010 |
ZZE12#..UKP..5F |
1 | ||
| 90080-36166 |
ZZE12#..UKP..5F TMMP:REFER TO ILLUSTRATION FIG.33-01 |
1 | ||
| 41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT) | ||||
| 90560-41003 |
ZZE120..UKP T=2.1 |
1 | ||
| 90560-41003 |
NDE120,ZZE12#..UKP..MTM T=2.1 |
1 | ||
| 90560-41002 |
ZZE120..UKP T=1.2 |
1 | ||
| 41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-41018 |
ZZE12#..UKP..5F T=2.30,MARK EE |
1 | ||
| 90564-41022 |
ZZE12#..UKP..5F T=2.50,MARK JJ |
1 | ||
| 90564-41021 |
ZZE12#..UKP..5F T=2.45,MARK HH |
1 | ||
| 90564-41024 |
ZZE12#..UKP..5F T=2.60,MARK LL |
1 | ||
| 90564-41020 |
ZZE12#..UKP..5F T=2.40,MARK GG |
1 | ||
| 90564-41015 |
ZZE12#..UKP..5F T=2.15,MARK BB |
1 | ||
| 90564-41016 |
ZZE12#..UKP..5F T=2.20,MARK CC |
1 | ||
| 90564-41019 |
ZZE12#..UKP..5F T=2.35,MARK FF |
1 | ||
| 90564-41027 |
ZZE12#..UKP..5F T=2.75,MARK PP |
1 | ||
| 90564-41017 |
ZZE12#..UKP..5F T=2.25,MARK DD |
1 | ||
| 90564-41025 |
ZZE12#..UKP..5F T=2.65,MARK MM |
1 | ||
| 90564-41026 |
ZZE12#..UKP..5F T=2.70,MARK NN |
1 | ||
| 90564-41029 |
ZZE12#..UKP..5F T=2.85,MARK RR |
1 | ||
| 90564-41032 |
ZZE12#..UKP..5F T=3.00,MARK UU |
1 | ||
| 90564-41014 |
ZZE12#..UKP..5F T=2.10,MARK AA |
1 | ||
| 90564-41028 |
ZZE12#..UKP..5F T=2.80,MARK QQ |
1 | ||
| 90564-41023 |
ZZE12#..UKP..5F T=2.55,MARK KK |
1 | ||
| 90564-41030 |
ZZE12#..UKP..5F T=2.90,MARK SS |
1 | ||
| 90564-41031 |
ZZE12#..UKP..5F T=2.95,MARK TT |
1 | ||
| 90564-41015 |
NDE120,ZZE12#..UKP..MTM T=2.15,MARK BB |
1 | ||
| 90564-41014 |
NDE120,ZZE12#..UKP..MTM T=2.10,MARK AA |
1 | ||
| 90564-41024 |
NDE120,ZZE12#..UKP..MTM T=2.60,MARK LL |
1 | ||
| 90564-41017 |
NDE120,ZZE12#..UKP..MTM T=2.25,MARK DD |
1 | ||
| 90564-41020 |
NDE120,ZZE12#..UKP..MTM T=2.40,MARK GG |
1 | ||
| 90564-41026 |
NDE120,ZZE12#..UKP..MTM T=2.70,MARK NN |
1 | ||
| 90564-41016 |
NDE120,ZZE12#..UKP..MTM T=2.20,MARK CC |
1 | ||
| 90564-41019 |
NDE120,ZZE12#..UKP..MTM T=2.35,MARK FF |
1 | ||
| 90564-41027 |
NDE120,ZZE12#..UKP..MTM T=2.75,MARK PP |
1 | ||
| 90564-41018 |
NDE120,ZZE12#..UKP..MTM T=2.30,MARK EE |
1 | ||
| 90564-41021 |
NDE120,ZZE12#..UKP..MTM T=2.45,MARK HH |
1 | ||
| 90564-41025 |
NDE120,ZZE12#..UKP..MTM T=2.65,MARK MM |
1 | ||
| 90564-41029 |
NDE120,ZZE12#..UKP..MTM T=2.85,MARK RR |
1 | ||
| 90564-41028 |
NDE120,ZZE12#..UKP..MTM T=2.80,MARK QQ |
1 | ||
| 90564-41068 |
ZZE12#..UKP..5F T=1.25,MARK 04 |
1 | ||
| 90564-41030 |
NDE120,ZZE12#..UKP..MTM T=2.90,MARK SS |
1 | ||
| 90564-41031 |
NDE120,ZZE12#..UKP..MTM T=2.95,MARK TT |
1 | ||
| 90564-41069 |
ZZE12#..UKP..5F T=1.30,MARK 05 |
1 | ||
| 90564-41071 |
ZZE12#..UKP..5F T=1.40,MARK 07 |
1 | ||
| 90564-41073 |
ZZE12#..UKP..5F T=1.50,MARK 09 |
1 | ||
| 90564-41032 |
NDE120,ZZE12#..UKP..MTM T=3.00,MARK UU |
1 | ||
| 90564-41067 |
ZZE12#..UKP..5F T=1.20,MARK 03 |
1 | ||
| 90564-41066 |
ZZE12#..UKP..5F T=1.15,MARK 02 |
1 | ||
| 90564-41023 |
NDE120,ZZE12#..UKP..MTM T=2.55,MARK KK |
1 | ||
| 90564-41070 |
ZZE12#..UKP..5F T=1.35,MARK 06 |
1 | ||
| 90564-41072 |
ZZE12#..UKP..5F T=1.45,MARK 08 |
1 | ||
| 90564-41022 |
NDE120,ZZE12#..UKP..MTM T=2.50,MARK JJ |
1 | ||
| 90564-41082 |
ZZE12#..UKP..5F T=1.95,MARK 18 |
1 | ||
| 90564-41076 |
ZZE12#..UKP..5F T=1.65,MARK 12 |
1 | ||
| 90564-41081 |
ZZE12#..UKP..5F T=1.90,MARK 17 |
1 | ||
| 90564-41078 |
ZZE12#..UKP..5F T=1.75,MARK 14 |
1 | ||
| 90564-41075 |
ZZE12#..UKP..5F T=1.60,MARK 11 |
1 | ||
| 90564-41065 |
ZZE12#..UKP..5F T=1.10,MARK 01 |
1 | ||
| 90564-41083 |
ZZE12#..UKP..5F T=2.00,MARK 19 |
1 | ||
| 90564-41079 |
ZZE12#..UKP..5F T=1.80,MARK 15 |
1 | ||
| 90564-41074 |
ZZE12#..UKP..5F T=1.55,MARK 10 |
1 | ||
| 90564-41080 |
ZZE12#..UKP..5F T=1.85,MARK 16 |
1 | ||
| 90564-41077 |
ZZE12#..UKP..5F T=1.70,MARK 13 |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-10042 |
ZZE120..UKP |
2 | ||
| 41331-10042 |
ZZE120..UKP (J) |
2 | ||
| 41331-0D030 |
ZZE120..UKP (L) |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-10042 |
ZZE120..UKP |
2 | ||
| 41331-10042 |
ZZE120..UKP (J) |
2 | ||
| 41331-0D030 |
ZZE120..UKP (L) |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-10030 |
ZZE120..UKP |
2 | ||
| 41341-10030 |
ZZE120..UKP (J) |
2 | ||
| 41341-0D030 |
ZZE120..UKP (L) |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-10030 |
ZZE120..UKP |
2 | ||
| 41341-10030 |
ZZE120..UKP (J) |
2 | ||
| 41341-0D030 |
ZZE120..UKP (L) |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-04053 |
ZZE120..UKP |
1 | ||
| 90250-04053 |
ZZE120..UKP |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-10041 |
ZZE120..UKP |
1 | ||
| 41342-10041 |
ZZE120..UKP |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-10030 |
ZZE120..UKP |
2 | ||
| 41351-10030 |
ZZE120..UKP |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-10030 |
ZZE120..UKP |
2 | ||
| 41351-10030 |
ZZE120..UKP |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-10090 |
ZZE120..UKP T=1.60 |
2 | ||
| 41361-10120 |
ZZE120..UKP T=1.75 |
2 | ||
| 41361-10110 |
ZZE120..UKP T=1.70 |
2 | ||
| 41361-10070 |
ZZE120..UKP T=1.50 |
2 | ||
| 41361-10100 |
ZZE120..UKP T=1.65 |
2 | ||
| 41361-10070 |
ZZE120..UKP T=1.50 |
2 | ||
| 41361-10100 |
ZZE120..UKP T=1.65 |
2 | ||
| 41361-10120 |
ZZE120..UKP T=1.75 |
2 | ||
| 41361-10090 |
ZZE120..UKP T=1.60 |
2 | ||
| 41361-10080 |
ZZE120..UKP T=1.55 |
2 | ||
| 41361-10080 |
ZZE120..UKP T=1.55 |
2 | ||
| 41361-10110 |
ZZE120..UKP T=1.70 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-10090 |
ZZE120..UKP T=1.60 |
2 | ||
| 41361-10120 |
ZZE120..UKP T=1.75 |
2 | ||
| 41361-10110 |
ZZE120..UKP T=1.70 |
2 | ||
| 41361-10070 |
ZZE120..UKP T=1.50 |
2 | ||
| 41361-10100 |
ZZE120..UKP T=1.65 |
2 | ||
| 41361-10070 |
ZZE120..UKP T=1.50 |
2 | ||
| 41361-10100 |
ZZE120..UKP T=1.65 |
2 | ||
| 41361-10120 |
ZZE120..UKP T=1.75 |
2 | ||
| 41361-10090 |
ZZE120..UKP T=1.60 |
2 | ||
| 41361-10080 |
ZZE120..UKP T=1.55 |
2 | ||
| 41361-10080 |
ZZE120..UKP T=1.55 |
2 | ||
| 41361-10110 |
ZZE120..UKP T=1.70 |
2 | ||
