ZZE120L-DEMDKW (2002)

Toyota Corolla Sed/Wg (Ukp)

Production Jan 2002 - Feb 2007
Engine 4ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0201- )UKP

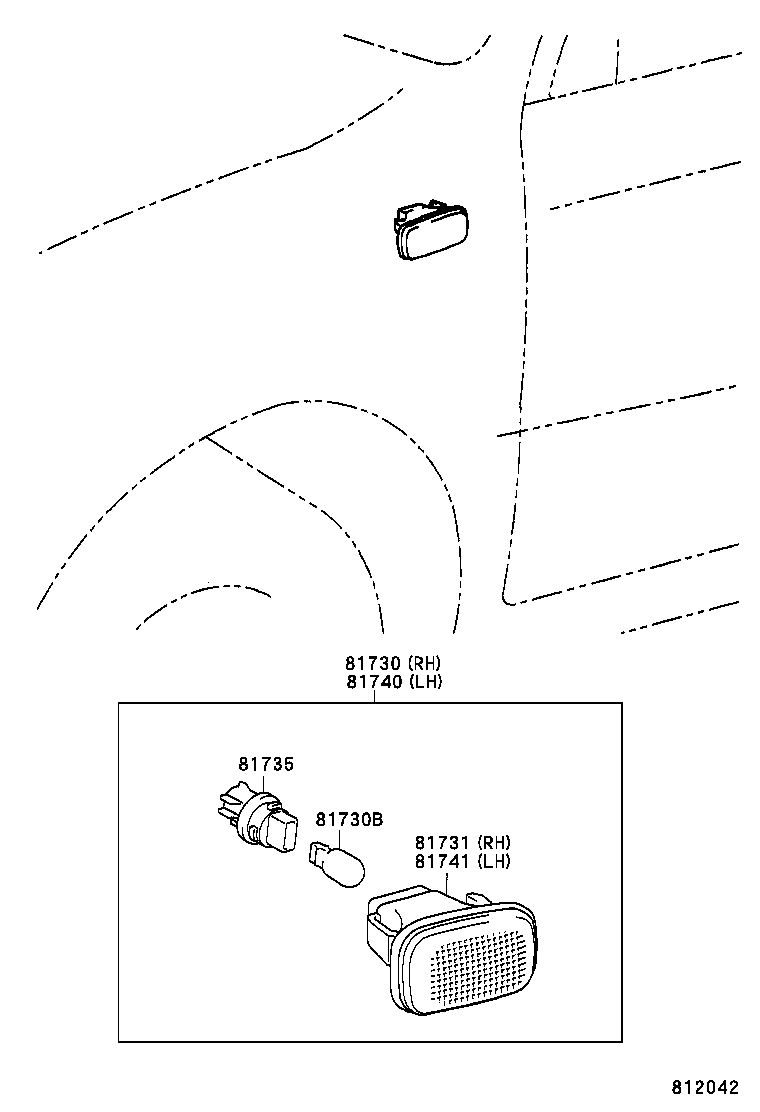

Click highlighted areas on diagram

diagram 81730 81730B 81731 81735 81740 81741
Part # Description Qty Price
81730 - LAMP ASSY, SIDE TURN SIGNAL, RH
81730-02020

ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA

 1
81730-02020

CDE120,ZZE12#..UKP

 1
81730-02022

CDE120,ZZE12#..UKP

 1
81730-02023

CDE120,NDE120,ZZE12#..UKP

 1
81730B - BULB (FOR SIDE TURN SIGNAL LAMP)
90080-81083

ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA

12V 5W

 2
90981-WF004

CDE120,NDE120,ZZE12#..UKP

12V 5W

 2
90080-81083

CDE120,ZZE12#..UKP

12V 5W

 2
81731 - LENS, SIDE TURN SIGNAL LAMP, RH
81731-02022

CDE120,NDE120,ZZE12#..UKP

 1
81731-02020

CDE120,ZZE12#..UKP

 1
81731-02020

ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA

 1
81735 - SOCKET AND WIRE, SIDE TURN SIGNAL LAMP
90069-81005

CDE120,NDE120,ZZE12#..UKP

 2
90069-81005

ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA

 2
81740 - LAMP ASSY, SIDE TURN SIGNAL, LH
81730-02020

ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA

 1
81730-02023

CDE120,NDE120,ZZE12#..UKP

 1
81730-02020

CDE120,ZZE12#..UKP

 1
81730-02022

CDE120,ZZE12#..UKP

 1
81741 - LENS, SIDE TURN SIGNAL LAMP, LH
81731-02020

CDE120,ZZE12#..UKP

 1
81731-02022

CDE120,NDE120,ZZE12#..UKP

 1
81731-02020

ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA

 1
