ZZE120L-DEMDKW (2002)
Toyota Corolla Sed/Wg (Ukp)

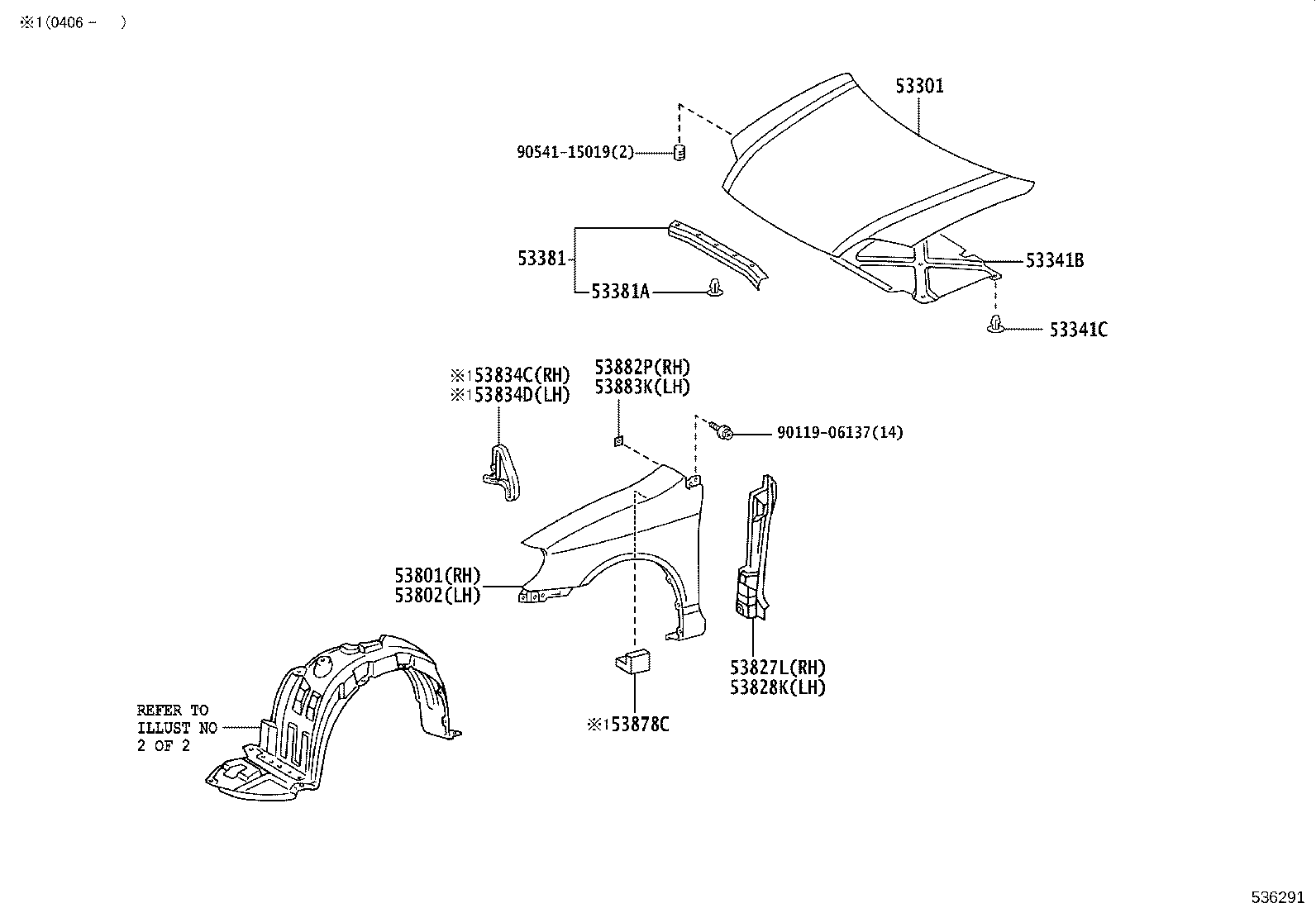

ILLUST NO. 1 OF 2(0201- )UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-02080 |
CDE120,ZZE12#..UKP |
1 | ||
| 53301-02080 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-02060 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 53341-02060 |
ZZE12#..UKP |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
8 | ||
| 90467-W0003 |
CDE120,NDE120,ZZE12#..UKP |
8 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-02060 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 53381-02060 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
CDE120,NDE120,ZZE12#..UKP |
8 | ||
| 90467-08011 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
8 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-02080 |
CDE120,ZZE12#..UKP |
1 | ||
| 53811-02080 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-02080 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 53812-02080 |
CDE120,ZZE12#..UKP |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-12050 |
CDE120,ZZE12#..UKP..(DCR,HTWC) |
1 | ||
| 53827-12050 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA (J) |
1 | ||
| 53827-02060 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 53827-02060 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA (L) |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-12050 |
CDE120,ZZE12#..UKP..(DCR,HTWC) |
1 | ||
| 53828-02060 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA (L) |
1 | ||
| 53828-12050 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA (J) |
1 | ||
| 53828-02060 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 53834C - PLATE, FRONT FENDER SUPPORT, RH | ||||
| 53834-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 53834D - PLATE, FRONT FENDER SUPPORT, LH | ||||
| 53834-02010 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 53878C - SPACER, FRONT FENDER | ||||
| 53878-02010 |
CDE120,NDE120,ZZE12#..UKP |
2 | ||
| 53882P - SEAL, FRONT FENDER, RH | ||||
| 53882-16030 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 53882-16030 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 53883K - SEAL, FRONT FENDER, LH | ||||
| 53882-16030 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 53882-16030 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| Common parts | ||||
| 90119-06137 | ||||
| 90541-15019 | ||||

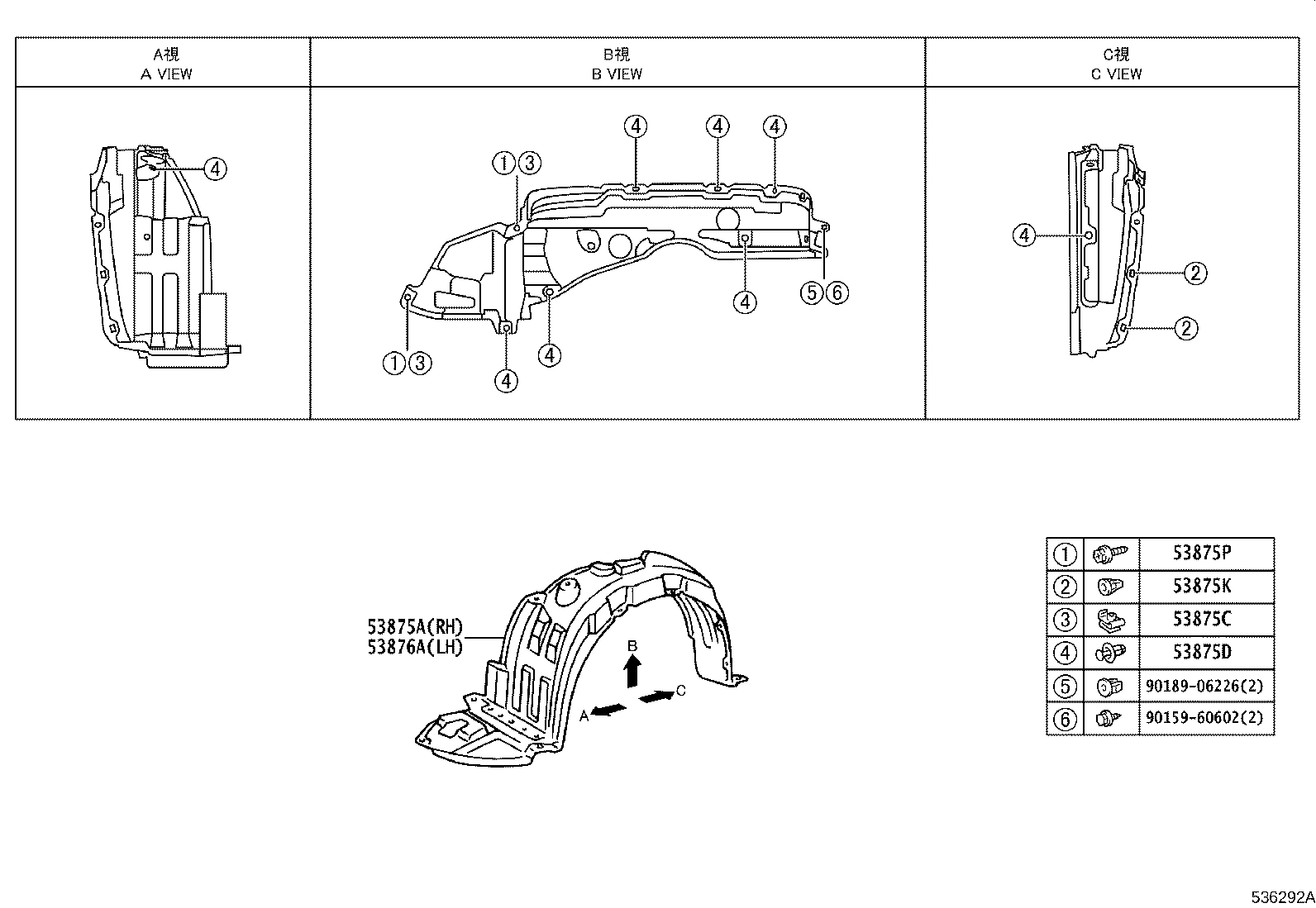

ILLUST NO. 2 OF 2(0201- )UKP
FENDER LINER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-02070 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| 53875-02160 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 53875C - CLIP, FRONT FENDER LINER | ||||
| 90467-05138 |
CDE120,ZZE12#..UKP |
4 | ||
| 90467-05138 |
CDE120,NDE120,ZZE12#..UKP |
4 | ||
| 53875D - CLIP, FRONT FENDER LINER, NO.2 | ||||
| 90467-10183 |
CDE120,ZZE12#..UKP |
16 | ||
| 90467-10183 |
CDE120,NDE120,ZZE12#..UKP |
16 | ||
| 53875K - GROMMET, SCREW | ||||
| 90189-06157 |
CDE120,ZZE12#..UKP |
4 | ||
| 90189-06157 |
CDE120,NDE120,ZZE12#..UKP |
4 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-60488 |
CDE120,ZZE12#..UKP |
4 | ||
| 90159-60488 |
CDE120,NDE120,ZZE12#..UKP |
4 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-02160 |
CDE120,NDE120,ZZE12#..UKP |
1 | ||
| 53876-02070 |
ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA |
1 | ||
| Common parts | ||||
| 90159-60602 | ||||
| 90189-06226 | ||||
