ZZE120L-DEMDKW (2002)

Toyota Corolla Sed/Wg (Ukp)

Production Jan 2002 - Feb 2007
Engine 4ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0201- )UKP

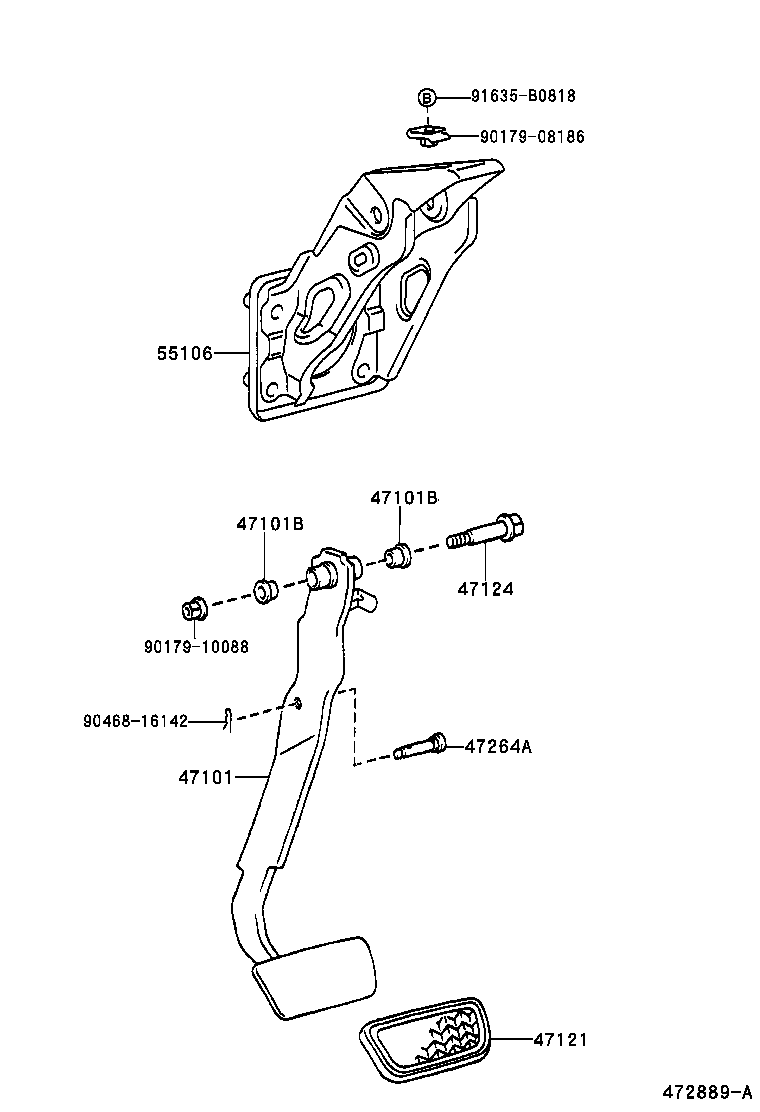

Click highlighted areas on diagram

diagram 47101 47101B 47101B 47121 47124 47264A 55106 9017908186 9017910088 9046816142 91635B0818
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-02120

ZZE12#..UKP..LHD..5F

 1
47101-02120

CDE120,NDE120,ZZE12#..UKP..LHD..5F

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

CDE120,NDE120,ZZE12#..UKP

 2
90386-13015

ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

CDE120,NDE120,ZZE12#..UKP

 2
90386-13015

ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA

 2
47121 - PAD, BRAKE PEDAL
31321-52010

ZZE12#..UKP..5F

 1
31321-52010

CDE120,NDE120,ZZE12#..UKP..5F

 1
47124 - SHAFT, BRAKE PEDAL
90109-10174

ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA

 1
90109-10174

CDE120,NDE120,ZZE12#..UKP

 1
47264A - PIN(FOR PUSH ROD)
47148-12070

CDE120,NDE120,ZZE12#..UKP

 1
47148-12070

ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-02080

ZZE120..UKP..LHD;ZZE121..UKP..LHD..SOL;ZZE121..UKP..LHD..SED..TERRA;ZZE121..UKP..LHD..WG..5F..TERRA

 1
55106-02080

CDE120,NDE120,ZZE12#..UKP..LHD

 1
Common parts
90179-08186
90179-10088
90468-16142
91635-B0818
