NDE120L-DWMDYW (2004)

Toyota Corolla Sed/Wg (Ukp)

Production Aug 2004 - Feb 2007
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )1NDTV..UKP

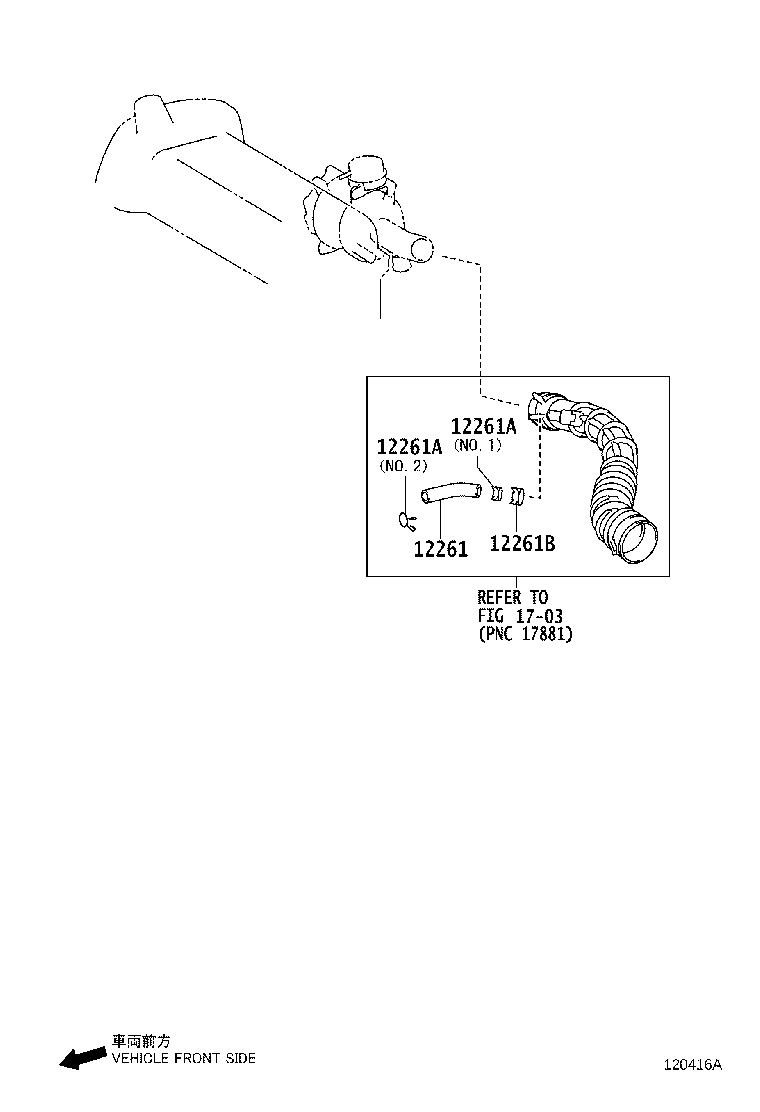

Click highlighted areas on diagram

diagram 12261 12261A 12261A 12261B 1703
Part # Description Qty Price
12261 - HOSE, VENTILATION
12261-33060

1NDTV..NDE120..UKP

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-20009

1NDTV..NDE120..UKP

NO.1

 1
90467-21004

1NDTV..NDE120..UKP

NO.2

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-20009

1NDTV..NDE120..UKP

NO.1

 1
90467-21004

1NDTV..NDE120..UKP

NO.2

 1
12261B - CLIP OR CLAMP(FOR VENTILATION HOSE)
96134-52600

1NDTV..NDE120..UKP

 1
Linked diagrams
1703
