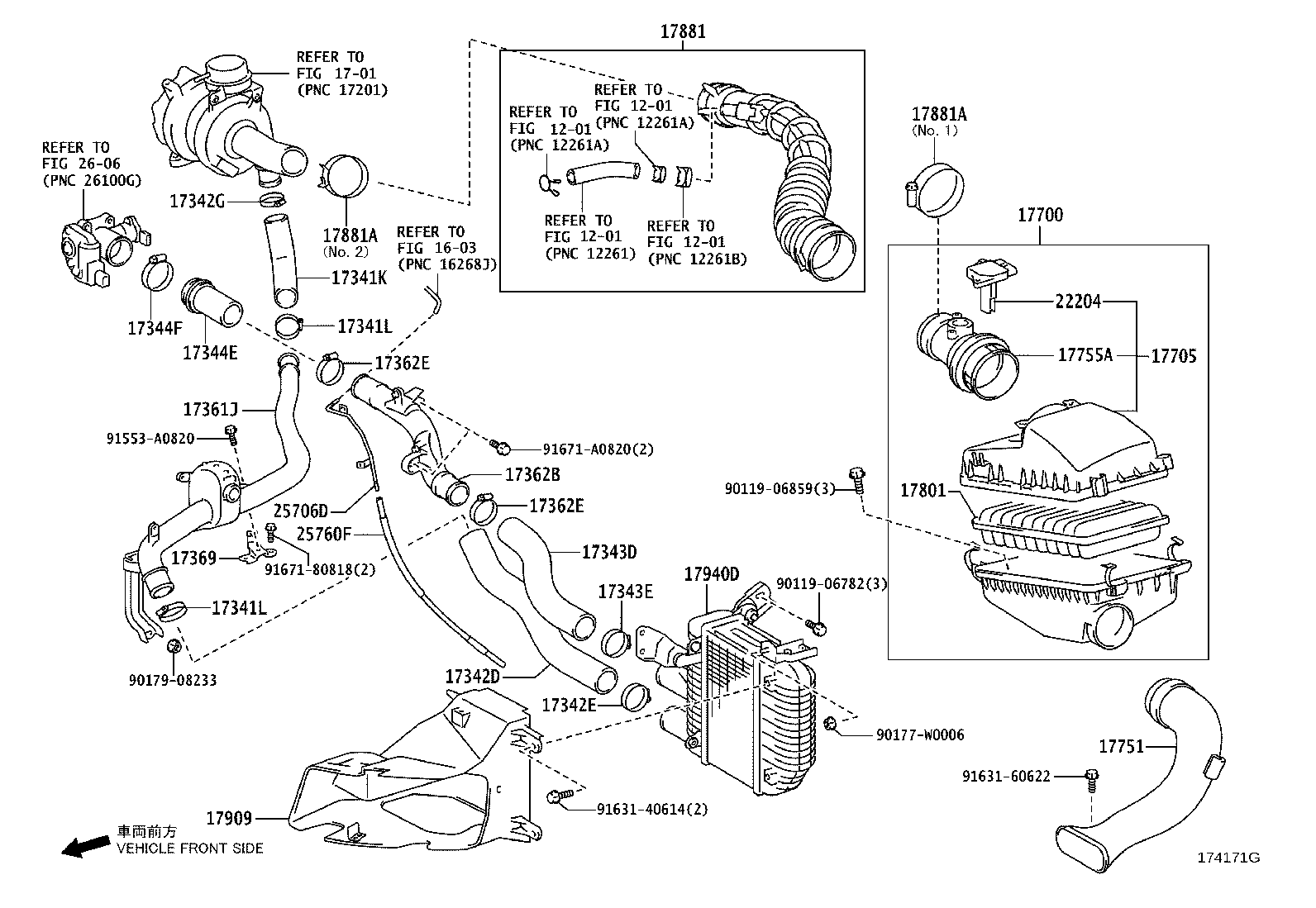

NDE120L-DWGDYW (2004)
Toyota Corolla Sed/Wg (Ukp)
(0408- )1NDTV..UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341K - HOSE, AIR, NO.1(FOR INTERCOOLER) | ||||
| 17341-33020 |
1NDTV..NDE120..UKP |
1 | ||
| 17341L - CLAMP, HOSE | ||||
| 90460-60006 |
1NDTV..NDE120..UKP |
2 | ||
| 17341L - CLAMP, HOSE | ||||
| 90460-60006 |
1NDTV..NDE120..UKP |
2 | ||
| 17342D - HOSE, AIR, NO.2 | ||||
| 17342-33020 |
1NDTV..NDE120..UKP |
1 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-60006 |
1NDTV..NDE120..UKP |
1 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-50005 |
1NDTV..NDE120..UKP |
1 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-33010 |
1NDTV..NDE120..UKP |
1 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-60006 |
1NDTV..NDE120..UKP |
1 | ||
| 17344E - HOSE, AIR, NO.4 | ||||
| 17344-33010 |
1NDTV..NDE120..UKP |
1 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-60006 |
1NDTV..NDE120..UKP |
1 | ||
| 17361J - TUBE, AIR, NO.1 | ||||
| 17361-33010 |
1NDTV..NDE120..UKP |
1 | ||
| 17362B - TUBE, AIR, NO.2 | ||||
| 17362-33010 |
1NDTV..NDE120..UKP |
1 | ||
| 17362E - CLAMP, NO.2(FOR AIR TUBE, NO.2) | ||||
| 90460-60006 |
1NDTV..NDE120..UKP |
2 | ||
| 17362E - CLAMP, NO.2(FOR AIR TUBE, NO.2) | ||||
| 90460-60006 |
1NDTV..NDE120..UKP |
2 | ||
| 17369 - BRACKET, AIR TUBE SUPPORT | ||||
| 17369-0N010 |
1NDTV..NDE120..UKP |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-33191 |
1NDTV..NDE120..UKP |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-33061 |
1NDTV..NDE120..UKP |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-0N010 |
1NDTV..NDE120..UKP |
1 | ||
| 17755A - OUTLET, AIR CLEANER | ||||
| 17755-33010 |
1NDTV..NDE120..UKP |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-27020 |
1NDTV..NDE120..UKP (J) |
1 | ||
| 17801-0G010 |
1NDTV..NDE120..UKP (L) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17880-0N020 |
1NDTV..NDE120..UKP |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90466-54002 |
1NDTV..NDE120..UKP NO.2 |
1 | ||
| 96111-10780 |
1NDTV..NDE120..UKP NO.1 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90466-54002 |
1NDTV..NDE120..UKP NO.2 |
1 | ||
| 96111-10780 |
1NDTV..NDE120..UKP NO.1 |
1 | ||
| 17909 - DUCT SUB-ASSY, INTERCOOLER COOLING AIR | ||||
| 17909-0N020 |
1NDTV..NDE120..UKP |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-33020 |
1NDTV..NDE120..UKP |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-30010 |
1NDTV..NDE120..UKP |
1 | ||
| 25706D - PIPE SUB-ASSY, VACUUM TRANSMITTING | ||||
| 25706-33010 |
1NDTV..NDE120..UKP |
1 | ||
| 25760F - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-33020 |
1NDTV..NDE120..UKP |
1 | ||
| Common parts | ||||
| 90119-06782 | ||||
| 90119-06859 | ||||
| 90177-W0006 | ||||
| 90179-08233 | ||||
| 91553-A0820 | ||||
| 91631-40614 | ||||
| 91631-60622 | ||||
| 91671-80818 | ||||
| 91671-A0820 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1603 | ||||
| 1701 | ||||
| 2606 | ||||
