NDE120L-DEMDYW (2004)

Toyota Corolla Sed/Wg (Ukp)

Production Aug 2004 - Feb 2007
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )1NDTV..UKP

Click highlighted areas on diagram

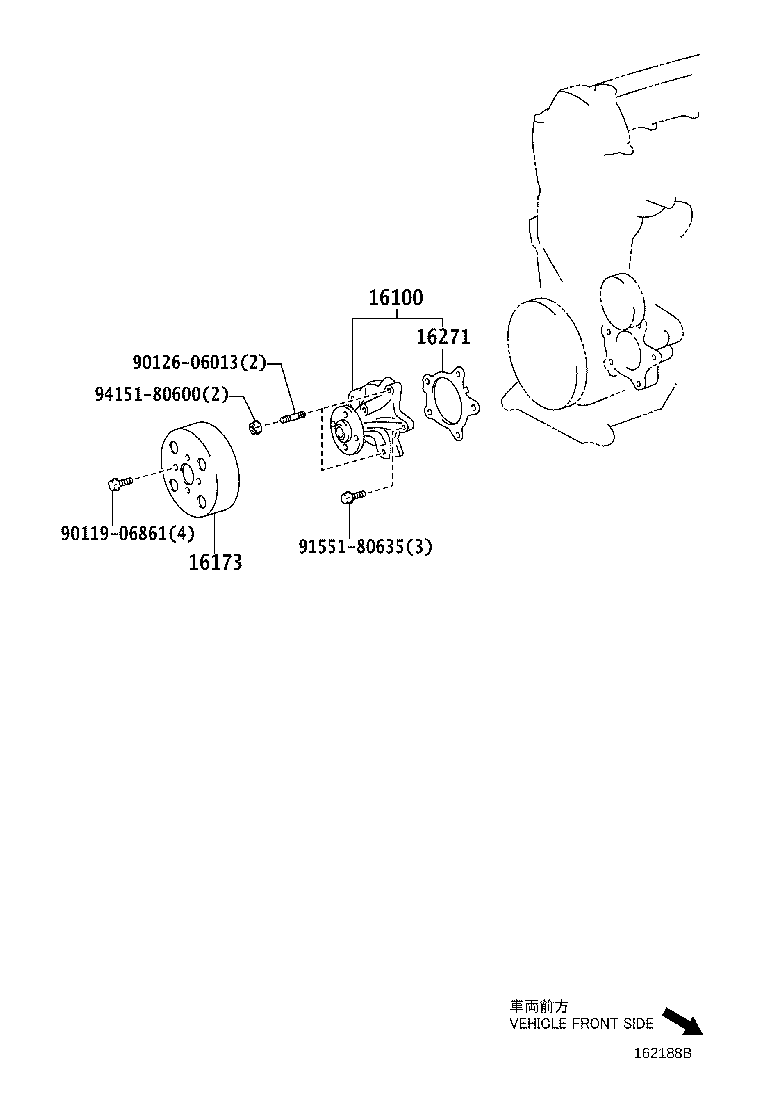

diagram 16100 16173 16271 9011906861 9012606013 9155180635 9415180600
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-39395

1NDTV..NDE120..UKP

 1
16173 - PULLEY, WATER PUMP
16173-33030

1NDTV..NDE120..UKP

 1
16271 - GASKET, WATER PUMP
16271-33020

1NDTV..NDE120..UKP

 1
Common parts
90119-06861
90126-06013
91551-80635
94151-80600
