NDE120L-DEMDYW (2004)

Toyota Corolla Sed/Wg (Ukp)

Production Aug 2004 - Feb 2007
Engine 1NDTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )1NDTV..UKP

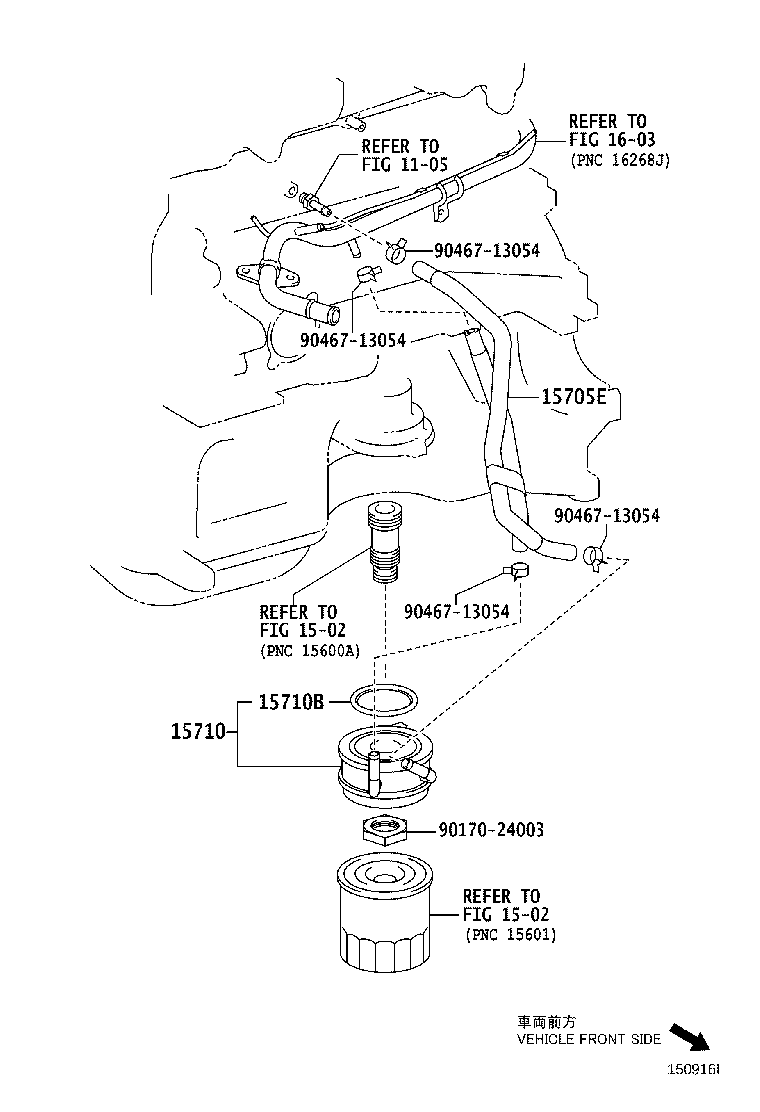

Click highlighted areas on diagram

diagram 1105 1502 1502 15705E 15710 15710B 1603 9017024003 9046713054 9046713054 9046713054 9046713054
Part # Description Qty Price
15705E - HOSE SUB-ASSY, OIL COOLER
15705-33040

1NDTV..NDE120..UKP

 1
15710 - COOLER ASSY, OIL
15710-33030

1NDTV..NDE120..UKP

 1
15710B - RING, O(FOR OIL COOLER)
90301-58002

1NDTV..NDE120..UKP

 1
Common parts
90170-24003
90467-13054
Linked diagrams
1105
1502
1603
