COROLLA SED/WG (UKP)
NDE120L-DEGDYW (2004)
8716 - HEATING & AIR CONDITIONING - WATER PIPING

NDE120L-DEGDYW (2004)

Toyota Corolla Sed/Wg (Ukp)

Production Aug 2004 - Feb 2007

Engine 1NDTV

Transmission 5FS MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0408- )NDE120..UKP

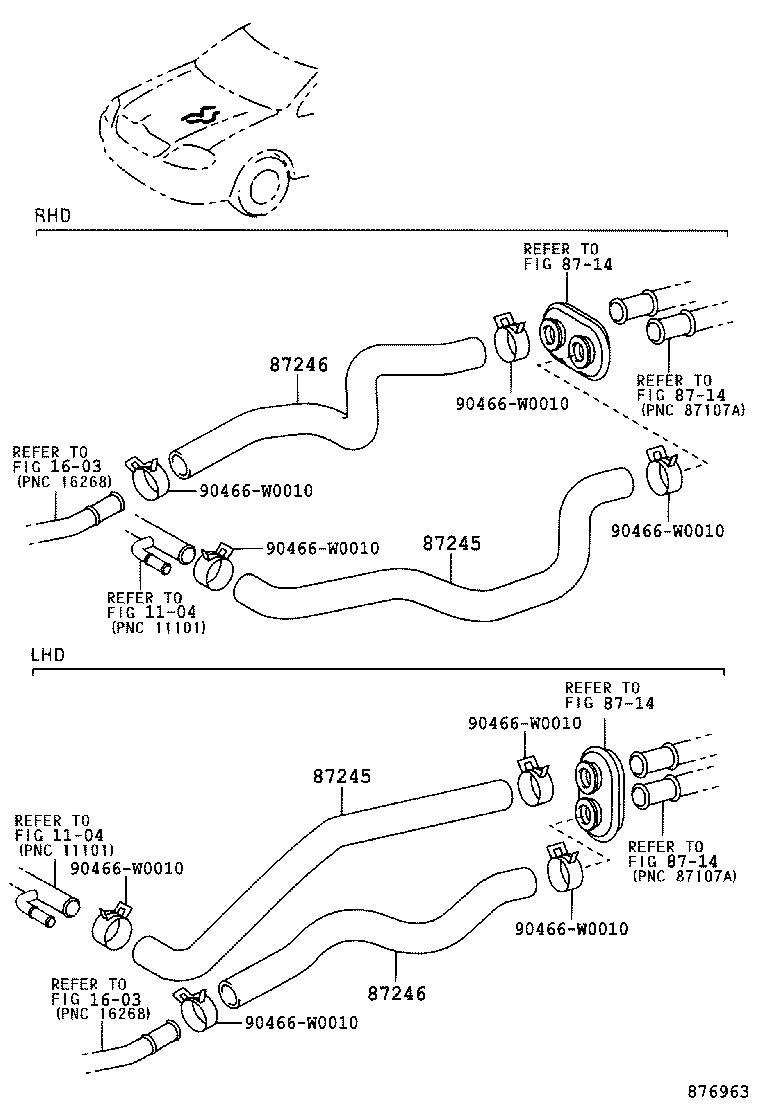

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
87245 - HOSE, HEATER WATER, INLET
87245-02840	NDE120..UKP..LHD..5F W(STOVE HEATER)	08/2004 - 12/2999	1
87245-02820	NDE120..UKP..LHD	08/2004 - 12/2999	1
87245 - HOSE, HEATER WATER, INLET
87245-02840	NDE120..UKP..LHD..5F W(STOVE HEATER)	08/2004 - 12/2999	1
87245-02820	NDE120..UKP..LHD	08/2004 - 12/2999	1
87246 - HOSE, HEATER WATER, OUTLET
87245-02830	NDE120..UKP..LHD	08/2004 - 12/2999	1
87246 - HOSE, HEATER WATER, OUTLET
87245-02830	NDE120..UKP..LHD	08/2004 - 12/2999	1
Common parts
90466-W0010
Linked diagrams
1104
1603
8714

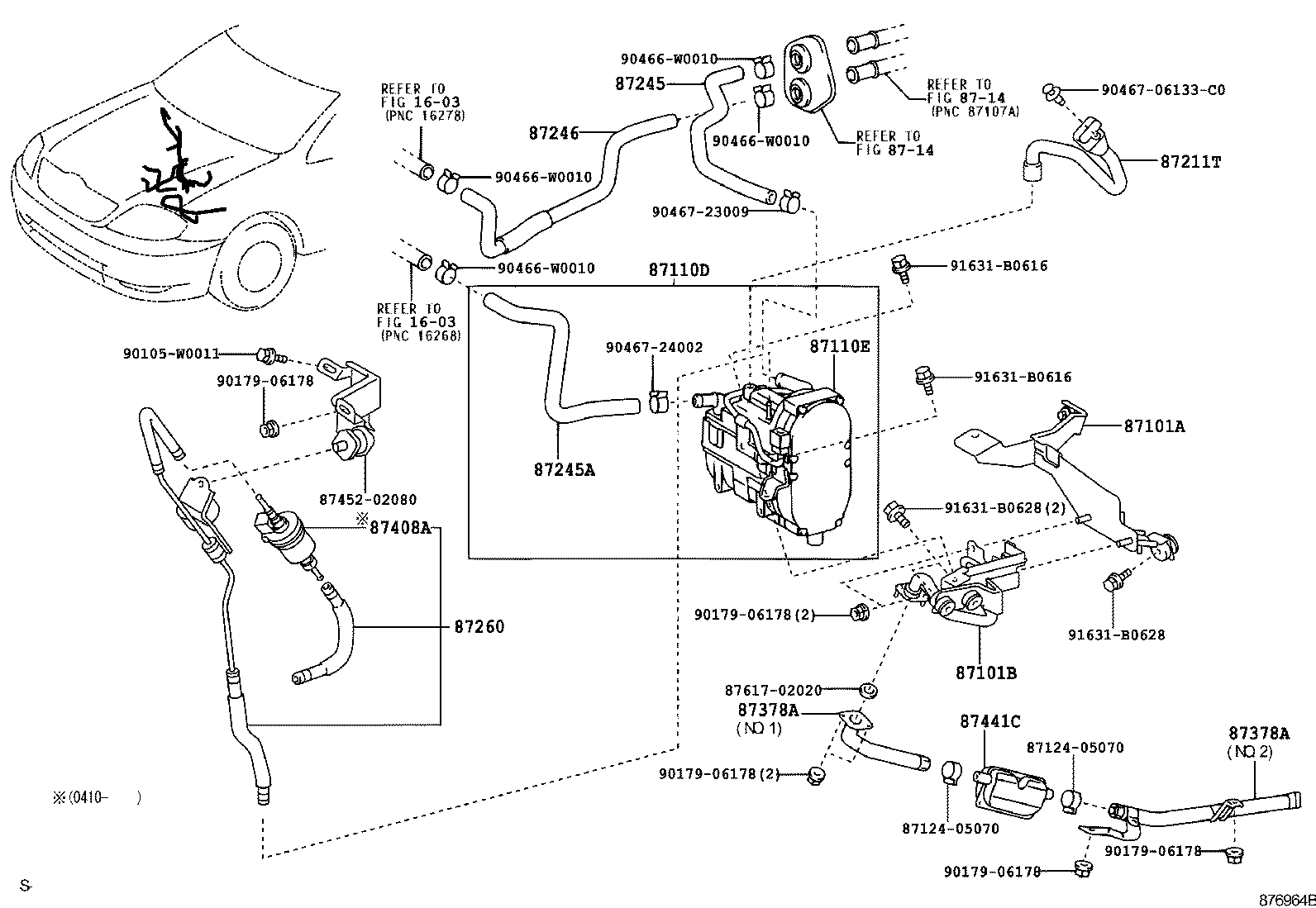

(0408- )NDE120..UKP..LHD

Click highlighted areas on diagram

W(STOVE HEATER)

diagram

Part #	Description	Period	Qty	Price
87101A - BRACKET SUB-ASSY, HEATER NO.1
87101-02040	NDE120..UKP..LHD..5F	08/2004 - 12/2999	1
87101B - BRACKET SUB-ASSY, HEATER NO.2
87101-02050	NDE120..UKP..LHD..5F	08/2004 - 12/2999	1
87110D - HEATER ASSY
87100-02021	NDE120..UKP..LHD..5F	10/2004 - 08/2006	1
87100-02021	NDE120..UKP..LHD..5F	09/2006 - 12/2999	1
87100-02020	NDE120..UKP..LHD..5F	08/2004 - 09/2004	1
87110E - HEATER ASSY
87110-02010	NDE120..UKP..LHD..5F	08/2004 - 09/2004	1
87110-02011	NDE120..UKP..LHD..5F	09/2006 - 12/2999	1
87110-02011	NDE120..UKP..LHD..5F	10/2004 - 08/2006	1
87211T - DUCT, AIR
87211-02150	NDE120..UKP..LHD..5F	08/2004 - 12/2999	1
87245 - HOSE, HEATER WATER, INLET
87245-02840	NDE120..UKP..LHD..5F W(STOVE HEATER)	08/2004 - 12/2999	1
87245-02820	NDE120..UKP..LHD	08/2004 - 12/2999	1
87245A - HOSE, HEATER WATER, INLET A
87245-02700	NDE120..UKP..LHD..5F	08/2004 - 09/2004	1
87245-02700	NDE120..UKP..LHD..5F	09/2006 - 12/2999	1
87245-02700	NDE120..UKP..LHD..5F	10/2004 - 08/2006	1
87246 - HOSE, HEATER WATER, OUTLET
87245-02830	NDE120..UKP..LHD	08/2004 - 12/2999	1
87260 - PUMP ASSY, HEATER
87260-02020	NDE120..UKP..LHD..5F	08/2004 - 09/2004	1
87260-02021	NDE120..UKP..LHD..5F	10/2004 - 12/2999	1
87408A - PUMP SUB-ASSY, FUEL
87408-0D011	CDE120,NDE120..UKP..LHD..5F	10/2004 - 12/2999	1
Common parts
87124-05070
87452-02080
87617-02020
90105-W0011
90179-06178
90466-W0010
90467-06133C0
90467-23009
90467-24002
91631-B0616
91631-B0628
Linked diagrams
1603
8714
