NDE120L-DEGDYW (2004)

Toyota Corolla Sed/Wg (Ukp)

Production Aug 2004 - Feb 2007
Engine 1NDTV
Transmission 5FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )NDE120..UKP..LHD

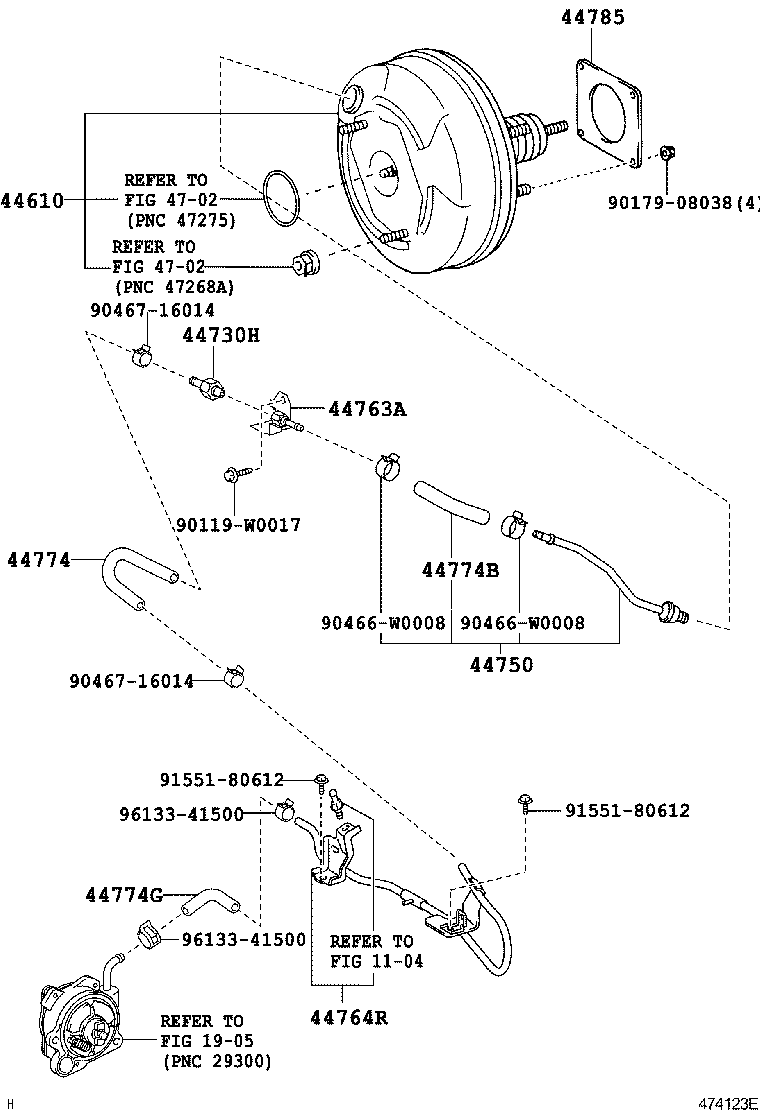

Click highlighted areas on diagram

diagram 1104 1905 44610 44730H 44750 44763A 44764R 44774 44774B 44774G 44785 4702 4702 90119W0017 9017908038 90466W0008 90466W0008 9046716014 9046716014 9155180612 9155180612 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-09360

CDE120,NDE120..UKP..LHD

 1
44750 - HOSE ASSY, VACUUM
44750-02080

NDE120..UKP..LHD

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-12370

NDE120..UKP..LHD

 1
44764R - TUBE, CONNECTOR TO VACUUM RESERVOIR
44764-12010

NDE120..UKP

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12480

NDE120..UKP

 1
44774B - HOSE, UNION TO CONNECTOR TUBE
44774-12500

NDE120..UKP..LHD

 1
44774G - HOSE, UNION TO SOLENOID
44774-52021

NDE120..UKP

 1
Common parts
90119-W0017
90179-08038
90466-W0008
90467-16014
91551-80612
96133-41500
Linked diagrams
1104
1905
4702
