ZZE121L-AWPNKW (2001)
Toyota Corolla Sed/Wg (Jpp)
Production
Oct 2001
-
May 2004
Engine
3ZZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0110- )3ZZFE,4ZZFE..JPP

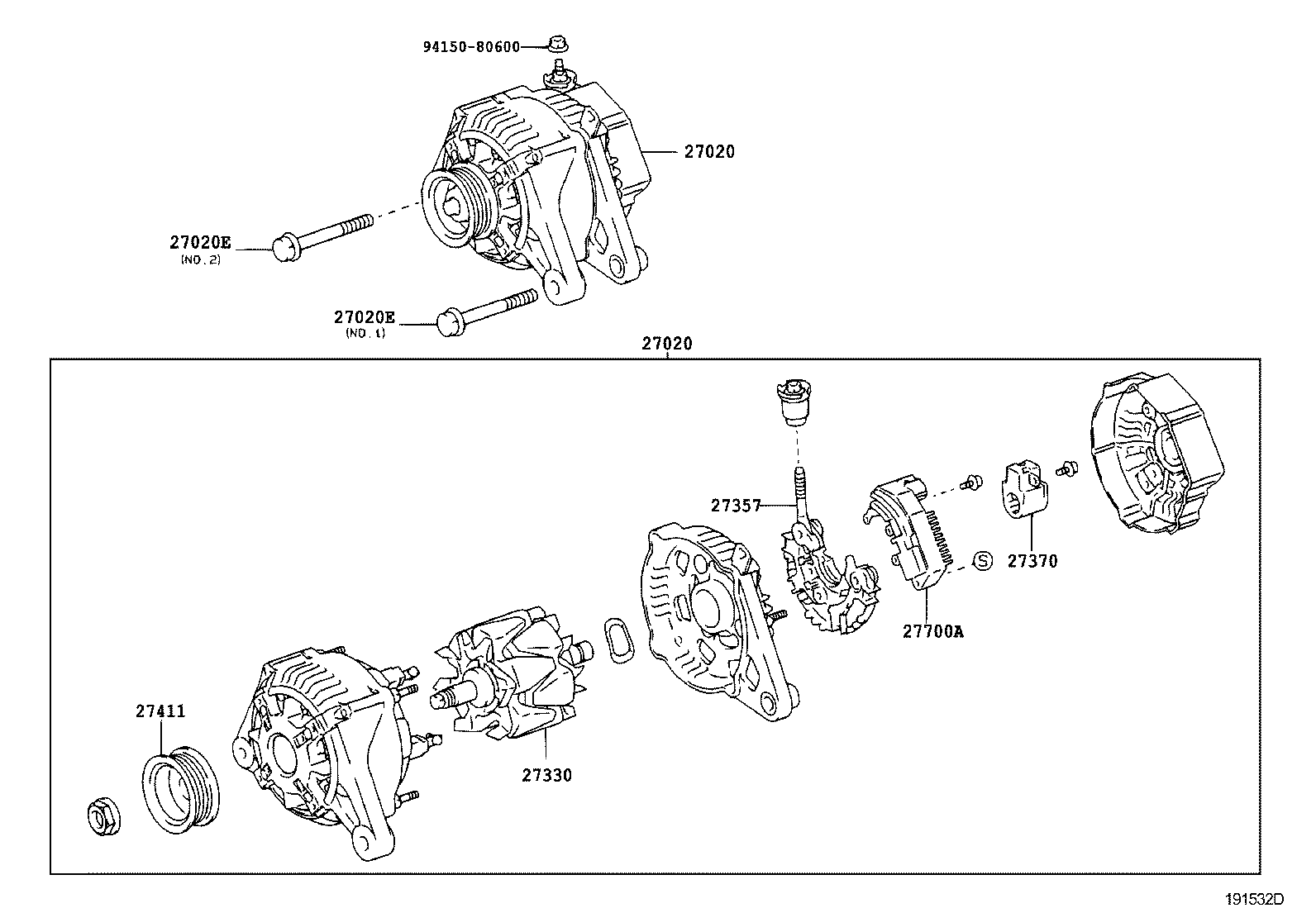

Click highlighted areas on diagram
12V 70A,80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-22030 |
3ZZFE,4ZZFE..ZZE12#..JPP 12V 80A |
1 | ||
| 27020 - ALTERNATOR ASSY | ||||
| 27060-22030 |
3ZZFE,4ZZFE..ZZE12#..JPP 12V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10075 |
3ZZFE,4ZZFE..ZZE12#..JPP NO.1 |
1 | ||
| 91511-80830 |
3ZZFE,4ZZFE..ZZE12#..JPP NO.2 |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10075 |
3ZZFE,4ZZFE..ZZE12#..JPP NO.1 |
1 | ||
| 91511-80830 |
3ZZFE,4ZZFE..ZZE12#..JPP NO.2 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-16390 |
3ZZFE,4ZZFE..ZZE12#..JPP 12V 80A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-22050 |
3ZZFE,4ZZFE..ZZE12#..JPP 12V 80A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
3ZZFE..ZZE121..JPP;1CDFTV,4ZZFE..CDE120,ZZE120..JPP..LHD 12V 80A,90A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-50050 |
3ZZFE,4ZZFE..ZZE12#..JPP 12V 80A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-46060 |
3ZZFE,4ZZFE..ZZE12#..JPP |
1 | ||
| Common parts | ||||
| 94150-80600 | ||||
