ZZE121L-AWPDKW (2001)

Toyota Corolla Sed/Wg (Jpp)

Production Oct 2001 - May 2004
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0110-0405)JPP

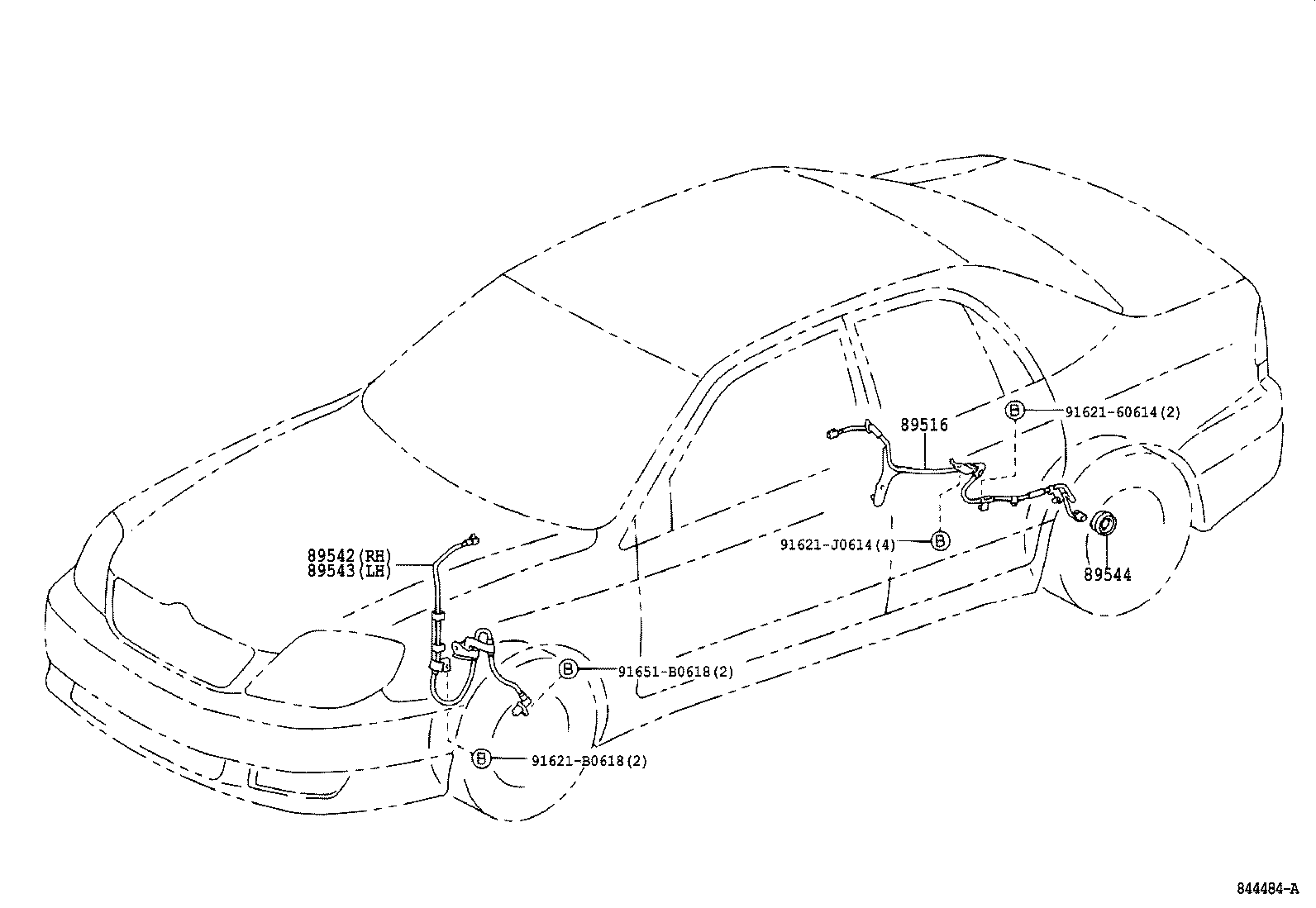

Click highlighted areas on diagram

diagram 89516 89542 89543 89544 9162160614 91621B0618 91621J0614 91651B0618
Part # Description Qty Price
89516 - WIRE, SKID CONTROL SENSOR
89516-12010

CDE120,ZZE12#..JPP

RH

 1
89516-12020

CDE120,ZZE12#..JPP

LH

 1
89542 - SENSOR, SPEED, FRONT RH
89542-12070

CDE120,ZZE12#..JPP

 1
89543 - SENSOR, SPEED, FRONT LH
89543-12070

CDE120,ZZE12#..JPP

 1
89544 - SENSOR, SKID CONTROL
89544-32030

CDE120,ZZE12#..JPP

TOYOTA

 2
89544-32040

CDE120,ZZE12#..JPP

KOYO

 2
Common parts
91621-60614
91621-B0618
91621-J0614
91651-B0618
