ZZE121L-AWPDKW (2001)
Toyota Corolla Sed/Wg (Jpp)

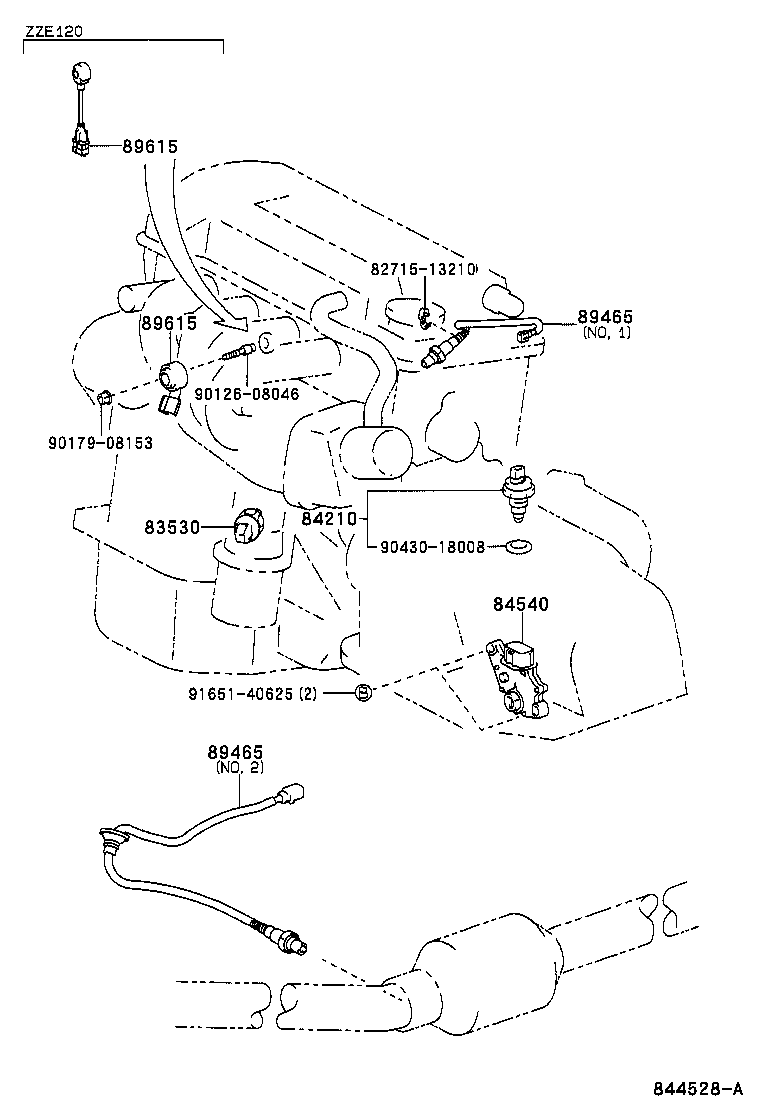

ILLUST NO. 1 OF 6(0110-0405)ZZE12#..JPP
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ZZE12#..JPP DENSO |
1 | ||
| 83530-60020 |
ZZE12#..JPP YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-12230 |
ZZE121..JPP..4FC |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-13030 |
ZZE121..JPP NO.1 |
1 | ||
| 89465-13040 |
ZZE121..JPP NO.2 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-13030 |
ZZE121..JPP NO.1 |
1 | ||
| 89465-13040 |
ZZE121..JPP NO.2 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ZZE121..JPP |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ZZE121..JPP |
1 | ||
| Common parts | ||||
| 82715-13210 | ||||
| 90126-08046 | ||||
| 90179-08153 | ||||
| 90430-18008 | ||||
| 91651-40625 | ||||

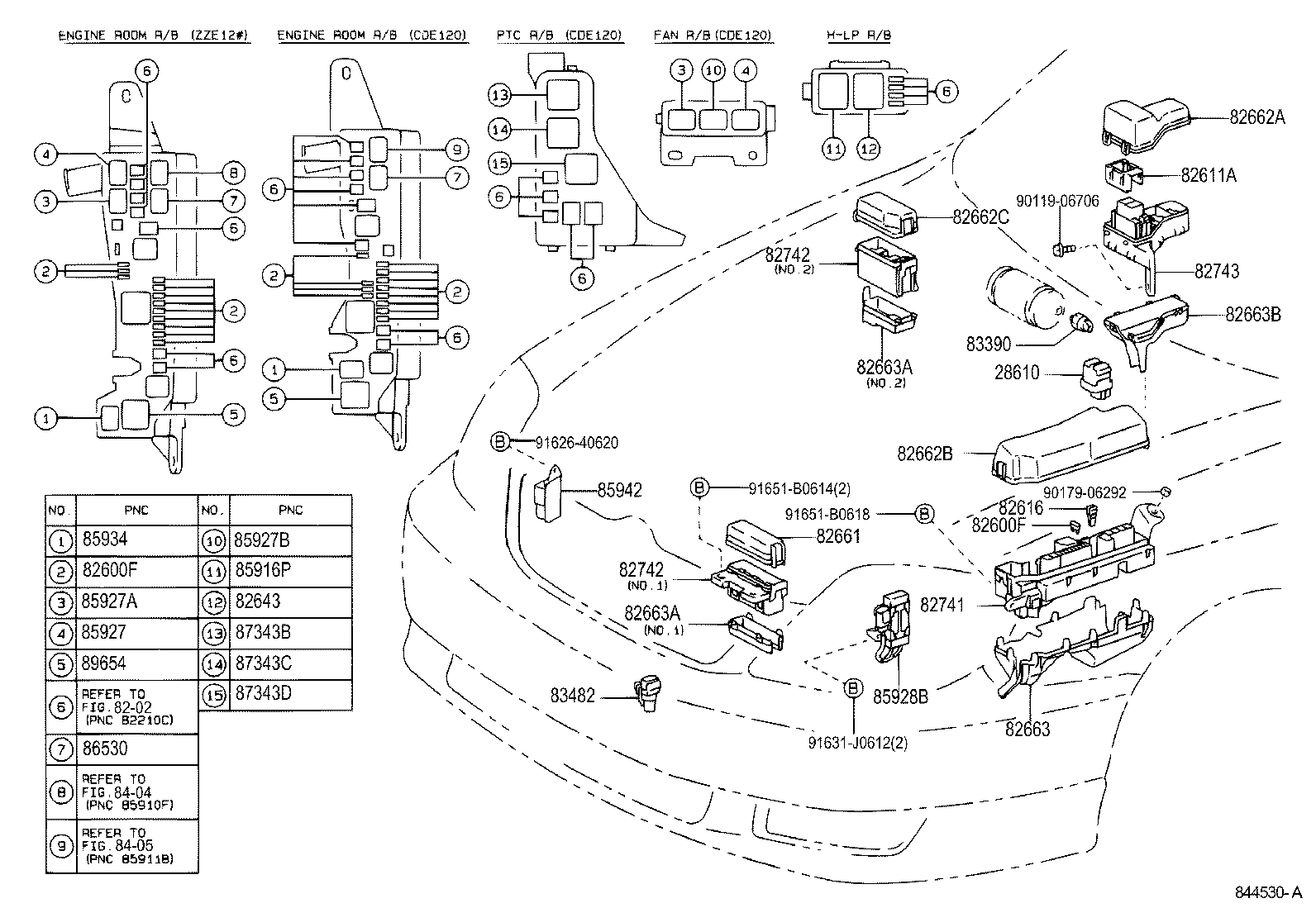

ILLUST NO. 2 OF 6(0110-0405)JPP
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
CDE120,ZZE12#..JPP 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
CDE120,ZZE12#..JPP 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09007 |
CDE120,ZZE12#..JPP 5A,MINI FUSE,TAN |
1 | ||
| 90982-09009 |
CDE120,ZZE12#..JPP 10A,MINI FUSE,RED |
1 | ||
| 90982-09013 |
CDE120,ZZE12#..JPP 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
CDE120,ZZE12#..JPP 25A,MINI FUSE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
CDE120,ZZE12#..JPP 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
CDE120,ZZE12#..JPP 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09007 |
CDE120,ZZE12#..JPP 5A,MINI FUSE,TAN |
1 | ||
| 90982-09009 |
CDE120,ZZE12#..JPP 10A,MINI FUSE,RED |
1 | ||
| 90982-09013 |
CDE120,ZZE12#..JPP 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
CDE120,ZZE12#..JPP 25A,MINI FUSE |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
CDE120,ZZE12#..JPP |
1 | ||
| 82643 - RELAY, DIM-DIP LAMP | ||||
| 90987-04006 |
CDE120,ZZE12#..JPP..LHD..WG |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-13020 |
ZZE12#..JPP |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-12020 |
CDE120,ZZE12#..JPP..LHD..WG |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-12010 |
ZZE12#..JPP |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-12040 |
ZZE12#..JPP..LHD..WG NO.2 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-12040 |
ZZE12#..JPP..LHD..WG NO.2 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-12020 |
ZZE12#..JPP |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-12050 |
ZZE12#..JPP..LHD..WG NO.2 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-12050 |
ZZE12#..JPP..LHD..WG NO.2 |
1 | ||
| 83482 - SENSOR, OUTER AMBIENT TEMPERATURE | ||||
| 88790-22131 |
CDE120,ZZE12#..JPP |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02016 |
CDE120,ZZE12#..JPP..LHD..WG |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02012 |
CDE120,ZZE12#..JPP |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
CDE120,ZZE12#..JPP |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-12010 |
ZZE12#..JPP |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02020 |
CDE120,ZZE12#..JPP PART NUMBER LABEL=90987-02020 |
1 | ||
| 90987-02028 |
CDE120,ZZE12#..JPP |
1 | ||
| 90987-02022 |
CDE120,ZZE12#..JPP PART NUMBER LABEL=90987-02022 |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-13010 |
CDE120,ZZE12#..JPP..LHD..WG |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02020 |
CDE120,ZZE12#..JPP |
1 | ||
| 89654 - RELAY, POWER STEERING | ||||
| 90987-02016 |
CDE120,ZZE12#..JPP |
1 | ||
| Common parts | ||||
| 90119-06706 | ||||
| 90179-06292 | ||||
| 91626-40620 | ||||
| 91631-J0612 | ||||
| 91651-B0614 | ||||
| 91651-B0618 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8405 | ||||

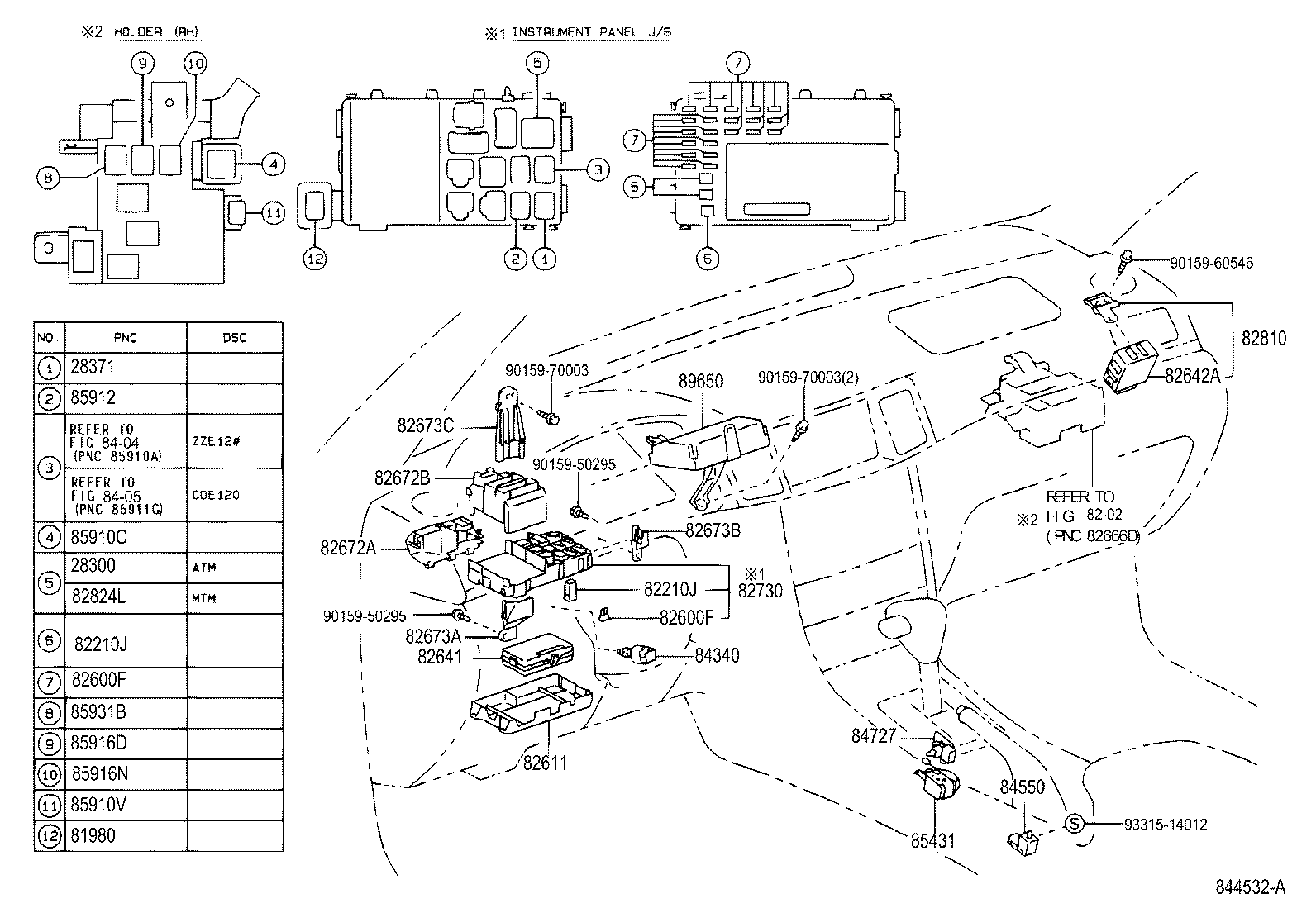

ILLUST NO. 3 OF 6(0110-0405)JPP..LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
3ZZFE..ZZE121..JPP..4FC |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02020 |
1CDFTV,3ZZFE,4ZZFE..CDE120,ZZE12#..JPP |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50030 |
CDE120,ZZE12#..JPP |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08246 |
ZZE12#..JPP 100A,TERM.:MALE,BLUE,PACIFIC |
1 | ||
| 90982-08280 |
CDE120,ZZE12#..JPP 30A,TERM.:FEMALE,PNK,YAZAKI |
1 | ||
| 90982-08283 |
CDE120,ZZE12#..JPP 30A,TERM.:FEMALE,PNK,PACIFIC |
1 | ||
| 90982-08281 |
CDE120,ZZE12#..JPP 40A,TERM.:FEMALE,GRN,YAZAKI |
1 | ||
| 90982-08284 |
CDE120,ZZE12#..JPP 40A,TERM.:FEMALE,GRN,PACIFIC |
1 | ||
| 90982-08285 |
CDE120,ZZE12#..JPP 50A,TERM.:FEMALE,RED,PACIFIC |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08246 |
ZZE12#..JPP 100A,TERM.:MALE,BLUE,PACIFIC |
1 | ||
| 90982-08280 |
CDE120,ZZE12#..JPP 30A,TERM.:FEMALE,PNK,YAZAKI |
1 | ||
| 90982-08283 |
CDE120,ZZE12#..JPP 30A,TERM.:FEMALE,PNK,PACIFIC |
1 | ||
| 90982-08281 |
CDE120,ZZE12#..JPP 40A,TERM.:FEMALE,GRN,YAZAKI |
1 | ||
| 90982-08284 |
CDE120,ZZE12#..JPP 40A,TERM.:FEMALE,GRN,PACIFIC |
1 | ||
| 90982-08285 |
CDE120,ZZE12#..JPP 50A,TERM.:FEMALE,RED,PACIFIC |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
CDE120,ZZE12#..JPP 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
CDE120,ZZE12#..JPP 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09007 |
CDE120,ZZE12#..JPP 5A,MINI FUSE,TAN |
1 | ||
| 90982-09009 |
CDE120,ZZE12#..JPP 10A,MINI FUSE,RED |
1 | ||
| 90982-09013 |
CDE120,ZZE12#..JPP 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
CDE120,ZZE12#..JPP 25A,MINI FUSE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
CDE120,ZZE12#..JPP 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09008 |
CDE120,ZZE12#..JPP 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09007 |
CDE120,ZZE12#..JPP 5A,MINI FUSE,TAN |
1 | ||
| 90982-09009 |
CDE120,ZZE12#..JPP 10A,MINI FUSE,RED |
1 | ||
| 90982-09013 |
CDE120,ZZE12#..JPP 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
CDE120,ZZE12#..JPP 25A,MINI FUSE |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-12120 |
CDE120,ZZE12#..JPP |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-13040 |
CDE120,ZZE12#..JPP W(KEY LESS ENTRY) |
1 | ||
| 82641-12200 |
ZZE121..JPP..WG;ZZE121..JPP..SED..TERRA;CDE120,ZZE120..JPP..TERRA |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 82642-12050 |
CDE120,ZZE12#..JPP..LHD..WG |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12400 |
CDE120,ZZE12#..JPP |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-12410 |
CDE120,ZZE12#..JPP |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-12050 |
CDE120,ZZE12#..JPP..LHD |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-12060 |
CDE120,ZZE12#..JPP..LHD |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-12080 |
CDE120,ZZE12#..JPP..LHD |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-12160 |
CDE120,ZZE12#..JPP..LHD |
1 | ||
| 82810 - RELAY ASSY, RUNNING LIGHT | ||||
| 82810-13060 |
CDE120,ZZE12#..JPP..LHD..WG |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
ZZE12#..JPP |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
CDE120,ZZE12#..JPP..LHD |
1 | ||
| 84727 - SWITCH, SHIFT LOCK CONTROL | ||||
| 84727-12090 |
ZZE121..JPP..4FC |
1 | ||
| 85431 - SOLENOID, SHIFT LOCK | ||||
| 85431-12060 |
ZZE121..JPP..4FC |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
CDE120,ZZE12#..JPP |
1 | ||
| 85910V - RELAY, SEAT HEATER | ||||
| 90987-02020 |
CDE120,ZZE12#..JPP..LHD..WG |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02020 |
CDE120,ZZE12#..JPP |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02020 |
CDE120,ZZE12#..JPP |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02020 |
CDE120,ZZE12#..JPP..LHD..WG |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-12080 |
ZZE12#..JPP..LHD |
1 | ||
| Common parts | ||||
| 90159-50295 | ||||
| 90159-60546 | ||||
| 90159-70003 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8405 | ||||

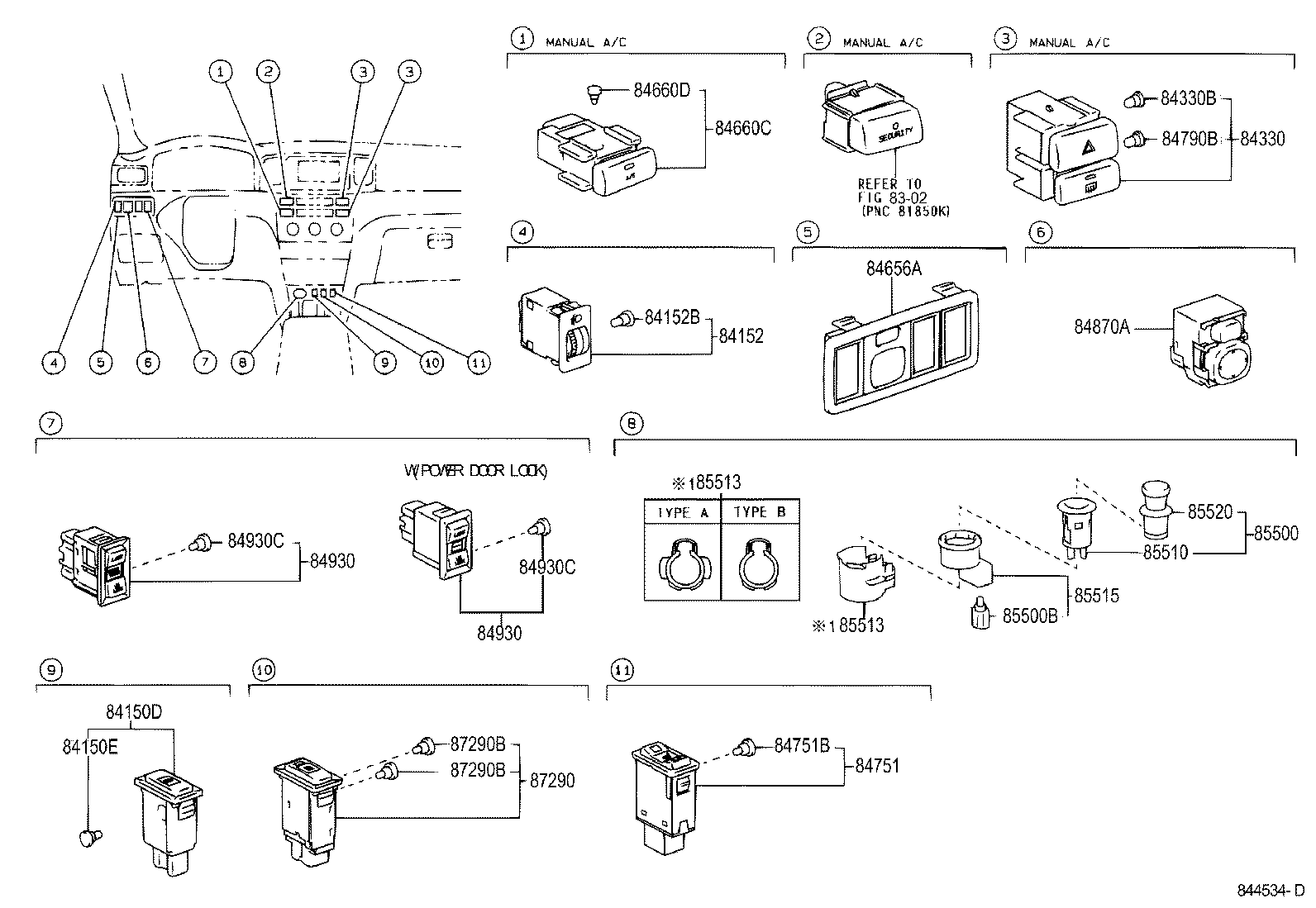

ILLUST NO. 4 OF 6(0110-0405)JPP..LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-12030 |
CDE120,ZZE12#..JPP..LHD..WG |
1 | ||
| 84150E - BULB, HEADLAMP CLEANER SWITCH | ||||
| 84999-10320 |
CDE120,ZZE12#..JPP..LHD..WG 14V 0.84W |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-12051 |
CDE120,ZZE12#..JPP |
1 | ||
| 84152-12050 |
CDE120,ZZE12#..JPP |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 90010-08103 |
CDE120,ZZE12#..JPP 14V 0.56W |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12480 |
CDE120,ZZE12#..JPP..WG |
1 | ||
| 84332-12490 |
CDE120,ZZE12#..JPP..WG COLD SPEC |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10310 |
CDE120,ZZE12#..JPP 14V 0.91W |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-12120B0 |
CDE120,ZZE12#..JPP..LHD..WG..TERRA W/O(OUTER MIRROR SWITCH),DK.GRAY,TRIM1# |
1 | ||
| 84656-12130B0 |
CDE120,ZZE12#..JPP..LHD DK.GRAY,TRIM1# |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-12210 |
CDE120,ZZE12#..JPP |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 90010-03059 |
CDE120,ZZE12#..JPP 14V 1.12W |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-12060 |
CDE120,ZZE12#..JPP..LHD..WG |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 84999-10330 |
CDE120,ZZE12#..JPP..LHD..WG 14.5V 0.87W |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90010-01079 |
CDE120,ZZE12#..JPP 14V 0.06W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-52030 |
CDE120,ZZE12#..JPP |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-13040 |
CDE120,ZZE12#..JPP..WG..TERRA |
1 | ||
| 84930-12180 |
CDE120,ZZE12#..JPP..TERRA W(POWER DOOR LOCK) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-13040 |
CDE120,ZZE12#..JPP..WG..TERRA |
1 | ||
| 84930-12180 |
CDE120,ZZE12#..JPP..TERRA W(POWER DOOR LOCK) |
1 | ||
| 84930C - BULB(FOR DOOR CONTROL SWITCH) | ||||
| 84999-10310 |
CDE120,ZZE12#..JPP..TERRA 14V 0.91W |
1 | ||
| 84930C - BULB(FOR DOOR CONTROL SWITCH) | ||||
| 84999-10310 |
CDE120,ZZE12#..JPP..TERRA 14V 0.91W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12240 |
CDE120,ZZE12#..JPP |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01065 |
CDE120,ZZE12#..JPP 14V1.4W,W(GREEN CAP) |
1 | ||
| 85510 - SOCKET & RETAINER ASSY, CIGARLIGHTER | ||||
| 85510-16040 |
CDE120,ZZE12#..JPP |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
CDE120,ZZE12#..JPP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 85513-28010 |
CDE120,ZZE12#..JPP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
CDE120,ZZE12#..JPP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 85513-28010 |
CDE120,ZZE12#..JPP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12110 |
CDE120,ZZE12#..JPP |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
CDE120,ZZE12#..JPP |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||

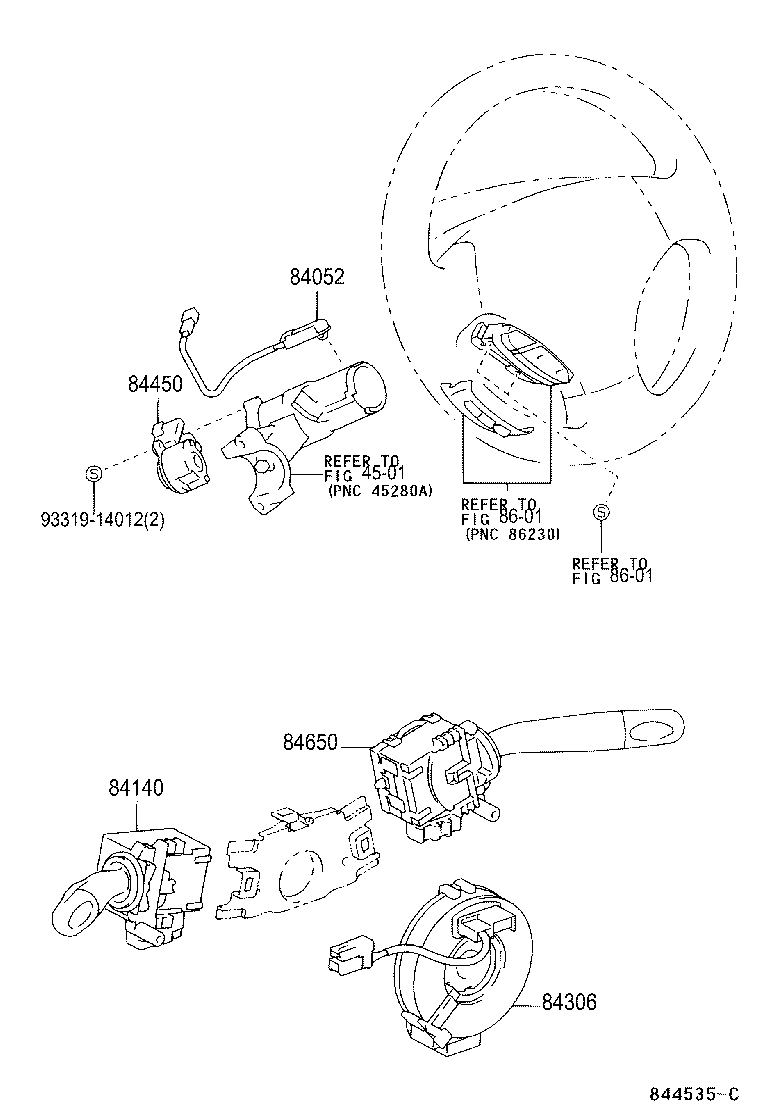

ILLUST NO. 5 OF 6(0110-0405)JPP
IGNITION & COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-60010 |
CDE120,ZZE12#..JPP |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-13020 |
CDE120,ZZE12#..JPP W(FRONT FOG LAMP SW) |
1 | ||
| 84140-13010 |
CDE120,ZZE12#..JPP |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-52020 |
CDE120,ZZE12#..JPP |
1 | ||
| 84306-32030 |
CDE120,ZZE12#..JPP W(AUDIO SWITCH) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-52010 |
CDE120,ZZE12#..JPP |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-1A830 |
CDE120,ZZE12#..JPP..WG |
1 | ||
| Common parts | ||||
| 93319-14012 | ||||
| Linked diagrams | ||||
| 4501 | ||||
| 8601 | ||||

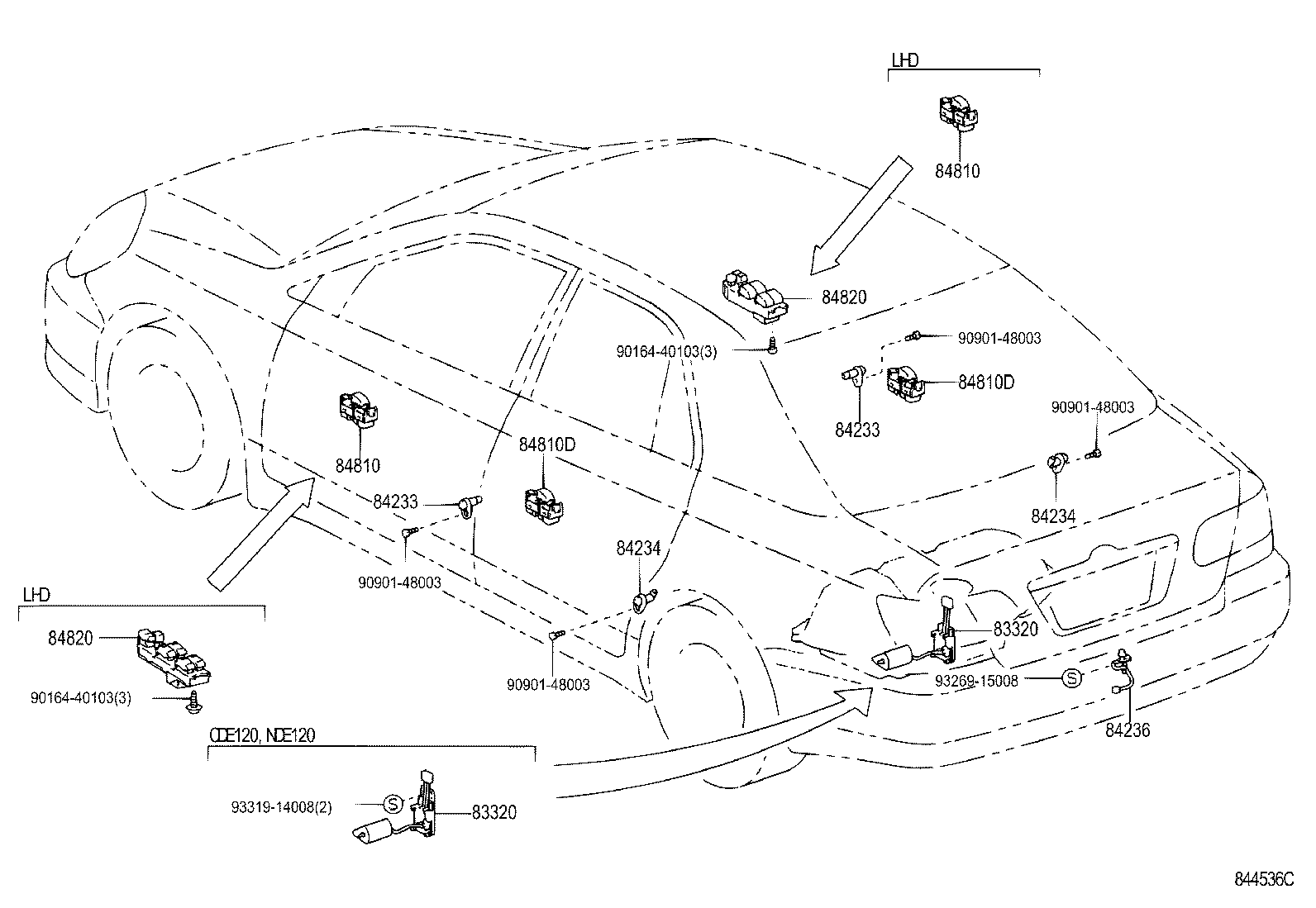

ILLUST NO. 6 OF 6(0110- )JPP
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-13170 |
ZZE12#..JPP |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-13170 |
ZZE12#..JPP |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
CDE120,ZZE12#..JPP |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
CDE120,ZZE12#..JPP |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
CDE120,ZZE12#..JPP |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
CDE120,ZZE12#..JPP |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84030-12010 |
CDE120,ZZE12#..JPP |
1 | ||
| 84030-12060 |
CDE120,ZZE12#..JPP |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84030-12010 |
CDE120,ZZE12#..JPP |
1 | ||
| 84030-12060 |
CDE120,ZZE12#..JPP |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-12020 |
CDE120,ZZE12#..JPP..LHD..TERRA |
1 | ||
| 84040-12090 |
CDE120,ZZE12#..JPP..LHD..TERRA |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-12020 |
CDE120,ZZE12#..JPP..LHD..TERRA |
1 | ||
| 84040-12090 |
CDE120,ZZE12#..JPP..LHD..TERRA |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90901-48003 | ||||
| 93269-15008 | ||||
| 93319-14008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
