ZZE121L-AWPDKW (2001)

Toyota Corolla Sed/Wg (Jpp)

Production Oct 2001 - May 2004
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

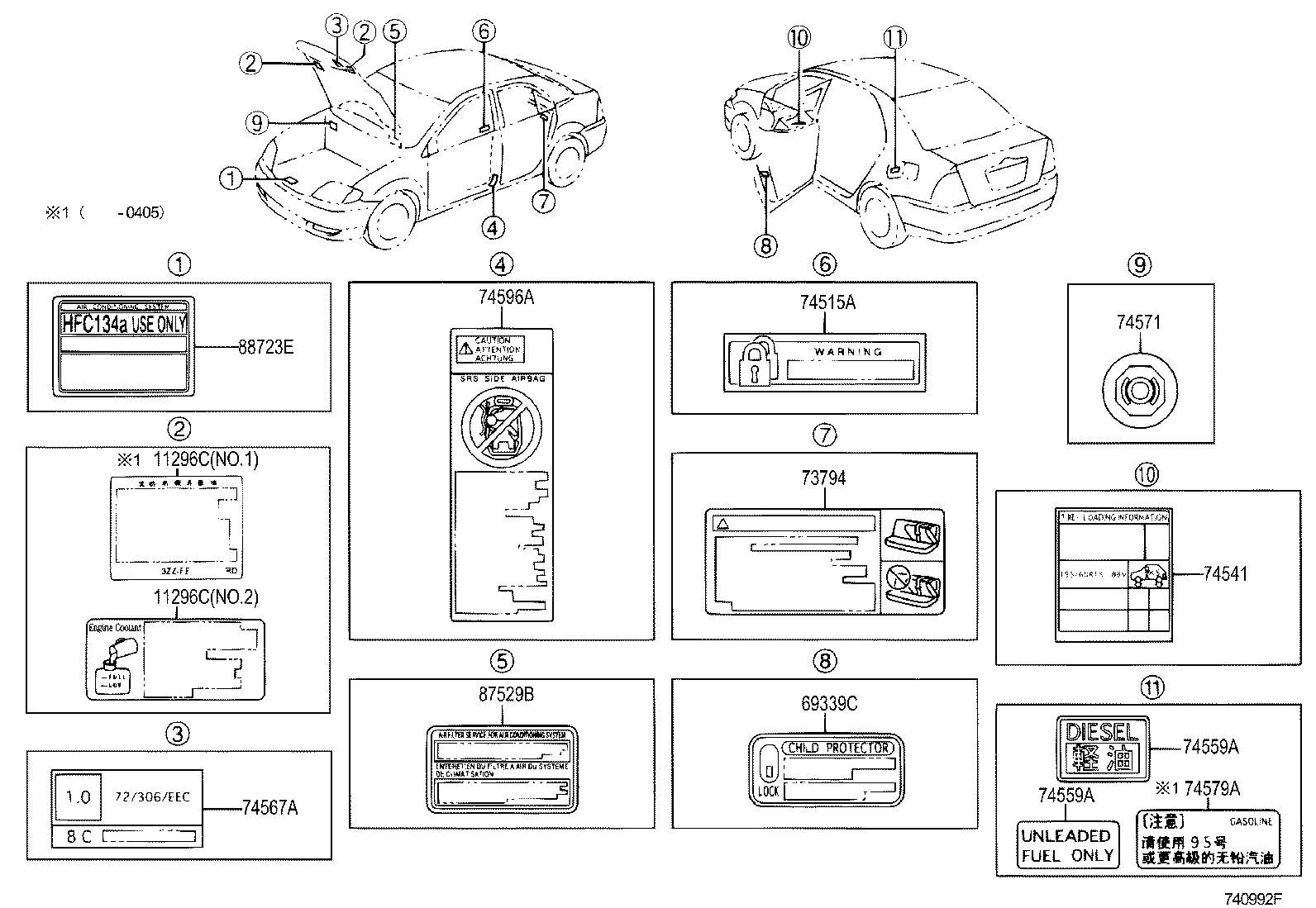

ILLUST NO. 1 OF 2(0110- )JPP

Click highlighted areas on diagram

ENGINE ROOM & EXTERIOR

diagram 11296C 11296C 69339C 73794 74515A 74541 74559A 74559A 74567A 74571 74579A 74596A 87529B 88723E
Part # Description Qty Price
11296C - LABEL, ENGINE SERVICE INFORMATION
11296-27020

3ZZFE,4ZZFE..ZZE12#..JPP

NO.2

 1
11296C - LABEL, ENGINE SERVICE INFORMATION
11296-27020

3ZZFE,4ZZFE..ZZE12#..JPP

NO.2

 1
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-12010

CDE120,ZZE12#..JPP

 2
74541 - PLATE, TIRE PRESSURE CAUTION
42661-1E200

ZZE121..JPP

 1
74559A - PLATE, FUEL CAUTION
74559-14050

ZZE12#..JPP

 1
74559A - PLATE, FUEL CAUTION
74559-14050

ZZE12#..JPP

 1
74571 - PLATE, BRAKE FLUID CAUTION
47287-12010

CDE120,ZZE12#..JPP

 1
74596A - LABEL, SIDE AIR BAG CAUTION
74596-12020

CDE120,ZZE12#..JPP

 2
87529B - LABEL, A/C FILTER INFORMATION
87529-50010

CDE120,ZZE12#..JPP

 1
88723E - LABEL, COOLER SERVICE CAUTION
88723-28220

CDE120,ZZE12#..JPP

 1

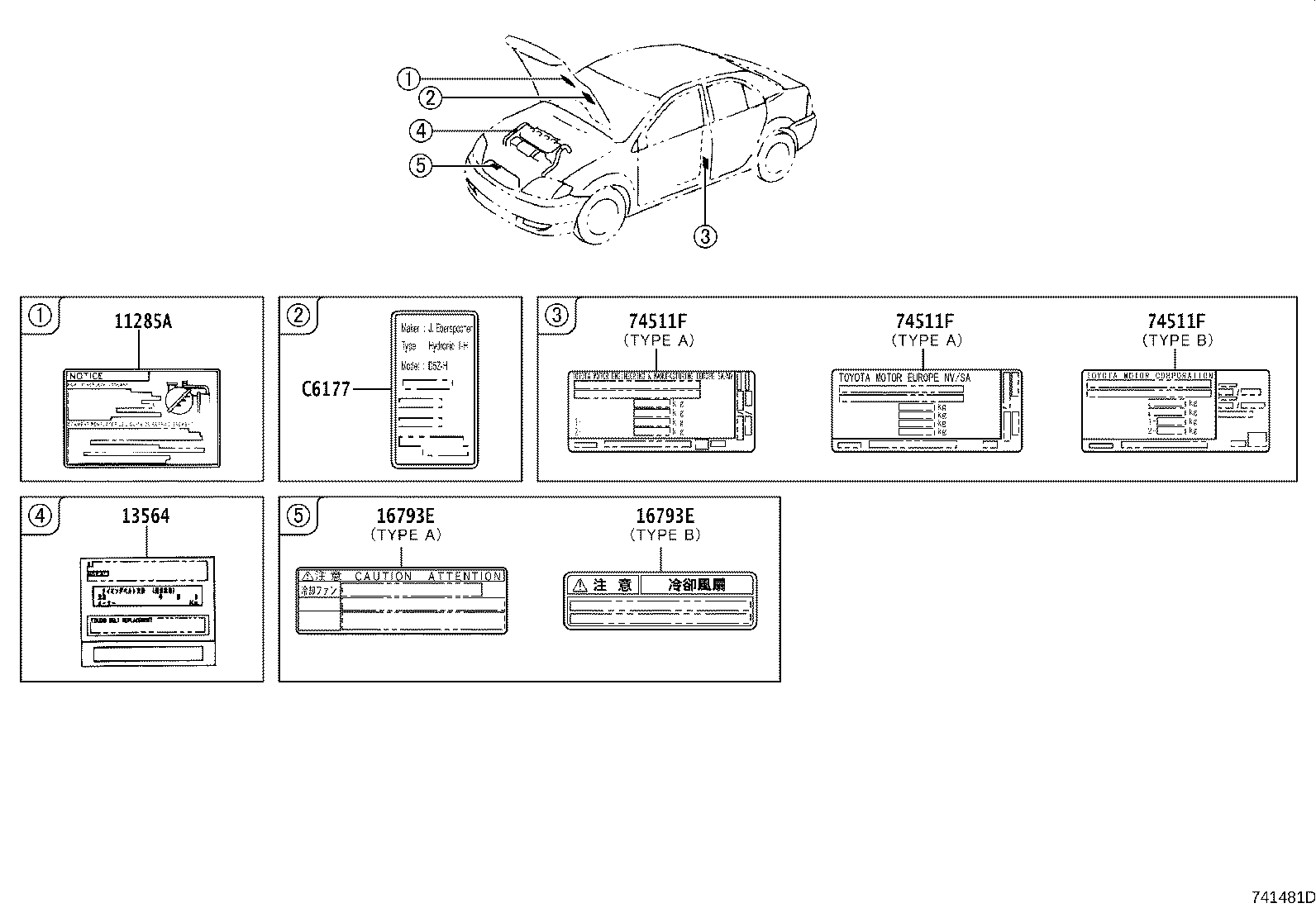

ILLUST NO. 2 OF 2(0110- )JPP

Click highlighted areas on diagram

ENGINE ROOM & EXTERIOR

diagram 11285A 13564 16793E 16793E 74511F 74511F 74511F C6177
Part # Description Qty Price
16793E - LABEL, COOLING FAN CAUTION
16793-46010

1CDFTV,3ZZFE,4ZZFE..CDE120,ZZE12#..JPP

TYPE A:REFER TO ILLUSTRATION

 1
16793E - LABEL, COOLING FAN CAUTION
16793-46010

1CDFTV,3ZZFE,4ZZFE..CDE120,ZZE12#..JPP

TYPE A:REFER TO ILLUSTRATION

 1
