ZZE121L-AWPDKW (2001)

Toyota Corolla Sed/Wg (Jpp)

Production Oct 2001 - May 2004
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0110-0405)JPP..LHD

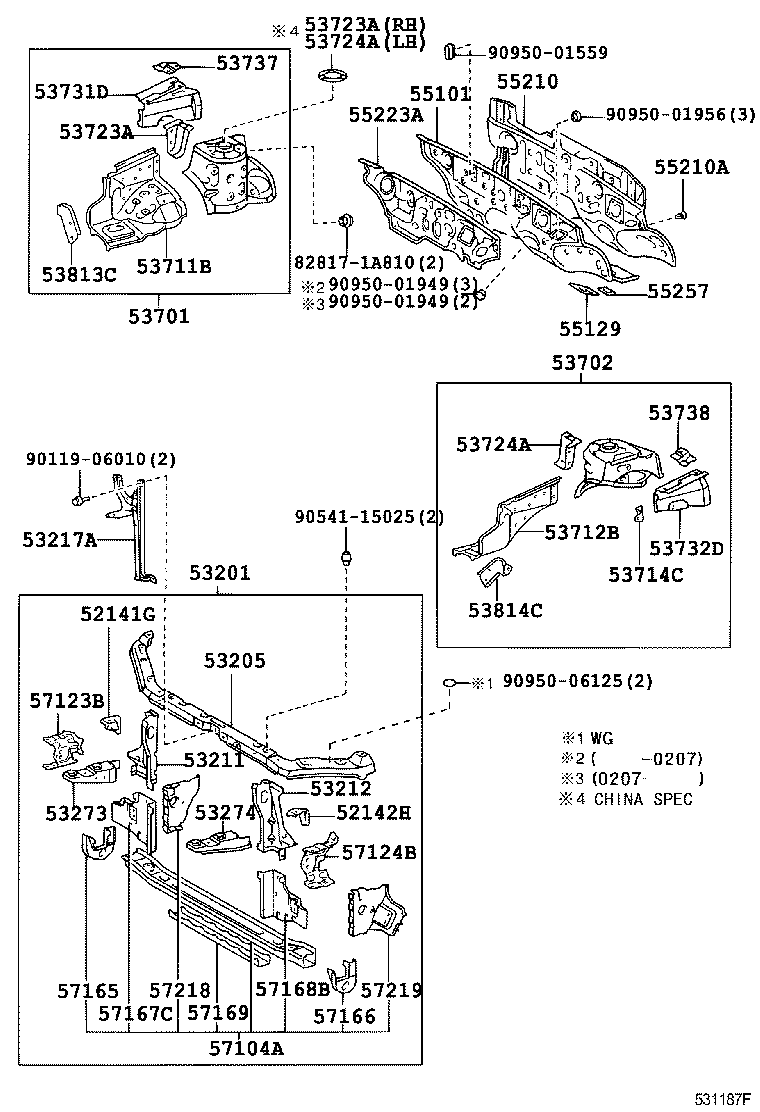

Click highlighted areas on diagram

diagram 52141G 52142H 53201 53205 53211 53212 53217A 53273 53274 53701 53702 53711B 53712B 53714C 53723A 53723A 53724A 53724A 53731D 53732D 53737 53738 53813C 53814C 55101 55129 55210 55210A 55223A 55257 57104A 57123B 57124B 57165 57166 57167C 57168B 57169 57218 57219 828171A810 9011906010 9054115025 9095001559 9095001949 9095001949 9095001956 9095006125
Part # Description Qty Price
52141G - STAY, FRONT BUMPER, RH
52141-12500

CDE120,ZZE12#..JPP

 1
52142H - STAY, FRONT BUMPER, LH
52142-12430

CDE120,ZZE12#..JPP

 1
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-1A280

CDE120,ZZE12#..JPP

 1
53201-1A340

CDE120,ZZE12#..JPP

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-12200

CDE120,ZZE12#..JPP

 1
53211 - SUPPORT, RADIATOR, RH
53211-12410

CDE120,ZZE12#..JPP

 1
53212 - SUPPORT, RADIATOR, LH
53212-12350

CDE120,ZZE12#..JPP

 1
53217A - BRACE, HOOD LOCK SUPPORT
53208-12450

CDE120,ZZE12#..JPP

 1
53273 - BRACKET, FRONT BUMPER ARM MOUNTING, RH
53273-12030

CDE120,ZZE12#..JPP

 1
53274 - BRACKET, FRONT BUMPER ARM MOUNTING, LH
53274-12030

CDE120,ZZE12#..JPP

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-1A090

CDE120,ZZE12#..JPP

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-1A060

CDE120,ZZE12#..JPP

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-12230

CDE120,ZZE12#..JPP

 1
53711-12910

CDE120,ZZE12#..JPP

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-12190

CDE120,ZZE12#..JPP

 1
53714C - EXTENSION, FRONT FENDER APRON, FRONT LH
53714-12150

CDE120,ZZE12#..JPP

 1
53714-13020

CDE120,ZZE12#..JPP

 1
53723A - REINFORCEMENT, FRONT SPRING SUPPORT, RH
53723-12080

CDE120,ZZE12#..JPP

 1
53723A - REINFORCEMENT, FRONT SPRING SUPPORT, RH
53723-12080

CDE120,ZZE12#..JPP

 1
53724A - REINFORCEMENT, FRONT SPRING SUPPORT, LH
53724-12070

CDE120,ZZE12#..JPP

 1
53724A - REINFORCEMENT, FRONT SPRING SUPPORT, LH
53724-12070

CDE120,ZZE12#..JPP

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-12160

CDE120,ZZE12#..JPP

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-12140

CDE120,ZZE12#..JPP

 1
53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH
53737-12060

CDE120,ZZE12#..JPP

 1
53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH
53738-12030

CDE120,ZZE12#..JPP

 1
53813C - EXTENSION, FRONT FENDER, RH
53813-12060

CDE120,ZZE12#..JPP

 1
53814C - EXTENSION, FRONT FENDER, LH
53814-12020

CDE120,ZZE12#..JPP

 1
55129 - COVER, DASH PANEL HOLE
55139-32010

CDE120,ZZE12#..JPP

LH

 1
55129-32030

CDE120,ZZE12#..JPP

RH

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-12500

CDE120,ZZE12#..JPP..LHD

 1
55210A - CLIP
90467-10005B0

CDE120,ZZE12#..JPP

MD.CHARCOAL,TRIM1#

 4
55223A - INSULATOR, DASH PANEL, OUTER
55223-12150

CDE120,ZZE12#..JPP..LHD

 1
55257 - COVER, DASH PANEL OPENING
55257-32010

CDE120,ZZE12#..JPP

 2
57104A - MEMBER SUB-ASSY, FRONT CROSS
57104-12250

CDE120,ZZE12#..JPP

 1
57104-12170

CDE120,ZZE12#..JPP

 1
57123B - SUPPORT, FRONT SIDE MEMBER, RH
57123-13010

CDE120,ZZE12#..JPP

 1
57124B - SUPPORT, FRONT SIDE MEMBER, LH
57124-13010

CDE120,ZZE12#..JPP

 1
57165 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH
57165-12070

CDE120,ZZE12#..JPP

 1
57166 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH
57166-12020

CDE120,ZZE12#..JPP

 1
57167C - GUSSET, FRONT CROSSMEMBER SIDE, RH
57167-12110

CDE120,ZZE12#..JPP

 1
57168B - GUSSET, FRONT CROSSMEMBER SIDE, LH
57168-12110

CDE120,ZZE12#..JPP

 1
57169 - MEMBER, FRONT FLOOR, FRONT RH
57169-12020

CDE120,ZZE12#..JPP

 1
57218 - GUSSET, FRONT SIDE MEMBER, NO.1
57218-12020

CDE120,ZZE12#..JPP

 1
57218-12030

CDE120,ZZE12#..JPP

 1
57219 - GUSSET, FRONT SIDE MEMBER, NO.2
57219-12030

CDE120,ZZE12#..JPP

 1
57219-12010

CDE120,ZZE12#..JPP

 1
Common parts
82817-1A810
90119-06010
90541-15025
90950-01559
90950-01949
90950-01956
90950-06125
