ZZE121L-AWMNKW (2001)

Toyota Corolla Sed/Wg (Jpp)

Production Oct 2001 - May 2004
Engine 3ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0110-0405)JPP..SED ; (0110- )ZZE12#..JPP..LHD..WG

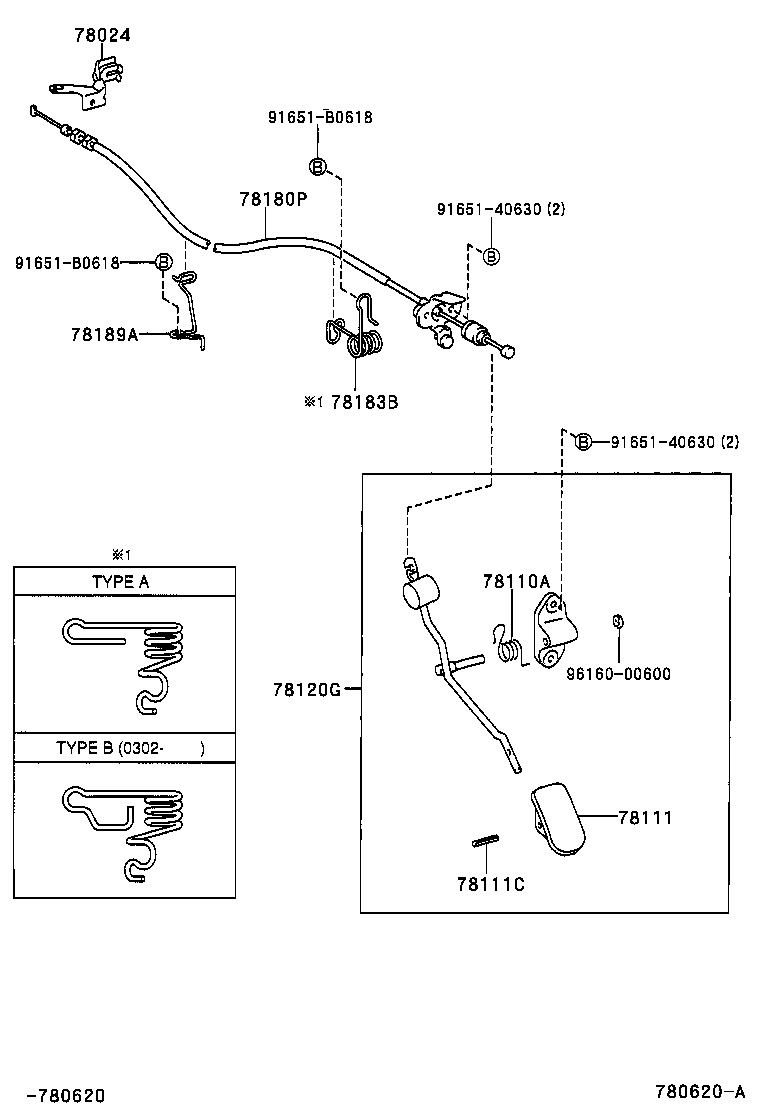

Click highlighted areas on diagram

diagram 78024 78110A 78111 78111C 78120G 78180P 78183B 78189A 9165140630 9165140630 91651B0618 91651B0618 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-12090

ZZE12#..JPP

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26036

ZZE12#..JPP..LHD

 1
78111 - PEDAL, ACCELERATOR
78111-20060

ZZE12#..JPP..LHD..5F

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90254-04019

ZZE12#..JPP..5F;CDE120..JPP..RHD

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-12310

ZZE12#..JPP..LHD..5F

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-13020

ZZE12#..JPP..LHD

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78186-12380

ZZE12#..JPP..LHD

 1
78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2
78189-12100

ZZE12#..JPP

 1
Common parts
91651-40630
91651-B0618
96160-00600
