ZZE121L-AWMNKW (2001)
Toyota Corolla Sed/Wg (Jpp)

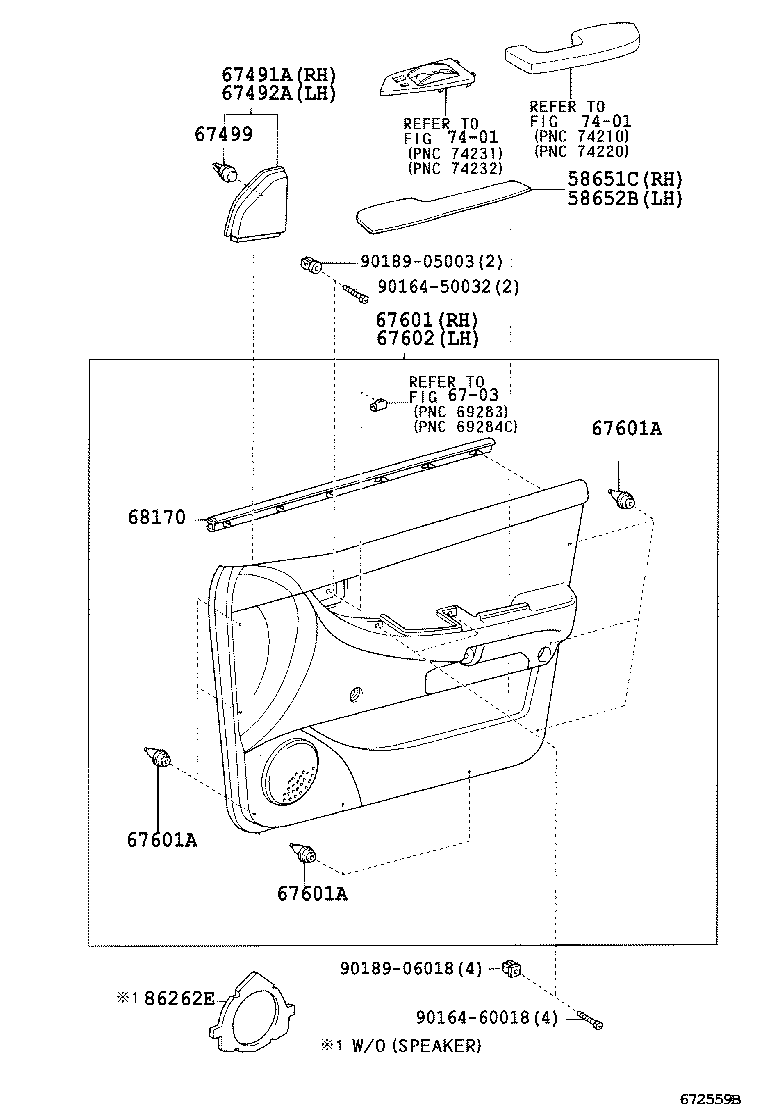

ILLUST NO. 1 OF 3(0110- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-12480 |
CDE120,ZZE12#..JPP..SOL W(TWEETER SPEAKER) |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-12480 |
CDE120,ZZE12#..JPP..SOL W(TWEETER SPEAKER) |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-12060 |
CDE120,ZZE12#..JPP |
2 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1F101B0 |
CDE120,ZZE12#..JPP..WG..SOL DARK GRAY,TRIM1# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12050 |
CDE120,ZZE12#..JPP |
16 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12050 |
CDE120,ZZE12#..JPP |
16 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12050 |
CDE120,ZZE12#..JPP |
16 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-13871B0 |
CDE120,ZZE12#..JPP..WG..SOL DARK GRAY,TRIM1# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-12290 |
CDE120,ZZE12#..JPP RH |
1 | ||
| 68171-12320 |
CDE120,ZZE12#..JPP RH |
1 | ||
| 68172-12240 |
CDE120,ZZE12#..JPP LH |
1 | ||
| 68172-12210 |
CDE120,ZZE12#..JPP LH |
1 | ||
| Common parts | ||||
| 90164-50032 | ||||
| 90164-60018 | ||||
| 90189-05003 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 6703 | ||||
| 7401 | ||||

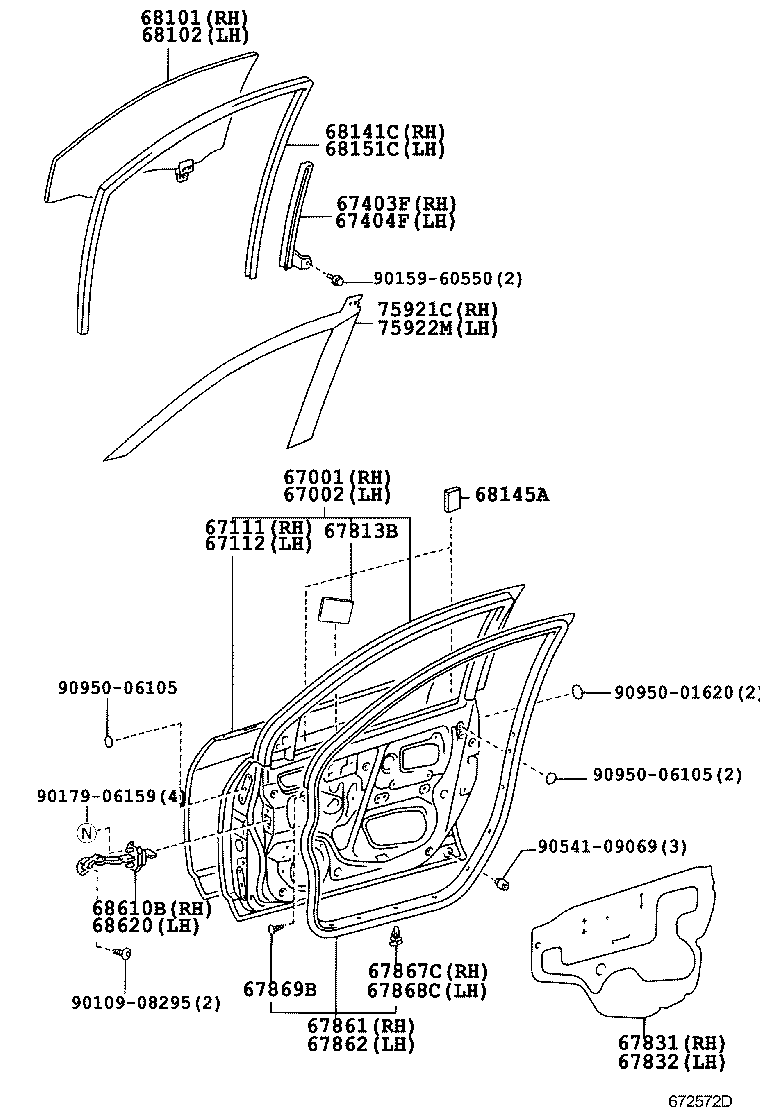

ILLUST NO. 2 OF 3(0110- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-1A681 |
CDE120,ZZE12#..JPP |
1 | ||
| 67001-1A680 |
CDE120,ZZE12#..JPP |
1 | ||
| 67001-1A620 |
CDE120,ZZE12#..JPP |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-1A580 |
CDE120,ZZE12#..JPP |
1 | ||
| 67002-1A640 |
CDE120,ZZE12#..JPP |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-12670 |
CDE120,ZZE12#..JPP |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-12660 |
CDE120,ZZE12#..JPP |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-12220 |
CDE120,ZZE12#..JPP |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-12200 |
CDE120,ZZE12#..JPP |
1 | ||
| 67813B - PACKING, DOOR PROTECTOR | ||||
| 67817-47010 |
CDE120,ZZE12#..JPP |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-12621 |
CDE120,ZZE12#..JPP..WG |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-12401 |
CDE120,ZZE12#..JPP..WG |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-1A020 |
CDE120,ZZE12#..JPP |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-12870 |
CDE120,ZZE12#..JPP |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
CDE120,ZZE12#..JPP |
14 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
CDE120,ZZE12#..JPP |
14 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-12050 |
CDE120,ZZE12#..JPP |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-1A530 |
CDE120,ZZE12#..JPP *TT,T=3.5,GREEN |
1 | ||
| 68101-1A470 |
CDE120,ZZE12#..JPP *TT,T=3.5,GREEN |
1 | ||
| 68101-12A00 |
CDE120,ZZE12#..JPP *TT,T=3.5,GREEN |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-1A470 |
CDE120,ZZE12#..JPP *TT,T=3.5,GREEN |
1 | ||
| 68102-12A00 |
CDE120,ZZE12#..JPP *TT,T=3.5,GREEN |
1 | ||
| 68102-1A530 |
CDE120,ZZE12#..JPP *TT,T=3.5,GREEN |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-12510 |
CDE120,ZZE12#..JPP |
1 | ||
| 68141-12511 |
CDE120,ZZE12#..JPP |
1 | ||
| 68145A - CUSHION, FRONT DOOR WINDOW | ||||
| 69759-12110 |
CDE120,ZZE12#..JPP |
4 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-12211 |
CDE120,ZZE12#..JPP |
1 | ||
| 68151-12210 |
CDE120,ZZE12#..JPP |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-12170 |
CDE120,ZZE12#..JPP |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-12100 |
CDE120,ZZE12#..JPP |
1 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-12032 |
CDE120,ZZE12#..JPP..WG |
1 | ||
| 75921-12031 |
CDE120,ZZE12#..JPP..WG |
1 | ||
| 75921-12030 |
CDE120,ZZE12#..JPP..WG |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-12031 |
CDE120,ZZE12#..JPP..WG |
1 | ||
| 75922-12032 |
CDE120,ZZE12#..JPP..WG |
1 | ||
| 75922-12030 |
CDE120,ZZE12#..JPP..WG |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90159-60550 | ||||
| 90179-06159 | ||||
| 90541-09069 | ||||
| 90950-01620 | ||||
| 90950-06105 | ||||
