ZZE121L-AWMDKW (2001)

Toyota Corolla Sed/Wg (Jpp)

Production Oct 2001 - May 2004
Engine 3ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0110-0405)JPP

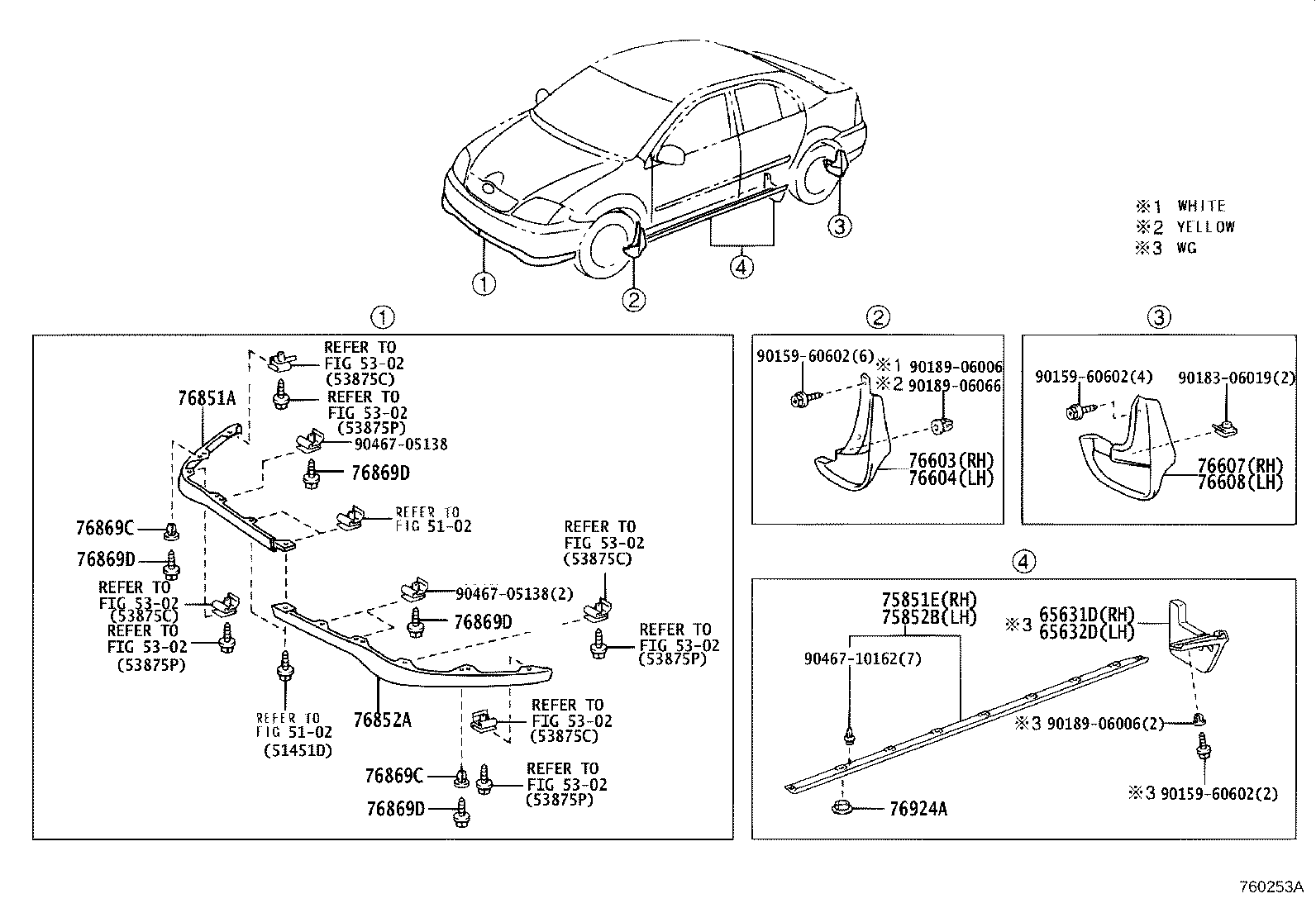

Click highlighted areas on diagram

diagram 5102 5102 5302 5302 5302 5302 5302 5302 5302 5302 65631D 65632D 75851E 75852B 76603 76604 76607 76608 76851A 76852A 76869C 76869C 76869D 76869D 76869D 76869D 76924A 9015960602 9015960602 9015960602 9018306019 9018906006 9018906006 9018906066 9046705138 9046705138 9046710162
Part # Description Qty Price
65631D - PLATE, REAR WHEEL HOUSE, FRONT RH
65631-13020

CDE120,ZZE12#..JPP..WG

 1
65632D - PLATE, REAR WHEEL HOUSE, FRONT LH
65632-13020

CDE120,ZZE12#..JPP..WG

 1
75851E - MOULDING, BODY ROCKER PANEL, RH
75851-12091

CDE120,ZZE12#..JPP

 1
75852B - MOULDING, BODY ROCKER PANEL, LH
75852-12061

CDE120,ZZE12#..JPP

 1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-12210

CDE120,ZZE12#..JPP

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-12210

CDE120,ZZE12#..JPP

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-12490

CDE120,ZZE12#..JPP

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-12490

CDE120,ZZE12#..JPP

 1
76851A - COVER, FRONT SPOILER, RH
76851-12170

CDE120,ZZE12#..JPP

 1
76852A - COVER, FRONT SPOILER, LH
76852-12130

CDE120,ZZE12#..JPP

 1
76869C - GROMMET, SCREW, NO.1
90189-05144

CDE120,ZZE12#..JPP

 2
76869C - GROMMET, SCREW, NO.1
90189-05144

CDE120,ZZE12#..JPP

 2
76869D - SCREW, NO.2
90159-60488

CDE120,ZZE12#..JPP

 5
76869D - SCREW, NO.2
90159-60488

CDE120,ZZE12#..JPP

 5
76869D - SCREW, NO.2
90159-60488

CDE120,ZZE12#..JPP

 5
76869D - SCREW, NO.2
90159-60488

CDE120,ZZE12#..JPP

 5
76924A - RETAINER, SIDE MUDGUARD, NO.2
76924-52021

CDE120,ZZE12#..JPP

 16
Common parts
90159-60602
90183-06019
90189-06006
90189-06066
90467-05138
90467-10162
Linked diagrams
5102
5302
