ZZE121L-AEPNKW (2001)
Toyota Corolla Sed/Wg (Jpp)

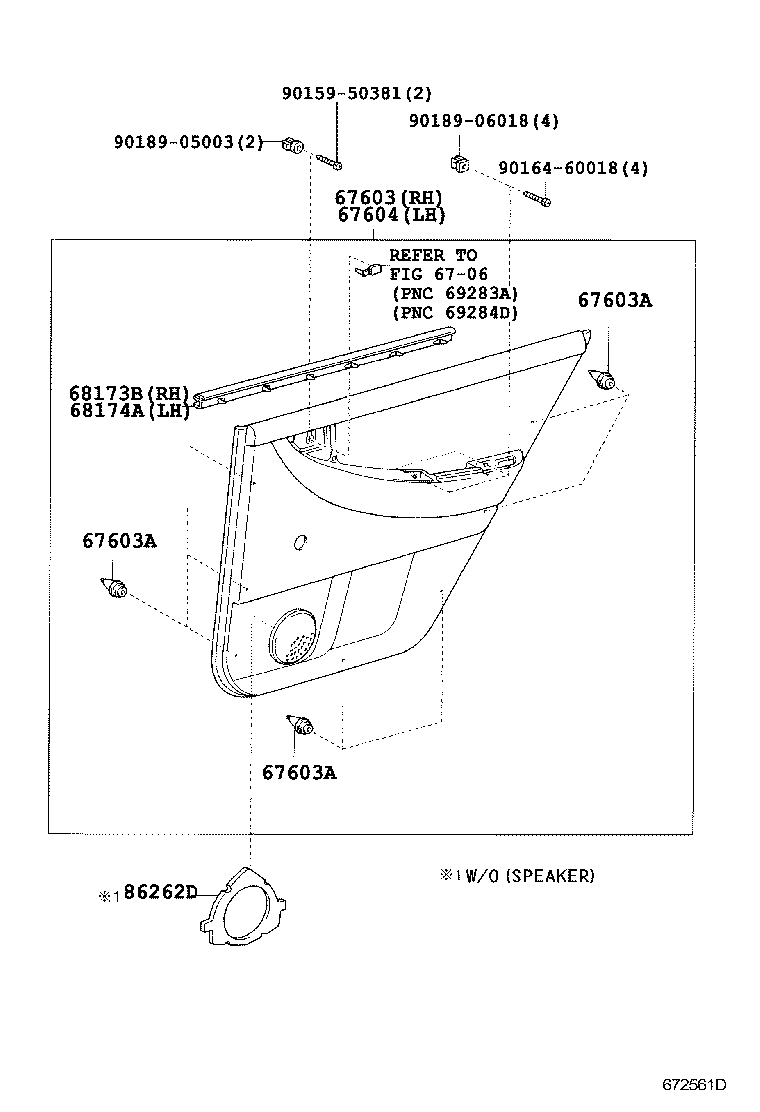

ILLUST NO. 1 OF 2(0110- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-13A00B0 |
ZZE12#..JPP..SOL DK.GRAY,TRIM1# |
1 | ||
| 67630-1K230B0 |
ZZE12#..JPP..SED..SOL DARK GRAY,TRIM1# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12050 |
CDE120,ZZE12#..JPP |
14 | ||
| 90467-10161 |
NDE120,ZZE12#..JPP |
14 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12050 |
CDE120,ZZE12#..JPP |
14 | ||
| 90467-10161 |
NDE120,ZZE12#..JPP |
14 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12050 |
CDE120,ZZE12#..JPP |
14 | ||
| 90467-10161 |
NDE120,ZZE12#..JPP |
14 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1K230B0 |
ZZE12#..JPP..SED..SOL DARK GRAY,TRIM1# |
1 | ||
| 67640-13A00B0 |
ZZE12#..JPP..SOL DK.GRAY,TRIM1# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-12290 |
NDE120,ZZE12#..JPP |
1 | ||
| 68173-12290 |
CDE120,ZZE12#..JPP |
1 | ||
| 68173-12270 |
CDE120,ZZE12#..JPP |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-12150 |
CDE120,ZZE12#..JPP |
1 | ||
| 68174-12130 |
CDE120,ZZE12#..JPP |
1 | ||
| 68174-12150 |
NDE120,ZZE12#..JPP |
1 | ||
| 86262D - COVER, REAR DOOR SPEAKER | ||||
| 86262-12010 |
ZZE121..JPP..SED..4FC..SOL |
2 | ||
| Common parts | ||||
| 90159-50381 | ||||
| 90164-60018 | ||||
| 90189-05003 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 6706 | ||||

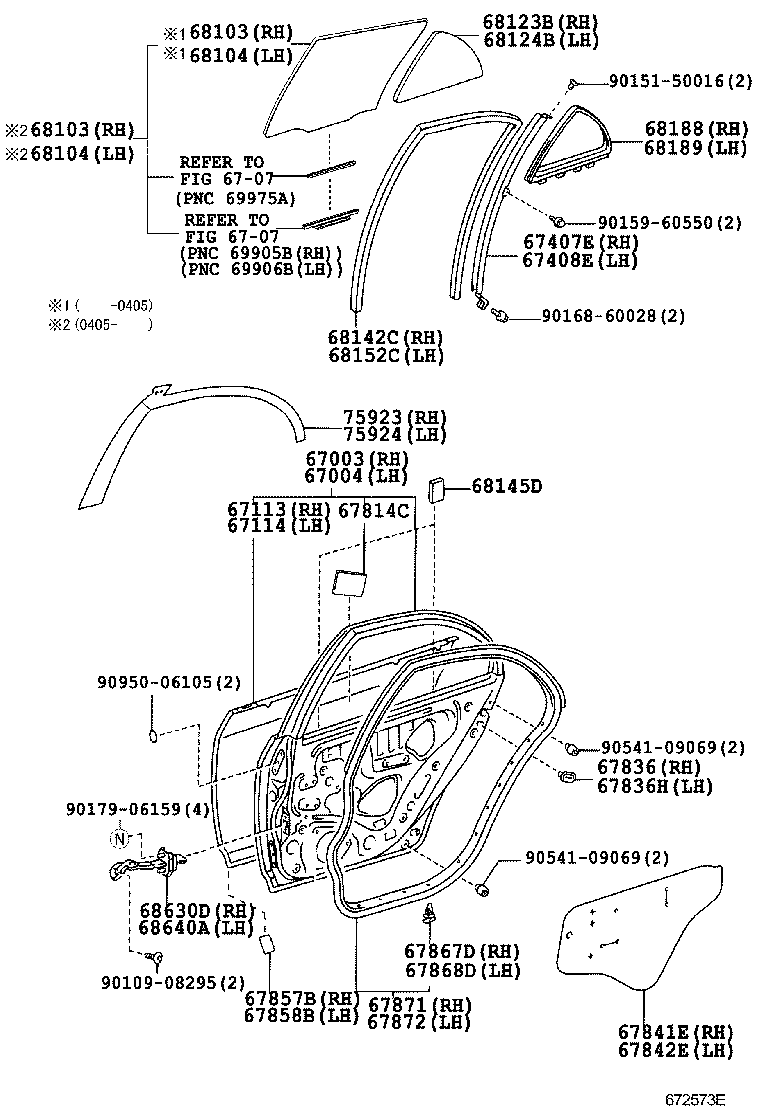

ILLUST NO. 2 OF 2(0110- )JPP..SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-12A00 |
NDE120,ZZE12#..JPP |
1 | ||
| 67003-12850 |
ZZE12#..JPP..SED |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-12A00 |
NDE120,ZZE12#..JPP |
1 | ||
| 67004-12850 |
ZZE12#..JPP..SED |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-12270 |
CDE120,ZZE12#..JPP |
1 | ||
| 67113-12270 |
NDE120,ZZE12#..JPP |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-12270 |
CDE120,ZZE12#..JPP |
1 | ||
| 67114-12270 |
NDE120,ZZE12#..JPP |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-12260 |
ZZE12#..JPP..SED |
1 | ||
| 67407-12260 |
NDE120,ZZE12#..JPP |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-12260 |
ZZE12#..JPP..SED |
1 | ||
| 67408-12260 |
NDE120,ZZE12#..JPP |
1 | ||
| 67814C - PACKING, DOOR PROTECTOR | ||||
| 67817-47010 |
CDE120,ZZE12#..JPP |
2 | ||
| 67817-47010 |
NDE120,ZZE12#..JPP |
2 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-12040 |
CDE120,ZZE12#..JPP |
1 | ||
| 67836-12040 |
NDE120,ZZE12#..JPP |
1 | ||
| 67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67836-12040 |
NDE120,ZZE12#..JPP |
1 | ||
| 67836-12040 |
CDE120,ZZE12#..JPP |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-12310 |
ZZE12#..JPP..SED |
1 | ||
| 67841-12340 |
NDE120,ZZE12#..JPP |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-12150 |
NDE120,ZZE12#..JPP |
1 | ||
| 67841-12310 |
ZZE12#..JPP..SED |
1 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-12090 |
CDE120,ZZE12#..JPP |
1 | ||
| 67857-12090 |
NDE120,ZZE12#..JPP |
1 | ||
| 67858B - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-12080 |
NDE120,ZZE12#..JPP |
1 | ||
| 67858-12080 |
CDE120,ZZE12#..JPP |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
NDE120,ZZE12#..JPP |
16 | ||
| 67867-12150 |
CDE120,ZZE12#..JPP |
16 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
CDE120,ZZE12#..JPP |
16 | ||
| 67867-12150 |
NDE120,ZZE12#..JPP |
16 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-12500 |
ZZE12#..JPP..SED |
1 | ||
| 67871-12500 |
NDE120,ZZE12#..JPP |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-12500 |
ZZE12#..JPP..SED |
1 | ||
| 67872-12500 |
NDE120,ZZE12#..JPP |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-12720 |
NDE120,ZZE12#..JPP *TT,T=3.1,GREEN |
1 | ||
| 68113-12720 |
ZZE12#..JPP..SED *TT,T=3.1,GREEN |
1 | ||
| 68113-12680 |
ZZE12#..JPP..SED *TT,T=3.1,GREEN |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-12720 |
NDE120,ZZE12#..JPP *TT,T=3.1,GREEN |
1 | ||
| 68113-12720 |
ZZE12#..JPP..SED *TT,T=3.1,GREEN |
1 | ||
| 68113-12680 |
ZZE12#..JPP..SED *TT,T=3.1,GREEN |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-12730 |
NDE120,ZZE12#..JPP *TT,T=3.1,GREEN |
1 | ||
| 68114-12720 |
ZZE12#..JPP..SED *TT,T=3.1,GREEN |
1 | ||
| 68114-12680 |
ZZE12#..JPP..SED *TT,T=3.1,GREEN |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-12730 |
NDE120,ZZE12#..JPP *TT,T=3.1,GREEN |
1 | ||
| 68114-12720 |
ZZE12#..JPP..SED *TT,T=3.1,GREEN |
1 | ||
| 68114-12680 |
ZZE12#..JPP..SED *TT,T=3.1,GREEN |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-12720 |
ZZE12#..JPP..SED *TT,T=3.1,GREEN |
1 | ||
| 68123-12760 |
NDE120,ZZE12#..JPP *TT,T=3.1,GREEN |
1 | ||
| 68123-12760 |
ZZE12#..JPP..SED *TT,T=3.1,GREEN |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-12720 |
ZZE12#..JPP..SED *TT,T=3.1,GREEN |
1 | ||
| 68124-12760 |
NDE120,ZZE12#..JPP *TT,T=3.1,GREEN |
1 | ||
| 68124-12760 |
ZZE12#..JPP..SED *TT,T=3.1,GREEN |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-12240 |
ZZE12#..JPP..SED |
1 | ||
| 68142-12260 |
NDE120,ZZE12#..JPP |
1 | ||
| 68145D - CUSHION, REAR DOOR WINDOW | ||||
| 69759-12110 |
CDE120,ZZE12#..JPP |
4 | ||
| 69759-12110 |
NDE120,ZZE12#..JPP |
4 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-12170 |
NDE120,ZZE12#..JPP |
1 | ||
| 68152-12150 |
ZZE12#..JPP..SED |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-12300 |
NDE120,ZZE12#..JPP |
1 | ||
| 68188-12280 |
ZZE12#..JPP..SED |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-12280 |
ZZE12#..JPP..SED |
1 | ||
| 68189-12300 |
NDE120,ZZE12#..JPP |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-12090 |
NDE120,ZZE12#..JPP |
1 | ||
| 68630-12090 |
CDE120,ZZE12#..JPP |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-12050 |
NDE120,ZZE12#..JPP |
1 | ||
| 68640-12050 |
CDE120,ZZE12#..JPP |
1 | ||
| 75923 - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-12012 |
ZZE12#..JPP..SED |
1 | ||
| 75923-12010 |
ZZE12#..JPP..SED |
1 | ||
| 75923-12011 |
ZZE12#..JPP..SED |
1 | ||
| 75923-12012 |
NDE120,ZZE12#..JPP |
1 | ||
| 75924 - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-12012 |
ZZE12#..JPP..SED |
1 | ||
| 75924-12010 |
ZZE12#..JPP..SED |
1 | ||
| 75924-12011 |
ZZE12#..JPP..SED |
1 | ||
| 75924-12012 |
NDE120,ZZE12#..JPP |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90151-50016 | ||||
| 90159-60550 | ||||
| 90168-60028 | ||||
| 90179-06159 | ||||
| 90541-09069 | ||||
| 90950-06105 | ||||
| Linked diagrams | ||||
| 6707 | ||||
