Toyota Corolla sed/wg (jpp) ZZE121 FRONT STEERING GEAR & LINK

ZZE121L-AEPNKW (2001)

Toyota Corolla Sed/Wg (Jpp)

Production Oct 2001 - Oct 2006

Engine 3ZZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

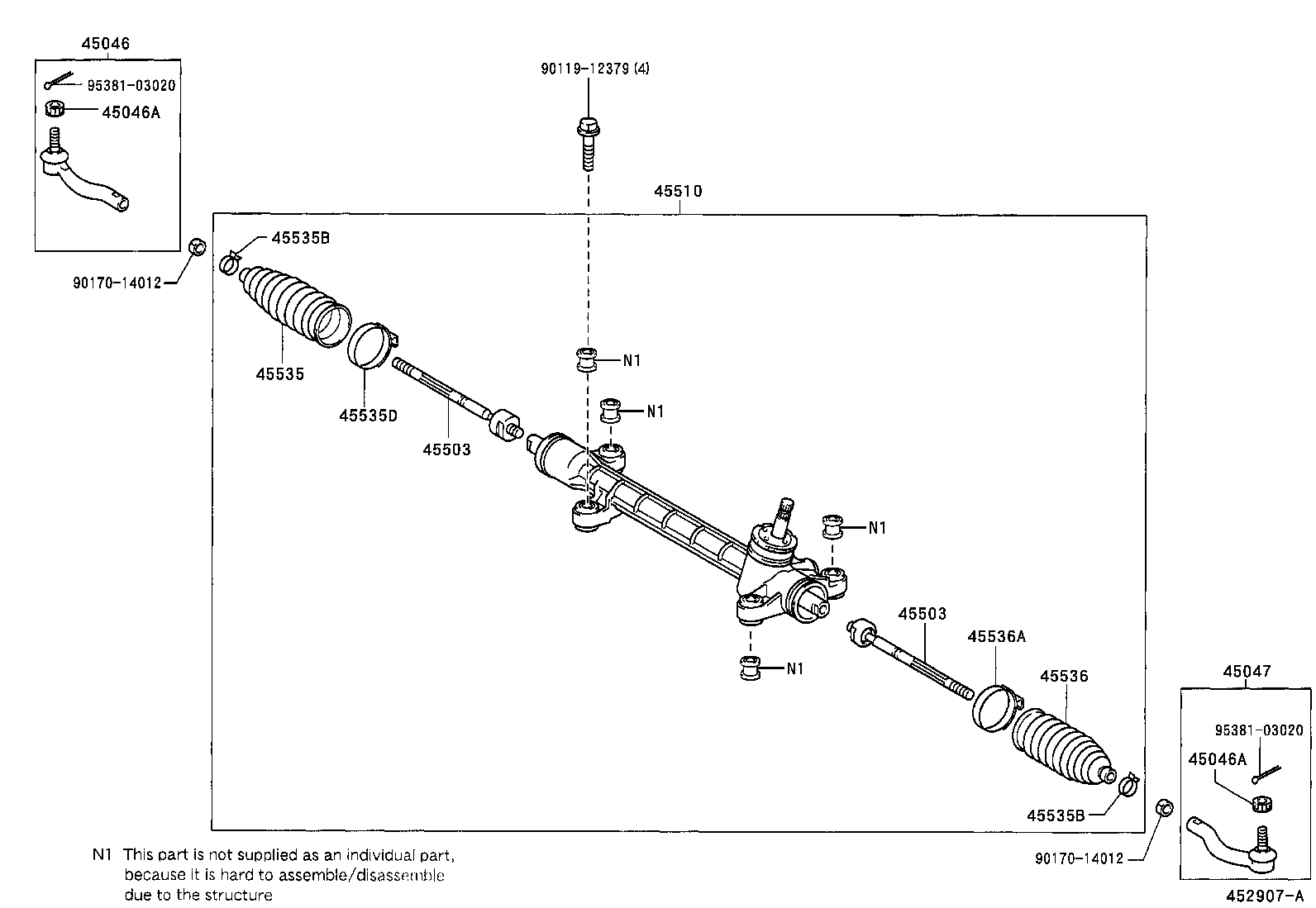

(0110-0405)JPP..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
45046 - END SUB-ASSY, TIE ROD, RH
45046-09360	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
45046-19265	CDE120,ZZE12#..JPP	10/2001 - 05/2004	1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	CDE120,ZZE12#..JPP	10/2001 - 05/2004	2
90171-12028	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	CDE120,ZZE12#..JPP	10/2001 - 05/2004	2
90171-12028	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
45047 - END SUB-ASSY, TIE ROD, LH
45047-09150	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
45047-19115	CDE120,ZZE12#..JPP	10/2001 - 05/2004	1
45503 - END SUB-ASSY, STEERING RACK
45503-02080	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
45503-12130	CDE120,ZZE12#..JPP	10/2001 - 05/2004	2
45503 - END SUB-ASSY, STEERING RACK
45503-02080	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
45503-12130	CDE120,ZZE12#..JPP	10/2001 - 05/2004	2
45510 - GEAR ASSY, STEERING
45510-02070	NDE120,ZZE12#..JPP..LHD	05/2004 - 12/2999	1
45510-12310	CDE120,ZZE12#..JPP..LHD	10/2001 - 05/2004	1
45535 - BOOT, STEERING RACK, NO.1
45535-52060	CDE120,ZZE12#..JPP	10/2001 - 05/2004	1
45535-02050	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
45535B - CLIP(FOR STEERING RACK BOOT)
90466-22003	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
90467-19017	CDE120,ZZE12#..JPP	10/2001 - 04/2002	2
90467-19021	CDE120,ZZE12#..JPP	04/2002 - 05/2004	2
45535B - CLIP(FOR STEERING RACK BOOT)
90466-22003	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
90467-19017	CDE120,ZZE12#..JPP	10/2001 - 04/2002	2
90467-19021	CDE120,ZZE12#..JPP	04/2002 - 05/2004	2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-57006	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
90460-58008	CDE120,ZZE12#..JPP	10/2001 - 05/2004	1
45536 - BOOT, STEERING RACK, NO.2
45535-52060	CDE120,ZZE12#..JPP	10/2001 - 05/2004	1
45535-02050	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-58008	CDE120,ZZE12#..JPP	10/2001 - 05/2004	1
90460-57006	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
Common parts
90119-12379
90170-14012
95381-03020

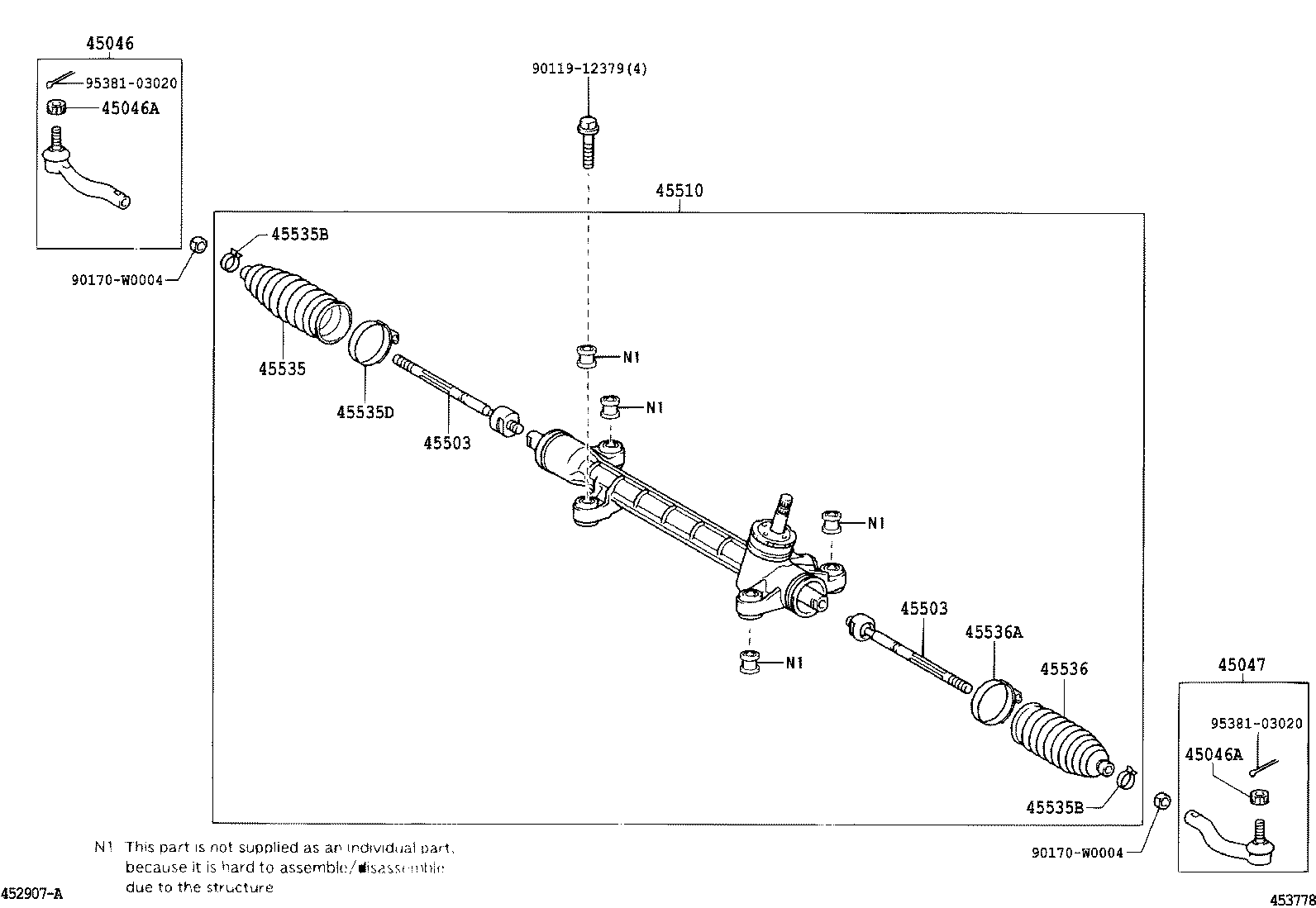

(0405- )JPP..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
45046 - END SUB-ASSY, TIE ROD, RH
45046-09360	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
45046-19265	CDE120,ZZE12#..JPP	10/2001 - 05/2004	1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	CDE120,ZZE12#..JPP	10/2001 - 05/2004	2
90171-12028	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	CDE120,ZZE12#..JPP	10/2001 - 05/2004	2
90171-12028	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
45047 - END SUB-ASSY, TIE ROD, LH
45047-09150	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
45047-19115	CDE120,ZZE12#..JPP	10/2001 - 05/2004	1
45503 - END SUB-ASSY, STEERING RACK
45503-02080	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
45503-12130	CDE120,ZZE12#..JPP	10/2001 - 05/2004	2
45503 - END SUB-ASSY, STEERING RACK
45503-02080	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
45503-12130	CDE120,ZZE12#..JPP	10/2001 - 05/2004	2
45510 - GEAR ASSY, STEERING
45510-02070	NDE120,ZZE12#..JPP..LHD	05/2004 - 12/2999	1
45510-12310	CDE120,ZZE12#..JPP..LHD	10/2001 - 05/2004	1
45535 - BOOT, STEERING RACK, NO.1
45535-52060	CDE120,ZZE12#..JPP	10/2001 - 05/2004	1
45535-02050	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
45535B - CLIP(FOR STEERING RACK BOOT)
90466-22003	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
90467-19017	CDE120,ZZE12#..JPP	10/2001 - 04/2002	2
90467-19021	CDE120,ZZE12#..JPP	04/2002 - 05/2004	2
45535B - CLIP(FOR STEERING RACK BOOT)
90466-22003	NDE120,ZZE12#..JPP	05/2004 - 12/2999	2
90467-19017	CDE120,ZZE12#..JPP	10/2001 - 04/2002	2
90467-19021	CDE120,ZZE12#..JPP	04/2002 - 05/2004	2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-57006	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
90460-58008	CDE120,ZZE12#..JPP	10/2001 - 05/2004	1
45536 - BOOT, STEERING RACK, NO.2
45535-52060	CDE120,ZZE12#..JPP	10/2001 - 05/2004	1
45535-02050	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-58008	CDE120,ZZE12#..JPP	10/2001 - 05/2004	1
90460-57006	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
Common parts
90119-12379
90170-W0004
95381-03020

ZZE121L-AEPNKW (2001)

(0110-0405)JPP..LHD

(0405- )JPP..LHD
