ZZE121L-AEPDKW (2001)
Toyota Corolla Sed/Wg (Jpp)

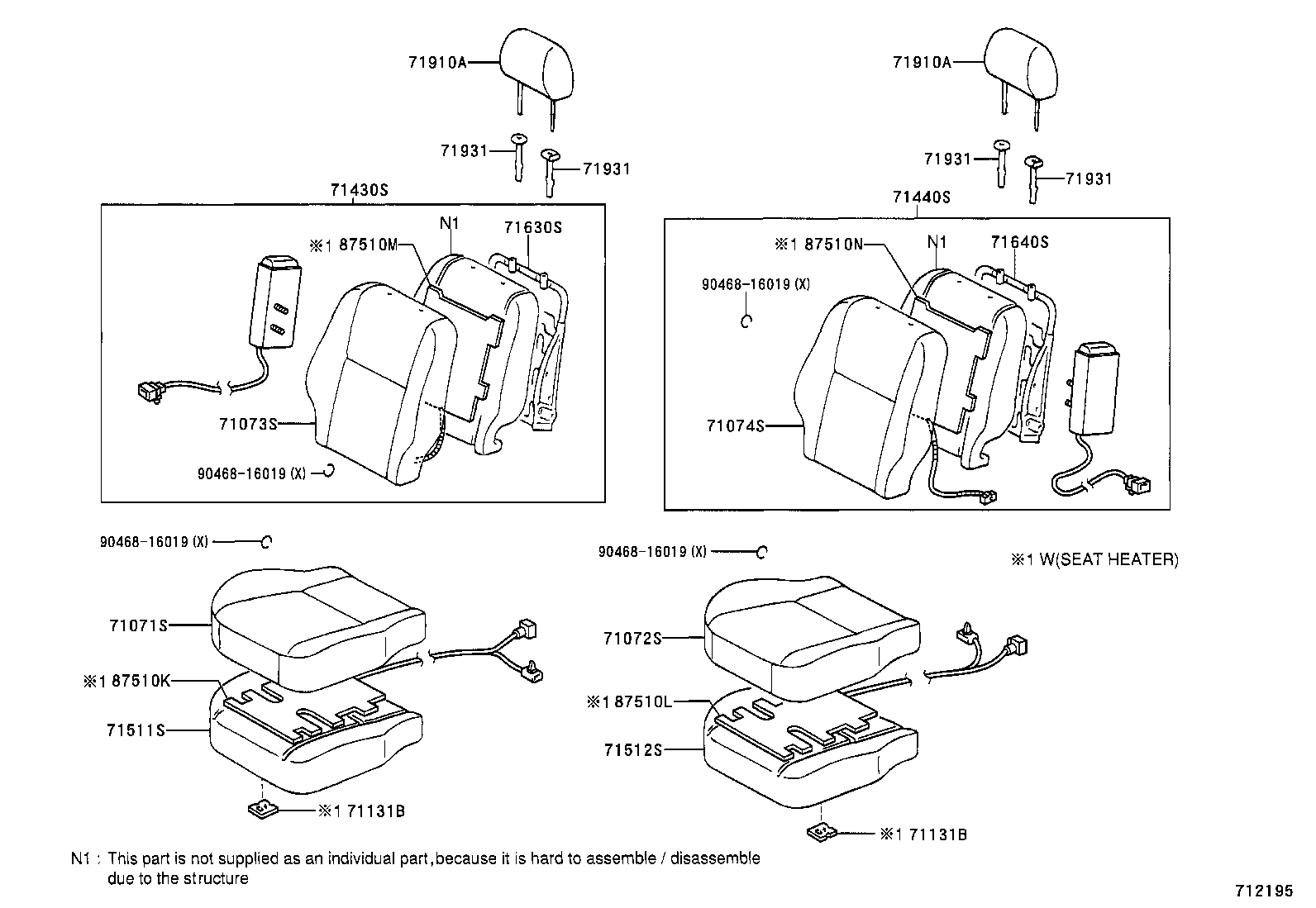

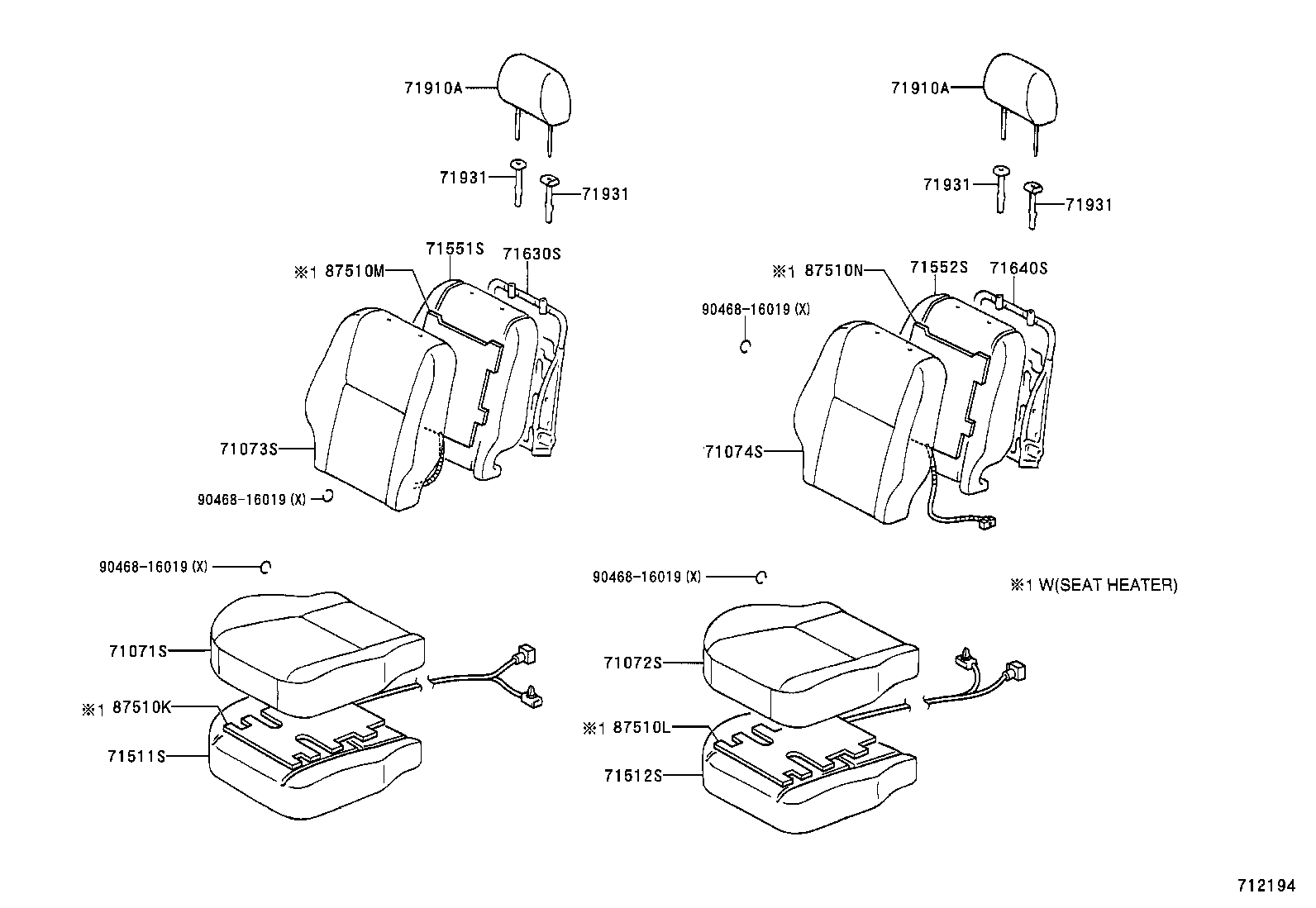

ILLUST NO. 1 OF 2(0110-0405)JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1N470B2 |
ZZE12#..JPP..SED..TERRA W(*80,SIDE),DK.GRAY,TRIM1# |
1 | ||
| 71071-12A10B0 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71071-12A01B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-12A00B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-12G90B1 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-12A11B0 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71071-12J00B1 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE B-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71071-1N460B1 |
ZZE12#..JPP..SED..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1K260B2 |
ZZE12#..JPP..SED..TERRA W(*80,SIDE),DK.GRAY,TRIM1# |
1 | ||
| 71072-1K250B1 |
ZZE12#..JPP..SED..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71072-12A11B0 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71072-12A00B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71072-12A10B0 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71072-12F50B1 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71072-12A01B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71072-12F60B1 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE B-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1N320B1 |
ZZE12#..JPP..SED..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71073-1N330B1 |
ZZE12#..JPP..SED..TERRA W(*80,SIDE),DK.GRAY,TRIM1# |
1 | ||
| 71073-1N670B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-1N671B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-12A01B0 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71073-12G00B1 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-12A00B0 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71073-12G10B1 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE B-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-1N320B1 |
ZZE12#..JPP..SED..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71074-12A00B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71074-1K850B1 |
ZZE12#..JPP..SED..TERRA W(*80,SIDE),DK.GRAY,TRIM1# |
1 | ||
| 71074-12A11B0 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71074-12E30B1 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71074-12E40B1 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE B-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71074-12A10B0 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71074-12A01B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-63020 |
ZZE12#..JPP..SED |
2 | ||
| 71502-12030 |
NDE120,ZZE12#..JPP..LHD |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-63020 |
ZZE12#..JPP..SED |
2 | ||
| 71511-12840 |
NDE120,ZZE12#..JPP..LHD |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-63031 |
ZZE12#..JPP..SED |
2 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-63031 |
ZZE12#..JPP..SED |
2 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-63030 |
ZZE12#..JPP..SED |
2 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-63030 |
ZZE12#..JPP..SED |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1E240B0 |
ZZE12#..JPP..SED..TERRA DARK GRAY,TRIM1# |
2 | ||
| 71910-1E240B2 |
NDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1E240B0 |
ZZE12#..JPP..SED..TERRA DARK GRAY,TRIM1# |
2 | ||
| 71910-1E240B2 |
NDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
ZZE12#..JPP..SED W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NDE120,ZZE12#..JPP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
ZZE12#..JPP..SED W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NDE120,ZZE12#..JPP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
ZZE12#..JPP..SED W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NDE120,ZZE12#..JPP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
ZZE12#..JPP..SED W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NDE120,ZZE12#..JPP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
ZZE12#..JPP..SED W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NDE120,ZZE12#..JPP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
ZZE12#..JPP..SED W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NDE120,ZZE12#..JPP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
ZZE12#..JPP..SED W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NDE120,ZZE12#..JPP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
ZZE12#..JPP..SED W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NDE120,ZZE12#..JPP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-02020 |
NDE120,ZZE12#..JPP..LHD |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-02020 |
NDE120,ZZE12#..JPP..LHD |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87510-02010 |
NDE120,ZZE12#..JPP..LHD |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87510-02010 |
NDE120,ZZE12#..JPP..LHD |
1 | ||
| Common parts | ||||
| 90468-16019 | ||||

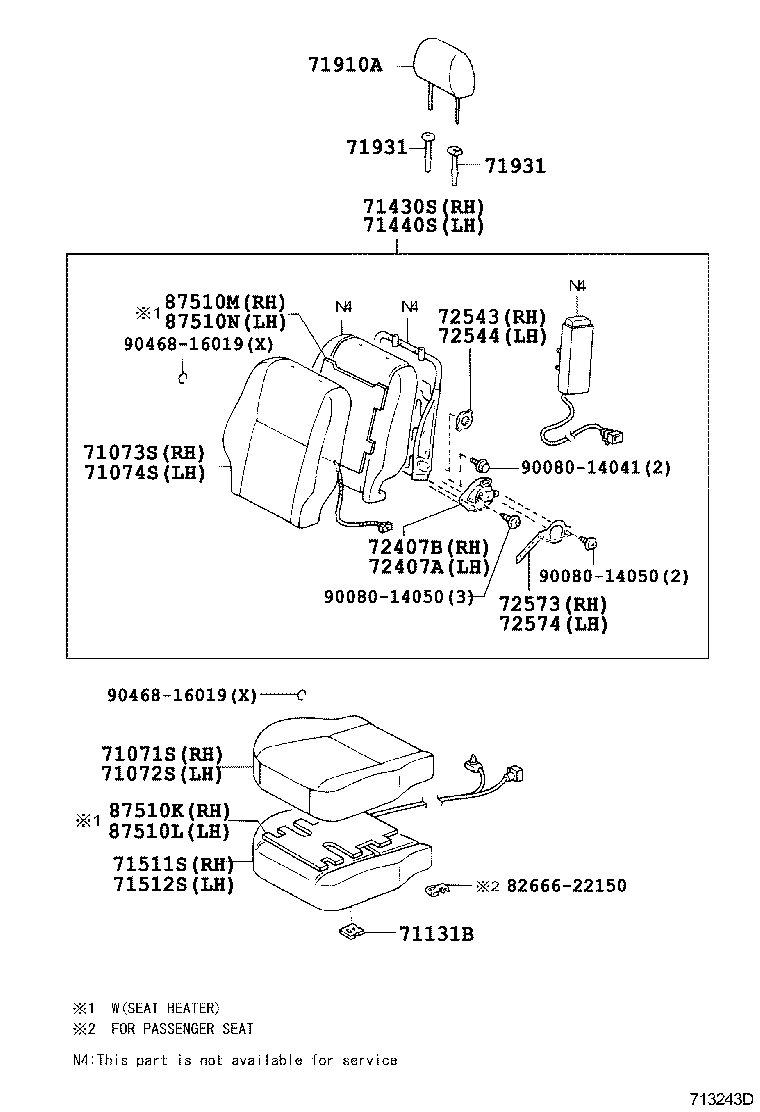

ILLUST NO. 1 OF 2(0110-0405)JPP ; (0110- )CDE120,ZZE121..JPP..WG
W(SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1N470B2 |
ZZE12#..JPP..SED..TERRA W(*80,SIDE),DK.GRAY,TRIM1# |
1 | ||
| 71071-12A10B0 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71071-12A01B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-12A00B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-12G90B1 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-12A11B0 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71071-12J00B1 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE B-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71071-1N460B1 |
ZZE12#..JPP..SED..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1K260B2 |
ZZE12#..JPP..SED..TERRA W(*80,SIDE),DK.GRAY,TRIM1# |
1 | ||
| 71072-1K250B1 |
ZZE12#..JPP..SED..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71072-12A11B0 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71072-12A00B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71072-12A10B0 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71072-12F50B1 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71072-12A01B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71072-12F60B1 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE B-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1N320B1 |
ZZE12#..JPP..SED..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71073-1N330B1 |
ZZE12#..JPP..SED..TERRA W(*80,SIDE),DK.GRAY,TRIM1# |
1 | ||
| 71073-1N670B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-1N671B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-12A01B0 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71073-12G00B1 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-12A00B0 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71073-12G10B1 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE B-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-1N320B1 |
ZZE12#..JPP..SED..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71074-12A00B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71074-1K850B1 |
ZZE12#..JPP..SED..TERRA W(*80,SIDE),DK.GRAY,TRIM1# |
1 | ||
| 71074-12A11B0 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71074-12E30B1 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71074-12E40B1 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE B-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71074-12A10B0 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71074-12A01B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71131B - PLATE, FRONT SEAT CUSHION, NO.1 | ||||
| 71131-13020 |
NDE120,ZZE12#..JPP |
2 | ||
| 71131B - PLATE, FRONT SEAT CUSHION, NO.1 | ||||
| 71131-13020 |
NDE120,ZZE12#..JPP |
2 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1L750B1 |
CDE120,ZZE12#..JPP..TERRA W(*80,SIDE),DARK GRAY,TRIM1# |
1 | ||
| 71040-12700B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71040-12710B0 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71430-12C10B1 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE B-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71430-12B10B1 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-12A00B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71440-12C00B1 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71440-12A10B0 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71440-12B90B1 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE B-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71440-1L260B1 |
CDE120,ZZE12#..JPP..TERRA W(*80,SIDE),DARK GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-63020 |
ZZE12#..JPP..SED |
2 | ||
| 71502-12030 |
NDE120,ZZE12#..JPP..LHD |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-63020 |
ZZE12#..JPP..SED |
2 | ||
| 71511-12840 |
NDE120,ZZE12#..JPP..LHD |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-63030 |
ZZE12#..JPP..SED |
2 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-63030 |
ZZE12#..JPP..SED |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1E240B0 |
ZZE12#..JPP..SED..TERRA DARK GRAY,TRIM1# |
2 | ||
| 71910-1E240B2 |
NDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1E240B0 |
ZZE12#..JPP..SED..TERRA DARK GRAY,TRIM1# |
2 | ||
| 71910-1E240B2 |
NDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
ZZE12#..JPP..SED W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NDE120,ZZE12#..JPP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
ZZE12#..JPP..SED W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NDE120,ZZE12#..JPP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
ZZE12#..JPP..SED W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NDE120,ZZE12#..JPP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
ZZE12#..JPP..SED W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NDE120,ZZE12#..JPP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
ZZE12#..JPP..SED W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NDE120,ZZE12#..JPP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
ZZE12#..JPP..SED W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NDE120,ZZE12#..JPP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
ZZE12#..JPP..SED W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NDE120,ZZE12#..JPP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
ZZE12#..JPP..SED W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NDE120,ZZE12#..JPP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-02020 |
NDE120,ZZE12#..JPP..LHD |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-02020 |
NDE120,ZZE12#..JPP..LHD |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87510-02010 |
NDE120,ZZE12#..JPP..LHD |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87510-02010 |
NDE120,ZZE12#..JPP..LHD |
1 | ||
| Common parts | ||||
| 90468-16019 | ||||

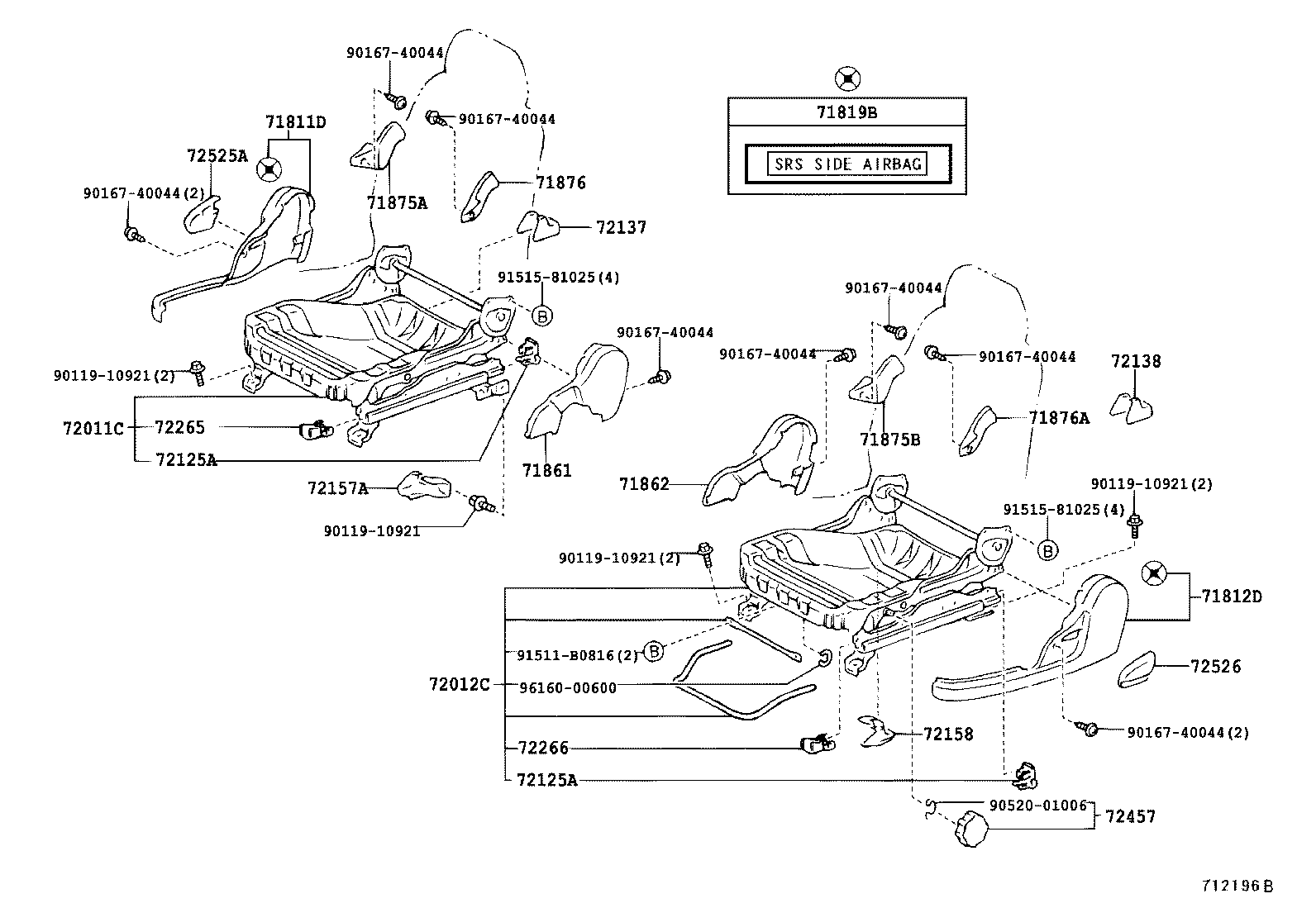

ILLUST NO. 2 OF 2(0110-0405)JPP..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-12370B1 |
ZZE12#..JPP..SED DK.GRAY,TRIM1# |
1 | ||
| 71811-33110B1 |
ZZE12#..JPP..SED W(*80,SIDE),DK.GRAY,TRIM1# |
1 | ||
| 71811-02110B0 |
NDE120,ZZE12#..JPP..LHD DK.GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-12370B1 |
ZZE12#..JPP..SED DK.GRAY,TRIM1# |
1 | ||
| 71812-33160B1 |
ZZE12#..JPP..SED W(*80,SIDE),DK.GRAY,TRIM1# |
1 | ||
| 71812-02140B0 |
NDE120,ZZE12#..JPP..LHD DK.GRAY,TRIM1# |
1 | ||
| 71819B - LABEL, SIDE AIR BAG NAME | ||||
| 71819-12020P3 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
2 | ||
| 71819-12020P3 |
ZZE12#..JPP..SED DK.GRAY,TRIM1# |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-12240B1 |
ZZE12#..JPP..SED DK.GRAY,TRIM1# |
1 | ||
| 71861-02050B0 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-12250B1 |
ZZE12#..JPP..SED DK.GRAY,TRIM1# |
1 | ||
| 71862-02050B0 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-47020B1 |
ZZE12#..JPP..SED DK.GRAY,TRIM1# |
2 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-47020B1 |
ZZE12#..JPP..SED DK.GRAY,TRIM1# |
2 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-47020B1 |
ZZE12#..JPP..SED DK.GRAY,TRIM1# |
2 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-47020B1 |
ZZE12#..JPP..SED DK.GRAY,TRIM1# |
2 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-12730 |
CDE120,ZZE12#..JPP..LHD |
1 | ||
| 72010-0W040 |
NDE120,ZZE12#..JPP..LHD |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-12660 |
CDE120,ZZE12#..JPP..LHD |
1 | ||
| 72020-0W040 |
NDE120,ZZE12#..JPP..LHD |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ZZE12#..JPP..SED |
8 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-13040 |
ZZE12#..JPP..SED |
8 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-02040 |
NDE120,ZZE12#..JPP |
1 | ||
| 72137-52010 |
CDE120,ZZE12#..JPP |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-52010 |
CDE120,ZZE12#..JPP |
1 | ||
| 72138-02040 |
NDE120,ZZE12#..JPP |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-12100 |
CDE120,ZZE12#..JPP |
1 | ||
| 72157-02040 |
NDE120,ZZE12#..JPP |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-02040 |
NDE120,ZZE12#..JPP |
1 | ||
| 72158-12100 |
CDE120,ZZE12#..JPP |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-13040 |
ZZE12#..JPP..SED |
8 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-13040 |
ZZE12#..JPP..SED |
8 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-18010S1 |
ZZE12#..JPP..SED DK.GRAY,TRIM1# |
1 | ||
| 72457-0F020B0 |
NDE120,ZZE12#..JPP..LHD DK.GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47020B1 |
ZZE12#..JPP..SED DK.GRAY,TRIM1# |
1 | ||
| 72525-0F010B0 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47020B1 |
ZZE12#..JPP..SED DK.GRAY,TRIM1# |
1 | ||
| 72526-0F010B0 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90520-01006 | ||||
| 91511-B0816 | ||||
| 91515-81025 | ||||
| 96160-00600 | ||||

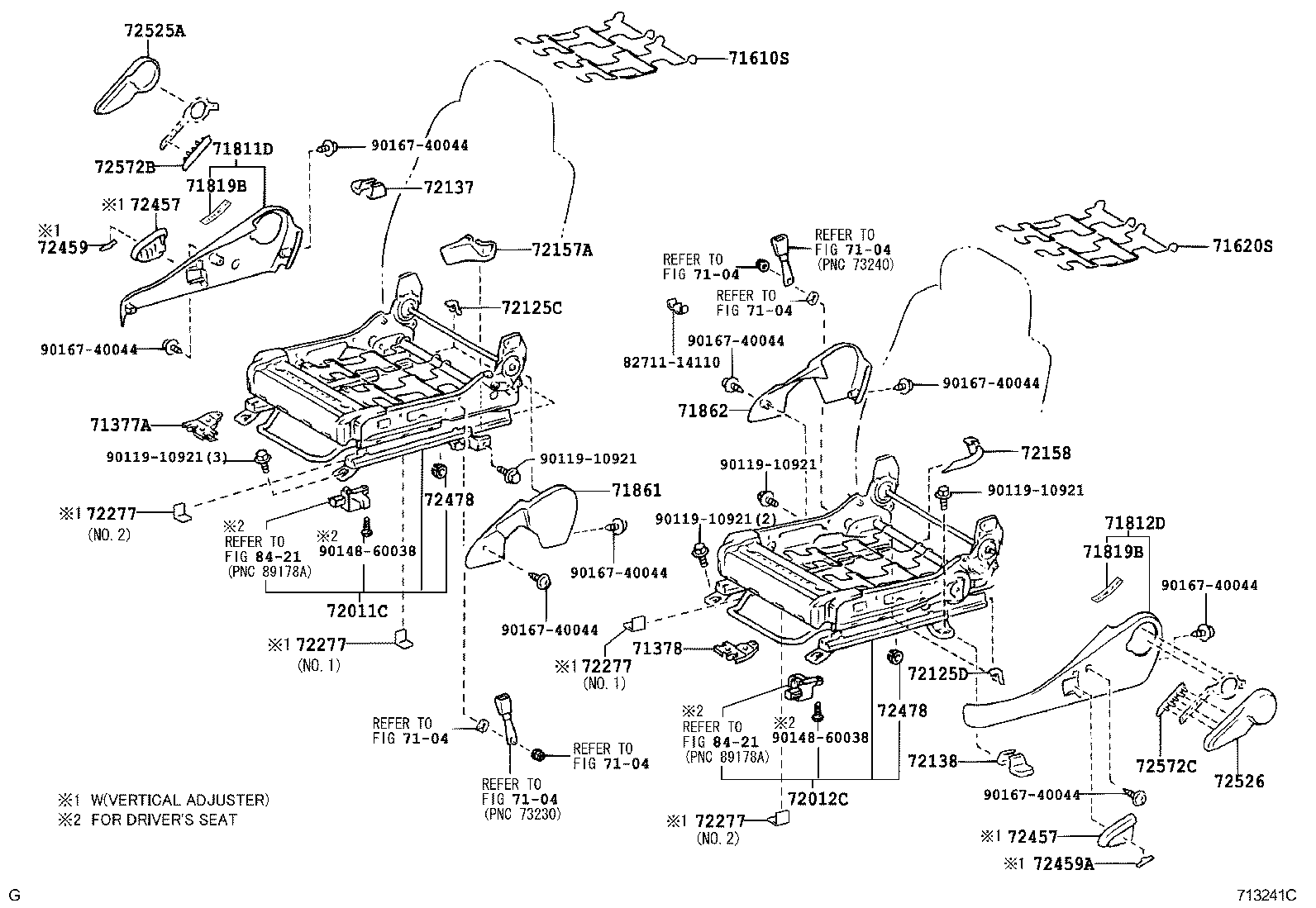

ILLUST NO. 2 OF 2(0405- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71377A - BRACKET, FRONT SEAT, RH | ||||
| 71377-12010 |
NDE120,ZZE12#..JPP |
1 | ||
| 71378 - BRACKET, FRONT SEAT, LH | ||||
| 71377-12010 |
NDE120,ZZE12#..JPP |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71051-02010 |
NDE120,ZZE12#..JPP |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71051-02010 |
NDE120,ZZE12#..JPP |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-12370B1 |
ZZE12#..JPP..SED DK.GRAY,TRIM1# |
1 | ||
| 71811-33110B1 |
ZZE12#..JPP..SED W(*80,SIDE),DK.GRAY,TRIM1# |
1 | ||
| 71811-02110B0 |
NDE120,ZZE12#..JPP..LHD DK.GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-12370B1 |
ZZE12#..JPP..SED DK.GRAY,TRIM1# |
1 | ||
| 71812-33160B1 |
ZZE12#..JPP..SED W(*80,SIDE),DK.GRAY,TRIM1# |
1 | ||
| 71812-02140B0 |
NDE120,ZZE12#..JPP..LHD DK.GRAY,TRIM1# |
1 | ||
| 71819B - LABEL, SIDE AIR BAG NAME | ||||
| 71819-12020P3 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
2 | ||
| 71819-12020P3 |
ZZE12#..JPP..SED DK.GRAY,TRIM1# |
2 | ||
| 71819B - LABEL, SIDE AIR BAG NAME | ||||
| 71819-12020P3 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
2 | ||
| 71819-12020P3 |
ZZE12#..JPP..SED DK.GRAY,TRIM1# |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-12240B1 |
ZZE12#..JPP..SED DK.GRAY,TRIM1# |
1 | ||
| 71861-02050B0 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-12250B1 |
ZZE12#..JPP..SED DK.GRAY,TRIM1# |
1 | ||
| 71862-02050B0 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-12730 |
CDE120,ZZE12#..JPP..LHD |
1 | ||
| 72010-0W040 |
NDE120,ZZE12#..JPP..LHD |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-12660 |
CDE120,ZZE12#..JPP..LHD |
1 | ||
| 72020-0W040 |
NDE120,ZZE12#..JPP..LHD |
1 | ||
| 72125C - COVER, SEAT TRACK LOCK PLATE, NO.1 | ||||
| 72125-02010 |
NDE120,ZZE12#..JPP |
2 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-02010 |
NDE120,ZZE12#..JPP |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-02040 |
NDE120,ZZE12#..JPP |
1 | ||
| 72137-52010 |
CDE120,ZZE12#..JPP |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-52010 |
CDE120,ZZE12#..JPP |
1 | ||
| 72138-02040 |
NDE120,ZZE12#..JPP |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-12100 |
CDE120,ZZE12#..JPP |
1 | ||
| 72157-02040 |
NDE120,ZZE12#..JPP |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-02040 |
NDE120,ZZE12#..JPP |
1 | ||
| 72158-12100 |
CDE120,ZZE12#..JPP |
1 | ||
| 72277 - PROTECTOR, SEAT SLIDE POSITION SENSOR, | ||||
| 72277-02020 |
NDE120,ZZE12#..JPP NO.1 |
1 | ||
| 72277-02030 |
NDE120,ZZE12#..JPP NO.2 |
1 | ||
| 72277 - PROTECTOR, SEAT SLIDE POSITION SENSOR, | ||||
| 72277-02020 |
NDE120,ZZE12#..JPP NO.1 |
1 | ||
| 72277-02030 |
NDE120,ZZE12#..JPP NO.2 |
1 | ||
| 72277 - PROTECTOR, SEAT SLIDE POSITION SENSOR, | ||||
| 72277-02020 |
NDE120,ZZE12#..JPP NO.1 |
1 | ||
| 72277-02030 |
NDE120,ZZE12#..JPP NO.2 |
1 | ||
| 72277 - PROTECTOR, SEAT SLIDE POSITION SENSOR, | ||||
| 72277-02020 |
NDE120,ZZE12#..JPP NO.1 |
1 | ||
| 72277-02030 |
NDE120,ZZE12#..JPP NO.2 |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-18010S1 |
ZZE12#..JPP..SED DK.GRAY,TRIM1# |
1 | ||
| 72457-0F020B0 |
NDE120,ZZE12#..JPP..LHD DK.GRAY,TRIM1# |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-18010S1 |
ZZE12#..JPP..SED DK.GRAY,TRIM1# |
1 | ||
| 72457-0F020B0 |
NDE120,ZZE12#..JPP..LHD DK.GRAY,TRIM1# |
1 | ||
| 72459A - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-02010B1 |
NDE120,ZZE12#..JPP..LHD DK.GRAY,TRIM1# |
1 | ||
| 72478 - BUSH, VERTICAL ADJUSTER | ||||
| 72478-02010 |
NDE120,ZZE12#..JPP..LHD..TERRA |
2 | ||
| 72478 - BUSH, VERTICAL ADJUSTER | ||||
| 72478-02010 |
NDE120,ZZE12#..JPP..LHD..TERRA |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47020B1 |
ZZE12#..JPP..SED DK.GRAY,TRIM1# |
1 | ||
| 72525-0F010B0 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47020B1 |
ZZE12#..JPP..SED DK.GRAY,TRIM1# |
1 | ||
| 72526-0F010B0 |
NDE120,ZZE12#..JPP DK.GRAY,TRIM1# |
1 | ||
| 72572B - CAP, RECLINING ADJUSTER KNOB, RH | ||||
| 72572-02010 |
NDE120,ZZE12#..JPP |
1 | ||
| 72572C - CAP, RECLINING ADJUSTER KNOB, LH | ||||
| 72572-02020 |
NDE120,ZZE12#..JPP |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 90119-10921 | ||||
| 90148-60038 | ||||
| 90167-40044 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8421 | ||||
ILLUST NO. 1 OF 2(0405- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1N470B2 |
ZZE12#..JPP..SED..TERRA W(*80,SIDE),DK.GRAY,TRIM1# |
1 | ||
| 71071-12A10B0 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71071-12A01B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-12A00B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-12G90B1 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71071-12A11B0 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71071-12J00B1 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE B-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71071-1N460B1 |
ZZE12#..JPP..SED..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1K260B2 |
ZZE12#..JPP..SED..TERRA W(*80,SIDE),DK.GRAY,TRIM1# |
1 | ||
| 71072-1K250B1 |
ZZE12#..JPP..SED..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71072-12A11B0 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71072-12A00B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71072-12A10B0 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71072-12F50B1 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71072-12A01B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71072-12F60B1 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE B-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1N320B1 |
ZZE12#..JPP..SED..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71073-1N330B1 |
ZZE12#..JPP..SED..TERRA W(*80,SIDE),DK.GRAY,TRIM1# |
1 | ||
| 71073-1N670B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-1N671B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-12A01B0 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71073-12G00B1 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71073-12A00B0 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71073-12G10B1 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE B-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-1N320B1 |
ZZE12#..JPP..SED..TERRA DK.GRAY,TRIM1# |
1 | ||
| 71074-12A00B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71074-1K850B1 |
ZZE12#..JPP..SED..TERRA W(*80,SIDE),DK.GRAY,TRIM1# |
1 | ||
| 71074-12A11B0 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71074-12E30B1 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71074-12E40B1 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE B-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71074-12A10B0 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71074-12A01B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71131B - PLATE, FRONT SEAT CUSHION, NO.1 | ||||
| 71131-13020 |
NDE120,ZZE12#..JPP |
2 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1L750B1 |
CDE120,ZZE12#..JPP..TERRA W(*80,SIDE),DARK GRAY,TRIM1# |
1 | ||
| 71040-12700B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71040-12710B0 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71430-12C10B1 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE B-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71430-12B10B1 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-12A00B0 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71440-12C00B1 |
NDE120,ZZE12#..JPP..TERRA SEAT = TYPE B-*104,DK.GRAY,TRIM1# |
1 | ||
| 71440-12A10B0 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE A-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71440-12B90B1 |
NDE120,ZZE12#..JPP..LHD..TERRA SEAT = TYPE B-*104 & W(SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71440-1L260B1 |
CDE120,ZZE12#..JPP..TERRA W(*80,SIDE),DARK GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-63020 |
ZZE12#..JPP..SED |
2 | ||
| 71502-12030 |
NDE120,ZZE12#..JPP..LHD |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-63020 |
ZZE12#..JPP..SED |
2 | ||
| 71511-12840 |
NDE120,ZZE12#..JPP..LHD |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1E240B0 |
ZZE12#..JPP..SED..TERRA DARK GRAY,TRIM1# |
2 | ||
| 71910-1E240B2 |
NDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
ZZE12#..JPP..SED W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NDE120,ZZE12#..JPP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
ZZE12#..JPP..SED W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NDE120,ZZE12#..JPP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47010B2 |
ZZE12#..JPP..SED W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
NDE120,ZZE12#..JPP W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
ZZE12#..JPP..SED W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-47010B2 |
NDE120,ZZE12#..JPP W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72407A - HOUSING SUB-ASSY, FRONT SEAT RECLINING, LH | ||||
| 72407-02020 |
NDE120,ZZE12#..JPP |
1 | ||
| 72407B - HOUSING SUB-ASSY, FRONT SEAT RECLINING RH | ||||
| 72407-02010 |
NDE120,ZZE12#..JPP |
1 | ||
| 72543 - PLATE, RECLINING CONTROL, RH | ||||
| 72543-02010 |
NDE120,ZZE12#..JPP |
1 | ||
| 72544 - PLATE, RECLINING CONTROL, LH | ||||
| 72543-02010 |
NDE120,ZZE12#..JPP |
1 | ||
| 72573 - LEVER, RECLINING CONTROL, RH | ||||
| 72573-02010 |
NDE120,ZZE12#..JPP |
1 | ||
| 72574 - LEVER, RECLINING CONTROL, LH | ||||
| 72574-02010 |
NDE120,ZZE12#..JPP |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-02020 |
NDE120,ZZE12#..JPP..LHD |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-02020 |
NDE120,ZZE12#..JPP..LHD |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87510-02010 |
NDE120,ZZE12#..JPP..LHD |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87510-02010 |
NDE120,ZZE12#..JPP..LHD |
1 | ||
| Common parts | ||||
| 82666-22150 | ||||
| 90080-14041 | ||||
| 90080-14050 | ||||
| 90468-16019 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
