ZZE120R-AEMDKW (2004)
Toyota Corolla Sed/Wg (Jpp)

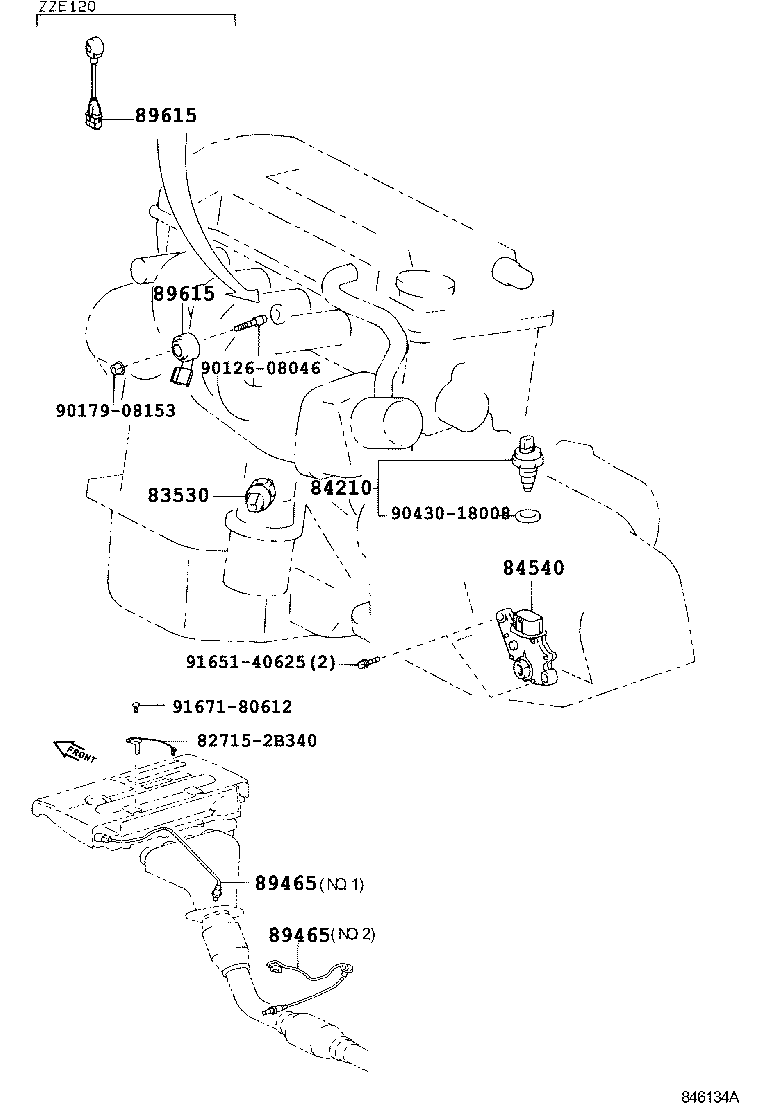

ILLUST NO. 1 OF 6(0405- )ZZE12#..JPP
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ZZE12#..JPP DENSO |
1 | ||
| 83530-28020 |
ZZE12#..JPP DENSO |
1 | ||
| 83530-60020 |
ZZE12#..JPP YAZAKI |
1 | ||
| 83530-60020 |
ZZE12#..JPP YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
NDE120,ZZE12#..JPP..5F |
1 | ||
| 84210-12040 |
CDE120,ZZE12#..JPP..5F |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-02060 |
ZZE120..JPP NO.1 |
1 | ||
| 89465-02070 |
ZZE120..JPP NO.2 |
1 | ||
| 89465-02140 |
ZZE120..JPP NO.1 |
1 | ||
| 89465-02180 |
ZZE120..JPP NO.2 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-02060 |
ZZE120..JPP NO.1 |
1 | ||
| 89465-02070 |
ZZE120..JPP NO.2 |
1 | ||
| 89465-02140 |
ZZE120..JPP NO.1 |
1 | ||
| 89465-02180 |
ZZE120..JPP NO.2 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-02010 |
ZZE120..JPP |
1 | ||
| 89615-02010 |
ZZE120..JPP |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-02010 |
ZZE120..JPP |
1 | ||
| 89615-02010 |
ZZE120..JPP |
1 | ||
| Common parts | ||||
| 82715-2B340 | ||||
| 90126-08046 | ||||
| 90179-08153 | ||||
| 90430-18008 | ||||
| 91651-40625 | ||||
| 91671-80612 | ||||

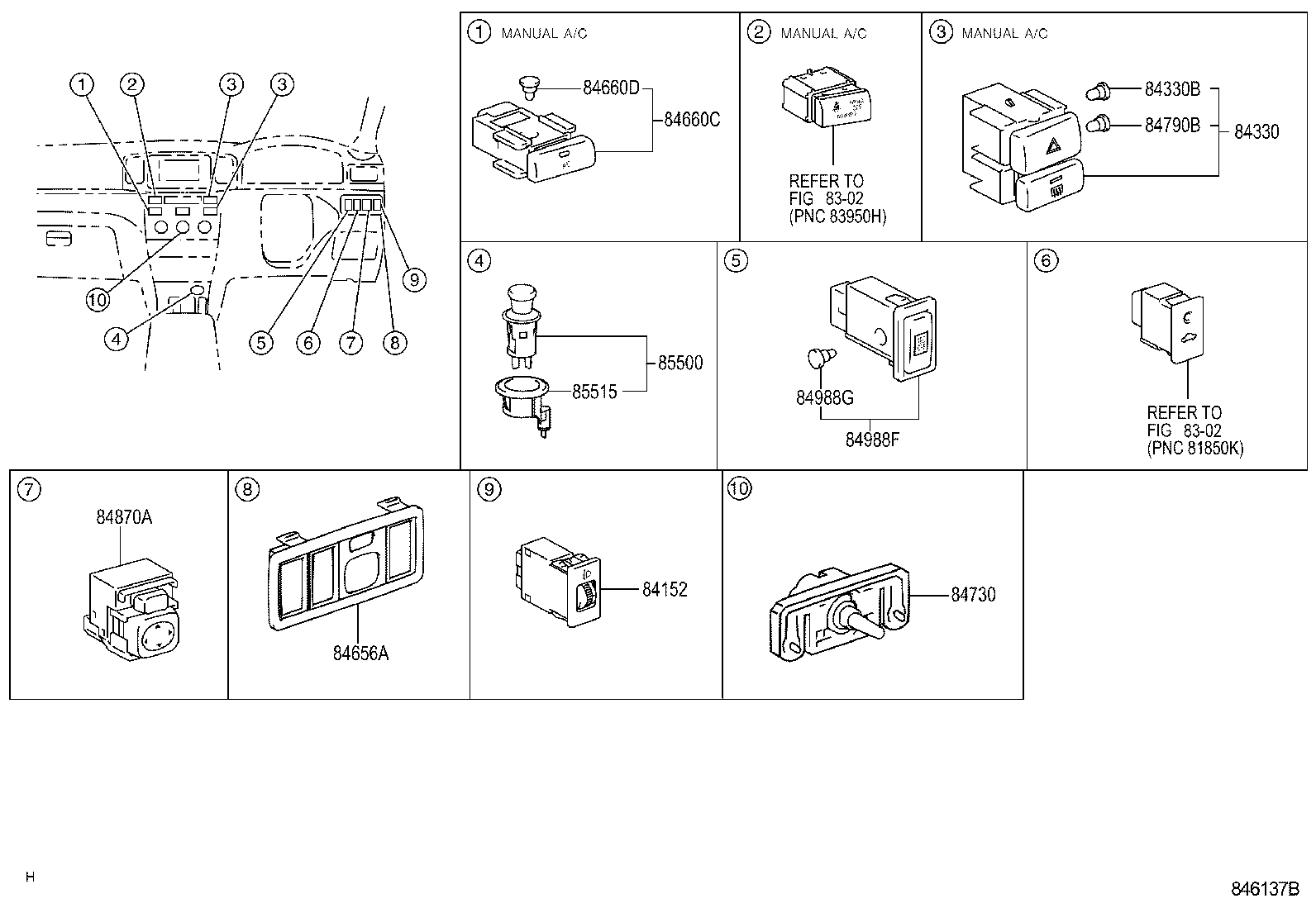

ILLUST NO. 4 OF 6(0405- )JPP..RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-02020 |
NDE120,ZZE12#..JPP |
1 | ||
| 84152-02021 |
NDE120,ZZE12#..JPP |
1 | ||
| 84152-12050 |
CDE120,ZZE12#..JPP |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12490 |
ZZE12#..JPP..SED |
1 | ||
| 84332-12480 |
NDE120,ZZE12#..JPP..TERRA |
1 | ||
| 84332-12490 |
NDE120,ZZE12#..JPP..TERRA COLD SPEC |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10310 |
NDE120,ZZE12#..JPP..TERRA 14V 0.91W |
1 | ||
| 84999-10310 |
CDE120,ZZE12#..JPP 14V 0.91W |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-12110B0 |
ZZE12#..JPP..RHD W/O(OUTER MIRROR SWITCH),DK.GRAY,TRIM1# |
1 | ||
| 84656-12090B0 |
ZZE12#..JPP..RHD DK.GRAY,TRIM1# |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-12210 |
CDE120,ZZE12#..JPP |
1 | ||
| 84660-12210 |
NDE120,ZZE12#..JPP..TERRA |
1 | ||
| 84660-02040 |
NDE120,ZZE12#..JPP..TERRA DEALER OPTION |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 90010-03059 |
CDE120,ZZE12#..JPP 14V 1.12W |
1 | ||
| 90010-03059 |
NDE120,ZZE12#..JPP..TERRA 14V 1.12W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-02040 |
NDE120,ZZE12#..JPP..TERRA |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90010-01079 |
CDE120,ZZE12#..JPP 14V 0.06W |
1 | ||
| 90010-01079 |
NDE120,ZZE12#..JPP..TERRA 14V 0.06W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-52030 |
NDE120,ZZE12#..JPP |
1 | ||
| 84872-52030 |
CDE120,ZZE12#..JPP |
1 | ||
| 84988F - SWITCH, TRACTION CONTROL | ||||
| 84988-13010 |
ZZE12#..JPP..RHD |
1 | ||
| 84988G - BULB, TRACTION CONTROL SWITCH | ||||
| 84999-10320 |
ZZE12#..JPP..RHD 14V 0.84W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12240 |
CDE120,ZZE12#..JPP |
1 | ||
| 85500-09040 |
NDE120,ZZE12#..JPP |
1 | ||
| 85500-09010 |
NDE120,ZZE12#..JPP |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12110 |
CDE120,ZZE12#..JPP |
1 | ||
| 85515-05010 |
NDE120,ZZE12#..JPP |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||

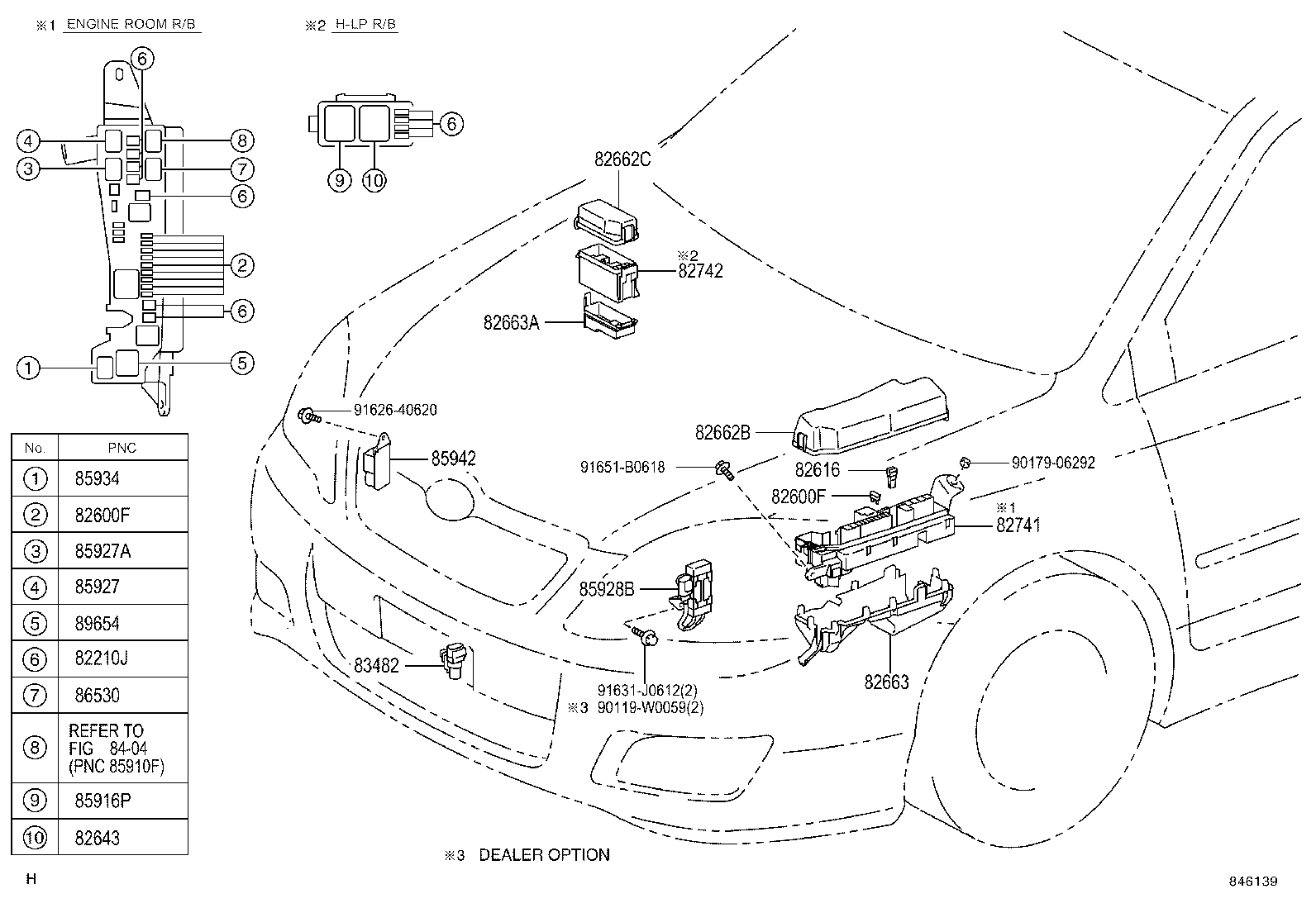

ILLUST NO. 2 OF 6(0405- )ZZE12#..JPP
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210J - FUSIBLE LINK | ||||
| 90982-08246 |
ZZE12#..JPP 100A,TERM.:MALE,BLUE,PACIFIC |
1 | ||
| 90982-08284 |
NDE120,ZZE12#..JPP 40A,TERM.:FEMALE,GRN,FOR ENGINE ROOM R/B |
1 | ||
| 90982-08280 |
CDE120,ZZE12#..JPP 30A,TERM.:FEMALE,PNK,YAZAKI |
1 | ||
| 90982-08283 |
CDE120,ZZE12#..JPP 30A,TERM.:FEMALE,PNK,PACIFIC |
1 | ||
| 90982-08246 |
ZZE12#..JPP 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08281 |
CDE120,ZZE12#..JPP 40A,TERM.:FEMALE,GRN,YAZAKI |
1 | ||
| 90982-08284 |
CDE120,ZZE12#..JPP 40A,TERM.:FEMALE,GRN,PACIFIC |
1 | ||
| 90982-08285 |
CDE120,ZZE12#..JPP 50A,TERM.:FEMALE,RED,PACIFIC |
1 | ||
| 90982-08280 |
NDE120,ZZE12#..JPP 30A,TERM.:FEMALE,PNK,FOR INSTRUMENT PANEL J/B |
1 | ||
| 90982-08281 |
NDE120,ZZE12#..JPP 40A,TERM.:FEMALE,GRN,FOR INSTRUMENT PANEL J/B |
1 | ||
| 90982-08285 |
NDE120,ZZE12#..JPP 50A,TERM.:FEMALE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
CDE120,ZZE12#..JPP 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82022 |
ZZE12#..JPP 15A,MINI FUSE,BLUE,SUMITOMO |
1 | ||
| 90982-09008 |
CDE120,ZZE12#..JPP 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09007 |
CDE120,ZZE12#..JPP 5A,MINI FUSE,TAN |
1 | ||
| 90080-82031 |
ZZE12#..JPP 5A,MINI FUSE,TAN,SUMITOMO |
1 | ||
| 90982-09010 |
ZZE12#..JPP..RHD 15A,MINI FUSE,BLUE,PACIFIC |
1 | ||
| 90080-82024 |
ZZE12#..JPP 30A,MINI FUSE,GREEN,SUMITOMO |
1 | ||
| 90982-09008 |
ZZE12#..JPP..RHD 7.5A,MINI FUSE,BRN |
1 | ||
| 90080-82021 |
NDE120,ZZE12#..JPP 10A,MINI FUSE,RED |
1 | ||
| 90982-09009 |
ZZE12#..JPP..RHD 10A,MINI FUSE,RED,PACIFIC |
1 | ||
| 90982-09009 |
CDE120,ZZE12#..JPP 10A,MINI FUSE,RED |
1 | ||
| 90982-09013 |
CDE120,ZZE12#..JPP 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
CDE120,ZZE12#..JPP 25A,MINI FUSE |
1 | ||
| 90982-09012 |
ZZE12#..JPP..RHD 25A,MINI FUSE |
1 | ||
| 90982-09013 |
ZZE12#..JPP..RHD 30A,MINI FUSE,GRN,PACIFIC |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
CDE120,ZZE12#..JPP 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82022 |
ZZE12#..JPP 15A,MINI FUSE,BLUE,SUMITOMO |
1 | ||
| 90982-09008 |
CDE120,ZZE12#..JPP 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09007 |
CDE120,ZZE12#..JPP 5A,MINI FUSE,TAN |
1 | ||
| 90080-82031 |
ZZE12#..JPP 5A,MINI FUSE,TAN,SUMITOMO |
1 | ||
| 90982-09010 |
ZZE12#..JPP..RHD 15A,MINI FUSE,BLUE,PACIFIC |
1 | ||
| 90080-82024 |
ZZE12#..JPP 30A,MINI FUSE,GREEN,SUMITOMO |
1 | ||
| 90982-09008 |
ZZE12#..JPP..RHD 7.5A,MINI FUSE,BRN |
1 | ||
| 90080-82021 |
NDE120,ZZE12#..JPP 10A,MINI FUSE,RED |
1 | ||
| 90982-09009 |
ZZE12#..JPP..RHD 10A,MINI FUSE,RED,PACIFIC |
1 | ||
| 90982-09009 |
CDE120,ZZE12#..JPP 10A,MINI FUSE,RED |
1 | ||
| 90982-09013 |
CDE120,ZZE12#..JPP 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
CDE120,ZZE12#..JPP 25A,MINI FUSE |
1 | ||
| 90982-09012 |
ZZE12#..JPP..RHD 25A,MINI FUSE |
1 | ||
| 90982-09013 |
ZZE12#..JPP..RHD 30A,MINI FUSE,GRN,PACIFIC |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
NDE120,ZZE12#..JPP |
1 | ||
| 82616-20010 |
CDE120,ZZE12#..JPP |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-12200 |
ZZE12#..JPP |
1 | ||
| 82662-13020 |
ZZE12#..JPP |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-02010 |
ZZE12#..JPP |
1 | ||
| 82663-12010 |
ZZE12#..JPP |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-12020 |
ZZE12#..JPP |
1 | ||
| 82741-02030 |
ZZE12#..JPP |
1 | ||
| 83482 - SENSOR, OUTER AMBIENT TEMPERATURE | ||||
| 88790-22131 |
NDE120,ZZE12#..JPP..TERRA |
1 | ||
| 88790-22131 |
CDE120,ZZE12#..JPP |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02020 |
NDE120,ZZE12#..JPP |
1 | ||
| 90987-02012 |
CDE120,ZZE12#..JPP |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
NDE120,ZZE12#..JPP |
1 | ||
| 90987-04004 |
CDE120,ZZE12#..JPP |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-12010 |
ZZE12#..JPP |
1 | ||
| 85928-12010 |
ZZE12#..JPP |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02020 |
CDE120,ZZE12#..JPP PART NUMBER LABEL=90987-02020 |
1 | ||
| 90987-02028 |
NDE120,ZZE12#..JPP |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02020 |
NDE120,ZZE12#..JPP |
1 | ||
| 90987-02020 |
CDE120,ZZE12#..JPP |
1 | ||
| 89654 - RELAY, POWER STEERING | ||||
| 90987-02025 |
NDE120,ZZE12#..JPP |
1 | ||
| 90987-02016 |
CDE120,ZZE12#..JPP |
1 | ||
| Common parts | ||||
| 90119-W0059 | ||||
| 90179-06292 | ||||
| 91626-40620 | ||||
| 91631-J0612 | ||||
| 91651-B0618 | ||||
| Linked diagrams | ||||
| 8404 | ||||

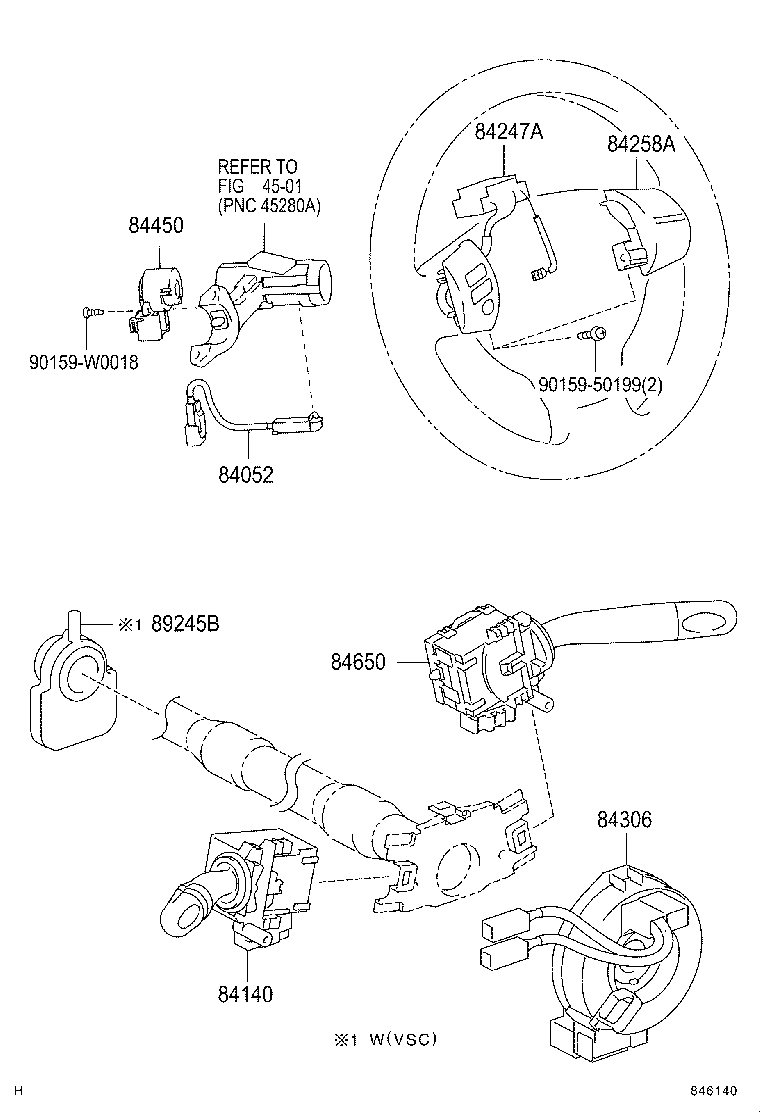

ILLUST NO. 5 OF 6(0405- )JPP
IGNITION & COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-05020 |
NDE120,ZZE12#..JPP |
1 | ||
| 84052-60010 |
CDE120,ZZE12#..JPP |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-13020 |
CDE120,ZZE12#..JPP W(FRONT FOG LAMP SW) |
1 | ||
| 84140-13020 |
NDE120,ZZE12#..JPP W(FRONT FOG LAMP SW) |
1 | ||
| 84140-13010 |
CDE120,ZZE12#..JPP |
1 | ||
| 84140-13010 |
NDE120,ZZE12#..JPP |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-12010B0 |
NDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 84258A - COVER, STEERING PAD, RH | ||||
| 84258-68020B2 |
NDE120,ZZE12#..JPP..TERRA DK.GRAY,TRIM1# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-52020 |
CDE120,ZZE12#..JPP |
1 | ||
| 84306-05050 |
NDE120,ZZE12#..JPP (L) |
1 | ||
| 84306-32030 |
CDE120,ZZE12#..JPP W(AUDIO SWITCH) |
1 | ||
| 84306-64010 |
NDE120,ZZE12#..JPP (J) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-0D010 |
NDE120,ZZE12#..JPP |
1 | ||
| 84450-52010 |
CDE120,ZZE12#..JPP |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-1A820 |
NDE120,ZZE12#..JPP..TERRA |
1 | ||
| 84652-1A820 |
ZZE12#..JPP..SED |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-02020 |
ZZE120..JPP..RHD |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-W0018 | ||||
| Linked diagrams | ||||
| 4501 | ||||
