ZZE120L-AWMNKW (2001)

Toyota Corolla Sed/Wg (Jpp)

Production Oct 2001 - May 2004
Engine 4ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0110- )JPP

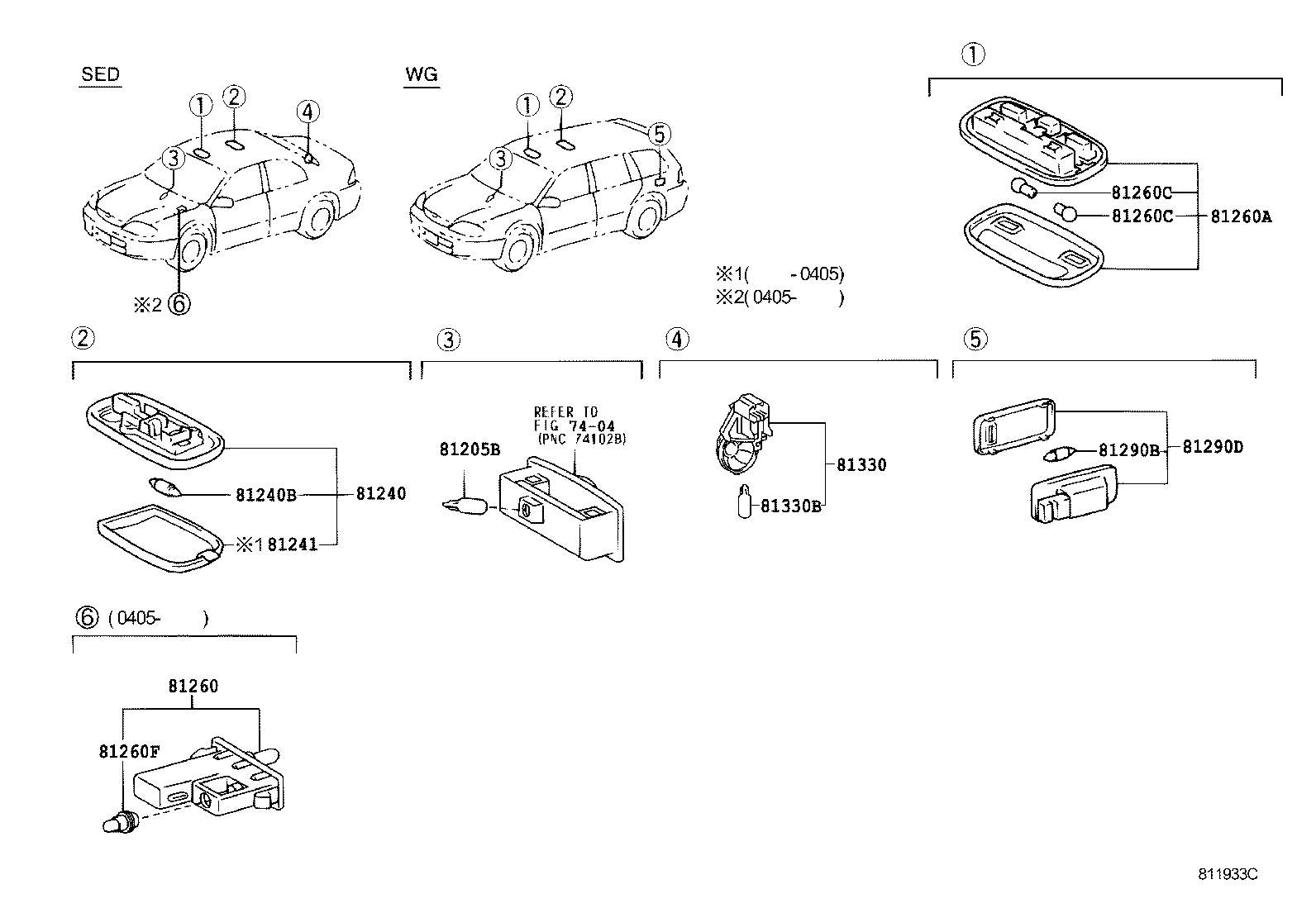

Click highlighted areas on diagram

diagram 7404 81205B 81240 81240B 81241 81260 81260A 81260C 81260C 81260F 81290B 81290D 81330 81330B
Part # Description Qty Price
81205B - BULB, ASH RECEPTACLE LAMP
90981-11018

CDE120,ZZE12#..JPP

12V 1.2W W/O SOCKET

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-12070B0

CDE120,ZZE12#..JPP

LT.GRAY,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

CDE120,ZZE12#..JPP..WG

12V 8W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-12070

CDE120,ZZE12#..JPP

 1
81260A - LAMP ASSY, MAP
81260-12110B0

CDE120,ZZE12#..JPP

LT.GRAY,TRIM1#

 1
81260C - BULB(FOR MAP LAMP)
90981-12005

CDE120,ZZE12#..JPP..WG

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-12005

CDE120,ZZE12#..JPP..WG

12V 8W

 2
81290B - BULB, ROOM LAMP, NO.3
90981-11016

CDE120,ZZE12#..JPP..WG

12V 5W

 1
81290D - LAMP ASSY, REAR ROOM, LH
81250-16040

CDE120,ZZE12#..JPP..WG

 1
Linked diagrams
7404
