ZZE120L-AWMNKW (2001)

Toyota Corolla Sed/Wg (Jpp)

Production Oct 2001 - May 2004
Engine 4ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0110-0405)JPP..WG

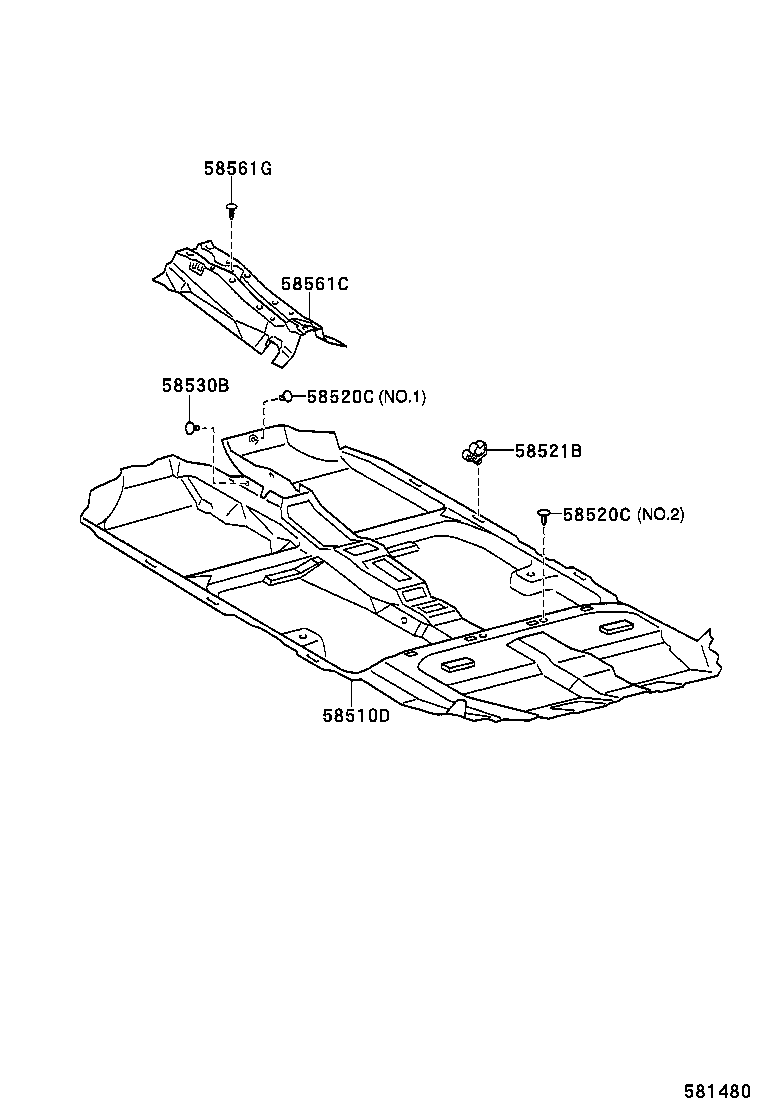

Click highlighted areas on diagram

diagram 58510D 58520C 58520C 58521B 58530B 58561C 58561G
Part # Description Qty Price
58510D - CARPET ASSY, FLOOR, FRONT
58510-1F810B0

CDE120,ZZE12#..JPP..LHD..WG..5F

GRAY,TRIM1#

 1
58510-1F820B0

CDE120,ZZE12#..JPP..LHD..WG..5F

W(NAVIGATION SYSTEM),GRAY,TRIM1#

 1
58510-1F860B0

CDE120,ZZE12#..JPP..LHD..WG..5F

W(NAVIGATION SYSTEM & REAR HEATER DUCT),GRAY,TRIM1#

 1
58510-1F850B0

CDE120,ZZE12#..JPP..LHD..WG..5F

W(REAR HEATER DUCT),GRAY,TRIM1#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-06001B2

CDE120,ZZE12#..JPP

STONE,TRIM1#,NO.1

 1
90467-07049C0

CDE120,ZZE12#..JPP

BLACK,TRIM1#,NO.2

 2
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-06001B2

CDE120,ZZE12#..JPP

STONE,TRIM1#,NO.1

 1
90467-07049C0

CDE120,ZZE12#..JPP

BLACK,TRIM1#,NO.2

 2
58521B - HOOK, FLOOR CARPET
58521-12130

CDE120,ZZE12#..JPP

 6
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-09118

CDE120,ZZE12#..JPP..WG

 2
90467-07080C0

CDE120,ZZE12#..JPP..WG

BLACK,TRIM1#

 2
90467-07207C0

CDE120,ZZE12#..JPP..WG

BLACK,TRIM1#

 2
58561C - SILENCER, FRONT FLOOR, NO.1
58561-12020

CDE120,ZZE12#..JPP..WG

 1
58561G - CLIP(FOR FRONT FLOOR SILENCER)
90467-06020C0

CDE120,ZZE12#..JPP

BLACK,TRIM1#

 2
