ZZE120L-AWMDKW (2001)

Toyota Corolla Sed/Wg (Jpp)

Production Oct 2001 - May 2004

Engine 4ZZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0110-0405)JPP

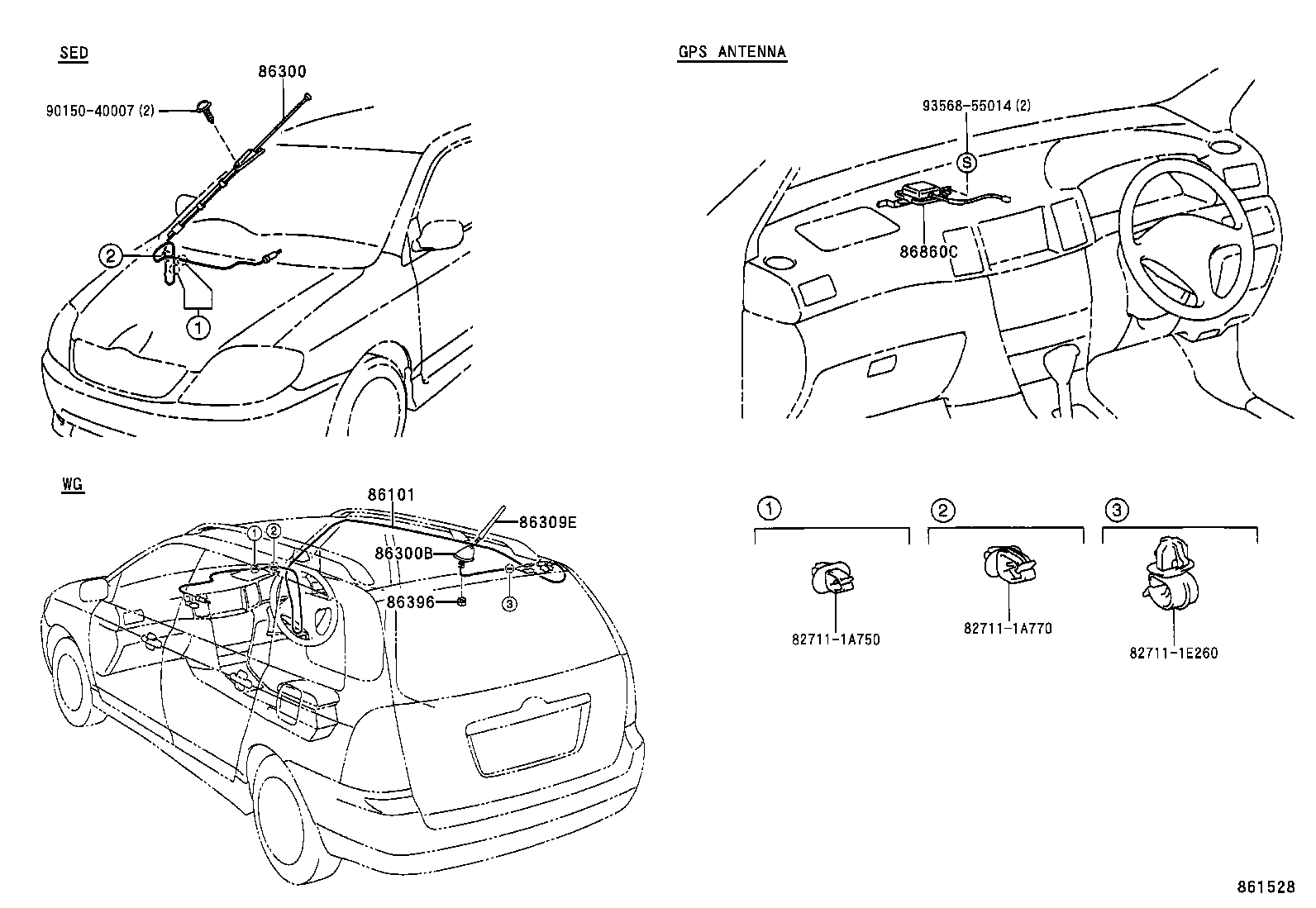

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
86101 - CORD SUB-ASSY, ANTENNA
86101-12330	CDE120,ZZE12#..JPP..WG	10/2001 - 05/2004	1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-12790	CDE120,ZZE12#..JPP..WG	10/2001 - 05/2004	1
86309E - POLE SUB-ASSY, ROOF ANTENNA
86309-13010	CDE120,ZZE12#..JPP..WG	10/2001 - 05/2004	1
86396 - NUT, ANTENNA
86396-12030	CDE120,ZZE12#..JPP..WG	10/2001 - 05/2004	1
86860C - ANTENNA ASSY, NAVIGATION
86860-13030	CDE120,ZZE12#..JPP..WG	10/2001 - 05/2004	1
Common parts
82711-1A750
82711-1A770
82711-1E260
90150-40007
93568-55014
