ZZE120L-AWMDKW (2001)
Toyota Corolla Sed/Wg (Jpp)

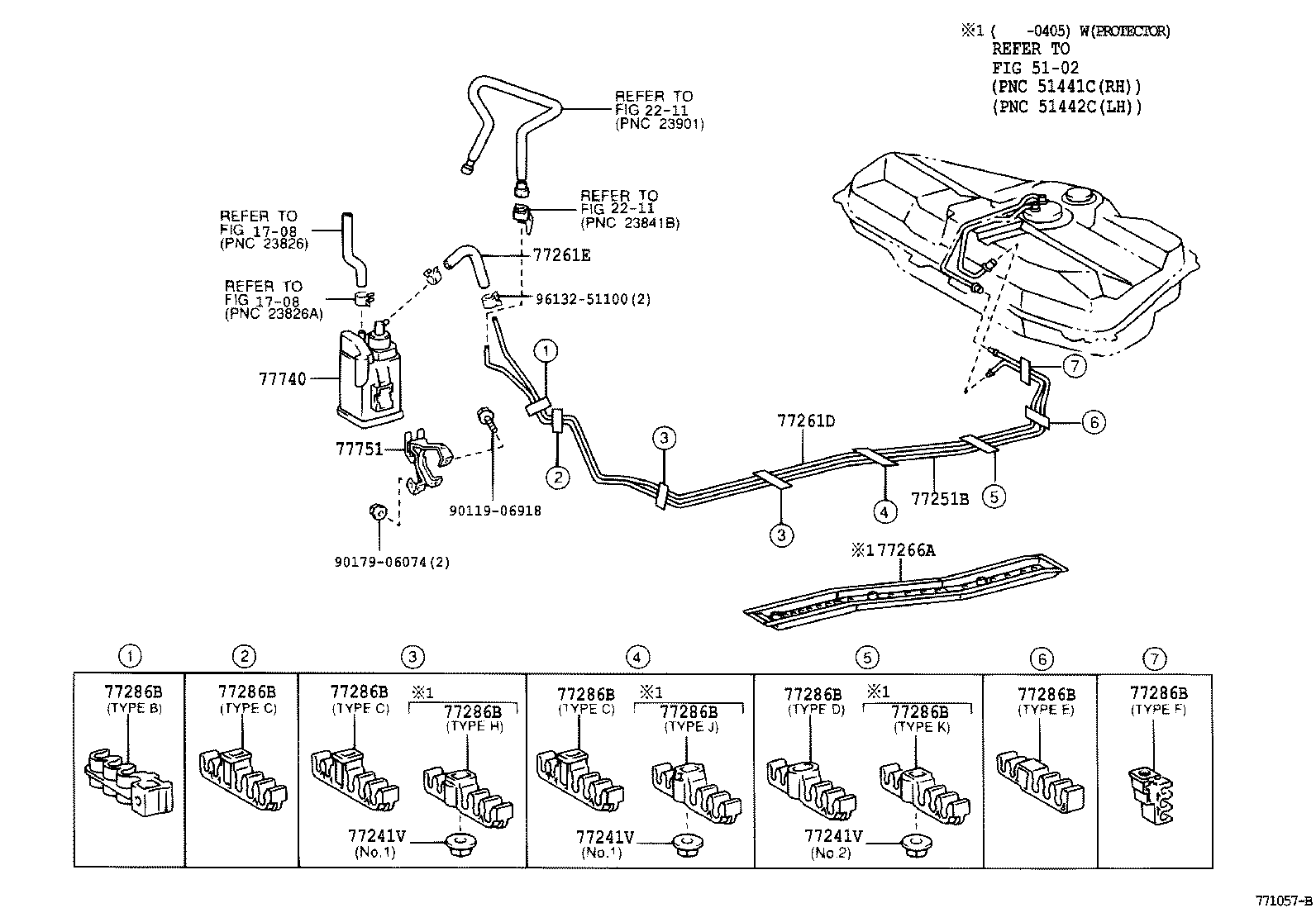

ILLUST NO. 2 OF 2(0110- )ZZE12#..JPP
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-12660 |
ZZE12#..JPP |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-12460 |
ZZE12#..JPP |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95337-06013 |
ZZE12#..JPP L=130 |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-12060 |
ZZE12#..JPP TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 77289-20060 |
CDE120,ZZE12#..JPP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77286-47020 |
ZZE12#..JPP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-12100 |
CDE120,ZZE12#..JPP TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 77298-20080 |
CDE120,ZZE12#..JPP TYPE C:REFER TO ILLUSTRATION |
3 | ||
| 77298-12060 |
CDE120,ZZE12#..JPP TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-12060 |
ZZE12#..JPP TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 77289-20060 |
CDE120,ZZE12#..JPP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77286-47020 |
ZZE12#..JPP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-12100 |
CDE120,ZZE12#..JPP TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 77298-20080 |
CDE120,ZZE12#..JPP TYPE C:REFER TO ILLUSTRATION |
3 | ||
| 77298-12060 |
CDE120,ZZE12#..JPP TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-12060 |
ZZE12#..JPP TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 77289-20060 |
CDE120,ZZE12#..JPP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77286-47020 |
ZZE12#..JPP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-12100 |
CDE120,ZZE12#..JPP TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 77298-20080 |
CDE120,ZZE12#..JPP TYPE C:REFER TO ILLUSTRATION |
3 | ||
| 77298-12060 |
CDE120,ZZE12#..JPP TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-12060 |
ZZE12#..JPP TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 77289-20060 |
CDE120,ZZE12#..JPP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77286-47020 |
ZZE12#..JPP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-12100 |
CDE120,ZZE12#..JPP TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 77298-20080 |
CDE120,ZZE12#..JPP TYPE C:REFER TO ILLUSTRATION |
3 | ||
| 77298-12060 |
CDE120,ZZE12#..JPP TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-12060 |
ZZE12#..JPP TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 77289-20060 |
CDE120,ZZE12#..JPP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77286-47020 |
ZZE12#..JPP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-12100 |
CDE120,ZZE12#..JPP TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 77298-20080 |
CDE120,ZZE12#..JPP TYPE C:REFER TO ILLUSTRATION |
3 | ||
| 77298-12060 |
CDE120,ZZE12#..JPP TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-12060 |
ZZE12#..JPP TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 77289-20060 |
CDE120,ZZE12#..JPP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77286-47020 |
ZZE12#..JPP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-12100 |
CDE120,ZZE12#..JPP TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 77298-20080 |
CDE120,ZZE12#..JPP TYPE C:REFER TO ILLUSTRATION |
3 | ||
| 77298-12060 |
CDE120,ZZE12#..JPP TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-12060 |
ZZE12#..JPP TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 77289-20060 |
CDE120,ZZE12#..JPP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77286-47020 |
ZZE12#..JPP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-12100 |
CDE120,ZZE12#..JPP TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 77298-20080 |
CDE120,ZZE12#..JPP TYPE C:REFER TO ILLUSTRATION |
3 | ||
| 77298-12060 |
CDE120,ZZE12#..JPP TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-12060 |
ZZE12#..JPP TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 77289-20060 |
CDE120,ZZE12#..JPP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77286-47020 |
ZZE12#..JPP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-12100 |
CDE120,ZZE12#..JPP TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 77298-20080 |
CDE120,ZZE12#..JPP TYPE C:REFER TO ILLUSTRATION |
3 | ||
| 77298-12060 |
CDE120,ZZE12#..JPP TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-12060 |
ZZE12#..JPP TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 77289-20060 |
CDE120,ZZE12#..JPP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77286-47020 |
ZZE12#..JPP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-12100 |
CDE120,ZZE12#..JPP TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 77298-20080 |
CDE120,ZZE12#..JPP TYPE C:REFER TO ILLUSTRATION |
3 | ||
| 77298-12060 |
CDE120,ZZE12#..JPP TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-12060 |
ZZE12#..JPP TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 77289-20060 |
CDE120,ZZE12#..JPP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 77286-47020 |
ZZE12#..JPP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 77298-12100 |
CDE120,ZZE12#..JPP TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 77298-20080 |
CDE120,ZZE12#..JPP TYPE C:REFER TO ILLUSTRATION |
3 | ||
| 77298-12060 |
CDE120,ZZE12#..JPP TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-12690 |
ZZE12#..JPP |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77750-12170 |
ZZE12#..JPP..5F |
1 | ||
| Common parts | ||||
| 90119-06918 | ||||
| 90179-06074 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
| 5102 | ||||

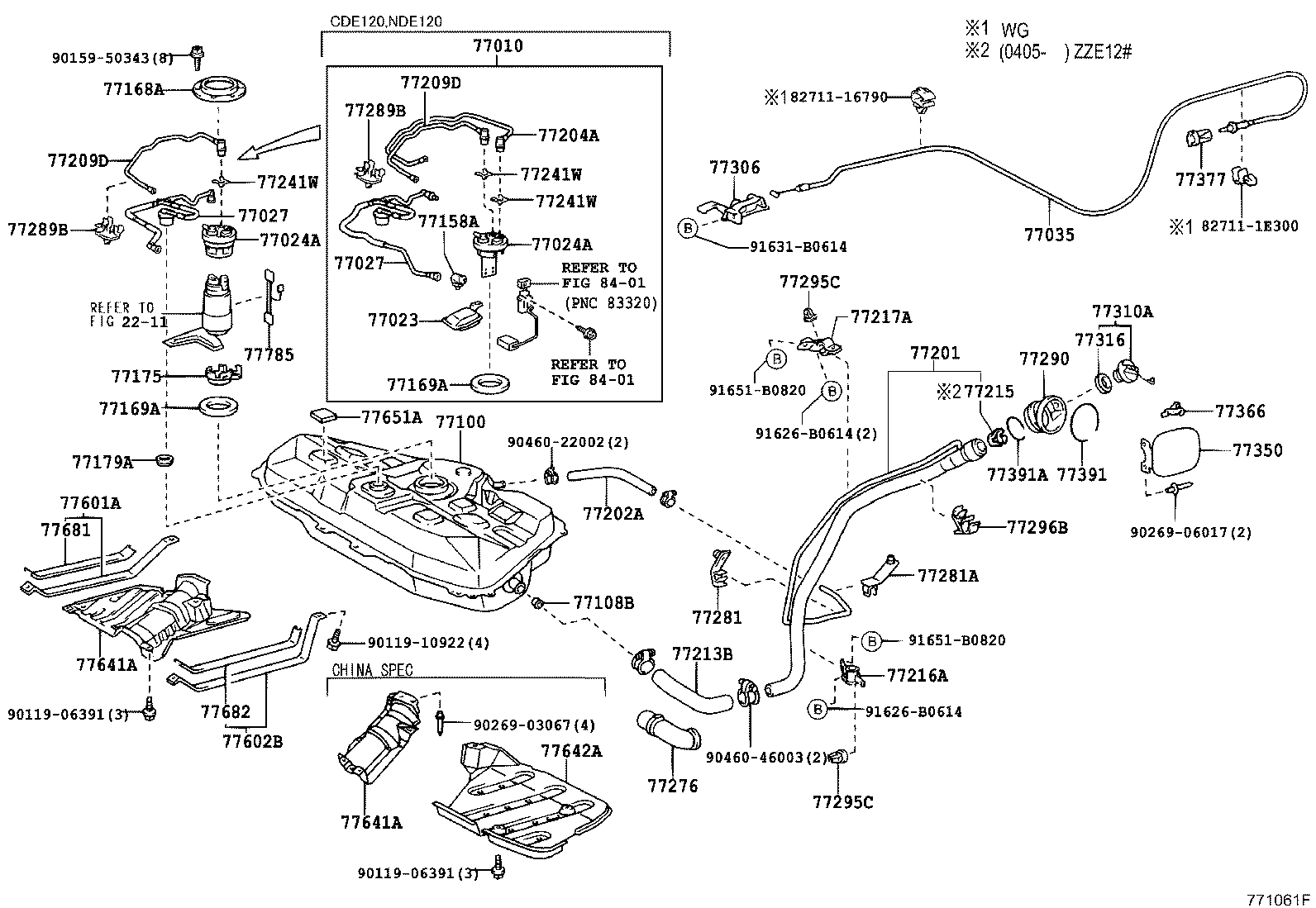

ILLUST NO. 1 OF 2(0110- )JPP
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-12010 |
ZZE12#..JPP |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-12010 |
ZZE12#..JPP |
1 | ||
| 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 | ||||
| 77027-12040 |
ZZE12#..JPP |
1 | ||
| 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 | ||||
| 77027-12040 |
ZZE12#..JPP |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-13100 |
CDE120,ZZE12#..JPP..LHD..WG |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-12860 |
ZZE12#..JPP |
1 | ||
| 77001-1A010 |
ZZE12#..JPP |
1 | ||
| 77108B - VALVE SUB-ASSY, FUEL TANK FILLER CHECK | ||||
| 77108-12040 |
CDE120,ZZE12#..JPP |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52010 |
CDE120,ZZE12#..JPP |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
CDE120,ZZE12#..JPP |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
CDE120,ZZE12#..JPP |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-47010 |
ZZE12#..JPP |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-33010 |
CDE120,ZZE12#..JPP |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-12591 |
ZZE12#..JPP |
1 | ||
| 77201-12590 |
ZZE12#..JPP |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 95313-13034 |
CDE120,ZZE12#..JPP L=340 |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-12160 |
CDE120,ZZE12#..JPP |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-12160 |
CDE120,ZZE12#..JPP |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-32090 |
ZZE12#..JPP |
1 | ||
| 77215 - PLATE, FUEL TANK FILLER PIPE FLANGE | ||||
| 77215-51010 |
ZZE12#..JPP |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-32060 |
CDE120,ZZE12#..JPP |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-32050 |
CDE120,ZZE12#..JPP |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ZZE12#..JPP |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ZZE12#..JPP |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ZZE12#..JPP |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-12050 |
CDE120,ZZE12#..JPP |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-32040 |
CDE120,ZZE12#..JPP |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-12070 |
CDE120,ZZE12#..JPP |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-12030 |
CDE120,ZZE12#..JPP |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-12030 |
CDE120,ZZE12#..JPP |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-12150 |
CDE120,ZZE12#..JPP |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-12070 |
CDE120,ZZE12#..JPP |
2 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-12070 |
CDE120,ZZE12#..JPP |
2 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-12030 |
CDE120,ZZE12#..JPP |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-13030 |
CDE120,ZZE12#..JPP..LHD..WG |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-28010 |
ZZE12#..JPP |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
CDE120,ZZE12#..JPP |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-13070 |
CDE120,ZZE12#..JPP..WG |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30080 |
CDE120,ZZE12#..JPP |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
CDE120,ZZE12#..JPP |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12040 |
CDE120,ZZE12#..JPP |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
CDE120,ZZE12#..JPP |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-12250 |
CDE120,ZZE12#..JPP |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-12180 |
CDE120,ZZE12#..JPP |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-12170 |
CDE120,ZZE12#..JPP |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-12170 |
CDE120,ZZE12#..JPP |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
CDE120,ZZE12#..JPP |
7 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-34030 |
CDE120,ZZE12#..JPP |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-32060 |
CDE120,ZZE12#..JPP |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-52020 |
ZZE12#..JPP |
1 | ||
| Common parts | ||||
| 82711-16790 | ||||
| 82711-1E300 | ||||
| 90119-06391 | ||||
| 90119-10922 | ||||
| 90159-50343 | ||||
| 90269-03067 | ||||
| 90269-06017 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 91626-B0614 | ||||
| 91631-B0614 | ||||
| 91651-B0820 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 8401 | ||||
