ZZE120L-AEMNKW (2001)

Toyota Corolla Sed/Wg (Jpp)

Production Oct 2001 - Oct 2006
Engine 4ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

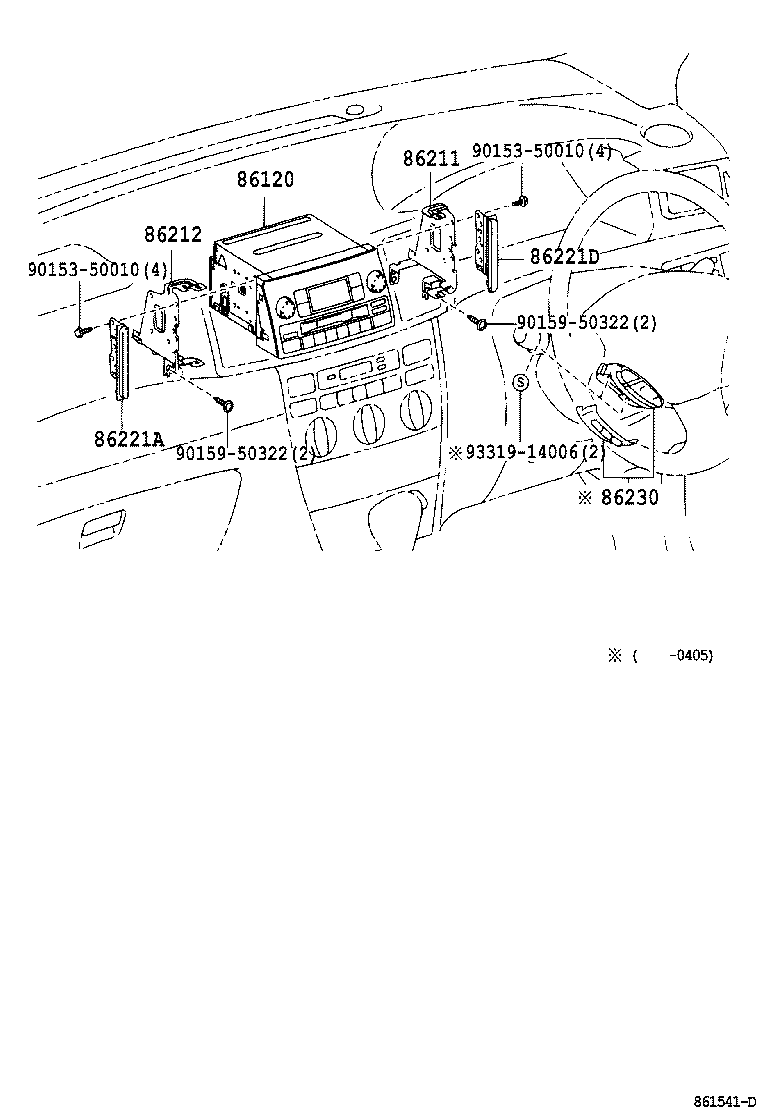

ILLUST NO. 1 OF 3(0110- )JPP

Click highlighted areas on diagram

diagram 86120 86211 86212 86221A 86221D 86230 9015350010 9015350010 9015950322 9015950322 9331914006
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-1A170

CDE120,ZZE12#..JPP

MATSUSHITA,ID=58302,TYPE A:REFER TO ILLUSTRATION

 1
86120-1A180

CDE120,ZZE12#..JPP

MATSUSHITA,ID=58807,TYPE B:REFER TO ILLUSTRATION

 1
86120-12880

ZZE12#..JPP

MATSUSHITA,ID=58816,TYPE D:REFER TO ILLUSTRATION

 1
86120-1A190

ZZE12#..JPP..SOL

MATSUSHITA,ID=58817,TYPE E:REFER TO ILLUSTRATION

 1
86211 - BRACKET, RADIO, NO.1
86211-12370

CDE120,ZZE12#..JPP

 1
86211-12370

NDE120,ZZE12#..JPP

 1
86212 - BRACKET, RADIO, NO.2
86212-12350

CDE120,ZZE12#..JPP

 1
86212-12350

NDE120,ZZE12#..JPP

 1
86230 - CONTROLLER ASSY, STEREO COMPONENT
86230-13010

CDE120,ZZE12#..JPP

 1
Common parts
90153-50010
90159-50322
93319-14006

ILLUST NO. 3 OF 3(0110- )JPP

Click highlighted areas on diagram

CONDENSER & NOISE FILTER

diagram 86011A 86011N 86011Q 9011906390 9011906915 9167180612
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04165

ZZE12#..JPP

 1
90980-04165

ZZE12#..JPP

 1
86011Q - CONDENSER, RADIO SETTING
90980-04164

NDE120,ZZE12#..JPP

 1
Common parts
90119-06390
90119-06915
91671-80612

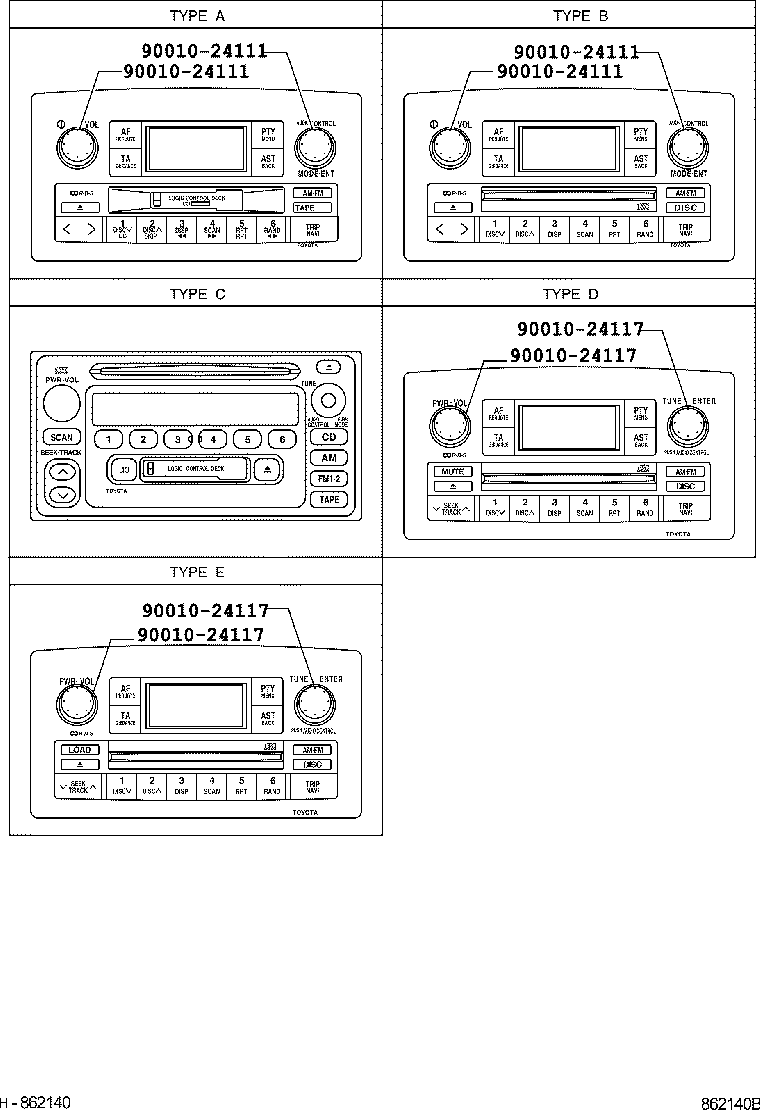

ILLUST NO. 2 OF 3(0110- )JPP

Click highlighted areas on diagram

diagram 9001024111 9001024111 9001024111 9001024111 9001024117 9001024117 9001024117 9001024117
Part # Description Qty Price
Common parts
90010-24111
90010-24117
