ZZE120L-AEMNKW (2001)

Toyota Corolla Sed/Wg (Jpp)

Production Oct 2001 - Oct 2006
Engine 4ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0110- )JPP..SED

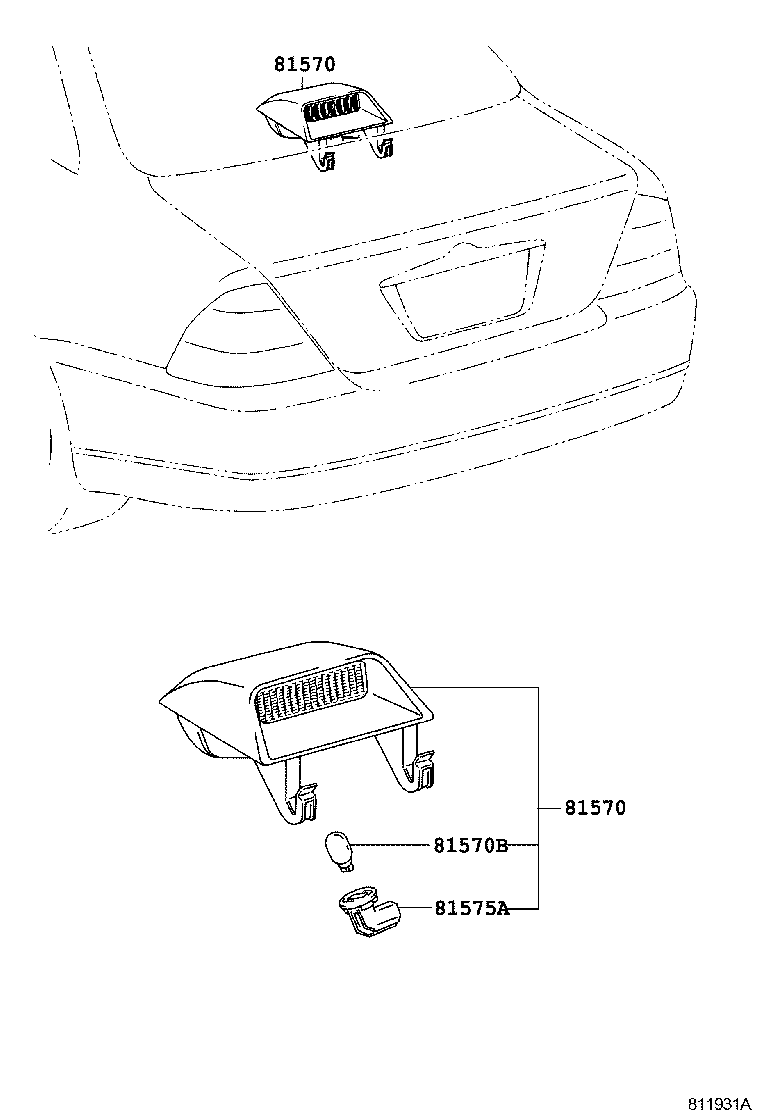

Click highlighted areas on diagram

diagram 81570 81570 81570B 81575A
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-12350B0

ZZE12#..JPP..SED

DK.GRAY,TRIM1#

 1
81570-12350B0

NDE120,ZZE12#..JPP

DK.GRAY,TRIM1#

 1
81570 - LAMP ASSY, CENTER STOP
81570-12350B0

ZZE12#..JPP..SED

DK.GRAY,TRIM1#

 1
81570-12350B0

NDE120,ZZE12#..JPP

DK.GRAY,TRIM1#

 1
81570B - BULB (FOR CENTER STOP LAMP)
90981-11059

CDE120,ZZE12#..JPP

12V 16W

 1
90981-11059

NDE120,ZZE12#..JPP

12V 16W

 1
81575A - SOCKET, CENTER STOP LAMP
90075-99005

ZZE12#..JPP..SED

 1
90075-99005

NDE120,ZZE12#..JPP

 1
