ZZE120L-AEMNKW (2001)

Toyota Corolla Sed/Wg (Jpp)

Production Oct 2001 - Oct 2006
Engine 4ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0110-0405)JPP

Click highlighted areas on diagram

diagram 81127C 81210B 81211C 81221C 81481
Part # Description Qty Price
81127C - BEARING FOG LAMP
90075-10811

CDE120,ZZE12#..JPP

 2
81210B - BULB, FOG LAMP
90981-13081

NDE120,ZZE12#..JPP

12V 55W,HALOGEN,OSRAM

 2
90981-WD012

NDE120,ZZE12#..JPP

12V 55W,PHILIPS

 2
90981-WD011

NDE120,ZZE12#..JPP

12V 55W,OSRAM

 2
90981-13075

NDE120,ZZE12#..JPP

12V 55W,HALOGEN,PHILIPS

 2
90981-13047

CDE120,ZZE12#..JPP

12V 51W,HALOGEN

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-12150

CDE120,ZZE12#..JPP

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-12160

CDE120,ZZE12#..JPP

 1
81481 - BRACKET, FOG LAMP
81481-10030

CDE120,ZZE12#..JPP

 2

(0405- )JPP

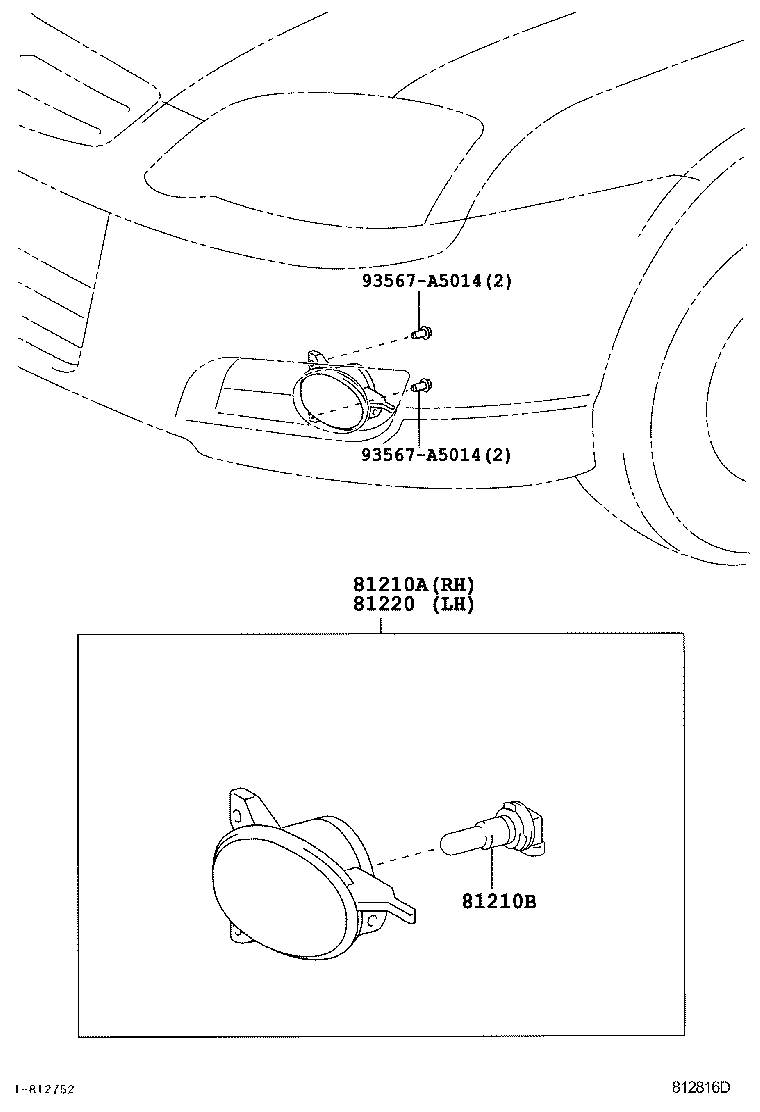

Click highlighted areas on diagram

diagram 81210A 81210B 81220 93567A5014 93567A5014
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-02090

NDE120,ZZE12#..JPP

 1
81210B - BULB, FOG LAMP
90981-13081

NDE120,ZZE12#..JPP

12V 55W,HALOGEN,OSRAM

 2
90981-WD012

NDE120,ZZE12#..JPP

12V 55W,PHILIPS

 2
90981-WD011

NDE120,ZZE12#..JPP

12V 55W,OSRAM

 2
90981-13075

NDE120,ZZE12#..JPP

12V 55W,HALOGEN,PHILIPS

 2
90981-13047

CDE120,ZZE12#..JPP

12V 51W,HALOGEN

 2
81220 - LAMP ASSY, FOG, LH
81220-02090

NDE120,ZZE12#..JPP

 1
Common parts
93567-A5014
