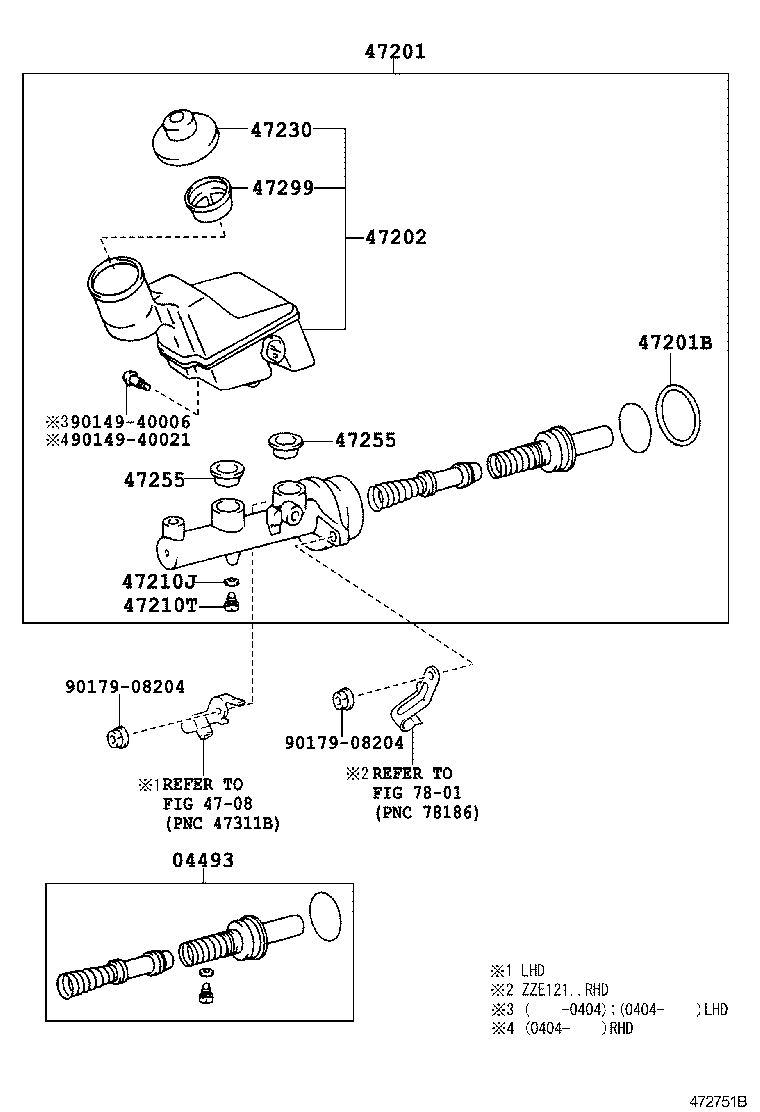

Toyota Corolla sed/wg (jpp) ZZE120 BRAKE MASTER CYLINDER

Part #	Description	Period	Qty
04493 - CYLINDER KIT, BRAKE MASTER
04493-1A010	CDE120,ZZE12#..JPP	10/2001 - 05/2004	1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-09070	NDE120,ZZE12#..JPP..LHD W(VSC)	05/2004 - 10/2006	1
47201-09060	NDE120,ZZE12#..JPP..LHD	05/2004 - 10/2006	1
47201-1A370	CDE120,ZZE12#..JPP..LHD..5F	10/2001 - 05/2004	1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90029-20059	CDE120,ZZE12#..JPP	10/2001 - 05/2004	1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-12150	CDE120,ZZE12#..JPP..LHD..5F	10/2001 - 05/2004	1
47220-09020	NDE120,ZZE12#..JPP..LHD	05/2004 - 12/2999	1
47210J - GASKET(FOR MASTER CYLINDER)
90029-43001	CDE120,ZZE12#..JPP	12/2001 - 05/2004	1
90430-06104	CDE120,ZZE12#..JPP	10/2001 - 12/2001	1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077	CDE120,ZZE12#..JPP	10/2001 - 05/2004	1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-02100	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
47230-12040	CDE120,ZZE12#..JPP	10/2001 - 05/2004	1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010	CDE120,ZZE12#..JPP	10/2001 - 05/2004	2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010	CDE120,ZZE12#..JPP	10/2001 - 05/2004	2
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-25010	CDE120,ZZE12#..JPP	10/2001 - 05/2004	1
Common parts
90149-40006
90149-40021
90179-08204
Linked diagrams
4708
7801

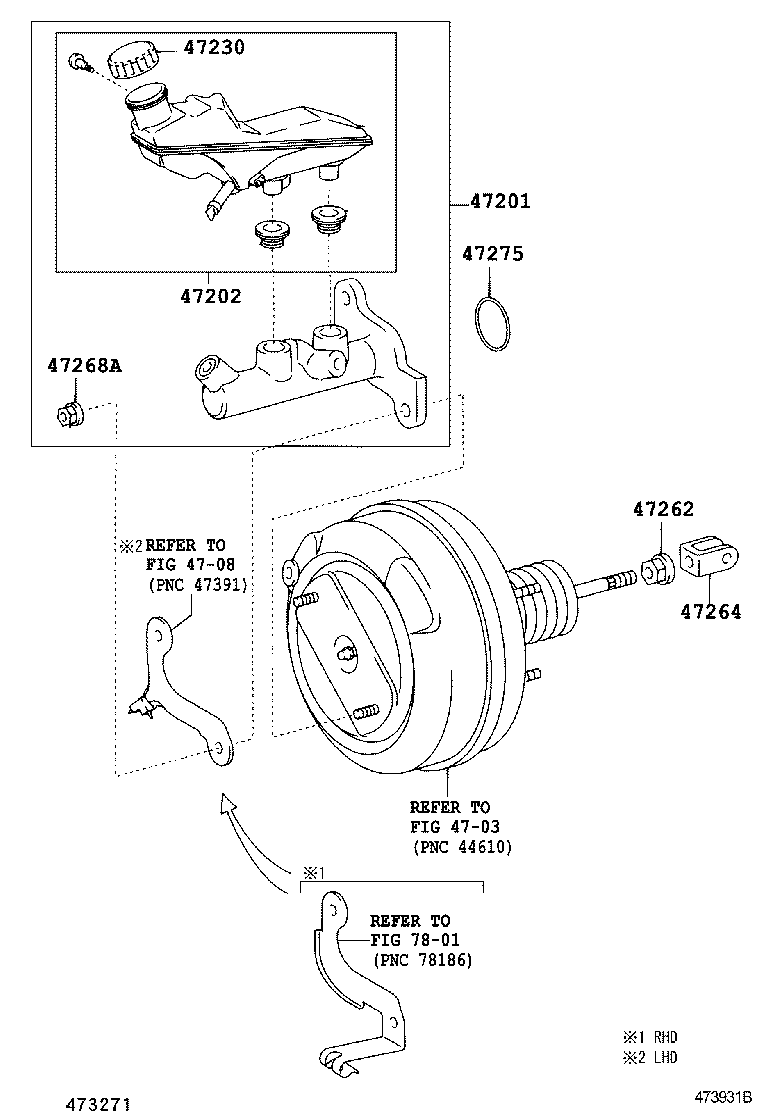

Part #	Description	Period	Qty
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-09070	NDE120,ZZE12#..JPP..LHD W(VSC)	05/2004 - 10/2006	1
47201-09060	NDE120,ZZE12#..JPP..LHD	05/2004 - 10/2006	1
47201-1A370	CDE120,ZZE12#..JPP..LHD..5F	10/2001 - 05/2004	1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-12150	CDE120,ZZE12#..JPP..LHD..5F	10/2001 - 05/2004	1
47220-09020	NDE120,ZZE12#..JPP..LHD	05/2004 - 12/2999	1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-02100	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
47230-12040	CDE120,ZZE12#..JPP	10/2001 - 05/2004	1
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-02020	NDE120,ZZE12#..JPP..LHD	05/2004 - 12/2999	1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-02010	NDE120,ZZE12#..JPP	05/2004 - 12/2999	1
Linked diagrams
4703
4708
7801

ZZE120L-AEMDKW (2001)
