CDE120R-AWMDYW (2001)
Toyota Corolla Sed/Wg (Jpp)
Production
Oct 2001
-
May 2004
Engine
1CDFTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0110- )JPP

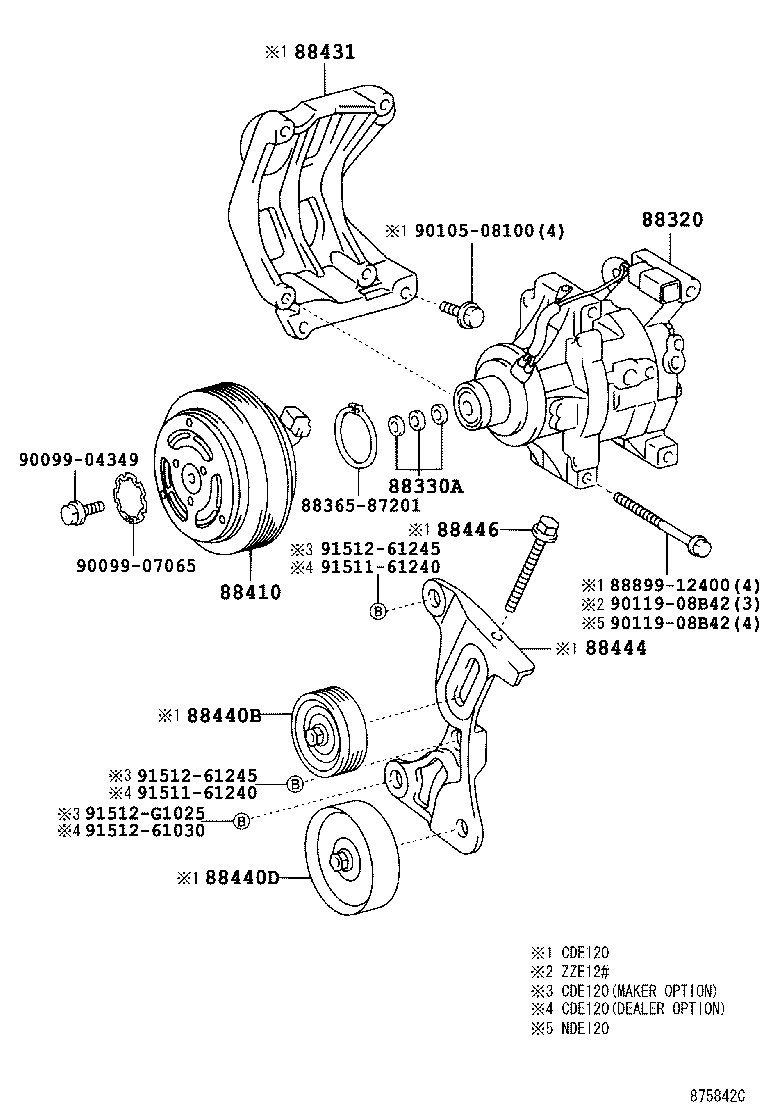

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-1A481 |
CDE120..JPP |
1 | ||
| 88320-1A550 |
CDE120..JPP |
1 | ||
| 88320-1A481 |
CDE120,ZZE12#..JPP |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
CDE120,ZZE12#..JPP..WG |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-13030 |
CDE120..JPP |
1 | ||
| 88410-13010 |
CDE120..JPP |
1 | ||
| 88410-13020 |
CDE120..JPP |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-13010 |
CDE120..JPP |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-12260 |
CDE120..JPP MAKER OPTION |
1 | ||
| 88440-12230 |
CDE120..JPP |
1 | ||
| 88440D - PULLEY ASSY, IDLE NO.2 | ||||
| 88440-12250 |
CDE120..JPP |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-12060 |
CDE120..JPP |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-12030 |
CDE120..JPP |
1 | ||
| Common parts | ||||
| 88365-87201 | ||||
| 88899-12400 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90105-08100 | ||||
| 90119-08B42 | ||||
| 91511-61240 | ||||
| 91512-61030 | ||||
| 91512-61245 | ||||
| 91512-G1025 | ||||
