Toyota Corolla sed/wg (jpp) CDE120 WIRING & CLAMP

CDE120R-AWMDYW (2001)

Toyota Corolla Sed/Wg (Jpp)

Production Oct 2001 - May 2004

Engine 1CDFTV

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

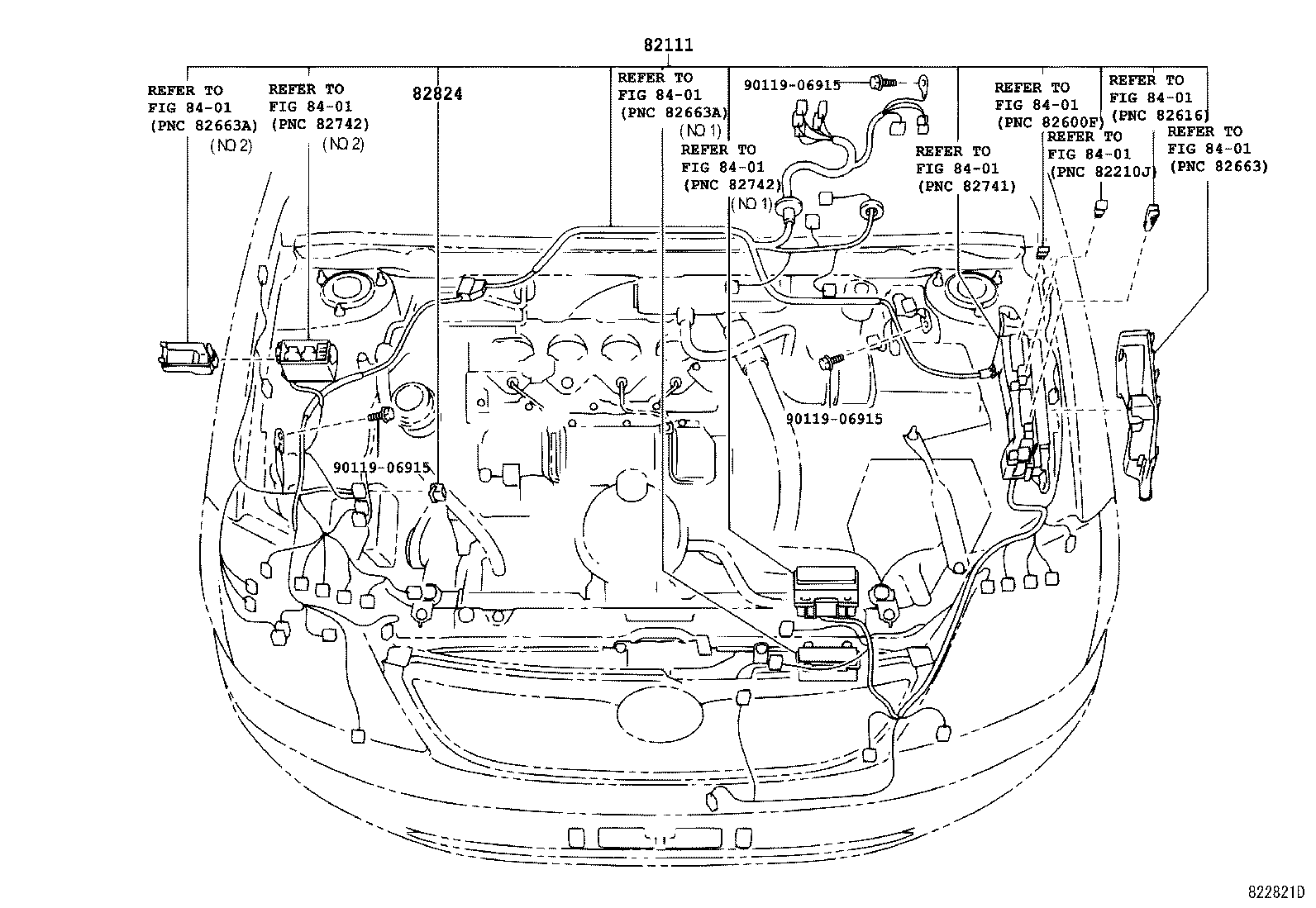

ILLUST NO. 1 OF 6(0110-0405)CDE120..JPP

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-13860	CDE120..JPP..RHD	10/2001 - 05/2004	1
82824 - CONNECTOR, WIRING HARNESS
82824-12300	CDE120,ZZE12#..JPP	10/2001 - 05/2004	1
Common parts
90119-06915
Linked diagrams
8401

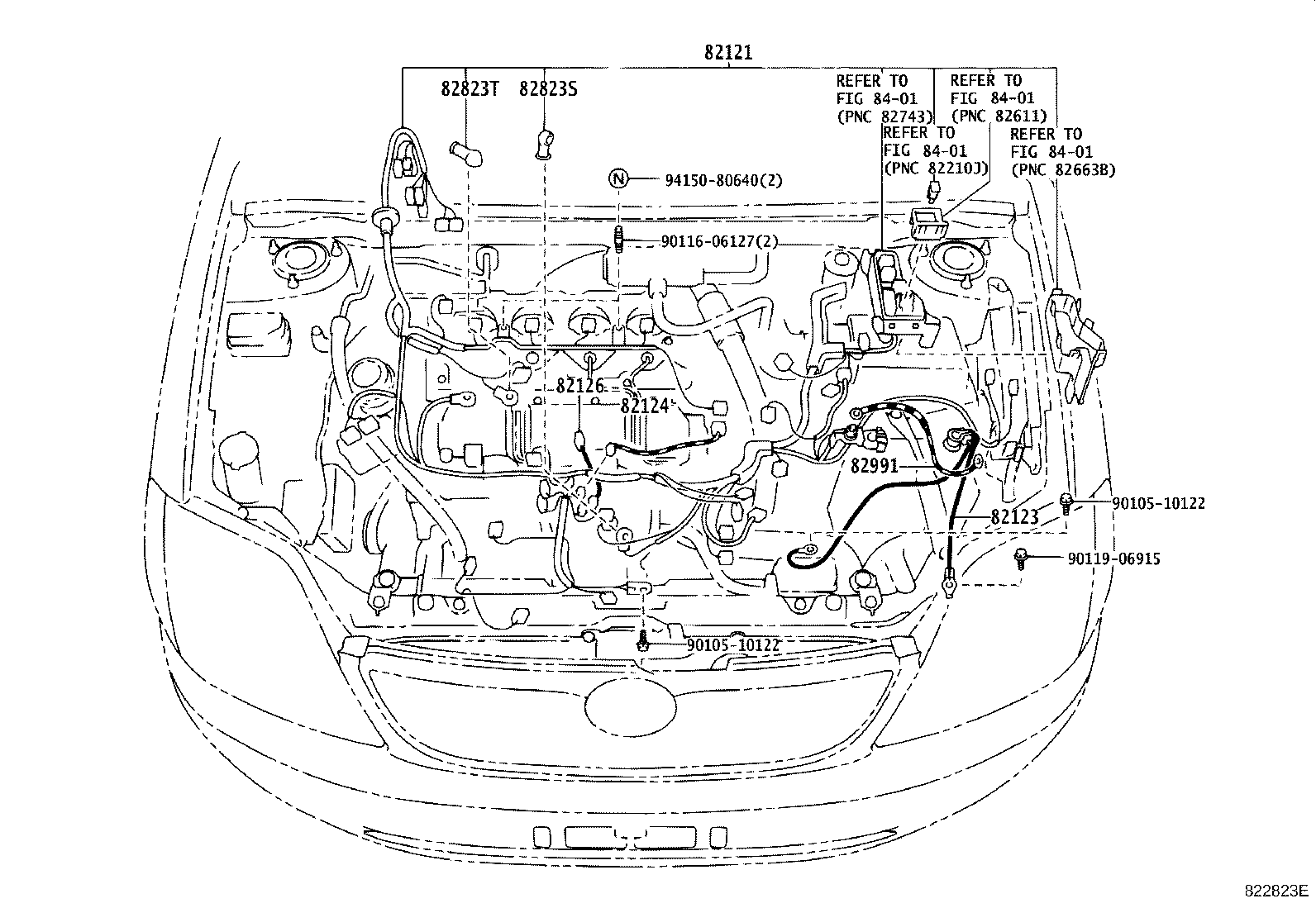

ILLUST NO. 2 OF 6(0110-0405)CDE120..JPP

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-1F132	CDE120..JPP..RHD	06/2002 - 05/2004	1
82121-1F131	CDE120..JPP..RHD	10/2001 - 06/2002	1
82123 - WIRE, ENGINE, NO.3
82123-13071	CDE120..JPP	10/2001 - 05/2004	1
82124 - WIRE, ENGINE, NO.4
82124-13010	CDE120..JPP	10/2001 - 05/2004	1
82126 - WIRE, ENGINE
82126-20010	CDE120..JPP	10/2001 - 05/2004	1
82823S - CAP, STARTER TERMINAL
82823-12090	CDE120,ZZE12#..JPP	10/2001 - 05/2004	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22060	CDE120..JPP	10/2001 - 05/2004	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12100	CDE120..JPP	10/2001 - 05/2004	1
Common parts
90105-10122
90116-06127
90119-06915
94150-80640
Linked diagrams
8401

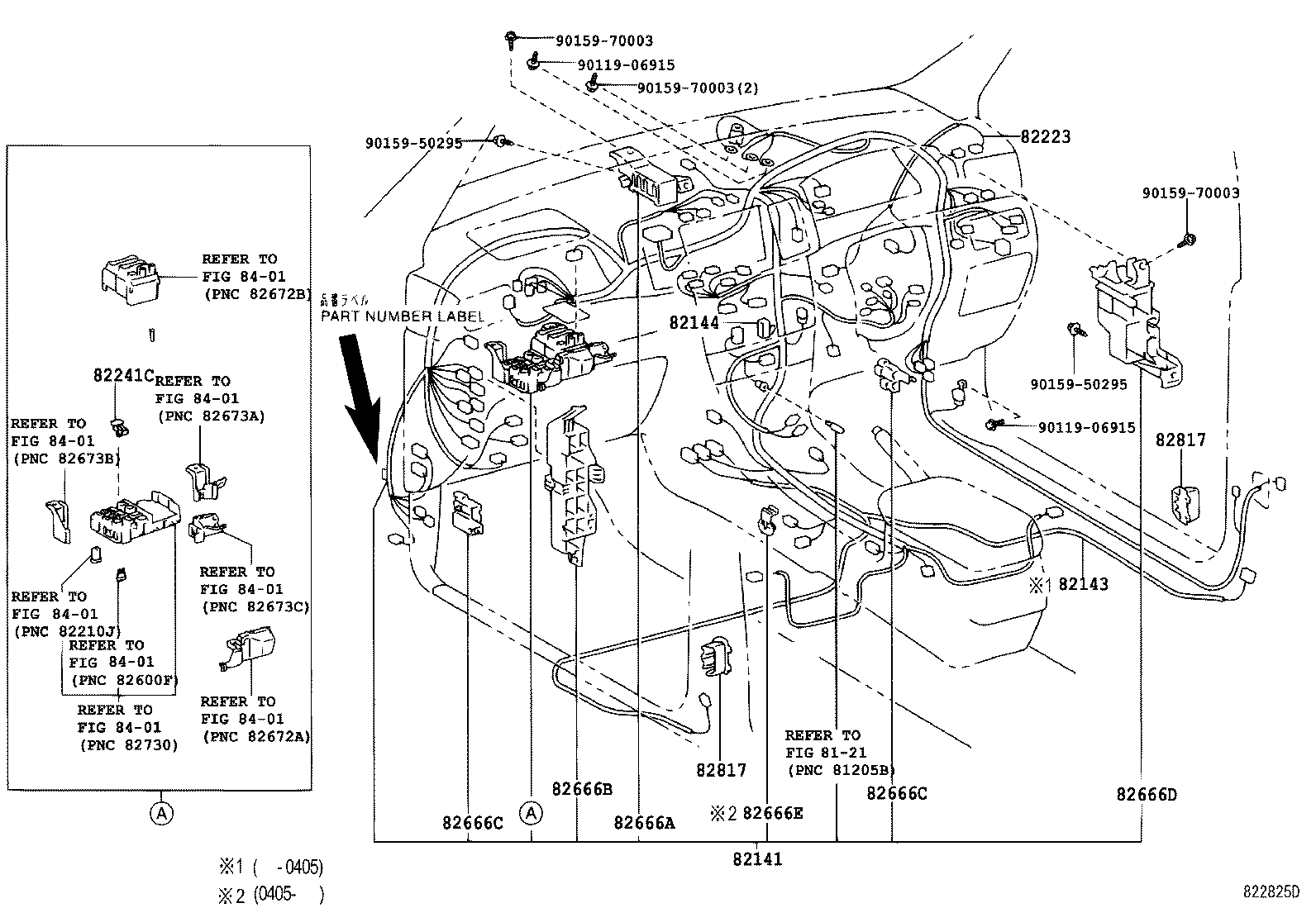

ILLUST NO. 3 OF 6(0110- )JPP..RHD

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82145-1F310	CDE120..JPP..RHD PART NUMBER LABEL=82145-1F301	10/2001 - 05/2002	1
82145-1F300	CDE120..JPP..RHD PART NUMBER LABEL=82145-1F300	10/2001 - 05/2002	1
82145-1F301	CDE120..JPP..RHD PART NUMBER LABEL=82145-1F301	05/2002 - 05/2004	1
82145-1F311	CDE120..JPP..RHD PART NUMBER LABEL=82145-1F311	05/2002 - 05/2004	1
82143 - WIRE, INSTRUMENT PANEL, NO.3
82143-13270	CDE120,ZZE121..JPP..RHD	10/2001 - 09/2002	1
82143-13280	CDE120,ZZE121..JPP..RHD W(*80,SIDE)	10/2001 - 09/2002	1
82143-12171	CDE120,ZZE121..JPP..RHD W(*80,SIDE)	08/2003 - 05/2004	1
82143-12171	CDE120,ZZE121..JPP..RHD W(*80,SIDE)	09/2002 - 08/2003	1
82143-12111	CDE120,ZZE121..JPP..RHD	09/2002 - 05/2004	1
82144 - WIRE, INSTRUMENT PANEL, NO.4
82144-12060	CDE120,ZZE12#..JPP	10/2001 - 05/2004	1
82223 - WIRE, SWITCH
82223-12630	CDE120..JPP..RHD	10/2001 - 05/2004	1
82241C - WIRE, RELAY
82241-02010	CDE120,ZZE121..JPP..RHD	10/2001 - 05/2004	1
82666A - HOLDER, CONNECTOR NO.2
82666-12240	CDE120,ZZE121..JPP..RHD	10/2001 - 05/2004	1
82666B - HOLDER, CONNECTOR NO.3
82666-12250	CDE120,ZZE121..JPP..RHD	10/2001 - 05/2004	1
82666C - HOLDER, CONNECTOR NO.4
82666-12260	CDE120,ZZE121..JPP..RHD	10/2001 - 05/2004	1
82666C - HOLDER, CONNECTOR NO.4
82666-12260	CDE120,ZZE121..JPP..RHD	10/2001 - 05/2004	1
82666D - HOLDER, CONNECTOR NO.5
82666-12290	CDE120,ZZE121..JPP..RHD	10/2001 - 05/2004	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-1A761	CDE120,ZZE12#..JPP RH	10/2001 - 05/2004	1
82817-1A830	CDE120,ZZE12#..JPP LH	10/2001 - 05/2004	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-1A761	CDE120,ZZE12#..JPP RH	10/2001 - 05/2004	1
82817-1A830	CDE120,ZZE12#..JPP LH	10/2001 - 05/2004	1
Common parts
90119-06915
90159-50295
90159-70003
Linked diagrams
8121
8401

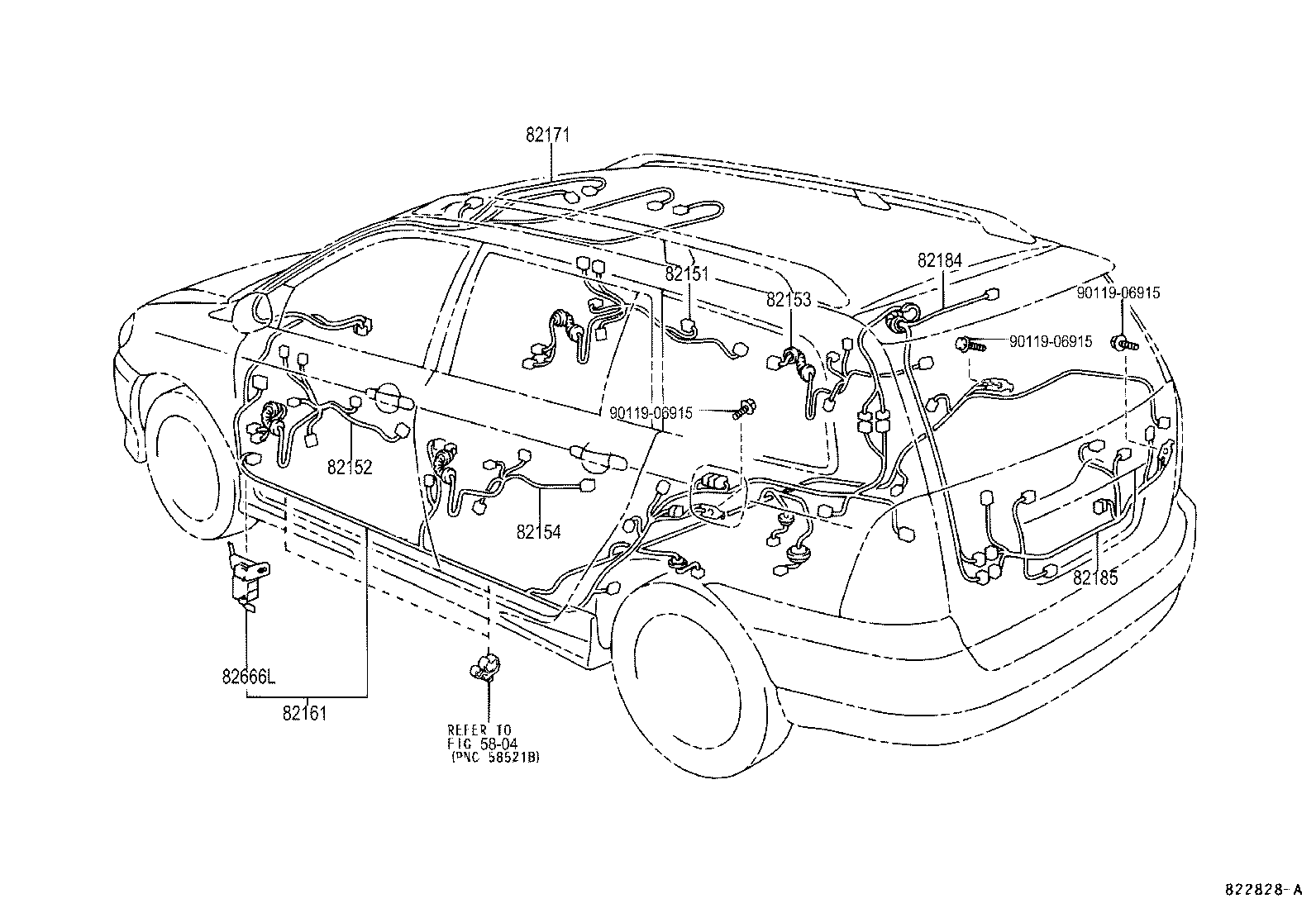

ILLUST NO. 4 OF 6(0110-0405)JPP..WG

Click highlighted areas on diagram

DOOR,FLOOR & ROOF

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-13310	CDE120,ZZE121..JPP..RHD W(POWER DOOR LOCK)	10/2001 - 05/2004	1
82151-13330	CDE120,ZZE121..JPP..RHD W(POWER DOOR LOCK & POWER WINDOW)	10/2001 - 09/2002	1
82151-13320	CDE120,ZZE121..JPP..RHD W(POWER DOOR LOCK = DOUBLE LOCK)	10/2001 - 05/2004	1
82151-13340	CDE120,ZZE121..JPP..RHD W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW)	10/2001 - 09/2002	1
82151-13341	CDE120,ZZE121..JPP..RHD W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW)	09/2002 - 05/2004	1
82151-1E180	CDE120,ZZE12#..JPP..WG..TERRA	10/2001 - 05/2004	1
82151-13331	CDE120,ZZE121..JPP..RHD W(POWER DOOR LOCK & POWER WINDOW)	09/2002 - 05/2004	1
82151-13300	CDE120,ZZE121..JPP..RHD W(ELECTRIC REMOTE CONTROL MIRROR)	10/2001 - 05/2004	1
82152 - WIRE, FRONT DOOR, LH
82152-13280	CDE120,ZZE121..JPP..RHD W(POWER DOOR LOCK & POWER WINDOW)	10/2001 - 09/2002	1
82152-13290	CDE120,ZZE121..JPP..RHD W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW)	10/2001 - 09/2002	1
82151-1E180	CDE120,ZZE12#..JPP..WG..TERRA	10/2001 - 05/2004	1
82152-13260	CDE120,ZZE121..JPP..RHD W(POWER DOOR LOCK)	10/2001 - 05/2004	1
82152-13281	CDE120,ZZE121..JPP..RHD W(POWER DOOR LOCK & POWER WINDOW)	09/2002 - 05/2004	1
82152-13291	CDE120,ZZE121..JPP..RHD W(POWER DOOR LOCK = DOUBLE LOCK & POWER WINDOW)	09/2002 - 05/2004	1
82152-13270	CDE120,ZZE121..JPP..RHD W(POWER DOOR LOCK = DOUBLE LOCK)	10/2001 - 05/2004	1
82152-13250	CDE120,ZZE121..JPP..RHD W(ELECTRIC REMOTE CONTROL MIRROR)	10/2001 - 05/2004	1
82153 - WIRE, REAR DOOR, NO.1
82153-13100	CDE120,ZZE121..JPP..RHD W(POWER DOOR LOCK = DOUBLE LOCK)	10/2001 - 05/2004	1
82153-12370	CDE120,ZZE12#..JPP..TERRA	10/2001 - 05/2004	1
82153-12380	CDE120,ZZE12#..JPP..TERRA W(POWER DOOR LOCK)	10/2001 - 05/2004	1
82154 - WIRE, REAR DOOR, NO.2
82153-12380	CDE120,ZZE12#..JPP..TERRA W(POWER DOOR LOCK)	10/2001 - 05/2004	1
82153-13100	CDE120,ZZE121..JPP..RHD W(POWER DOOR LOCK = DOUBLE LOCK)	10/2001 - 05/2004	1
82153-12370	CDE120,ZZE12#..JPP..TERRA	10/2001 - 05/2004	1
82161 - WIRE, FLOOR
82199-13150	CDE120,ZZE121..JPP..RHD	10/2001 - 05/2004	1
82199-13160	CDE120,ZZE121..JPP..RHD W(POWER DOOR LOCK = DOUBLE LOCK)	10/2001 - 05/2004	1
82171 - WIRE, ROOF, NO.1
82171-12860	CDE120,ZZE121..JPP..RHD	10/2001 - 05/2004	1
82171-12890	CDE120,ZZE121..JPP..RHD W(KEY LESS ENTRY)	10/2001 - 05/2004	1
82184 - WIRE, BACK DOOR, NO.1
82184-13450	CDE120,ZZE121..JPP..RHD	10/2001 - 05/2004	1
82185 - WIRE, BACK DOOR, NO.2
82185-13620	CDE120,ZZE121..JPP..RHD	10/2001 - 05/2004	1
82666L - HOLDER, CONNECTOR NO.9
82666-02120	CDE120,ZZE12#..JPP	10/2001 - 05/2004	1
Common parts
90119-06915
Linked diagrams
5804

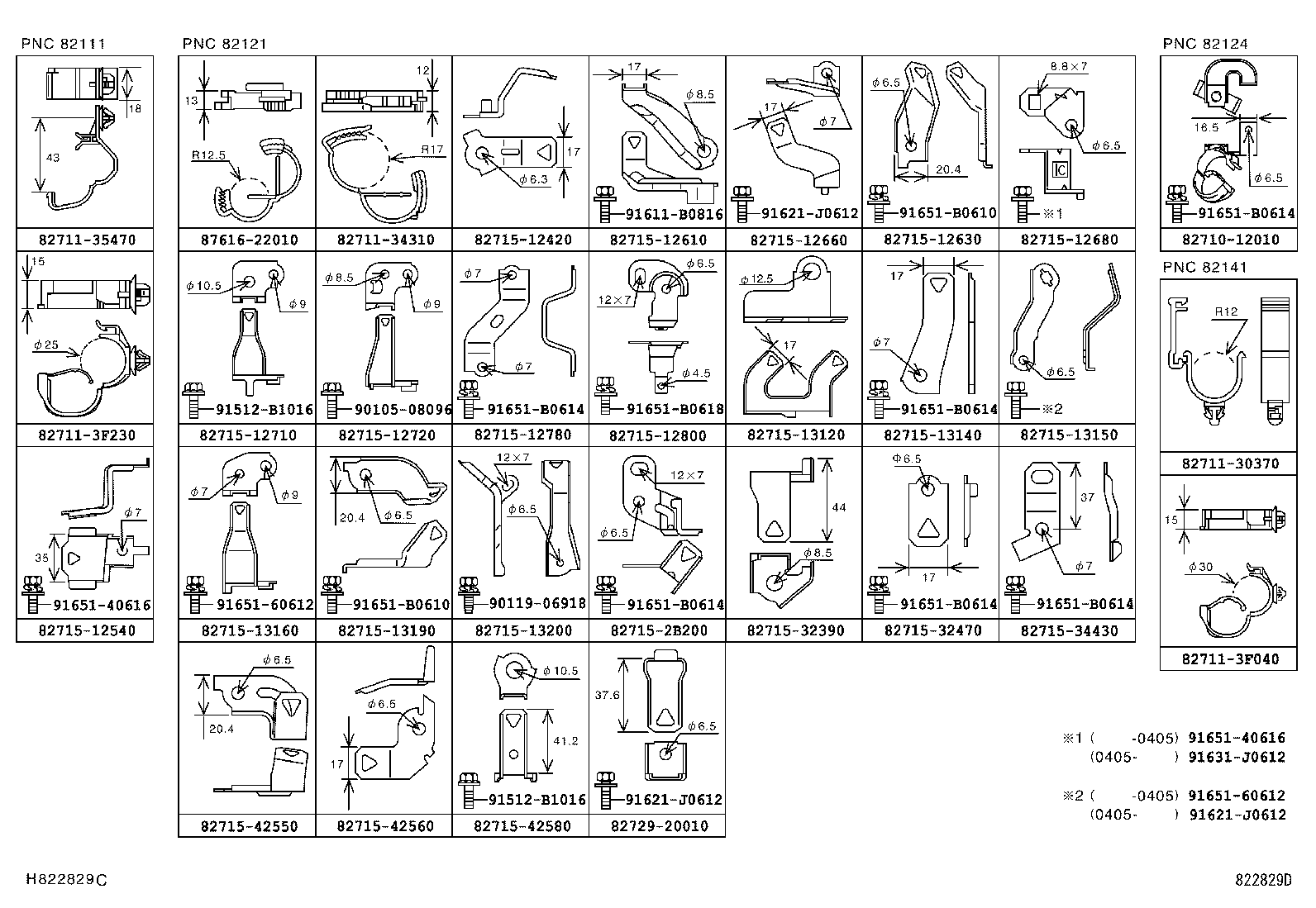

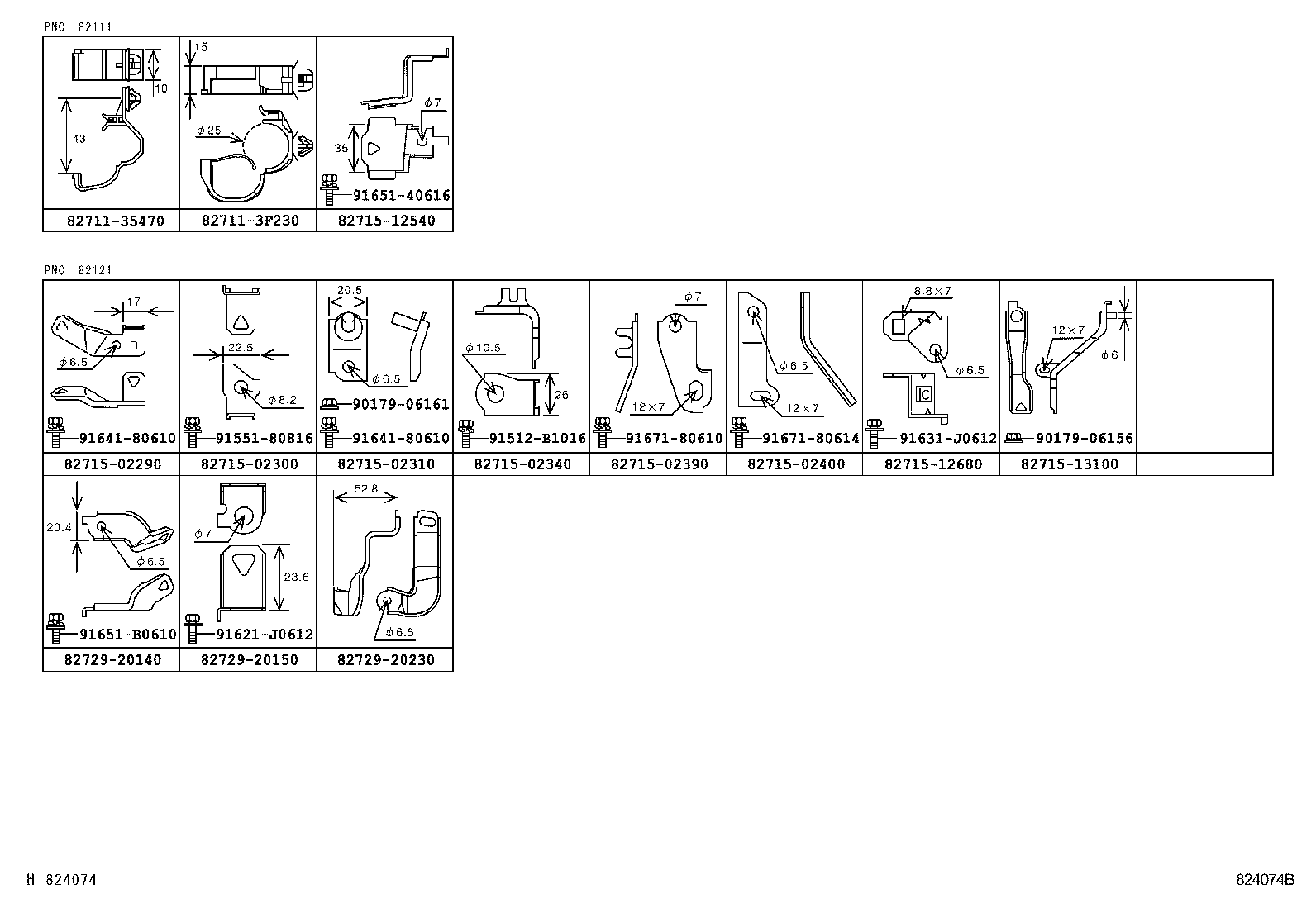

ILLUST NO. 5 OF 6(0110- )JPP

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82710-12010
82711-30370
82711-34310
82711-35470
82711-3F040
82711-3F230
82715-12420
82715-12540
82715-12610
82715-12630
82715-12660
82715-12680
82715-12710
82715-12720
82715-12780
82715-12800
82715-13120
82715-13140
82715-13150
82715-13160
82715-13190
82715-13200
82715-2B200
82715-32390
82715-32470
82715-34430
82715-42550
82715-42560
82715-42580
82729-20010
87616-22010
90105-08096
90119-06918
91512-B1016
91611-B0816
91621-J0612
91631-J0612
91651-40616
91651-60612
91651-B0610
91651-B0614
91651-B0618

ILLUST NO. 5 OF 6(0110- )JPP

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-35470
82711-3F230
82715-02290
82715-02300
82715-02310
82715-02340
82715-02390
82715-02400
82715-12540
82715-12680
82715-13100
82729-20140
82729-20150
82729-20230
90179-06156
90179-06161
91512-B1016
91551-80816
91621-J0612
91631-J0612
91641-80610
91651-40616
91651-B0610
91671-80610
91671-80614
