CDE120L-AWMNYW (2001)
Toyota Corolla Sed/Wg (Jpp)
Production
Oct 2001
-
May 2004
Engine
1CDFTV
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0110-0405)JPP

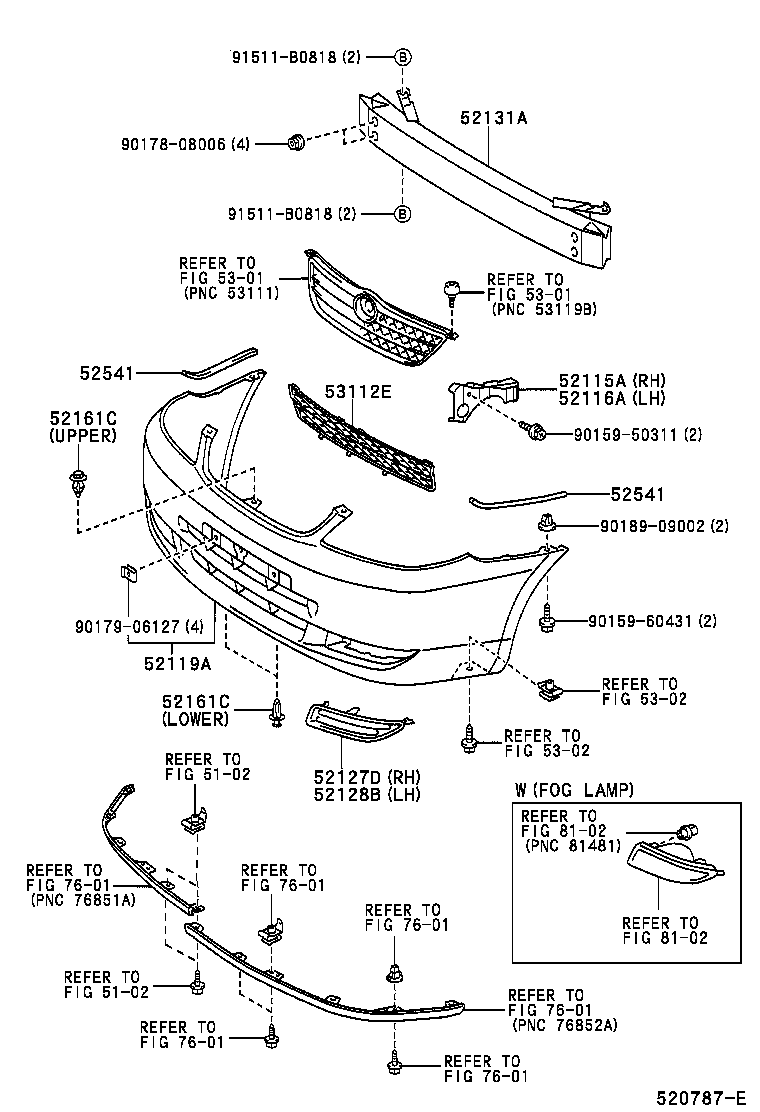

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-12380 |
CDE120,ZZE12#..JPP |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-12340 |
CDE120,ZZE12#..JPP |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-13907 |
CDE120,ZZE12#..JPP..LHD..WG W(FOG LAMP & HEADLAMP CLEANER) OR W(HEADLAMP CLEANER) |
1 | ||
| 52119-1E920 |
CDE120,ZZE12#..JPP |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-12170 |
CDE120,ZZE12#..JPP |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-12070 |
CDE120,ZZE12#..JPP |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52021-13020 |
CDE120,ZZE12#..JPP |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
CDE120,ZZE12#..JPP |
3 | ||
| 52161-16010 |
CDE120,ZZE12#..JPP LOWER |
2 | ||
| 90467-09093 |
CDE120,ZZE12#..JPP UPPER |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
CDE120,ZZE12#..JPP |
3 | ||
| 52161-16010 |
CDE120,ZZE12#..JPP LOWER |
2 | ||
| 90467-09093 |
CDE120,ZZE12#..JPP UPPER |
1 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-12020 |
CDE120,ZZE12#..JPP |
2 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-12020 |
CDE120,ZZE12#..JPP |
2 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-12110 |
CDE120,ZZE12#..JPP |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90159-60431 | ||||
| 90178-08006 | ||||
| 90179-06127 | ||||
| 90189-09002 | ||||
| 91511-B0818 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5301 | ||||
| 5302 | ||||
| 7601 | ||||
| 8102 | ||||
