CDE120L-AWMNYW (2001)

Toyota Corolla Sed/Wg (Jpp)

Production Oct 2001 - May 2004
Engine 1CDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0110-0405)JPP..5F

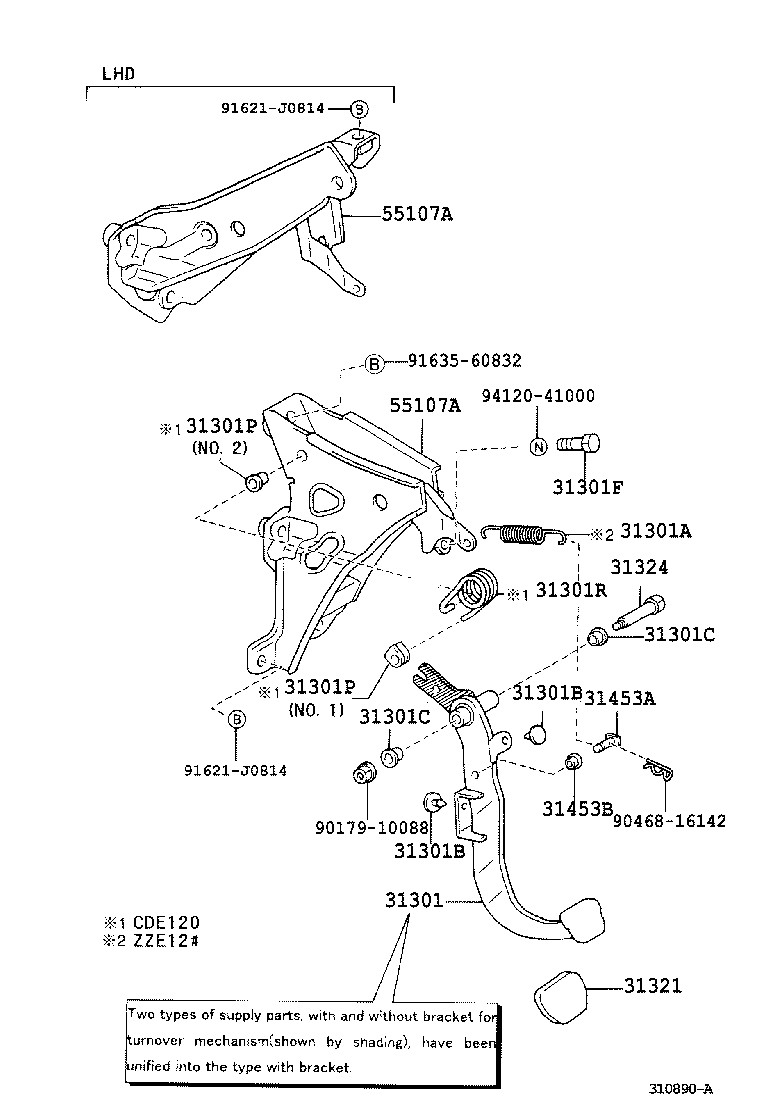

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301B 31301C 31301C 31301F 31301P 31301P 31301R 31321 31324 31453A 31453B 55107A 55107A 9017910088 9046816142 91621J0814 91621J0814 9163560832 9412041000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-12470

CDE120,ZZE12#..JPP..LHD..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

CDE120,ZZE12#..JPP..LHD..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

CDE120,ZZE12#..JPP..LHD..5F

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

CDE120,ZZE12#..JPP..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

CDE120,ZZE12#..JPP..5F

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

CDE120,ZZE12#..JPP..5F

 1
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90386-05017

CDE120..JPP

NO.1

 1
90389-05019

CDE120..JPP

NO.2

 1
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90386-05017

CDE120..JPP

NO.1

 1
90389-05019

CDE120..JPP

NO.2

 1
31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT)
90949-03100

CDE120..JPP

 1
31321 - PAD, CLUTCH PEDAL
31321-52010

CDE120,ZZE12#..JPP..5F

 1
31324 - SHAFT, CLUTCH PEDAL
90109-10167

CDE120,ZZE12#..JPP..5F

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08243

CDE120,ZZE12#..JPP..5F

L=30

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

CDE120,ZZE12#..JPP..5F

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-12220

CDE120,ZZE12#..JPP..LHD..5F

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-12220

CDE120,ZZE12#..JPP..LHD..5F

 1
Common parts
90179-10088
90468-16142
91621-J0814
91635-60832
94120-41000
