CDE120L-AWMDYW (2001)

Toyota Corolla Sed/Wg (Jpp)

Production Oct 2001 - May 2004
Engine 1CDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0110- )JPP

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

ILLUST NO. 1 OF 2(0110-0405)JPP..LHD

Click highlighted areas on diagram

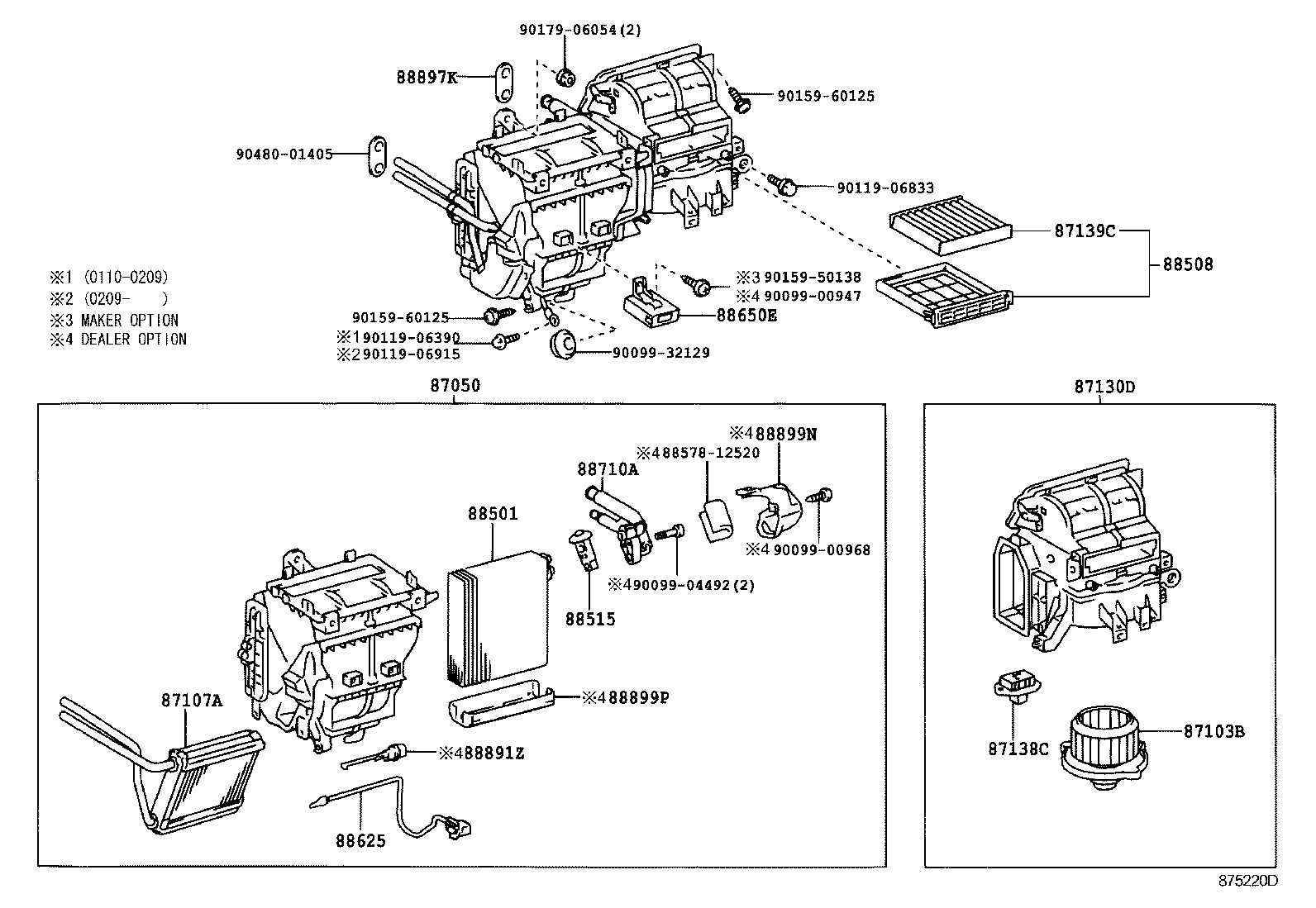

MANUAL AIR CONDITIONER

diagram 87050 87103B 87107A 87130D 87138C 87139C 88501 88508 88515 8857812520 88625 88650E 88710A 88891Z 88897K 88899N 88899P 9009900947 9009900968 9009904492 9009932129 9011906390 9011906833 9011906915 9015950138 9015960125 9015960125 9017906054 9048001405
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-13060

CDE120..JPP..LHD..TERRA

W(MANUAL AIR CONDITIONER)

 1
87050-13070

CDE120..JPP..LHD

 1
87050-13110

CDE120,ZZE12#..JPP..LHD..WG

COLD SPEC

 1
87050-13100

CDE120,ZZE12#..JPP..LHD..WG..TERRA

COLD SPEC & W(MANUAL AIR CONDITIONER)

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-12070

CDE120,ZZE12#..JPP..LHD

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-12560

CDE120..JPP..LHD

COLD SPEC

 1
87107-13020

CDE120..JPP..LHD

 1
87130D - BLOWER ASSY
87130-12460

CDE120,ZZE12#..JPP..LHD

 1
87138C - RESISTOR, BLOWER
87138-20360

CDE120,ZZE12#..JPP..LHD

 1
87139C - FILTER, CLEAN AIR
88568-13010

CDE120,ZZE12#..JPP

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12450

CDE120,ZZE12#..JPP..LHD

 1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-13010

CDE120,ZZE12#..JPP..WG

 1
88515 - VALVE, COOLER EXPANSION
88515-27020

ZZE121..JPP;CDE120,ZZE120..JPP..LHD

MAKER OPTION

 1
88515-28160

ZZE121..JPP;CDE120,ZZE120..JPP..LHD

MAKER OPTION

 1
88515-48040

CDE120..JPP..TERRA

 1
88625 - THERMISTOR, COOLER, NO.1
88625-60140

CDE120,ZZE12#..JPP

 1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-1E410

CDE120,ZZE12#..JPP

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-12550

CDE120,ZZE12#..JPP..LHD

 1
88891Z - BRACKET, COOLER THERMISTOR
88891-32100

CDE120..JPP

 1
88897K - GROMMET, (FOR COOLER PIPE)
90480-01434

CDE120,ZZE12#..JPP

 1
88899N - PLATE, COVER
88899-12440

CDE120..JPP..LHD

 1
88899P - PLATE, COVER
88899-12450

CDE120..JPP

 1
Common parts
88578-12520
90099-00947
90099-00968
90099-04492
90099-32129
90119-06390
90119-06833
90119-06915
90159-50138
90159-60125
90179-06054
90480-01405

ILLUST NO. 1 OF 2(0110-0405)JPP..LHD

Click highlighted areas on diagram

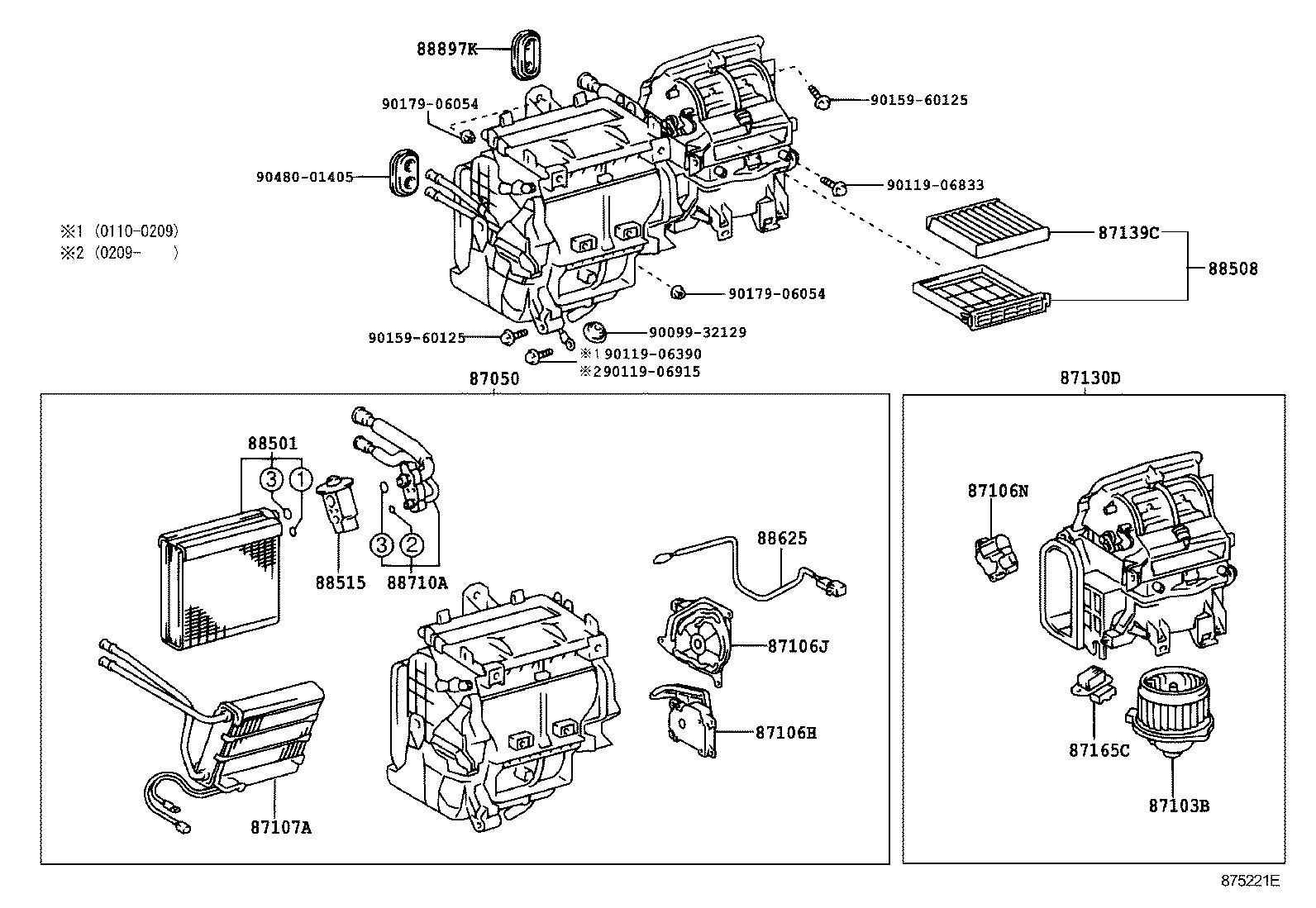

AUTO AIR CONDITIONER

diagram 87050 87103B 87106H 87106J 87106N 87107A 87130D 87139C 87165C 88501 88508 88515 88625 88710A 88897K 9009932129 9011906390 9011906833 9011906915 9015960125 9015960125 9017906054 9017906054 9048001405
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-13060

CDE120..JPP..LHD..TERRA

W(MANUAL AIR CONDITIONER)

 1
87050-13070

CDE120..JPP..LHD

 1
87050-13110

CDE120,ZZE12#..JPP..LHD..WG

COLD SPEC

 1
87050-13100

CDE120,ZZE12#..JPP..LHD..WG..TERRA

COLD SPEC & W(MANUAL AIR CONDITIONER)

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-12070

CDE120,ZZE12#..JPP..LHD

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-12560

CDE120..JPP..LHD

COLD SPEC

 1
87107-13020

CDE120..JPP..LHD

 1
87130D - BLOWER ASSY
87130-12460

CDE120,ZZE12#..JPP..LHD

 1
87139C - FILTER, CLEAN AIR
88568-13010

CDE120,ZZE12#..JPP

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12450

CDE120,ZZE12#..JPP..LHD

 1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-13010

CDE120,ZZE12#..JPP..WG

 1
88515 - VALVE, COOLER EXPANSION
88515-27020

ZZE121..JPP;CDE120,ZZE120..JPP..LHD

MAKER OPTION

 1
88515-28160

ZZE121..JPP;CDE120,ZZE120..JPP..LHD

MAKER OPTION

 1
88515-48040

CDE120..JPP..TERRA

 1
88625 - THERMISTOR, COOLER, NO.1
88625-60140

CDE120,ZZE12#..JPP

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-12550

CDE120,ZZE12#..JPP..LHD

 1
88897K - GROMMET, (FOR COOLER PIPE)
90480-01434

CDE120,ZZE12#..JPP

 1
Common parts
90099-32129
90119-06390
90119-06833
90119-06915
90159-60125
90179-06054
90480-01405
