CDE120L-AWMDYW (2001)

Toyota Corolla Sed/Wg (Jpp)

Production Oct 2001 - May 2004
Engine 1CDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0110-0405)JPP

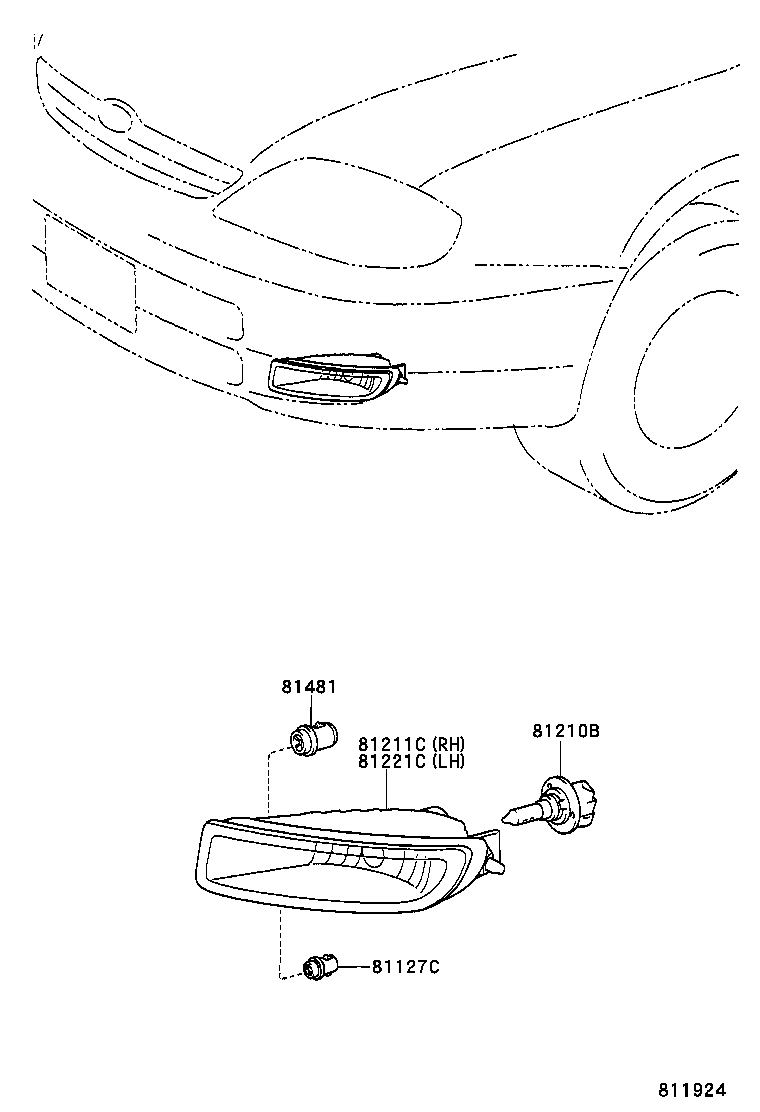

Click highlighted areas on diagram

diagram 81127C 81210B 81211C 81221C 81481
Part # Description Qty Price
81127C - BEARING FOG LAMP
90075-10811

CDE120,ZZE12#..JPP

 2
81210B - BULB, FOG LAMP
90981-13047

CDE120,ZZE12#..JPP

12V 51W,HALOGEN

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-12150

CDE120,ZZE12#..JPP

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-12160

CDE120,ZZE12#..JPP

 1
81481 - BRACKET, FOG LAMP
81481-10030

CDE120,ZZE12#..JPP

 2
