CDE120L-AWMDYW (2001)

Toyota Corolla Sed/Wg (Jpp)

Production Oct 2001 - May 2004
Engine 1CDFTV
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0110- )JPP

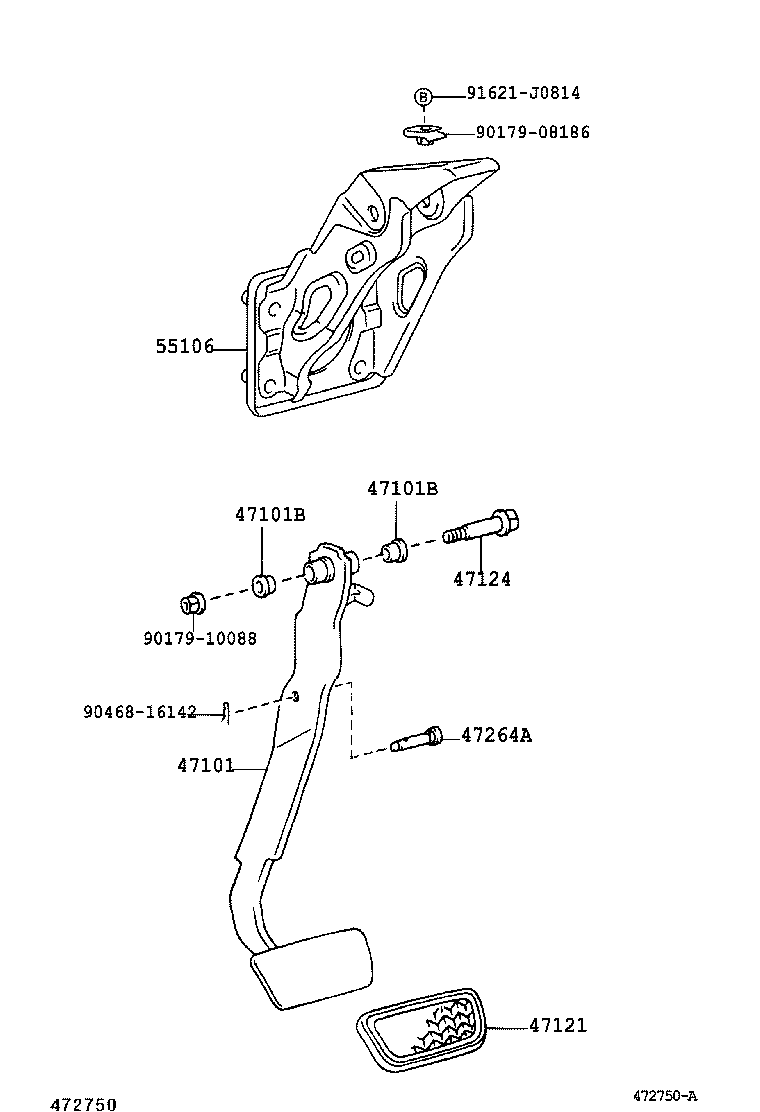

Click highlighted areas on diagram

diagram 47101 47101B 47101B 47121 47124 47264A 55106 9017908186 9017910088 9046816142 91621J0814
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-12610

CDE120,ZZE12#..JPP..LHD..5F

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

CDE120,ZZE12#..JPP

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

CDE120,ZZE12#..JPP

 2
47121 - PAD, BRAKE PEDAL
31321-52010

CDE120,ZZE12#..JPP..5F

 1
47124 - SHAFT, BRAKE PEDAL
90109-10174

CDE120,ZZE12#..JPP

 1
47264A - PIN(FOR PUSH ROD)
47148-12070

CDE120,ZZE12#..JPP

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-12660

CDE120,ZZE12#..JPP..LHD

 1
Common parts
90179-08186
90179-10088
90468-16142
91621-J0814
