Toyota Corolla sed/wg (jpp) CDE120 STARTER

CDE120L-AWMDYW (2001)

Toyota Corolla Sed/Wg (Jpp)

Production Oct 2001 - May 2004

Engine 1CDFTV

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

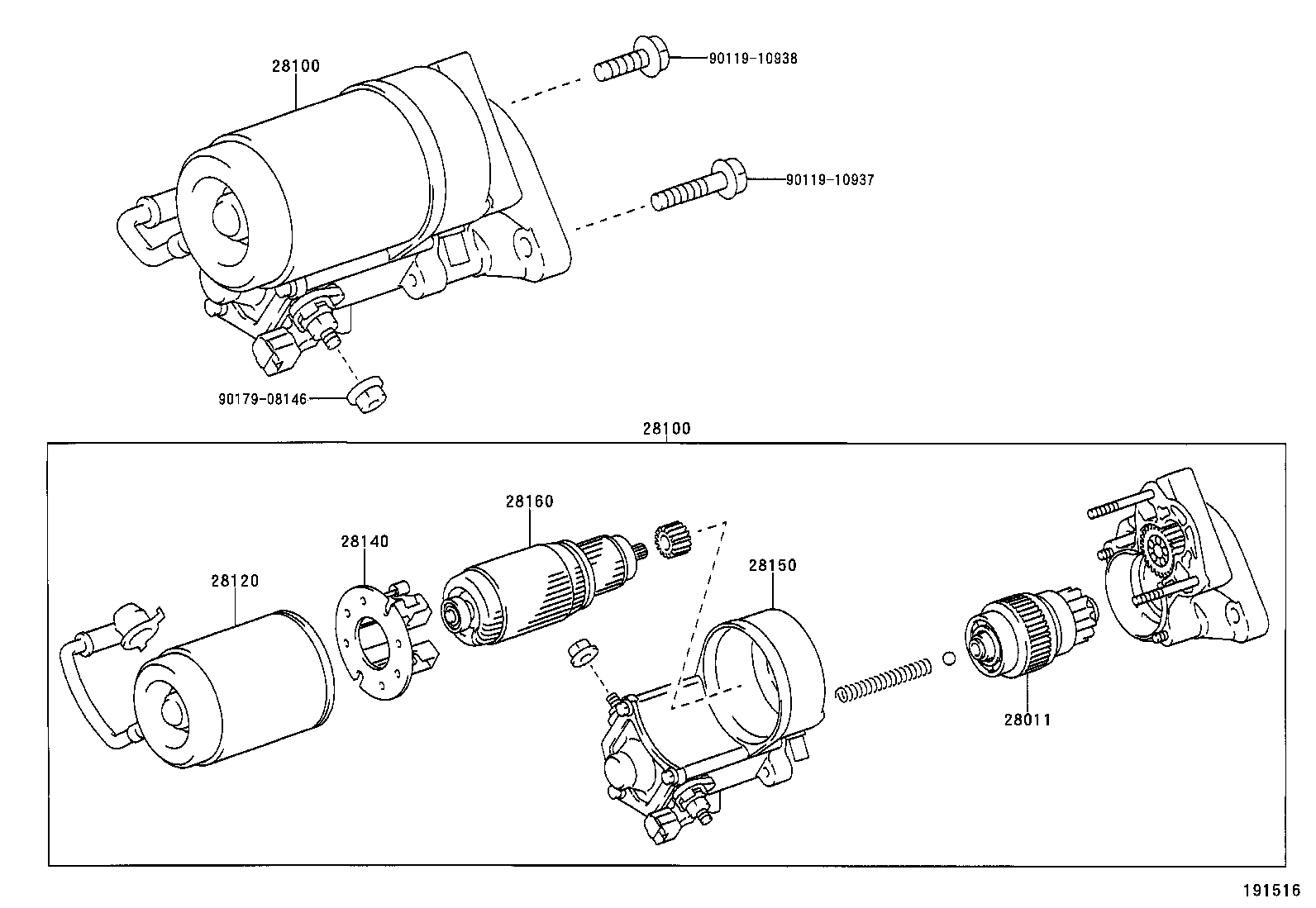

Click highlighted areas on diagram

12V 1.4KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-64020	1CDFTV..CDE120..JPP 12V 2.2KW	10/2001 - 05/2004	1
28011-64130	1CDFTV..CDE120..JPP 12V 1.4KW	10/2001 - 05/2004	1
28100 - STARTER ASSY
28100-64430	1CDFTV..CDE120..JPP 12V 2.2KW	10/2001 - 05/2004	1
28100-64300	1CDFTV..CDE120..JPP 12V 1.4KW	10/2001 - 05/2004	1
28100 - STARTER ASSY
28100-64430	1CDFTV..CDE120..JPP 12V 2.2KW	10/2001 - 05/2004	1
28100-64300	1CDFTV..CDE120..JPP 12V 1.4KW	10/2001 - 05/2004	1
28120 - YOKE ASSY, STARTER
28120-55050	1CDFTV..CDE120..JPP 12V 1.4KW	10/2001 - 05/2004	1
28120-64040	1CDFTV..CDE120..JPP 12V 2.2KW	10/2001 - 05/2004	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-64130	1CDFTV..CDE120..JPP 12V 1.4KW	10/2001 - 05/2004	1
28140-64040	1CDFTV..CDE120..JPP 12V 2.2KW	10/2001 - 05/2004	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-64430	1CDFTV..CDE120..JPP 12V 2.2KW	10/2001 - 05/2004	1
28150-64341	1CDFTV..CDE120..JPP 12V 1.4KW	10/2001 - 05/2004	1
28160 - ARMATURE ASSY, STARTER
28160-74070	1CDFTV..CDE120..JPP 12V 1.4KW	10/2001 - 05/2004	1
28160-64041	1CDFTV..CDE120..JPP 12V 2.2KW	10/2001 - 05/2004	1
Common parts
90119-10937
90119-10938
90179-08146

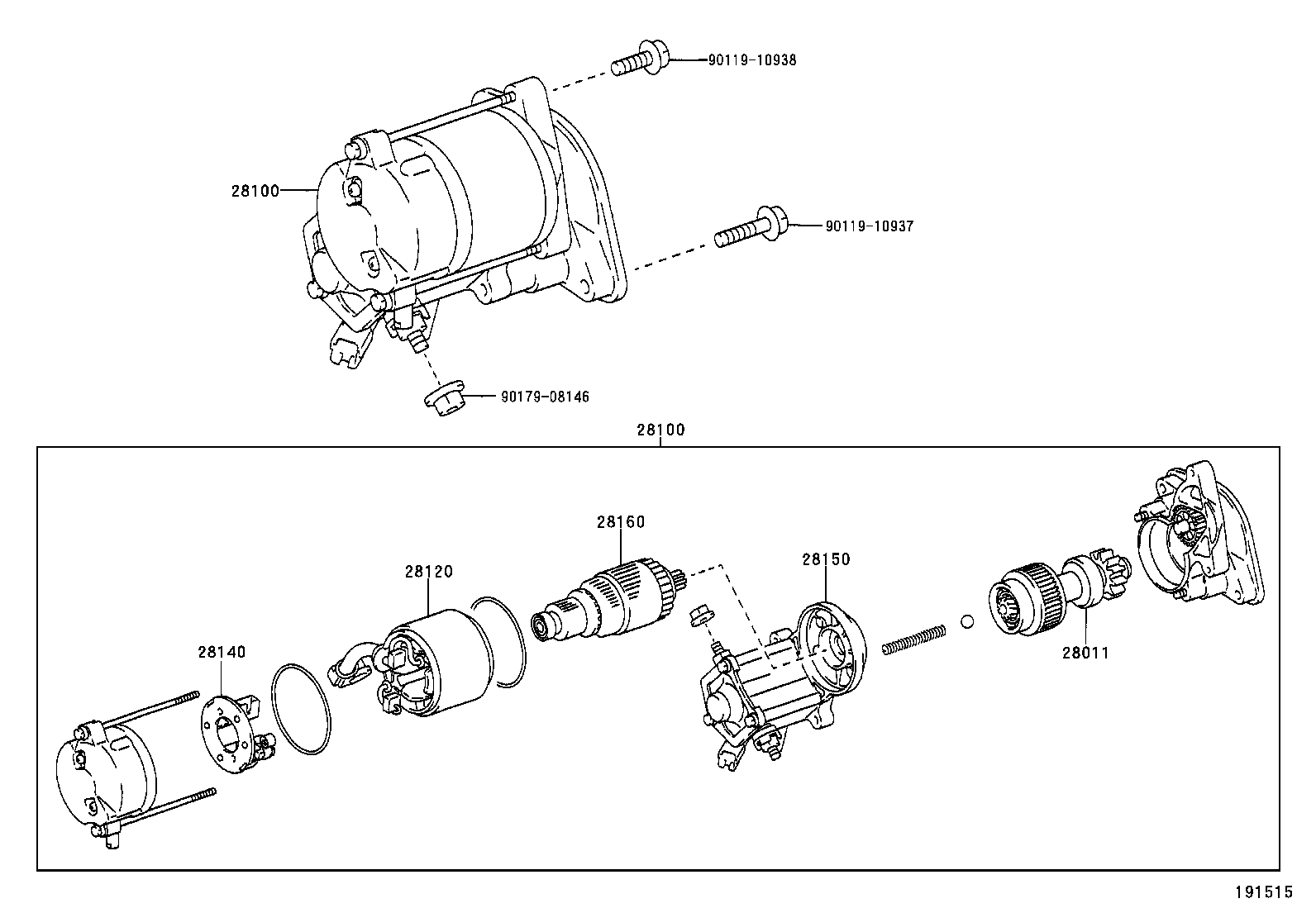

Click highlighted areas on diagram

12V 2.2KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-64020	1CDFTV..CDE120..JPP 12V 2.2KW	10/2001 - 05/2004	1
28011-64130	1CDFTV..CDE120..JPP 12V 1.4KW	10/2001 - 05/2004	1
28100 - STARTER ASSY
28100-64430	1CDFTV..CDE120..JPP 12V 2.2KW	10/2001 - 05/2004	1
28100-64300	1CDFTV..CDE120..JPP 12V 1.4KW	10/2001 - 05/2004	1
28100 - STARTER ASSY
28100-64430	1CDFTV..CDE120..JPP 12V 2.2KW	10/2001 - 05/2004	1
28100-64300	1CDFTV..CDE120..JPP 12V 1.4KW	10/2001 - 05/2004	1
28120 - YOKE ASSY, STARTER
28120-55050	1CDFTV..CDE120..JPP 12V 1.4KW	10/2001 - 05/2004	1
28120-64040	1CDFTV..CDE120..JPP 12V 2.2KW	10/2001 - 05/2004	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-64130	1CDFTV..CDE120..JPP 12V 1.4KW	10/2001 - 05/2004	1
28140-64040	1CDFTV..CDE120..JPP 12V 2.2KW	10/2001 - 05/2004	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-64430	1CDFTV..CDE120..JPP 12V 2.2KW	10/2001 - 05/2004	1
28150-64341	1CDFTV..CDE120..JPP 12V 1.4KW	10/2001 - 05/2004	1
28160 - ARMATURE ASSY, STARTER
28160-74070	1CDFTV..CDE120..JPP 12V 1.4KW	10/2001 - 05/2004	1
28160-64041	1CDFTV..CDE120..JPP 12V 2.2KW	10/2001 - 05/2004	1
Common parts
90119-10937
90119-10938
90179-08146
